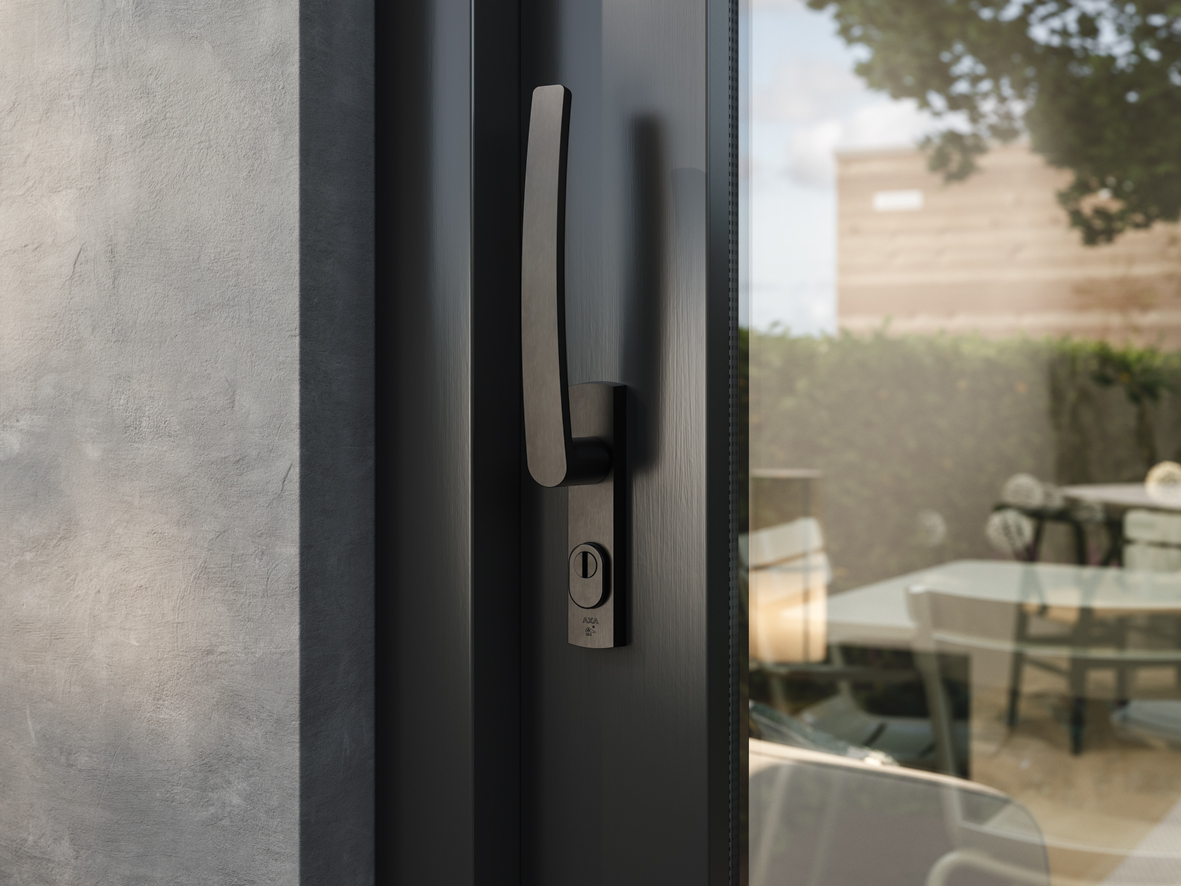

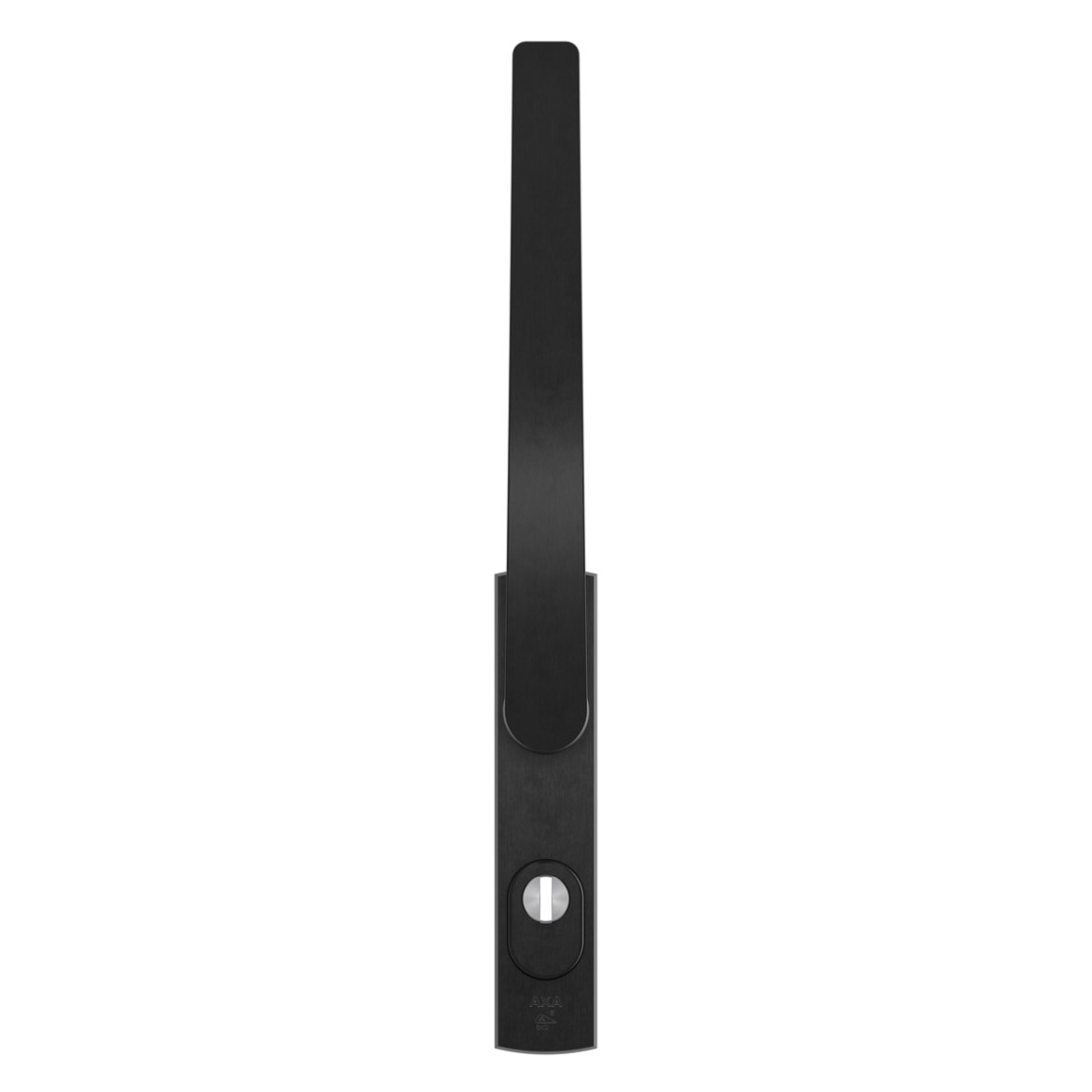

Security backplate Curve Plus handle Blok outside PC69 core protection slide door

6745-95-18/69KS
arrow_selector
close

SKG 3

Police Hallmark

Reliable and stylish Curve Plus security backplate.

  • sturdy and reliable
  • finely polished and less sensitive to scratches
  • seal prevents damage to the paintwork
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Commercial information
expand_more
Type Curve Plus handle Blok outside PC69 core protection slide door
Use for lift-slide doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable False
Technical information
expand_more
Product Length 180 mm
Product Length 2 297 mm
Product Width 38 mm
Thickness outside 15 mm
Shape curved
Outside handle-Pusher-Knob type handle Block
Handle length 260 mm
Handle depth 75 mm
Handle assembly handle integrated in backplate/rosettes
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Polished anodised F8, black
Assembly information
expand_more
Including Mounting Material False
Assembly time 5 min
Logistic information
expand_more
Pieces per small package 1 piece
EAN small package 8713249352565
Weight small package 0.772 kg
Dimensions small package 318 x 105 x 50 mm
Pieces per bulk package 5 piece
EAN bulk package 8713249352572
Dimensions bulk package 320 x 280 x 160 mm

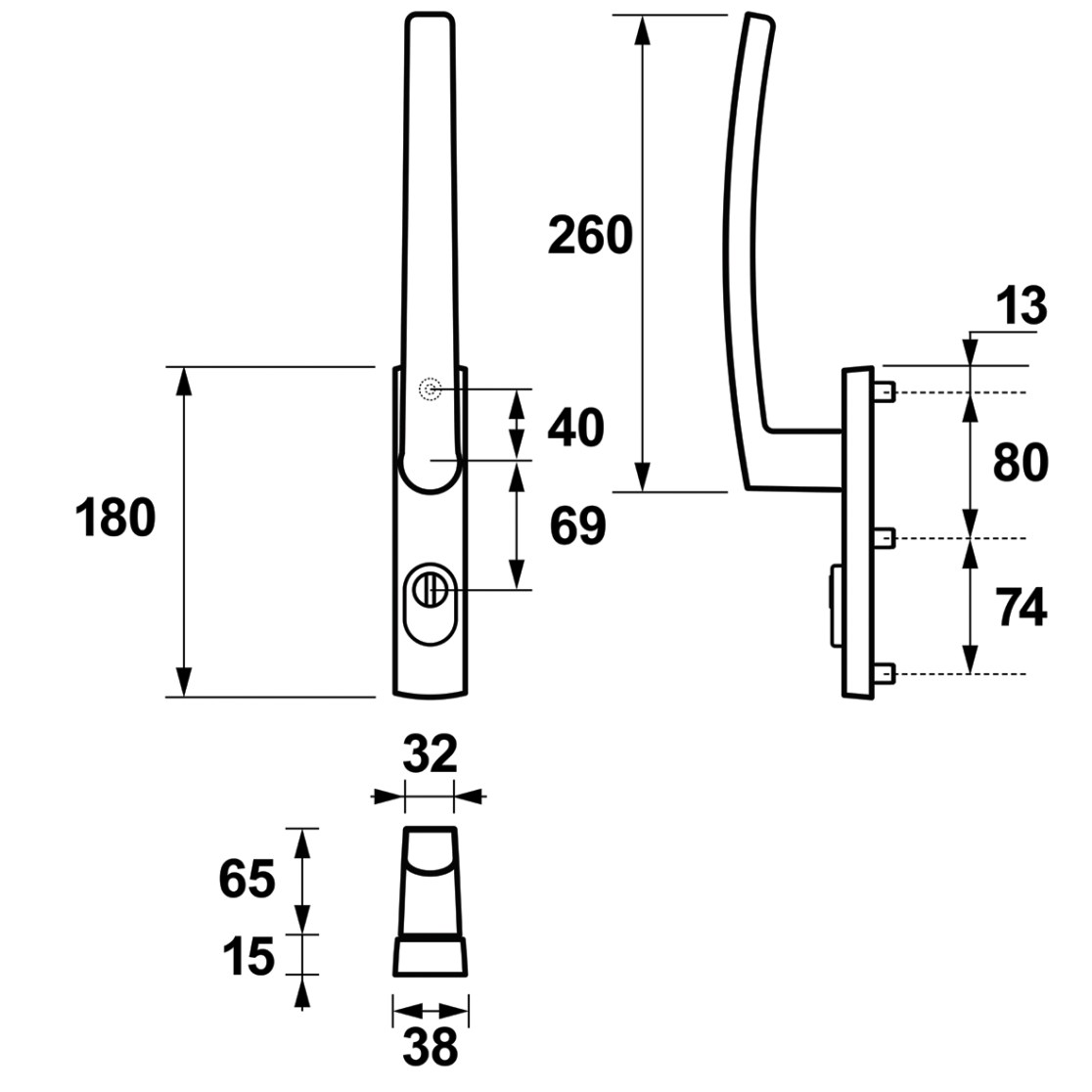

Technical drawings
Security backplate Curve Plus handle Blok outside PC69 core protection slide door
6745951869KS

Associated products

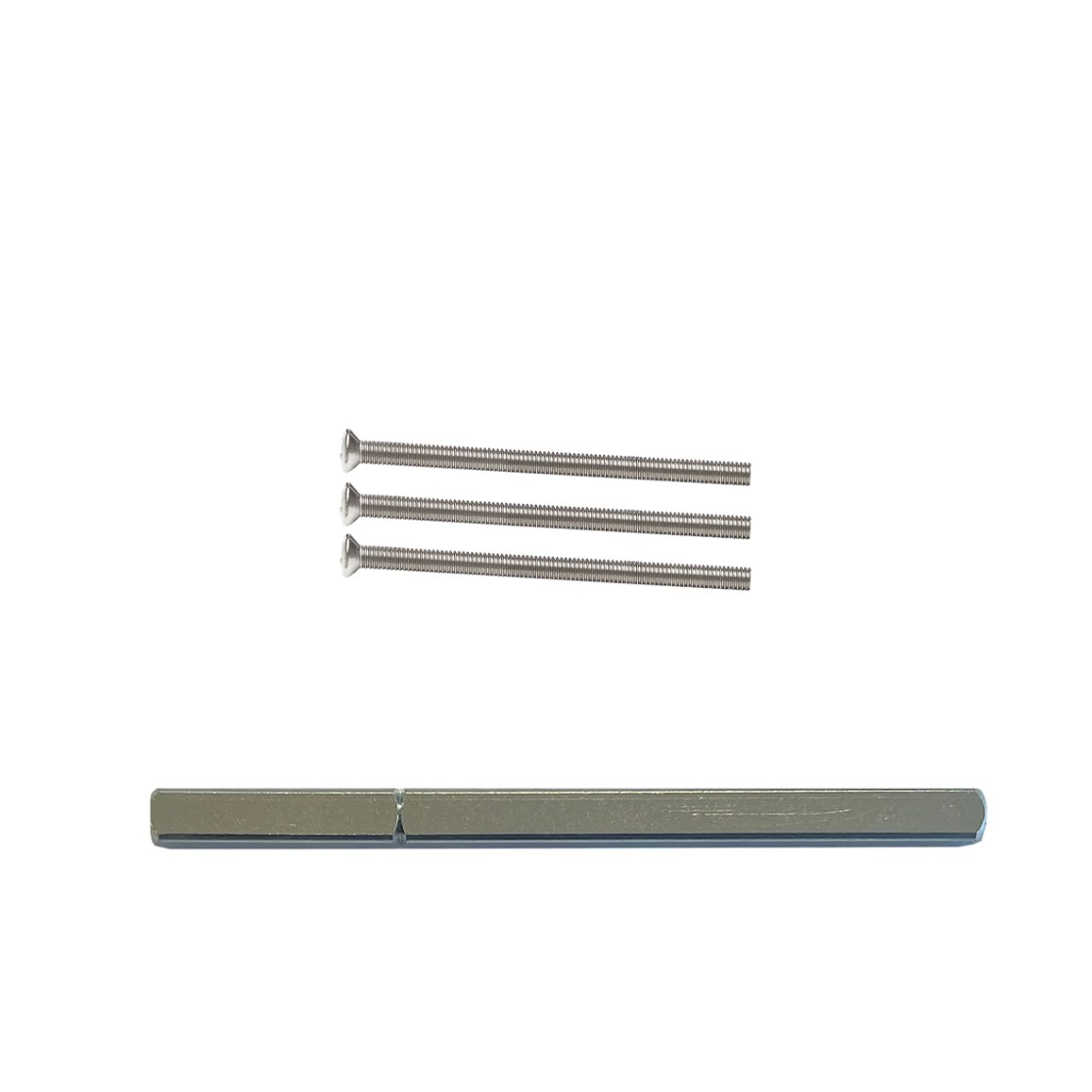

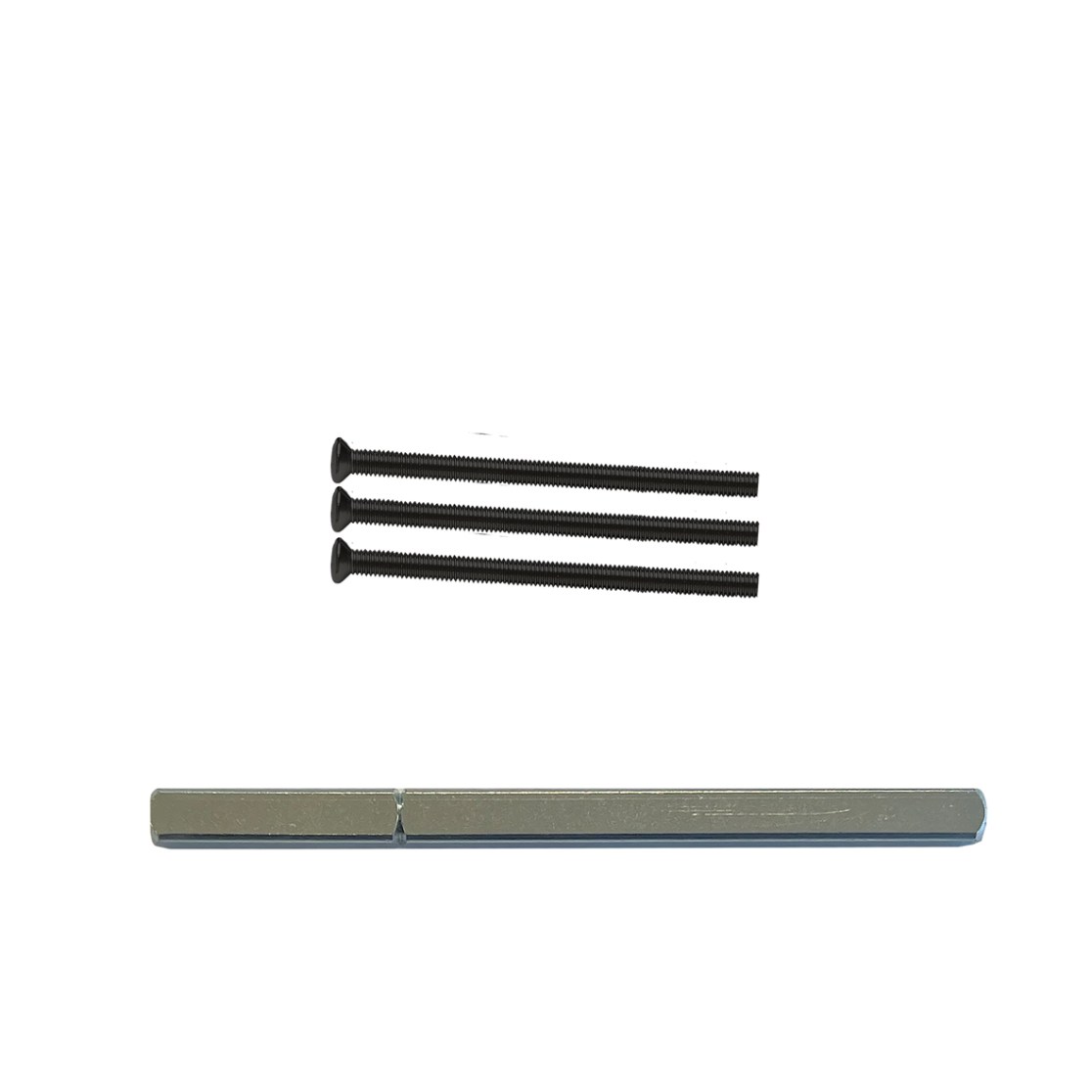

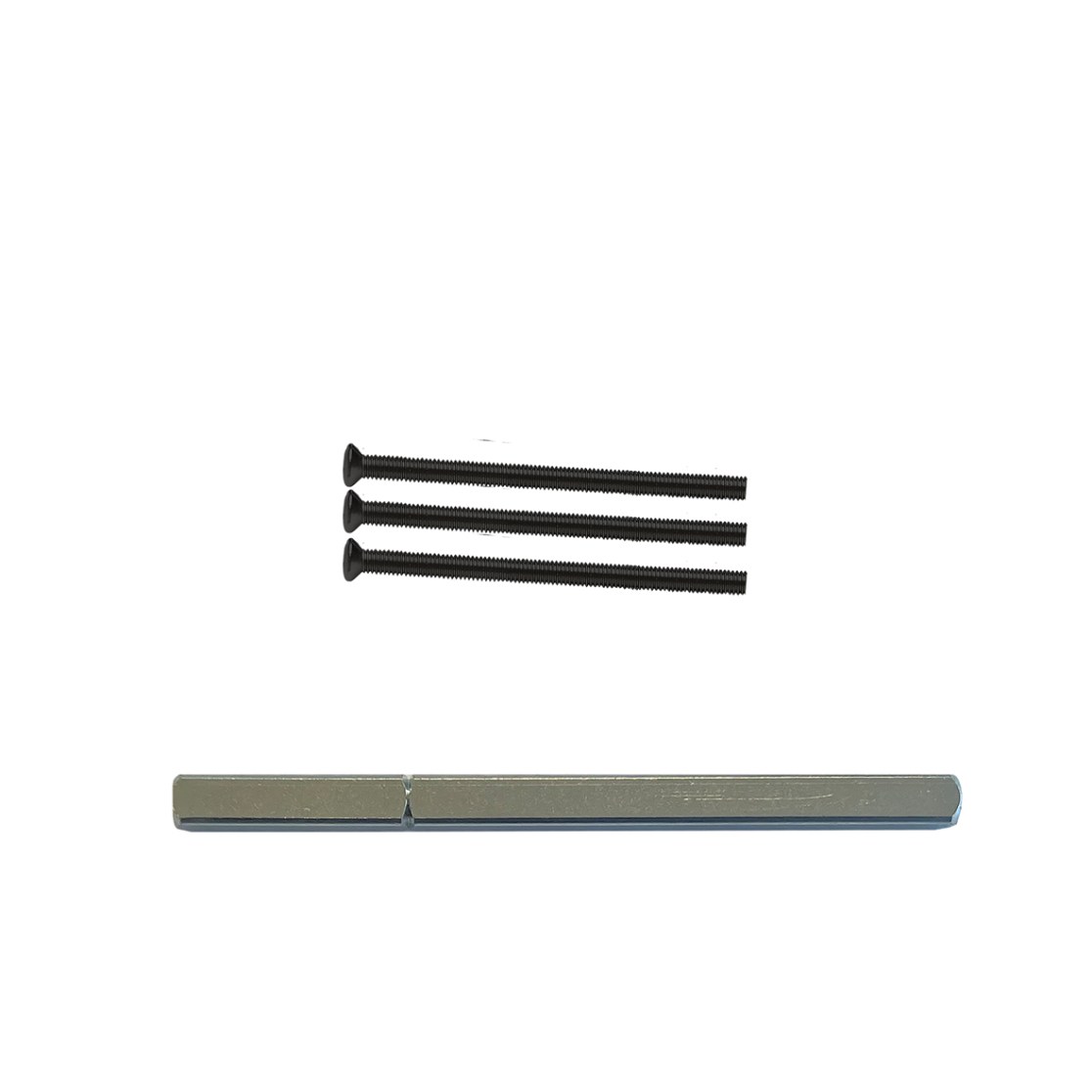

Spindle + set of bolts 10×160+M6x100 (3x)

6741-67-57/E

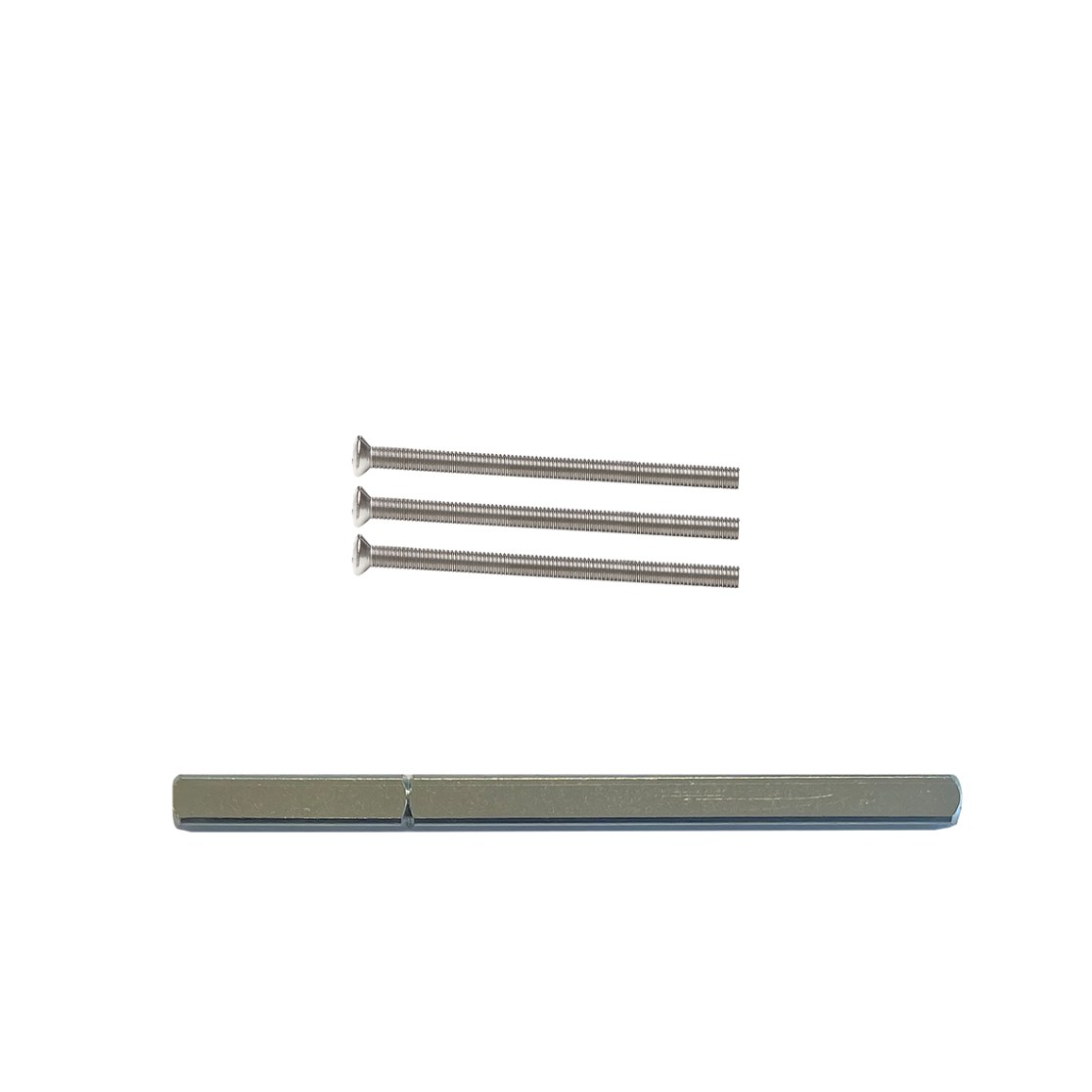

Spindle + set of bolts 10×160+M6x100 (3x)

6741-67-23/E

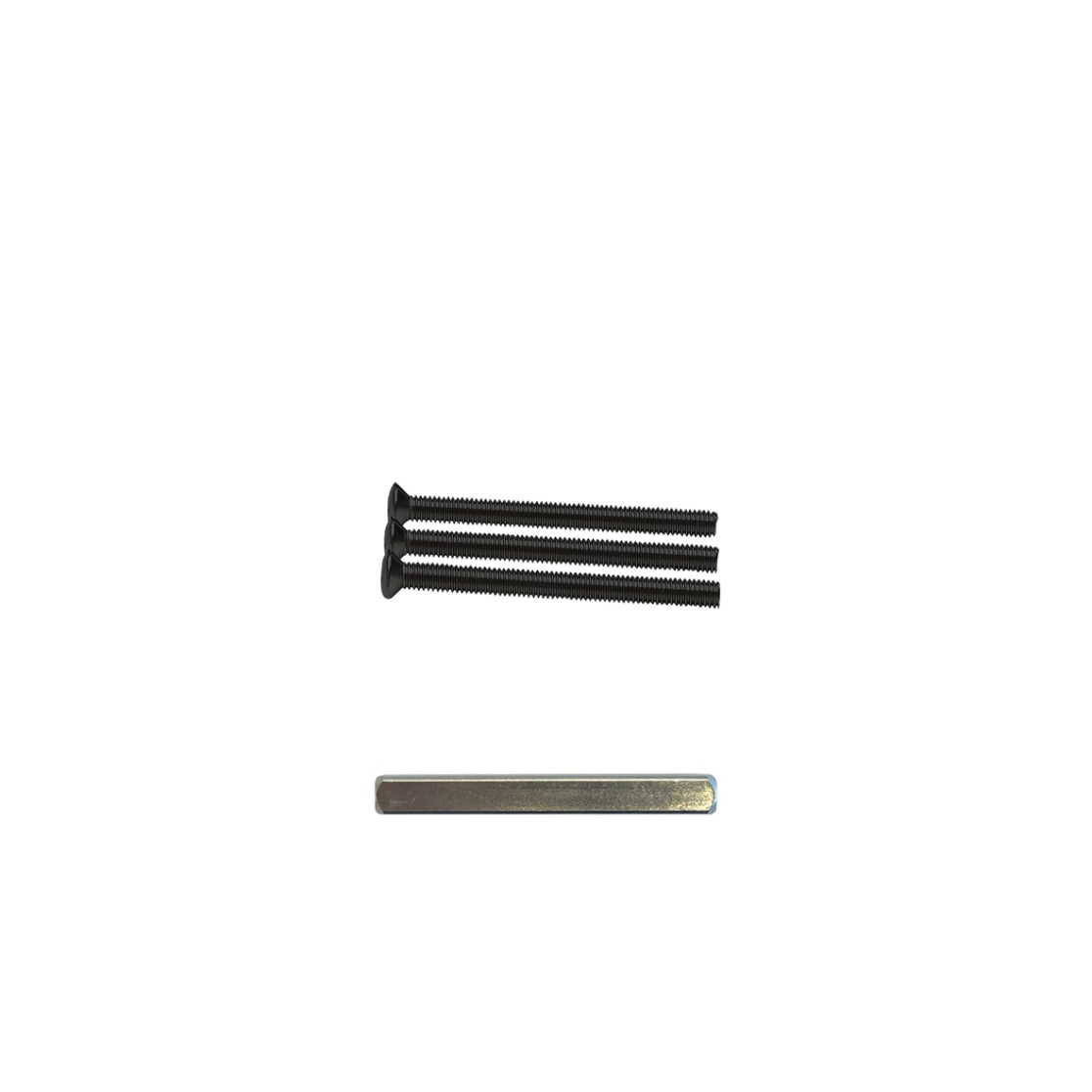

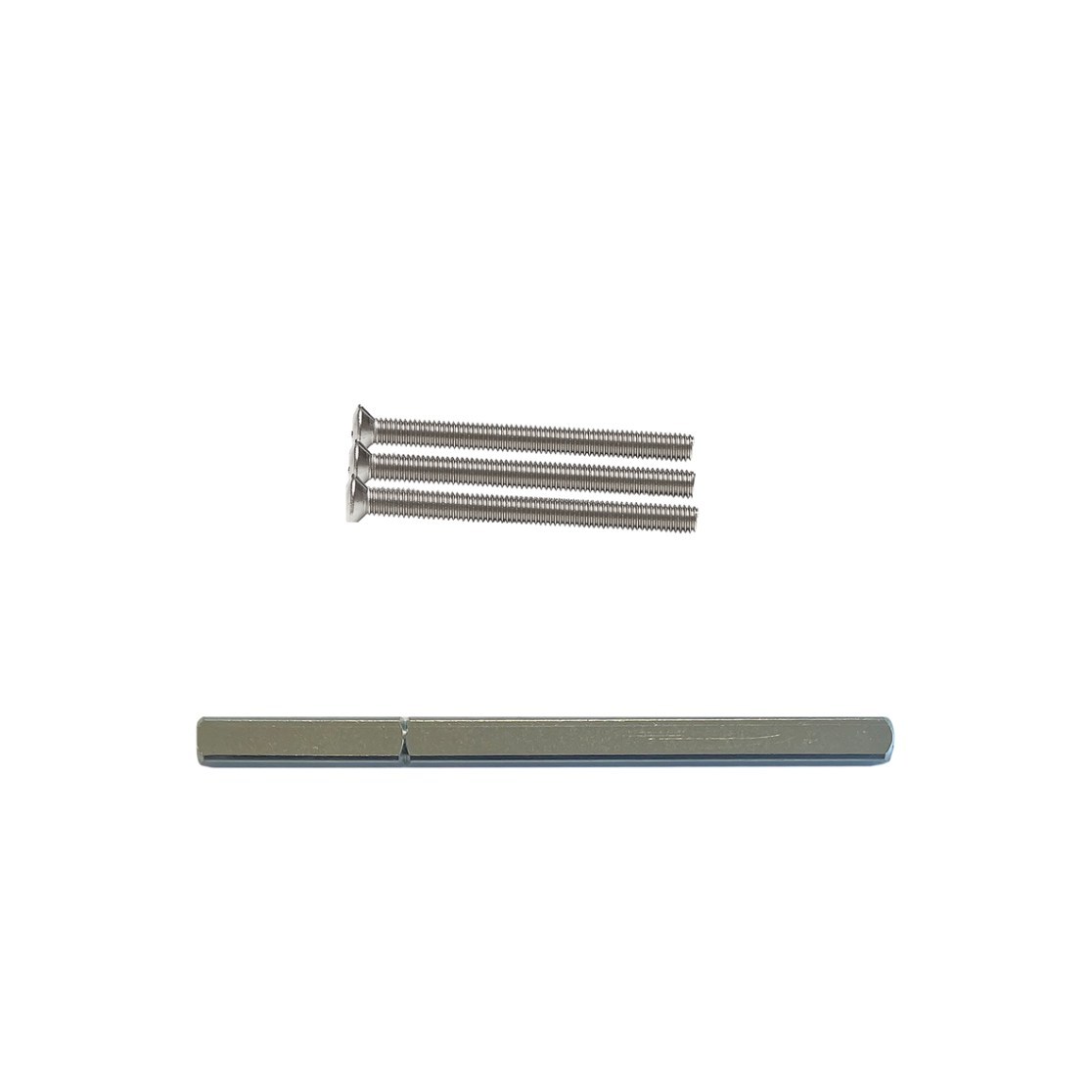

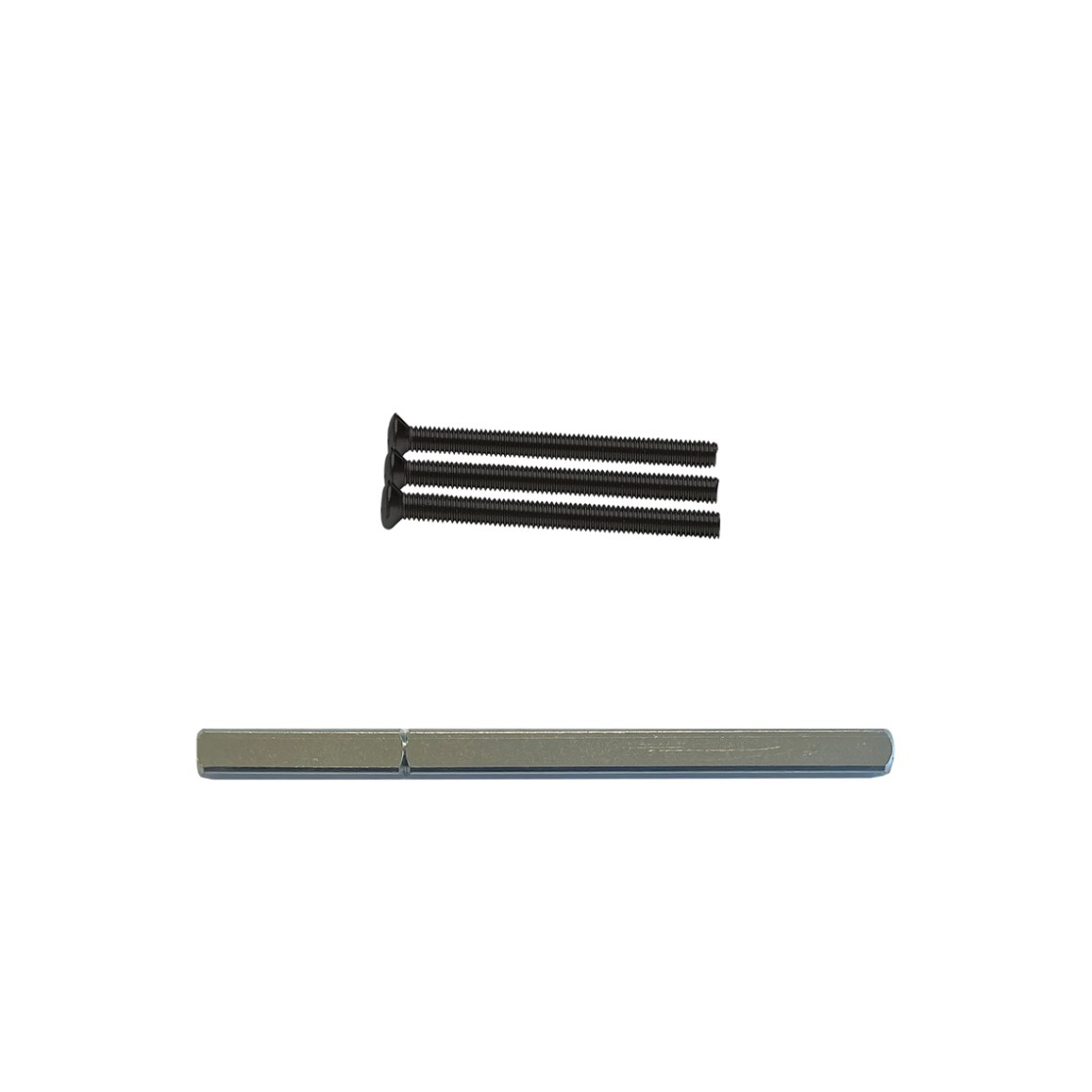

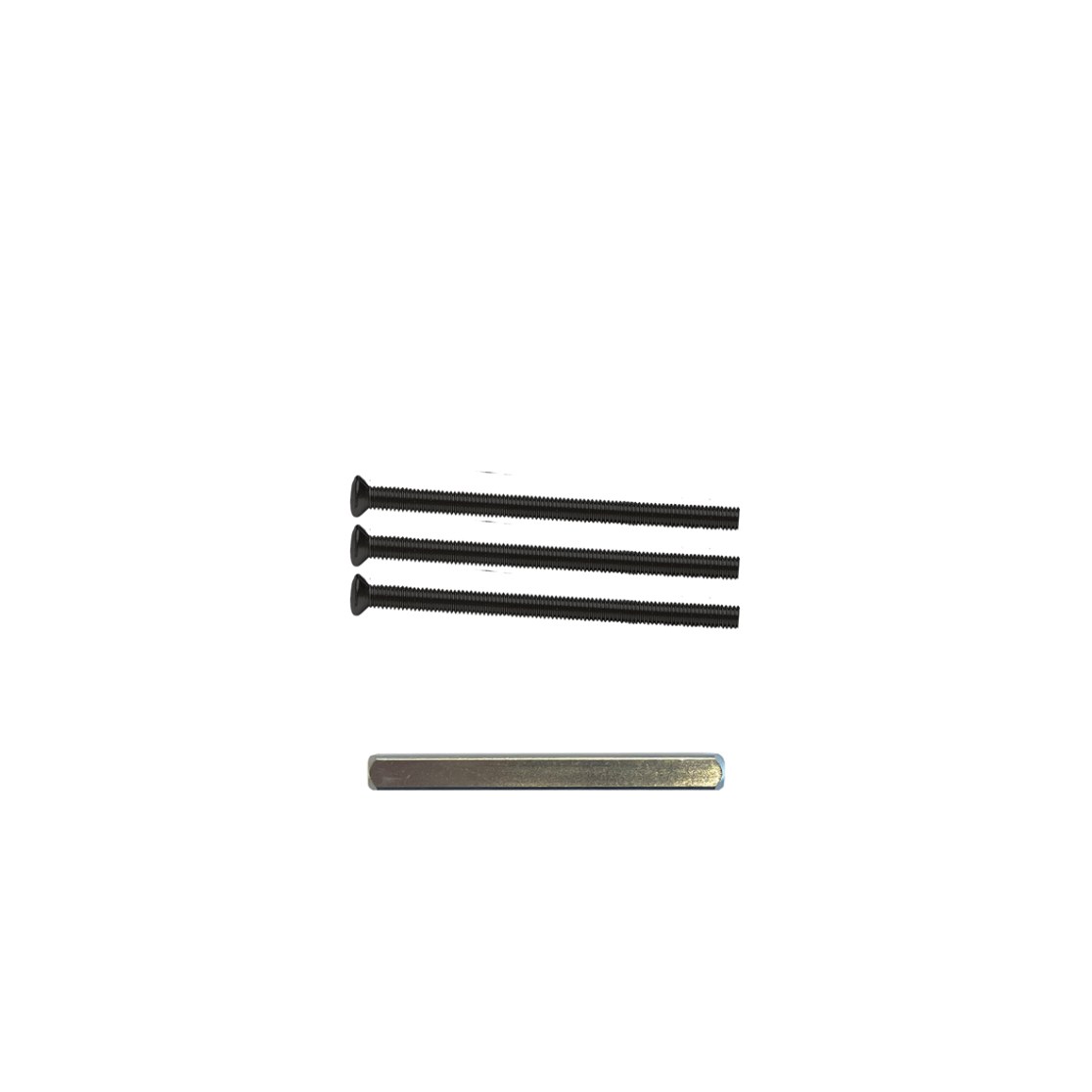

Half spindle + set of bolts 10×75+M6x70 (3x)

6740-77-57/E

Half spindle + set of bolts 10×100+M6x100 (3x)

6740-07-57/E

Half spindle + set of bolts 10×75+M6x70 (3x)

6740-77-23/E

Half spindle + set of bolts 10×100+M6x100 (3x)

6740-07-23/E

Half spindle + set of bolts 10×85+M6x90 (3x)

6740-97-23/E

Half spindle + set of bolts 10×85+M6x90 (3x)

6740-97-57/E

Alternative products

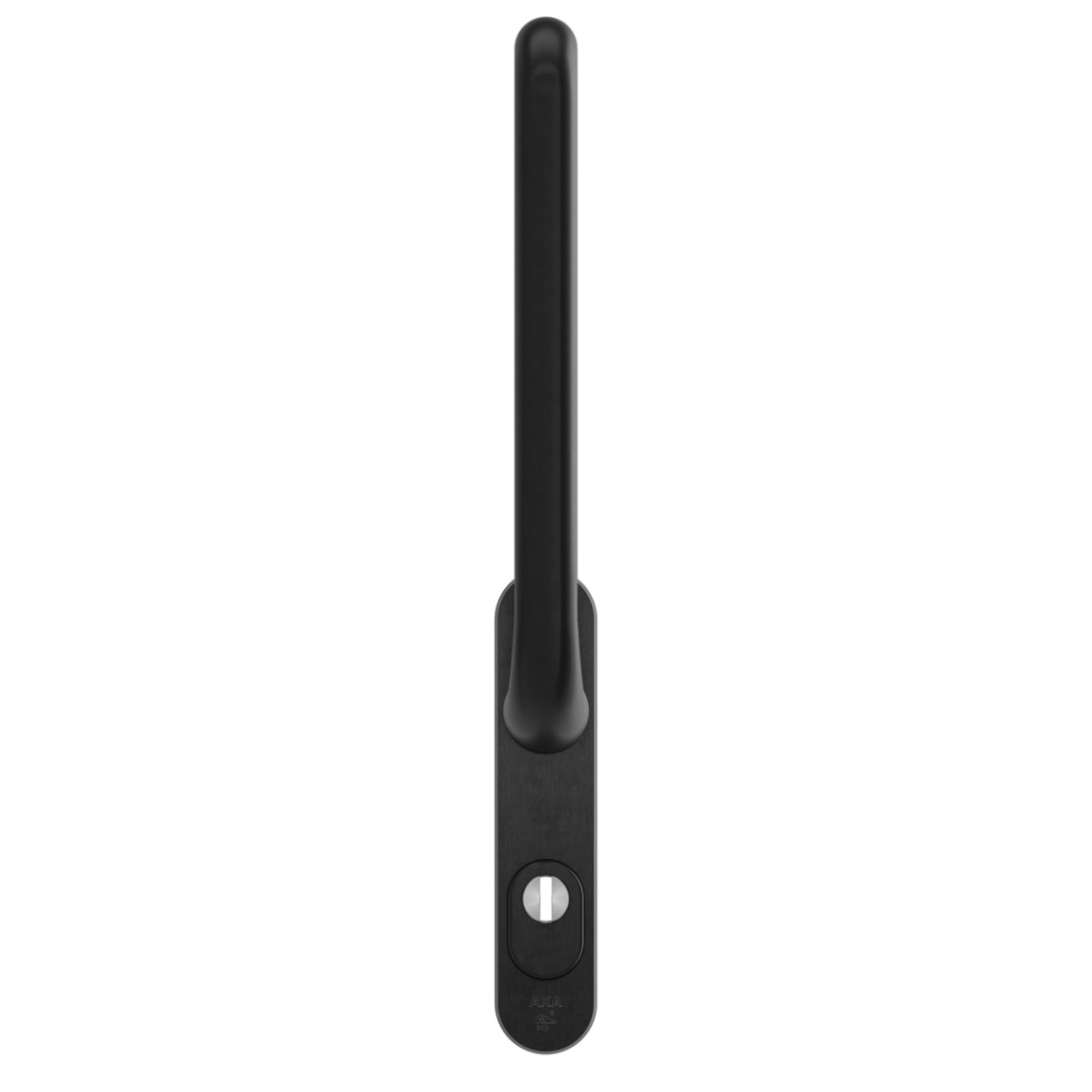

Security backplate Oval Plus handle U outside PC69 core protection slide door

6748-95-18/69US

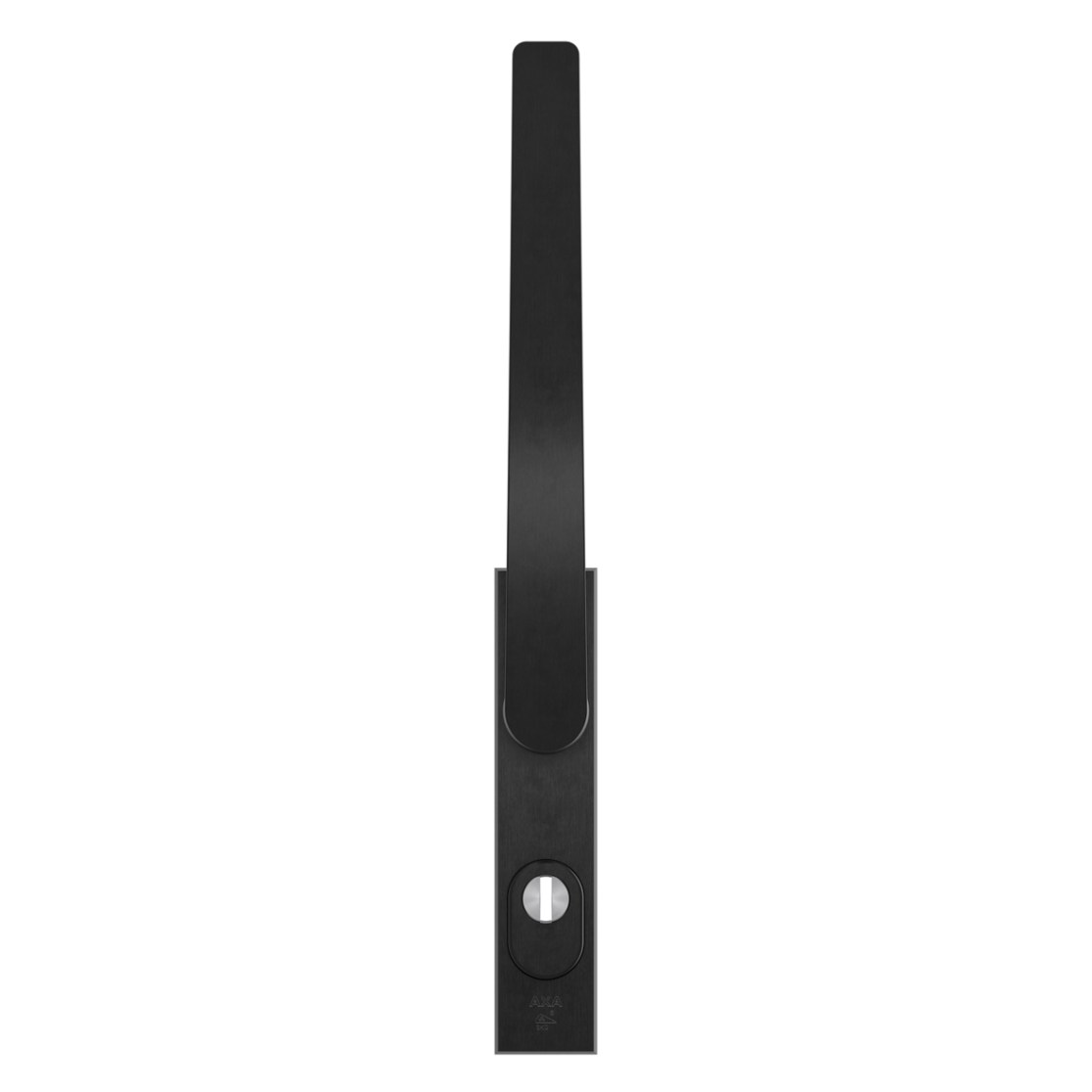

Security backplate Edge Plus handle Blok outside PC69 core protection slide door

6747-95-18/69KS

Similar products

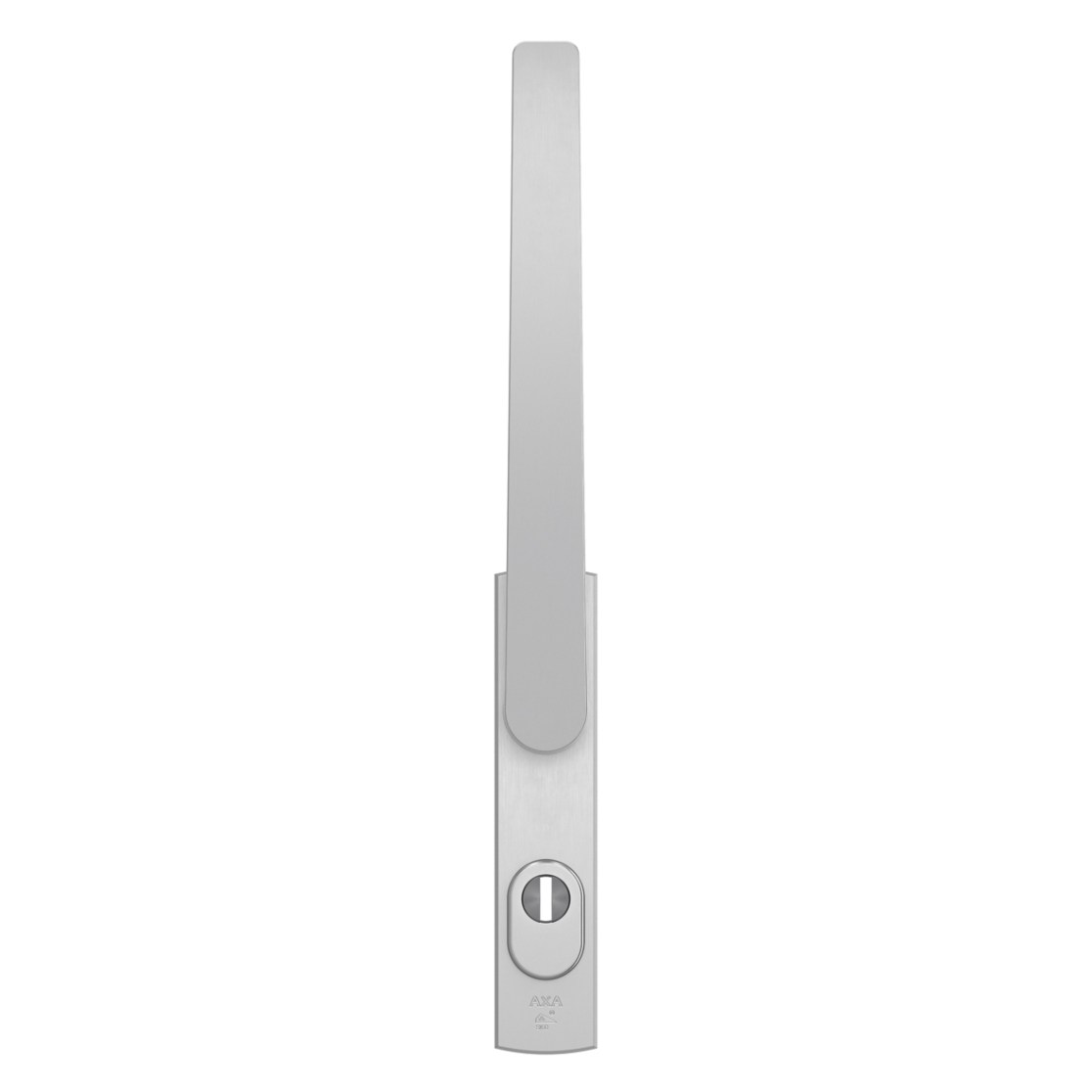

Security backplate Curve Plus handle Blok outside PC69 core protection slide door
