Latch 7155

7155-50-22/BL
arrow_selector
close

Universal latch (not lockable) for interior doors.

  • with zinc-plated faceplate
  • reversible lock
  • sturdy spindle mechanism
  • inclusive striking plate and fastening materials
Specifications Downloads Technical drawings Alternative products

Specifications

Recommended Mounting Materials
- 4.0 x 20 mm screw: 2 pieces
- 3.0 x 20 mm screw: 2 pieces
Commercial information
expand_more
Type 7155
Use for interior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 140 mm
Product Width 22 mm
Mounting depth 65 mm
Corner shape right angle
Direction of rotation DIN all directions
Backset 50 mm
Material Steel
Finish Grey lacquered
Assembly information
expand_more
Including Mounting Material True
Assembly time 30 min
Recommended Mounting Materials
- 4.0 x 20 mm screw: 2 pieces
- 3.0 x 20 mm screw: 2 pieces
Logistic information
expand_more
Product Weight 292 gr
Pieces per small package 1 piece
EAN small package 8713249226903
Weight small package 0.29 kg
Dimensions small package 215 x 95 x 30 mm
Pieces per bulk package 8 piece
EAN bulk package 8713249226910
Weight bulk package 2.53 kg
Dimensions bulk package 290 x 200 x 120 mm

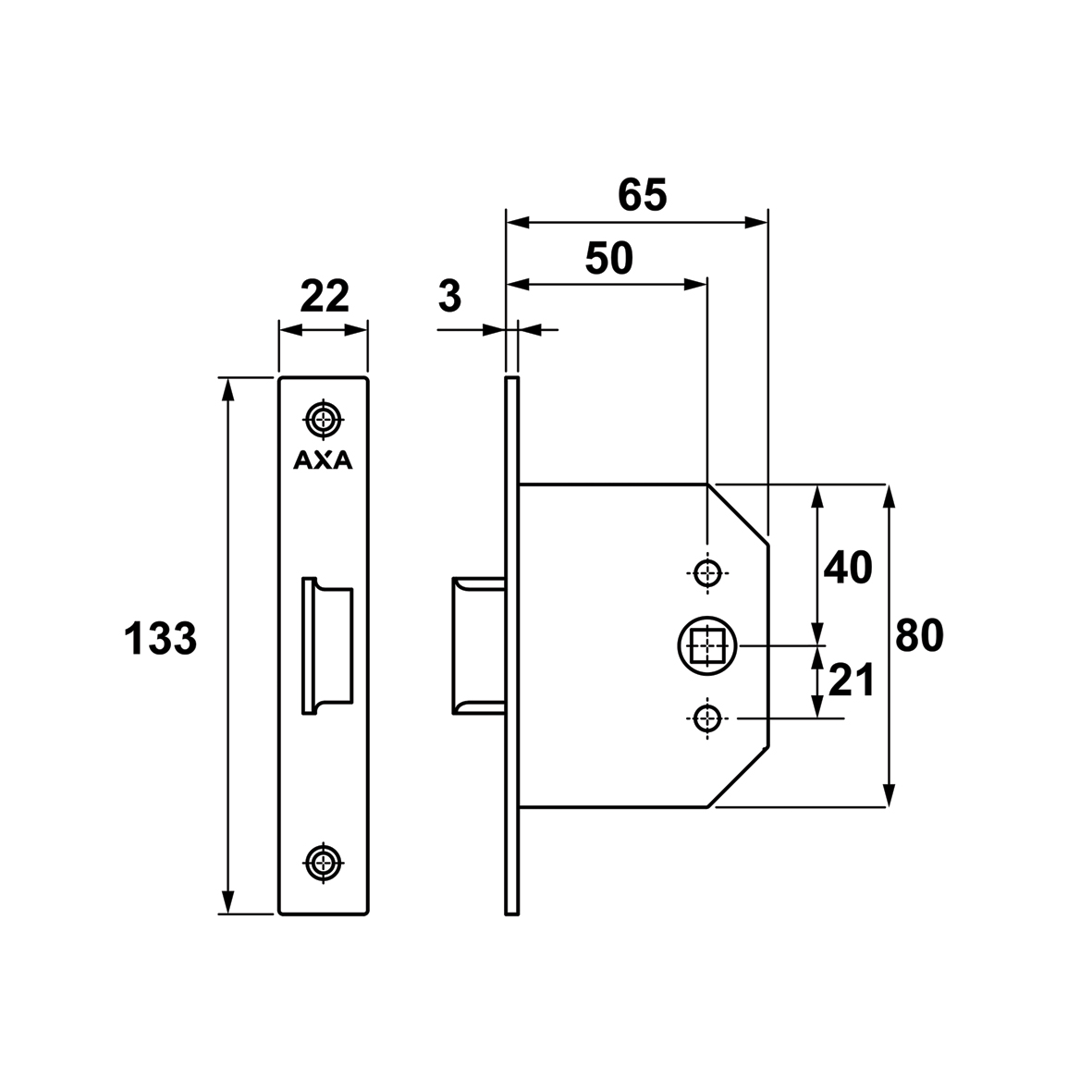

Technical drawings

Alternative products
