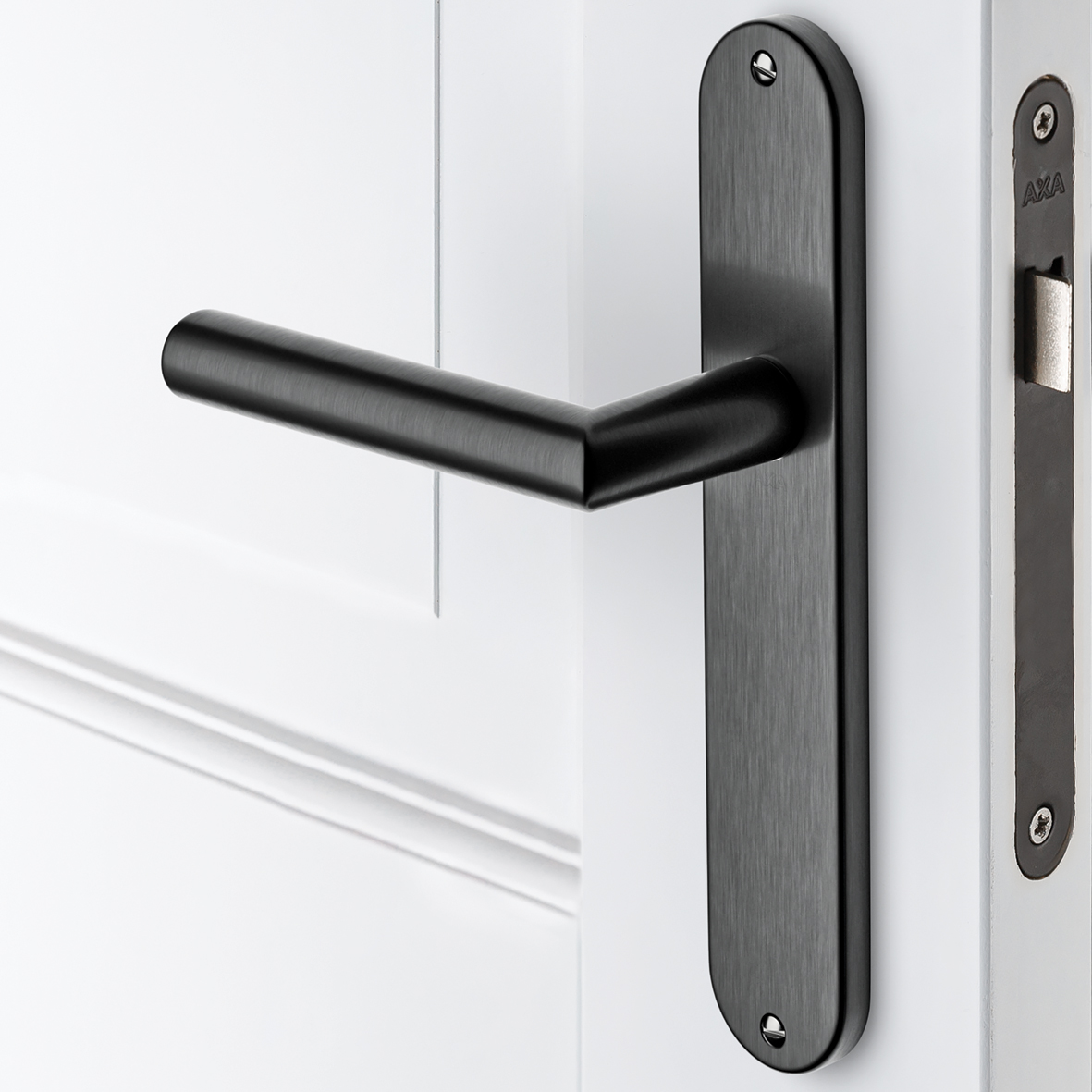

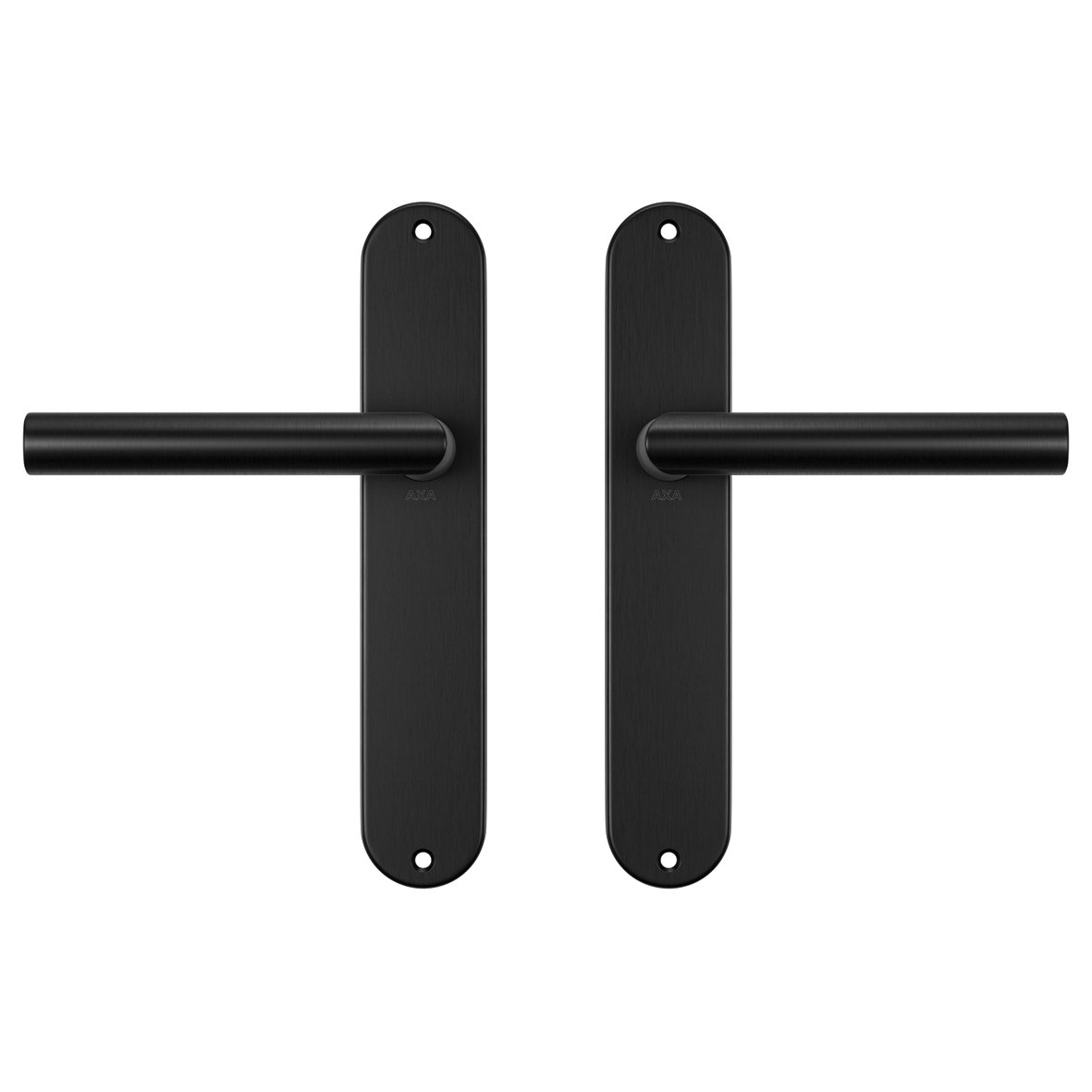

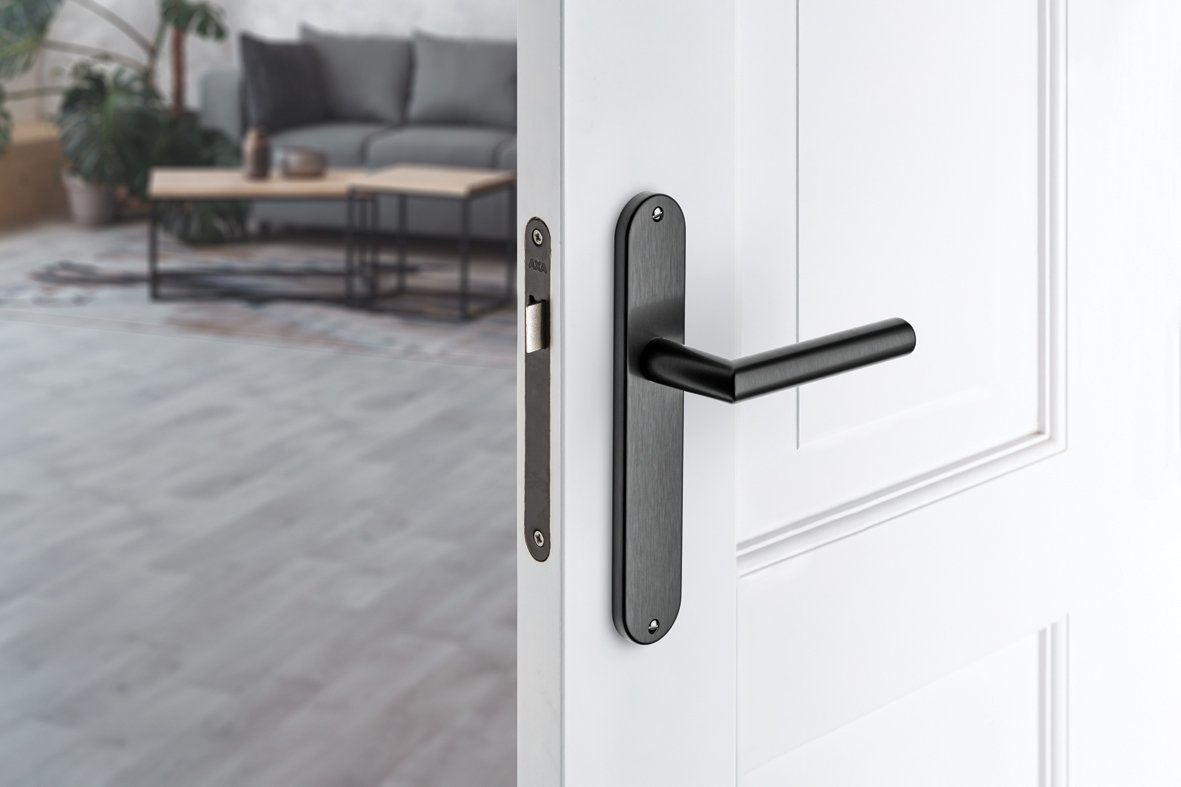

Interior door fitting Oval handle Milan

6230-50-18/E
arrow_selector
close

Standard interior door fittings in Oval model.

  • universally usable on doors with a thickness of 36 to 44 mm
  • complete with attachment materials
  • simple assembly
  • can be excellently combined with the AXA Security fittings for exterior doors
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Recommended Mounting Materials
- M4 x 45 mm patent bolt: 2 pieces
- M4 x 20 mm bus: 2 pieces
- M6 x 9 mm grub screw: 2 piece
Commercial information
expand_more
Type Oval handle Milan
Use for interior doors
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 228 mm
Product Width 42 mm
Thickness 8 mm
Shape oval
Suitable for door thickness 36 - 44 mm
Handle type Milan
Handle length 136 mm
Handle depth 57 mm
Handle assembly grub screw fix
Spring supported handle False
Material Aluminum
Finish Polished anodised F8, black
Assembly information
expand_more
Including Mounting Material True
Assembly time 10 min
Recommended Mounting Materials
- M4 x 45 mm patent bolt: 2 pieces
- M4 x 20 mm bus: 2 pieces
- M6 x 9 mm grub screw: 2 piece
Logistic information
expand_more
Pieces per small package 1 piece
EAN small package 8713249344751
Pieces per bulk package 30 piece
EAN bulk package 8713249344768
Dimensions bulk package 370 x 300 x 300 mm

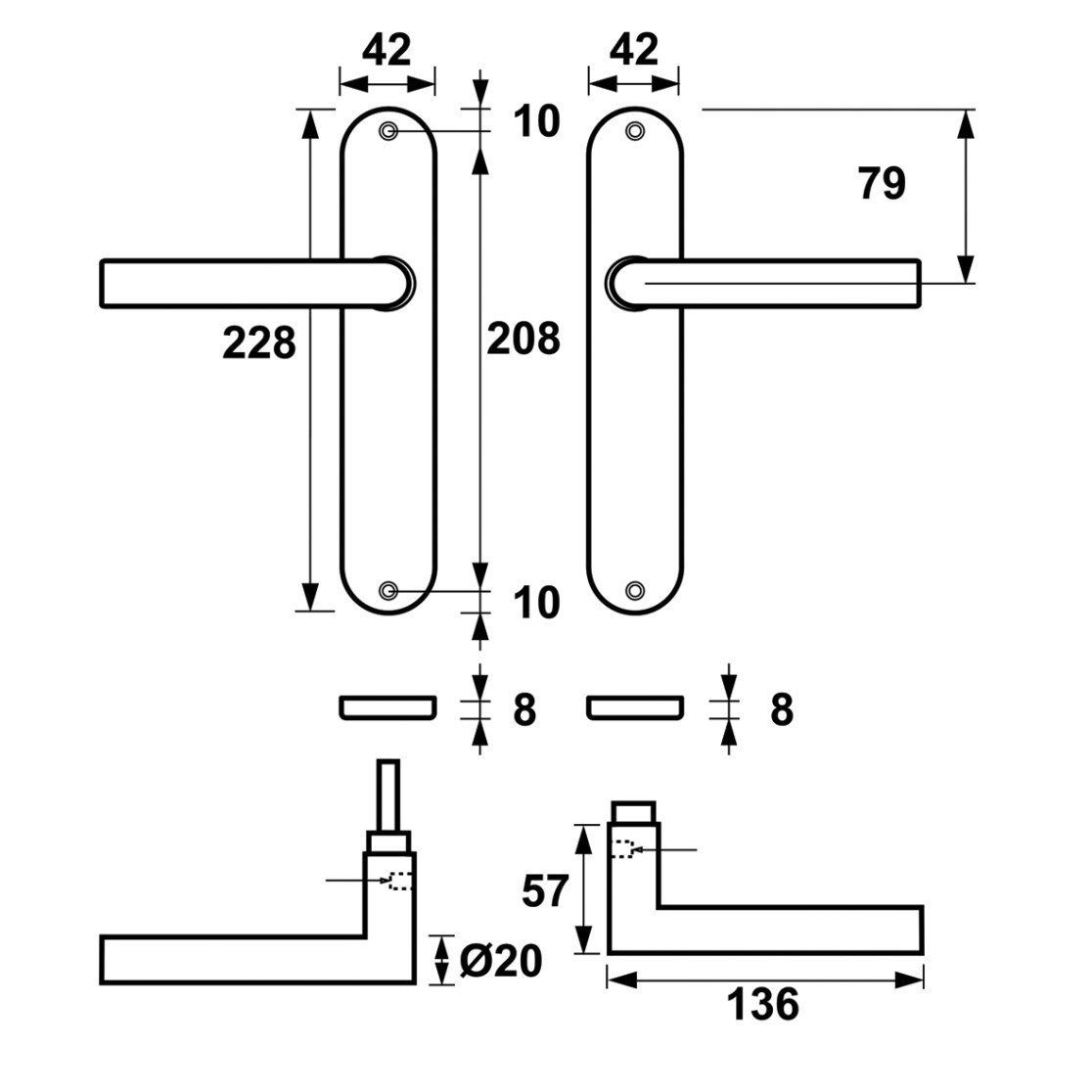

Technical drawings
