Interior door fitting Curve Klik handle Curve PC55+lock

7145-98-54/55E
arrow_selector
close

Stylish door fittings for interior doors with matching lock.

  • stylish door fittings for interior doors can be excellently combined with the AXA Security fittings for exterior doors
  • with lock
  • quick reversible nickel-plated brass latch
  • sturdy spindle mechanism
  • stylish appearance, finely polished, less sensitive to scratches
  • no visible attachment points, because the back plate is clicked over a plastic base plate
  • integrated plastic handle bearings
  • universally usable on doors with a thickness of 38 to 42 mm
  • inclusive striking plate and fastening materials
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 20 mm screw: 6 pieces
- 3.0 x 20 mm screw: 2 pieces
Commercial information
expand_more
Type Curve Klik handle Curve PC55+lock
Use for interior doors
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 200 mm
Product Length 2 174 mm
Product Width 45 mm
Product Width 2 20 mm
Thickness 8 mm
Thickness 2 16 mm
Mounting depth 81 mm
Corner shape round corner
Direction of rotation DIN all directions
Bolt type dead bolt
Bolt catcher striking plate
Shape curved
Suitable for door thickness 38 - 42 mm
Handle type Curve
Handle length 116 mm
Handle depth 53 mm
Handle assembly grub screw fix
Heart to heart size type handle hole - Euro profile hole (PC)
Backset 50 mm
Material Aluminum
Finish Polished anodised F1, natural
Material 2 Steel
Finish 2 White lacquered
Assembly information
expand_more
Including Mounting Material True
Assembly time 45 min
Recommended Mounting Materials
- 4.0 x 20 mm screw: 6 pieces
- 3.0 x 20 mm screw: 2 pieces
Logistic information
expand_more
Product Weight 820 gr
Pieces per small package 1 piece
EAN small package 8713249306087
Weight small package 0.82 kg
Dimensions small package 200 x 130 x 75 mm
Pieces per bulk package 8 piece
EAN bulk package 8713249306094
Weight bulk package 6.79 kg
Dimensions bulk package 290 x 200 x 120 mm

Technical drawings

Alternative products

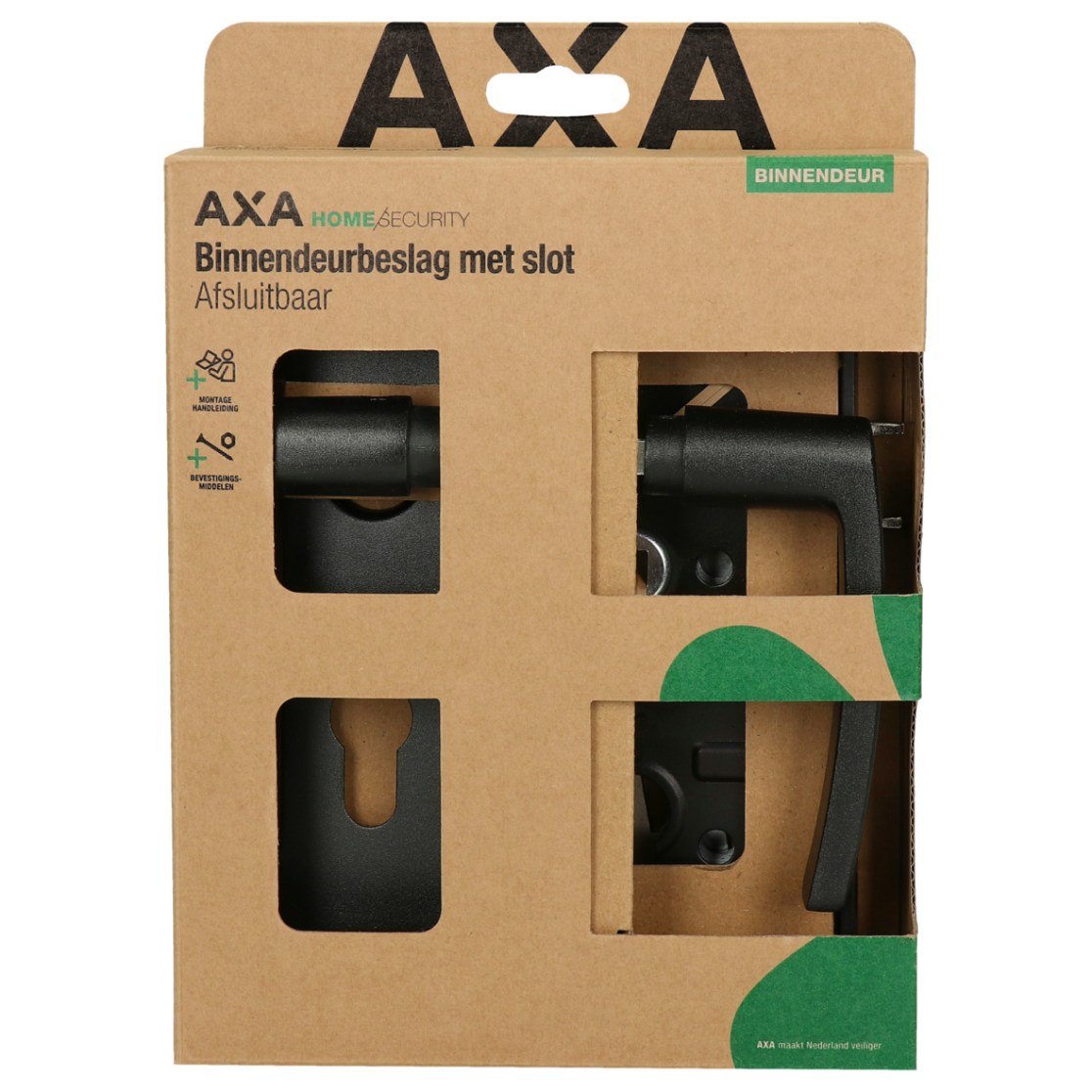

Interior door fitting Edge handle Blok PC55+lock

7145-90-54/55BL

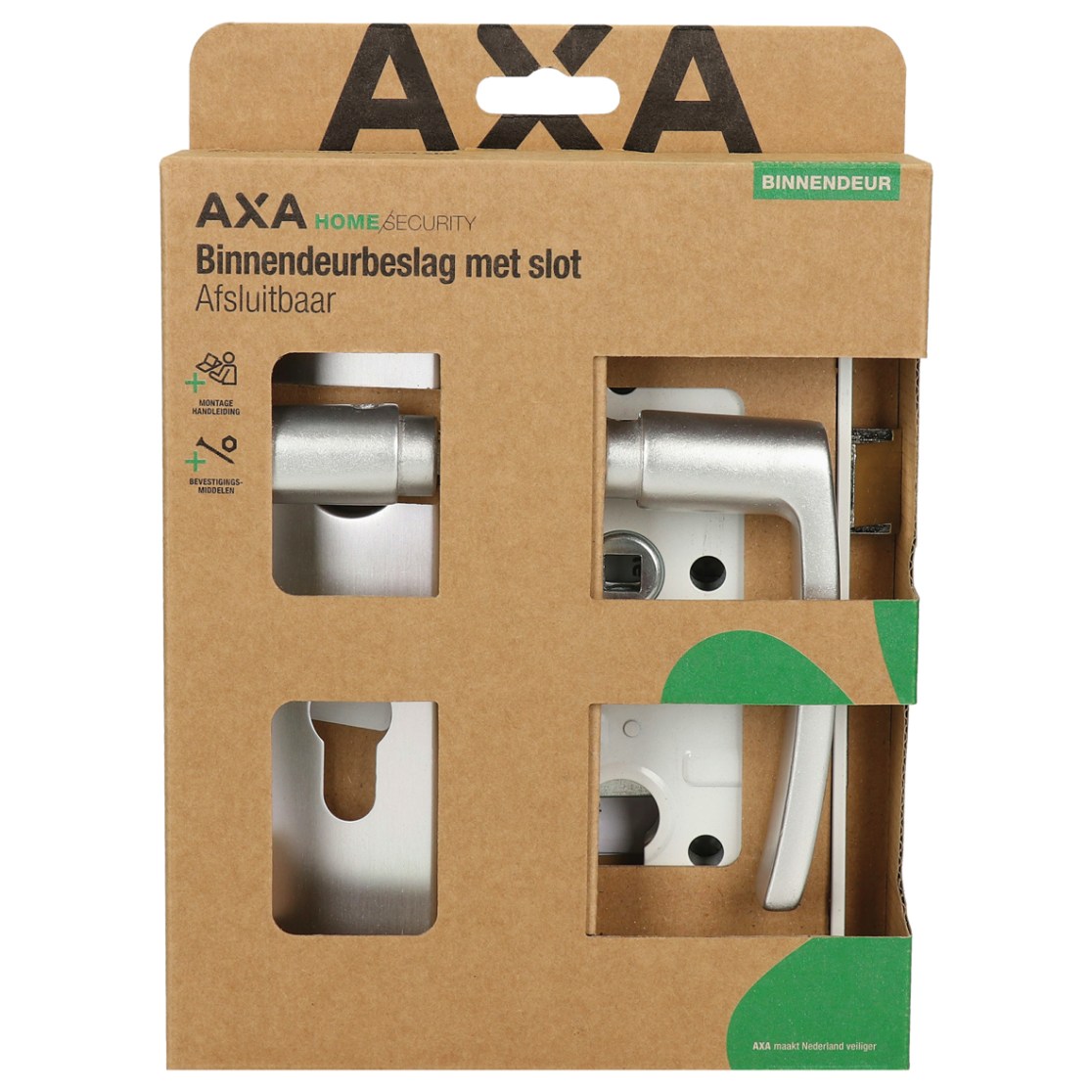

Interior door fitting Edge handle Blok PC55+lock
