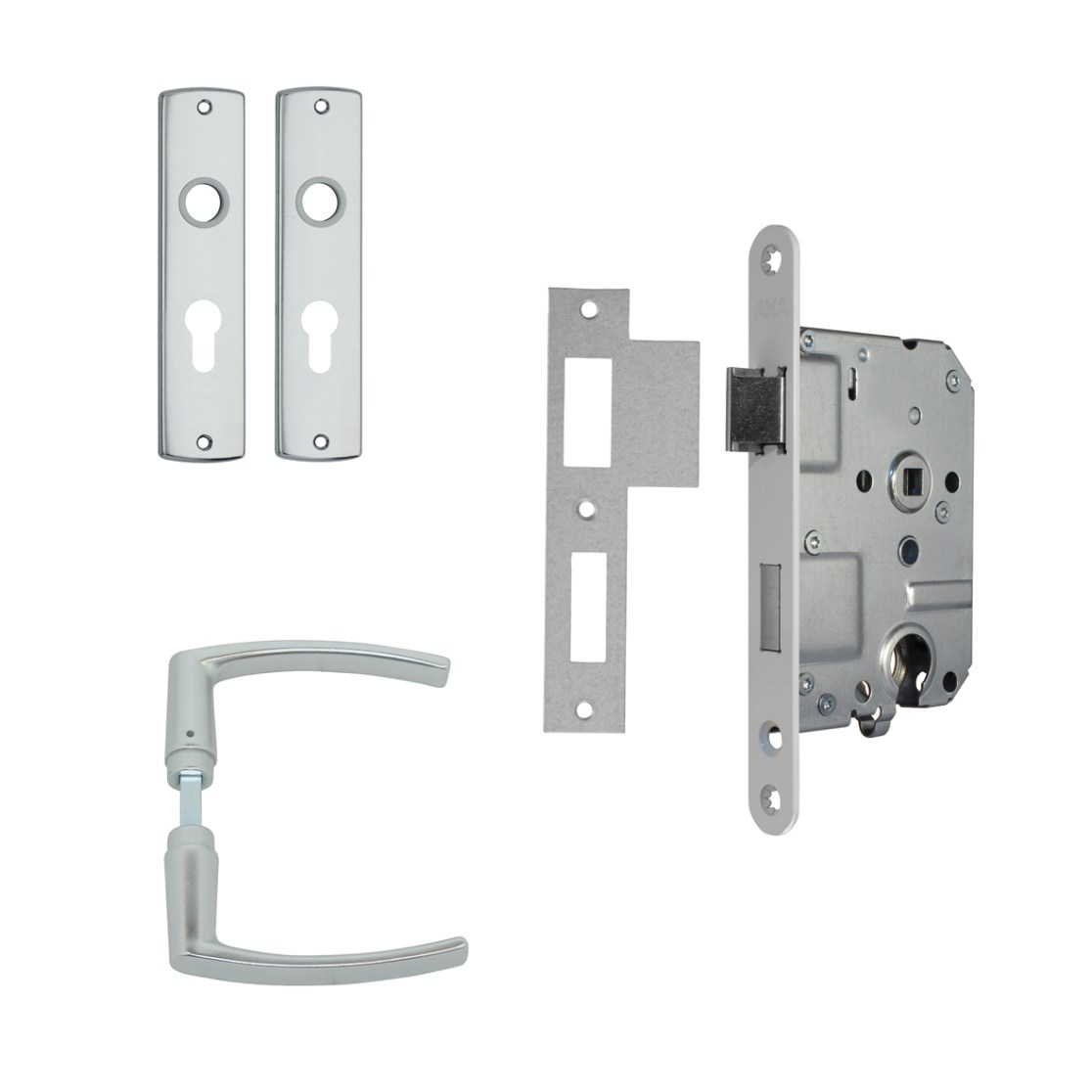

Interior door fitting Curve handle Blok PC55+lock

7145-00-54/55BL
arrow_selector
close

Stylish door fittings for interior doors with matching lock.

  • universally usable on doors with a thickness of 38 to 42 mm
  • with matching lock
  • complete with attachment materials
  • simple assembly
  • can be excellently combined with the AXA Security fittings for exterior doors
Specifications Downloads Technical drawings Alternative products

Specifications

Recommended Mounting Materials
- 4.0 x 20 mm screw: 2 pieces
- 3.0 x 20 mm screw: 2 pieces
- M4 x 38 mm patent bolt: 2 pieces
- M4 x 22 mm bush: 2 pieces
Commercial information
expand_more
Type Curve handle Blok PC55+lock
Use for interior doors
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 180 mm
Product Length 2 174 mm
Product Width 41 mm
Product Width 2 20 mm
Thickness 6 mm
Thickness 2 3 mm
Mounting depth 81 mm
Corner shape round corner
Direction of rotation DIN all directions
Bolt type dead bolt
Bolt catcher striking plate
Shape curved
Suitable for door thickness 38 - 42 mm
Handle type Block
Handle length 112 mm
Handle depth 51 mm
Handle assembly pin fix
Heart to heart size type handle hole - Euro profile hole (PC)
Backset 50 mm
Material Aluminum
Finish Anodised F1, natural
Material 2 Steel
Finish 2 White lacquered
Assembly information
expand_more
Including Mounting Material True
Assembly time 45 min
Recommended Mounting Materials
- 4.0 x 20 mm screw: 2 pieces
- 3.0 x 20 mm screw: 2 pieces
- M4 x 38 mm patent bolt: 2 pieces
- M4 x 22 mm bush: 2 pieces
Logistic information
expand_more
Product Weight 922 gr
Pieces per small package 1 piece
EAN small package 8713249222127
Weight small package 0.92 kg
Dimensions small package 340 x 187 x 48 mm
Pieces per bulk package 3 piece
EAN bulk package 8713249226873
Weight bulk package 3 kg
Dimensions bulk package 390 x 200 x 120 mm

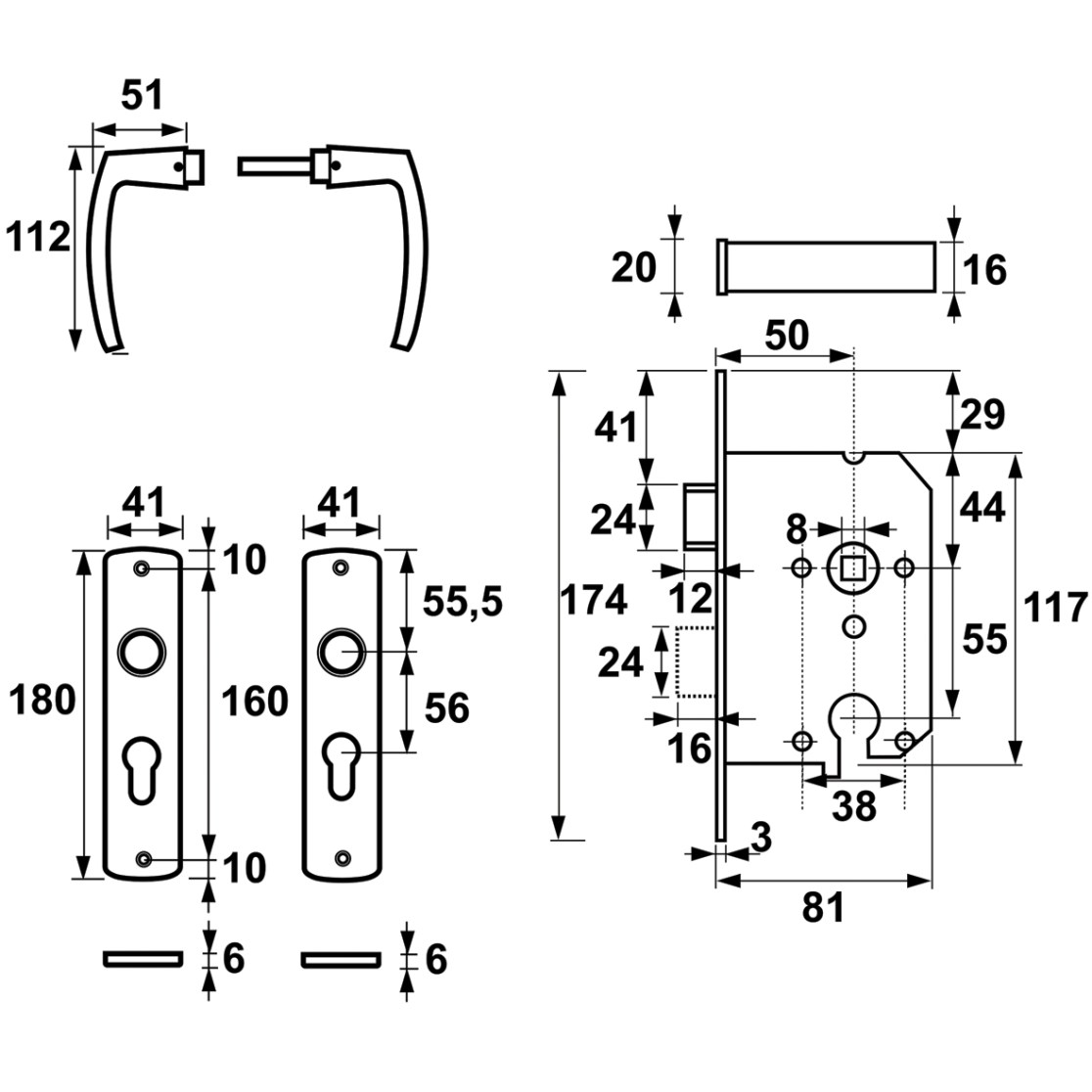

Technical drawings
