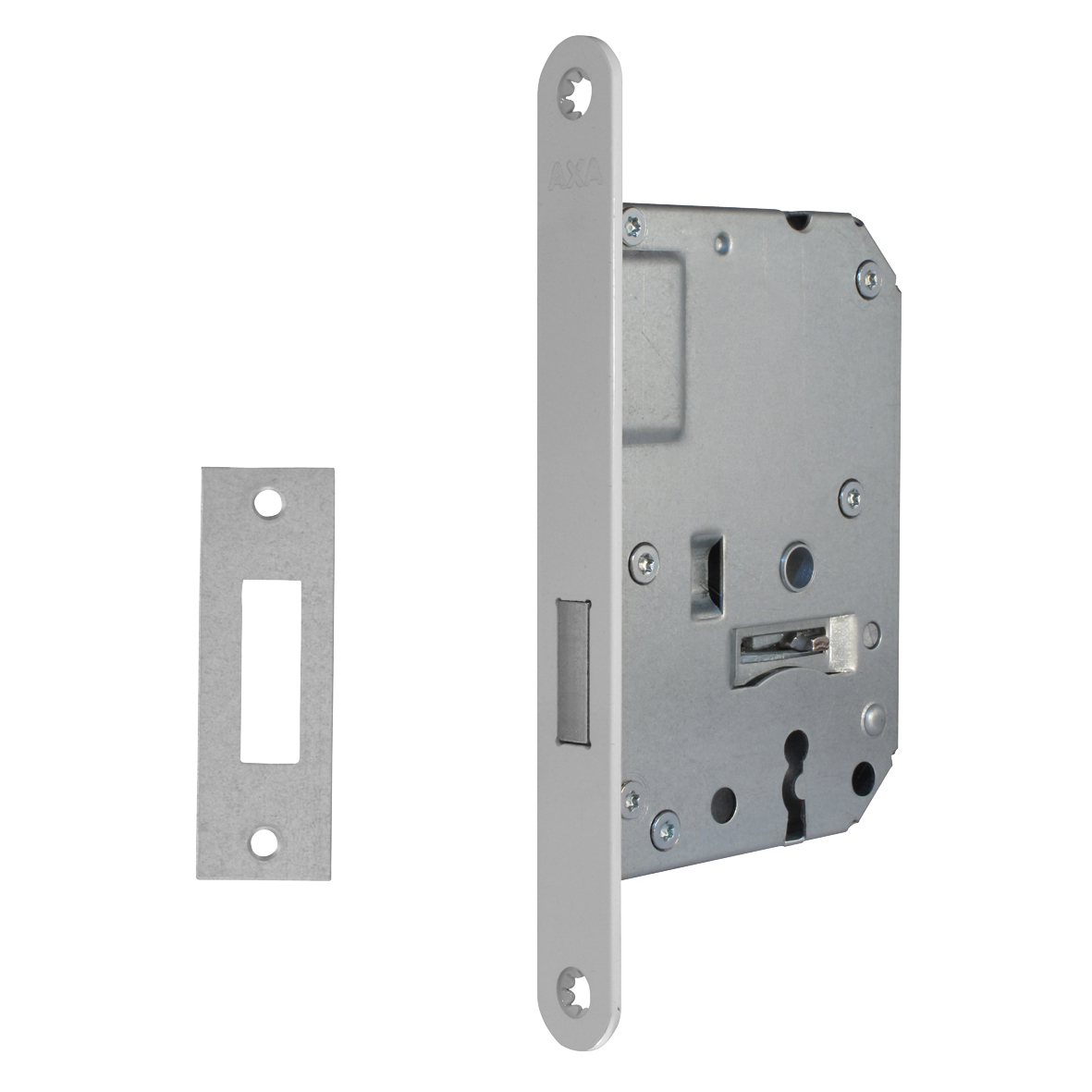

Cupboard door lock 7115 SL

7115-50-54/55CP
arrow_selector
close

Universal cupboard lock for interior doors.

  • with white faceplate
  • with keyhole
  • inclusive striking plate, attachment materials and keys
Specifications Downloads Technical drawings Associated products

Specifications

Recommended Mounting Materials
- 4.0 x 20 mm screw: 2 pieces
- 3.0 x 20 mm screw: 2 pieces
Commercial information
expand_more
Type 7115 SL
Use for interior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 174 mm
Product Width 20 mm
Thickness 16 mm
Mounting depth 81 mm
Corner shape round corner
Direction of rotation DIN all directions
Bolt type dead bolt
Bolt catcher striking plate
Backset 50 mm
Number of Keys 2
Material Steel
Finish White lacquered
Material 2 Steel
Finish 2 Galvanized
Assembly information
expand_more
Including Mounting Material True
Assembly time 30 min
Recommended Mounting Materials
- 4.0 x 20 mm screw: 2 pieces
- 3.0 x 20 mm screw: 2 pieces
Logistic information
expand_more
Pieces per small package 1 piece
EAN small package 8713249357638
Dimensions small package 225 x 102 x 27 mm
Pieces per bulk package 6 piece
EAN bulk package 8713249357645
Dimensions bulk package 225 x 175 x 120 mm

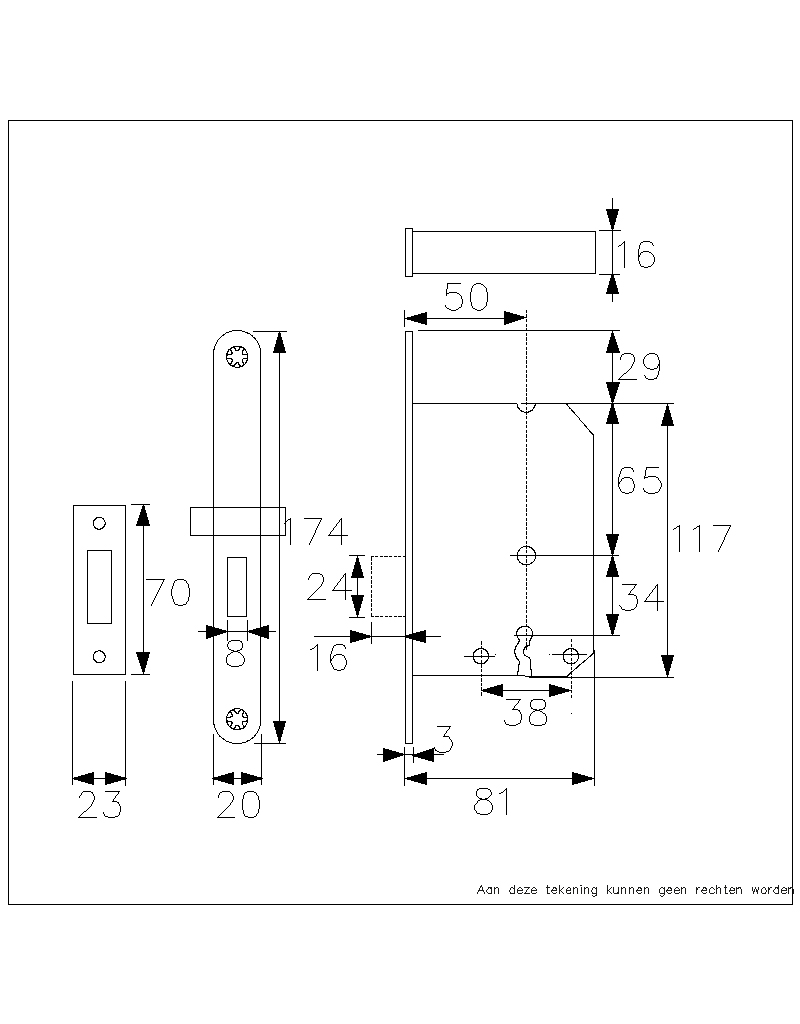

Technical drawings

Associated products
