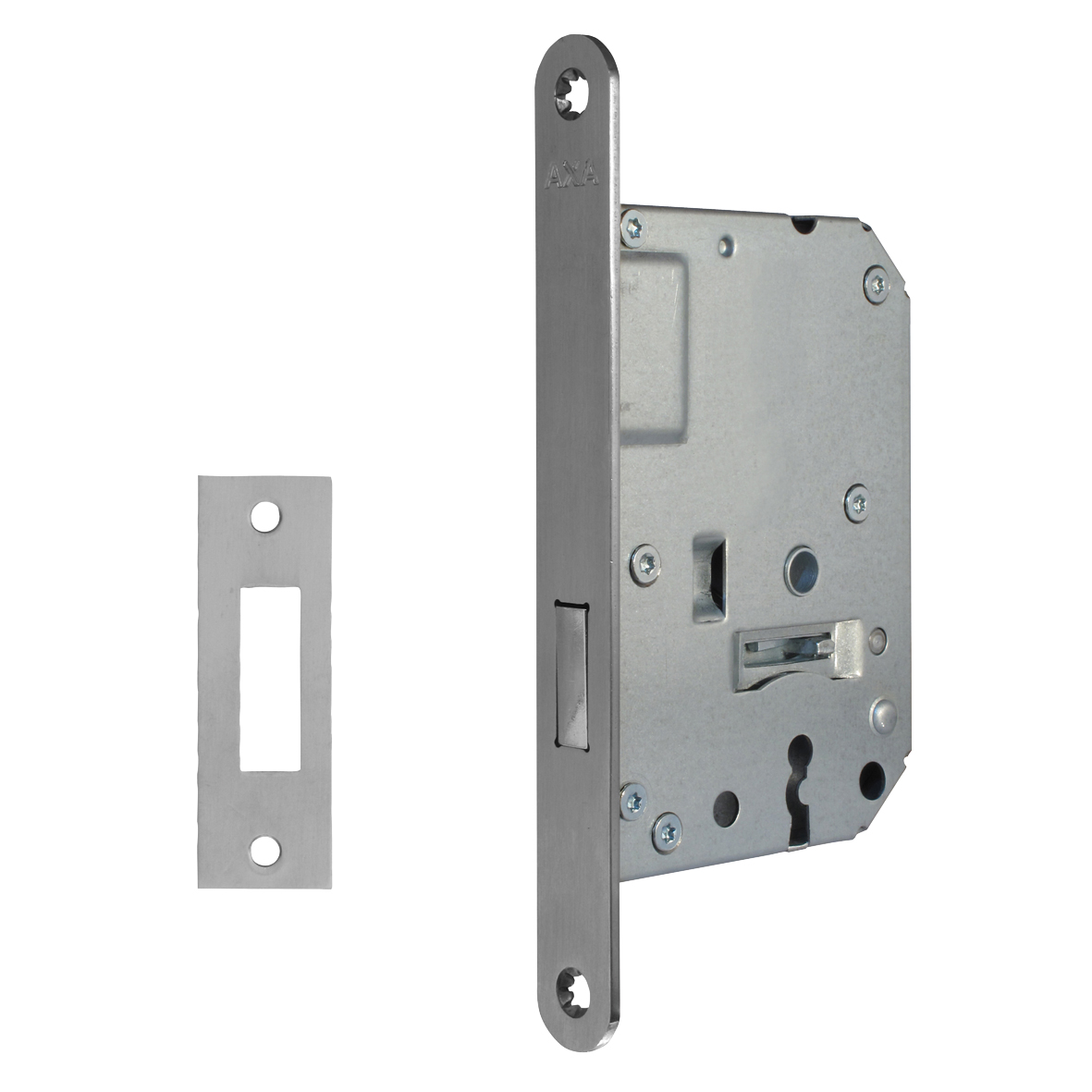

Cupboard door lock 7115 SL

7115-50-81/55E
arrow_selector
close

Universal cupboard lock for interior doors.

  • with stainless steel faceplate
  • with keyhole
  • inclusive striking plate, attachment materials and keys
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 20 mm screw: 2 pieces
- 3.0 x 20 mm screw: 2 pieces
Commercial information
expand_more
Type 7115 SL
Use for interior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 174 mm
Product Width 20 mm
Thickness 16 mm
Mounting depth 81 mm
Corner shape round corner
Direction of rotation DIN all directions
Bolt type dead bolt
Bolt catcher striking plate
Backset 50 mm
Number of Keys 2
Material Stainless steel
Finish Brushed
Material 2 Steel
Finish 2 Galvanized
Assembly information
expand_more
Including Mounting Material True
Assembly time 30 min
Recommended Mounting Materials
- 4.0 x 20 mm screw: 2 pieces
- 3.0 x 20 mm screw: 2 pieces
Logistic information
expand_more
Product Weight 342 gr
Pieces per small package 5 piece
EAN small package 8713249147130
Weight small package 1.74 kg
Dimensions small package 189 x 89 x 107 mm
Pieces per bulk package 20 piece
EAN bulk package 8713249147147
Weight bulk package 7.04 kg
Dimensions bulk package 386 x 188 x 114 mm

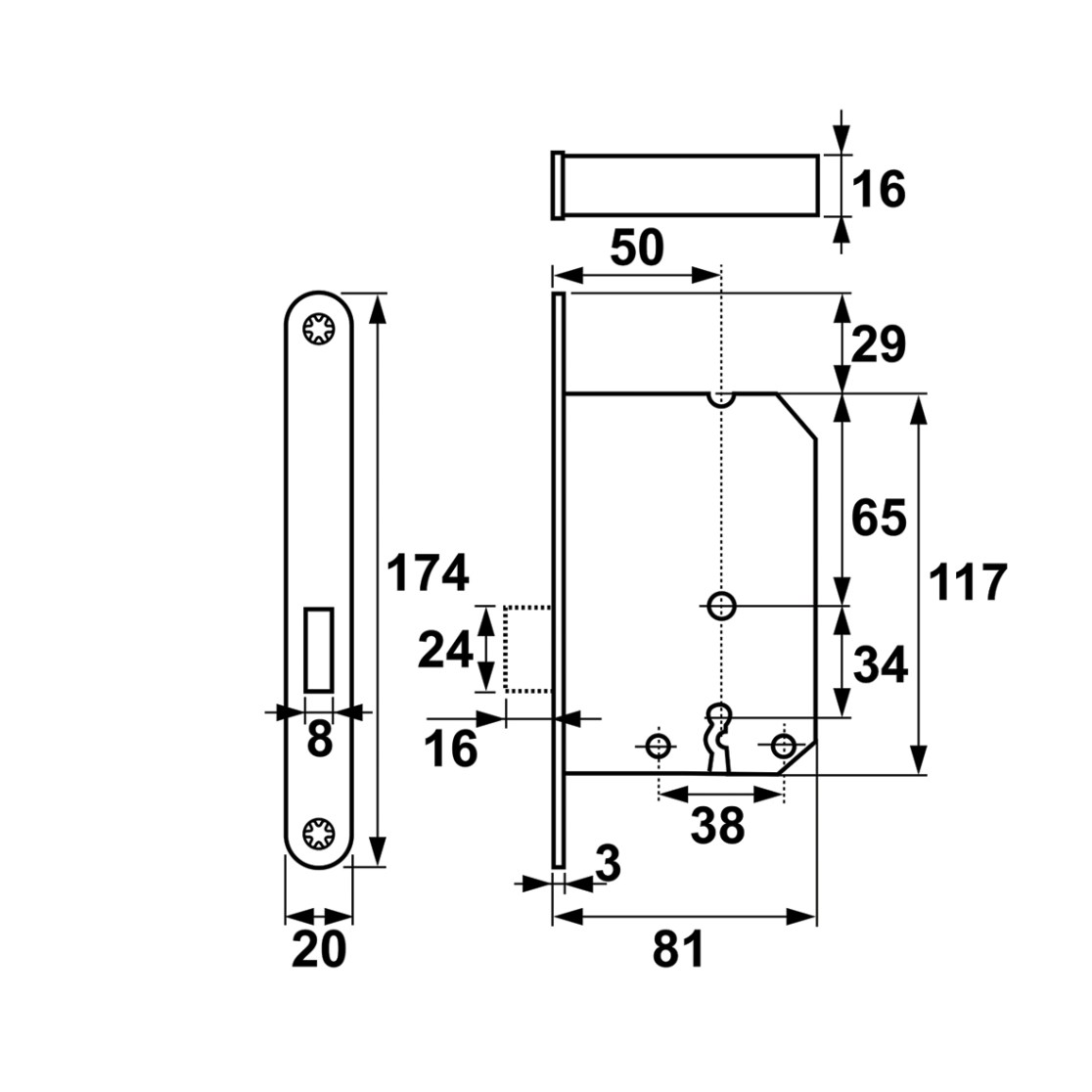

Technical drawings
