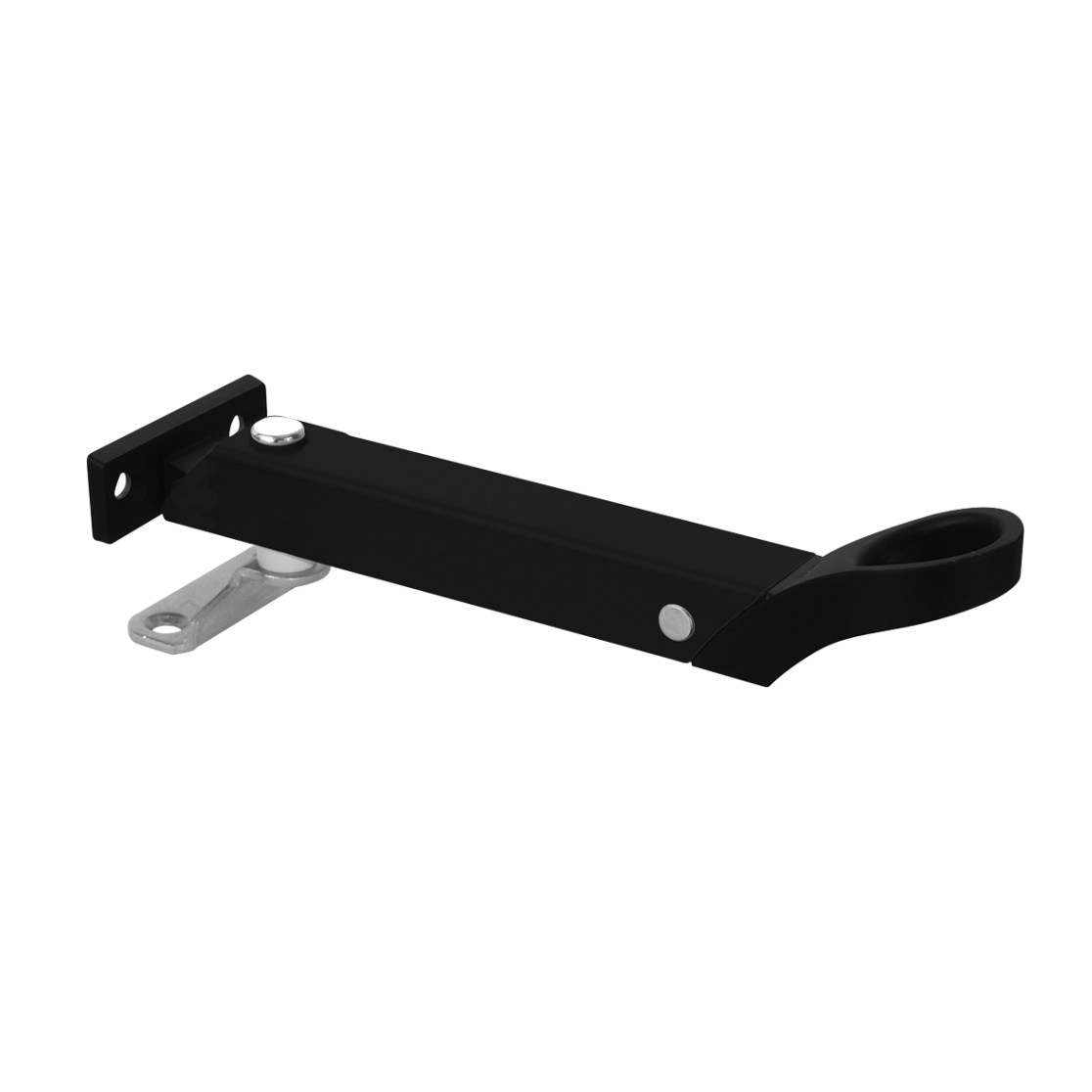

Combi window stay AXAflex Special

2642-20-56/E
arrow_selector
close

The AXAflex Special combi window stay makes it possible to use hopper windows for ventilation purposes.

  • window stay and closer in one
  • variable with three preferred positions for optimal ventilation
  • maximum ventilation opening 160 mm
  • hinged
  • stainless steel black lacquered
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 30 mm screw: 4 pieces
Commercial information
expand_more
Type AXAflex Special
Use for top-hung windows and skylights
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 180 mm
Product Width 50 mm
Product Height 74 mm
Direction of rotation turning upwards
Maximum gap width 160 mm
Maximum height vertical position 173 mm
Rotatable to the right
Operation variable with 3 preferred positions for optimal ventilation
Material Stainless steel
Finish Black lacquered
Material 2 Synthetic
Finish 2 Black
Assembly information
expand_more
Including Mounting Material False
Mounting length 180 mm
Required depth wood frame 22 mm
Window/door mounting width requirement 39 mm
Assembly time 15 min
Recommended Mounting Materials
- 4.0 x 30 mm screw: 4 pieces
Logistic information
expand_more
Product Weight 157 gr
Pieces per small package 10 piece
EAN small package 8713249346236
Weight small package 1.68 kg
Dimensions small package 315 x 188 x 43 mm
Pieces per bulk package 80 piece
EAN bulk package 8713249346243
Weight bulk package 13.73 kg
Dimensions bulk package 390 x 320 x 180 mm

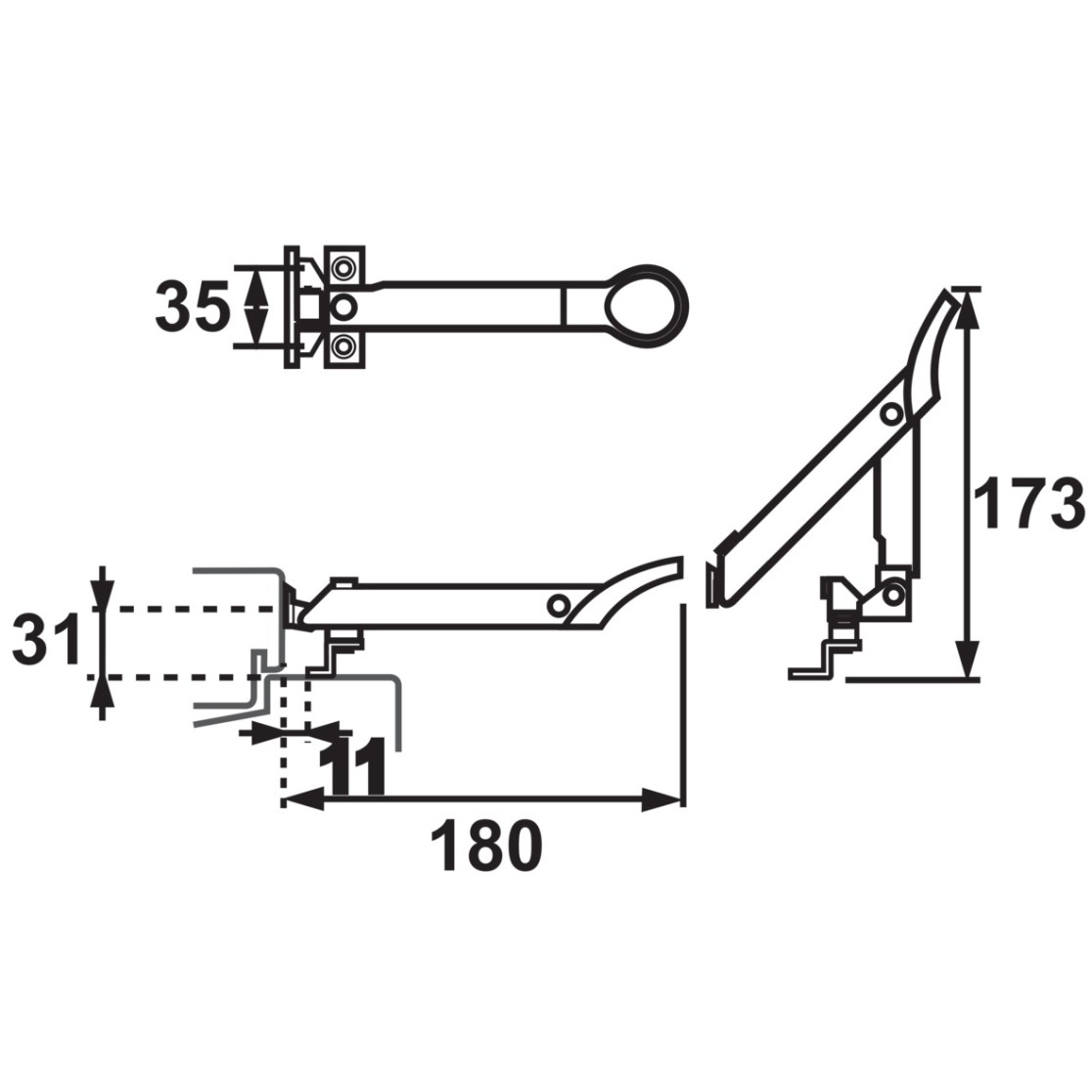

Technical drawings
Combi window stay AXAflex Special
26422056E
