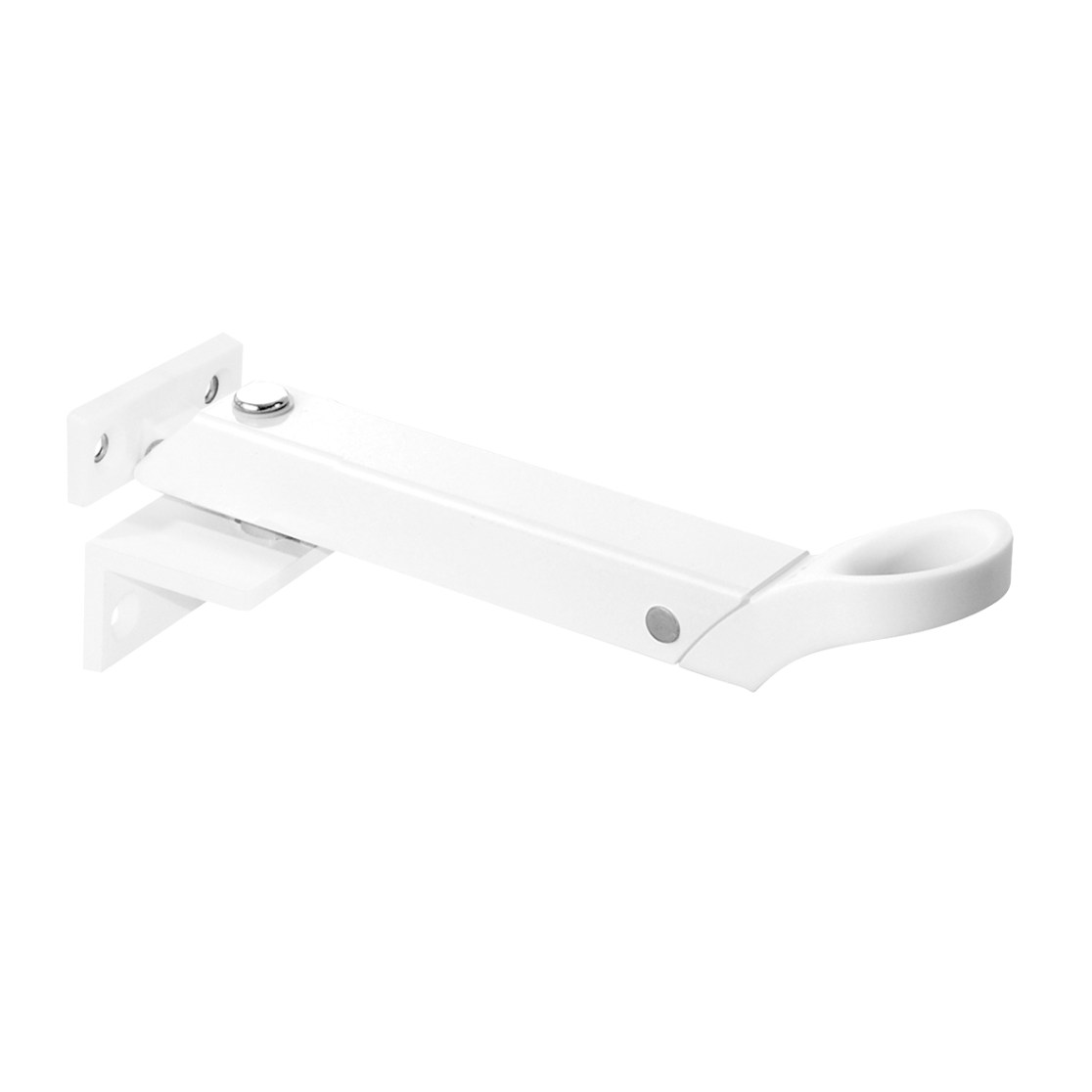

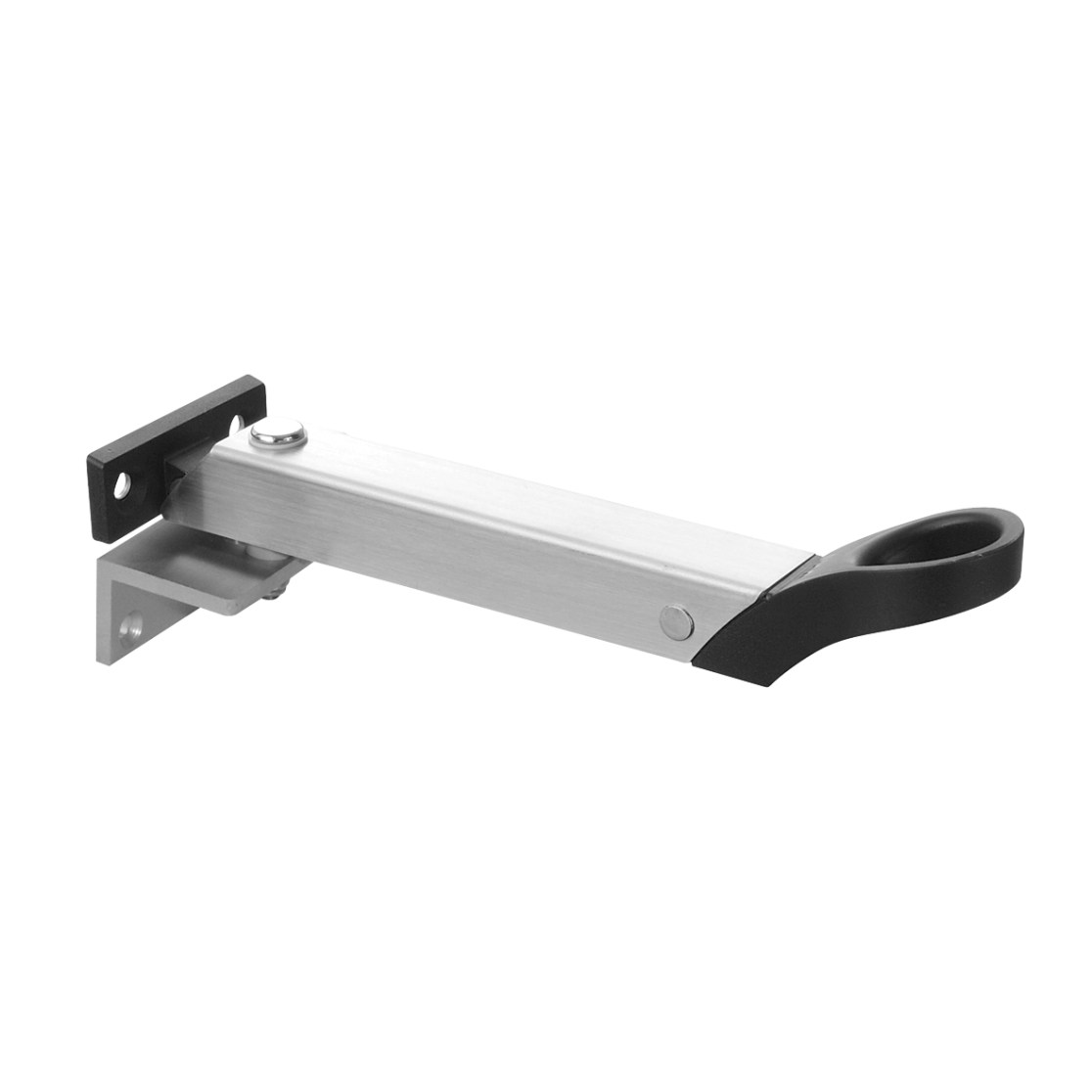

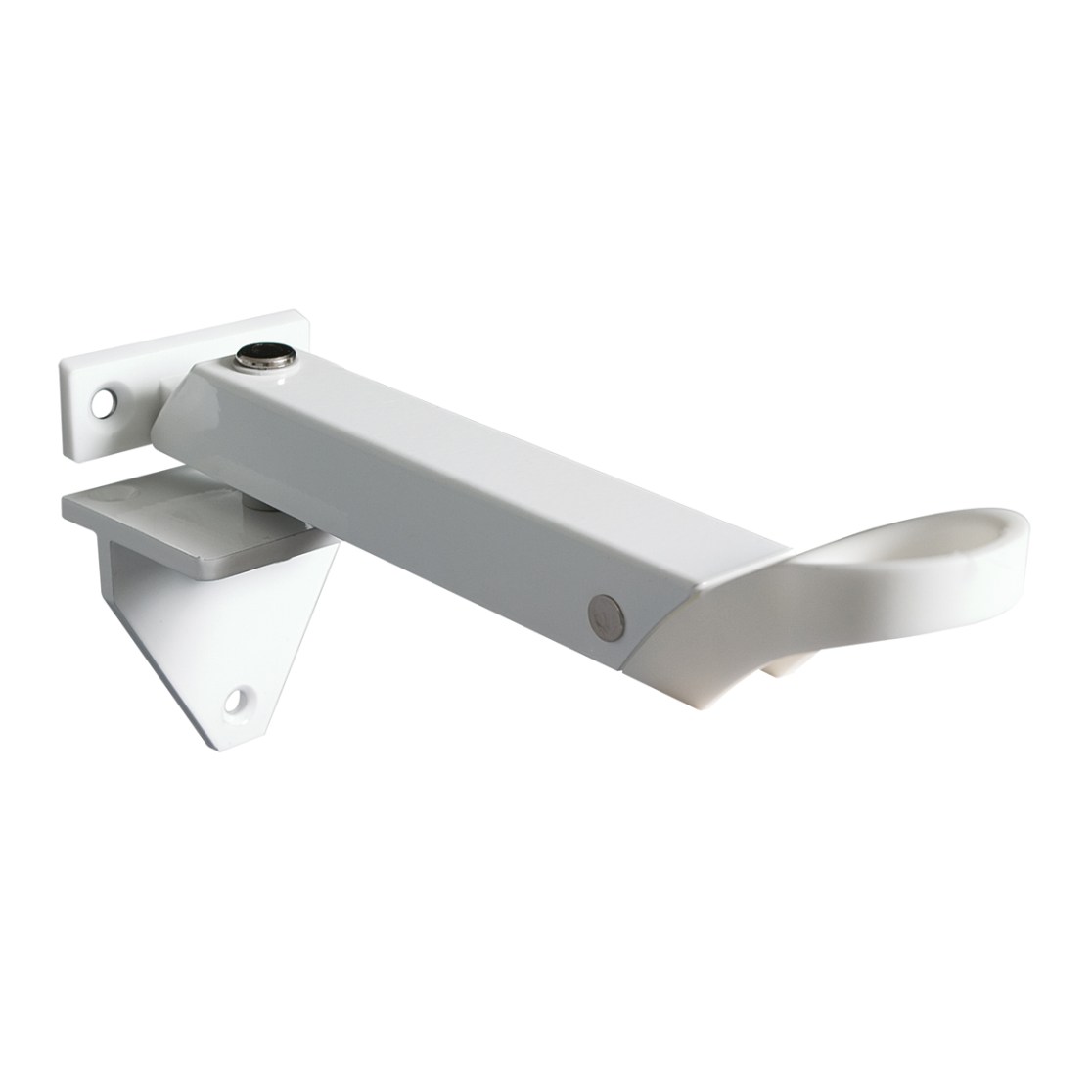

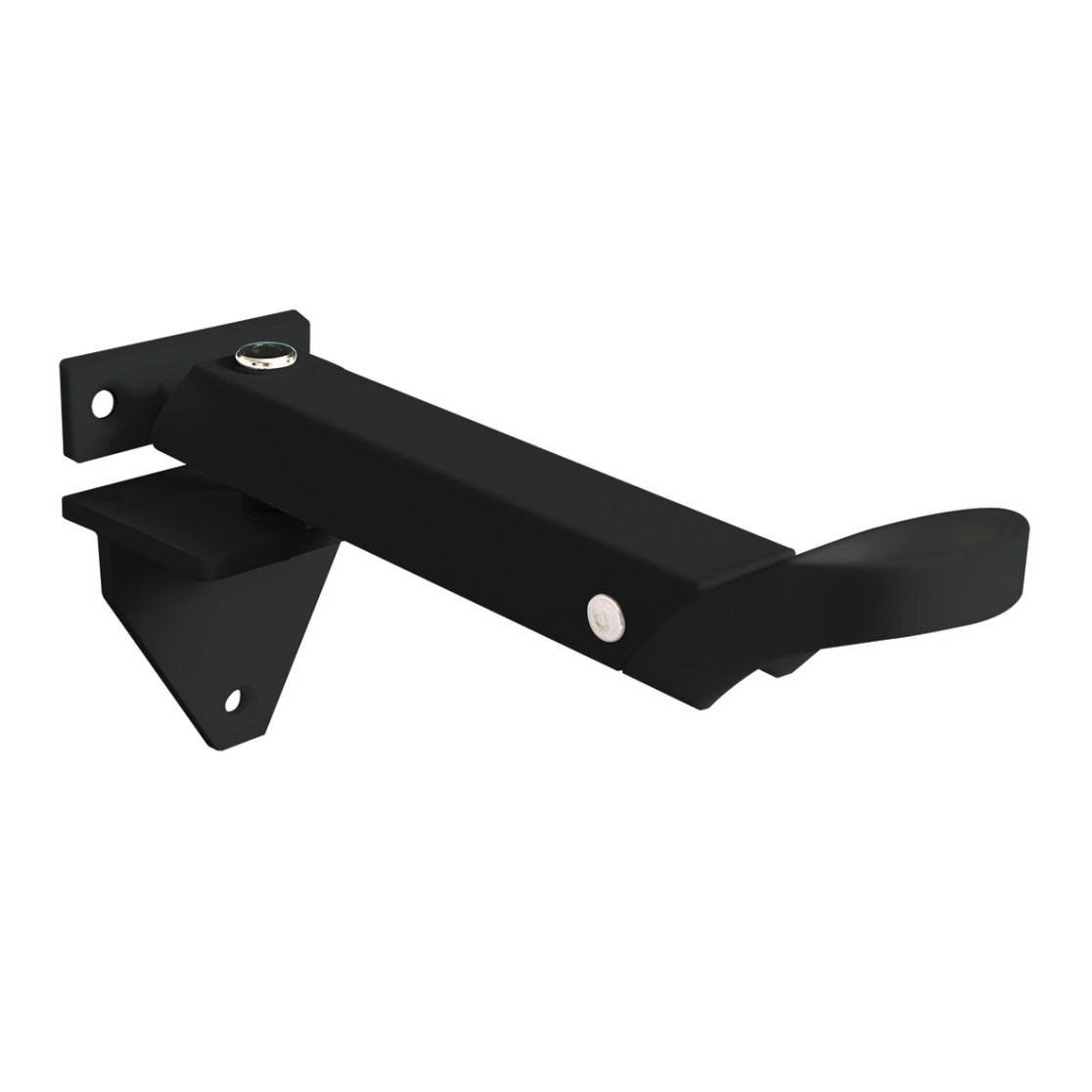

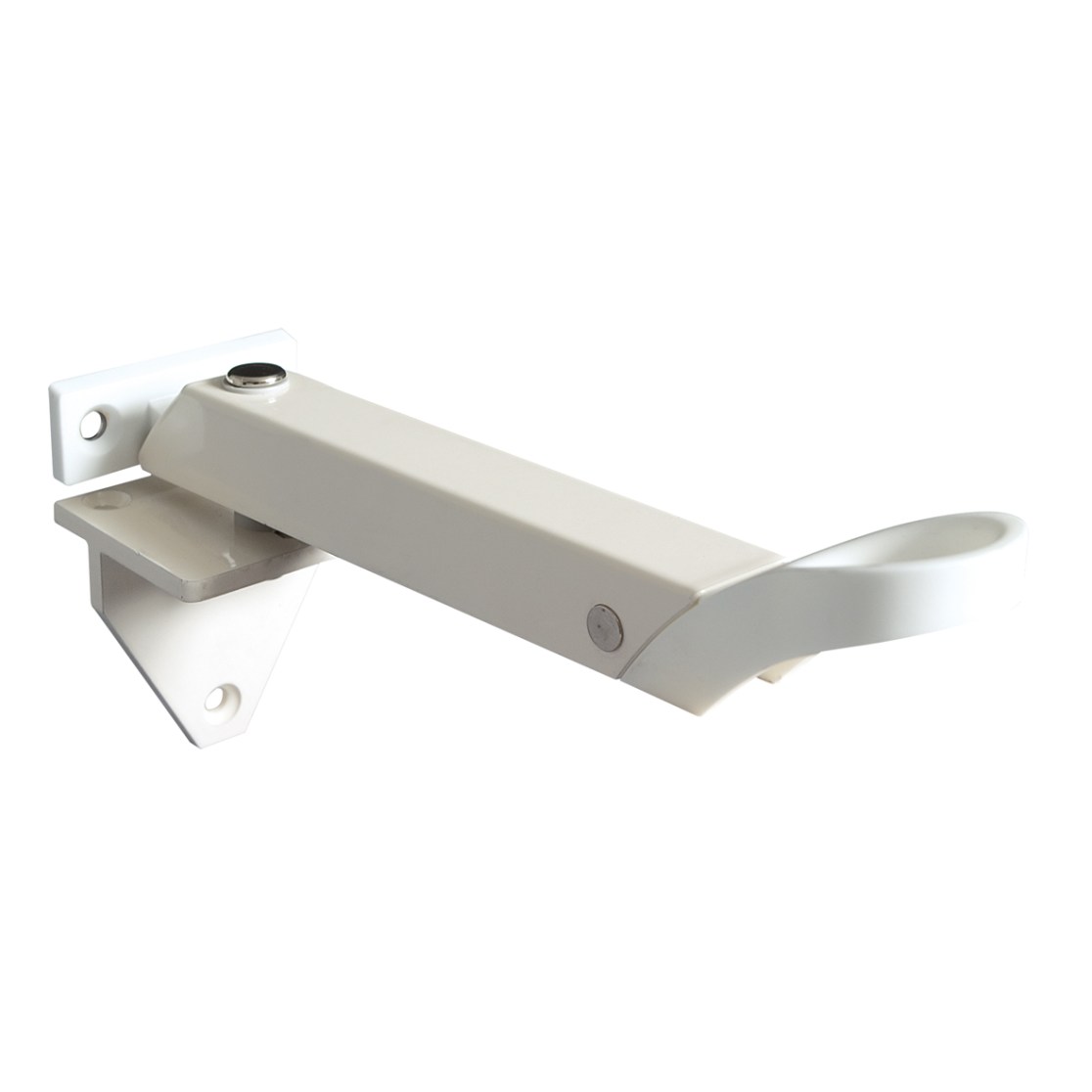

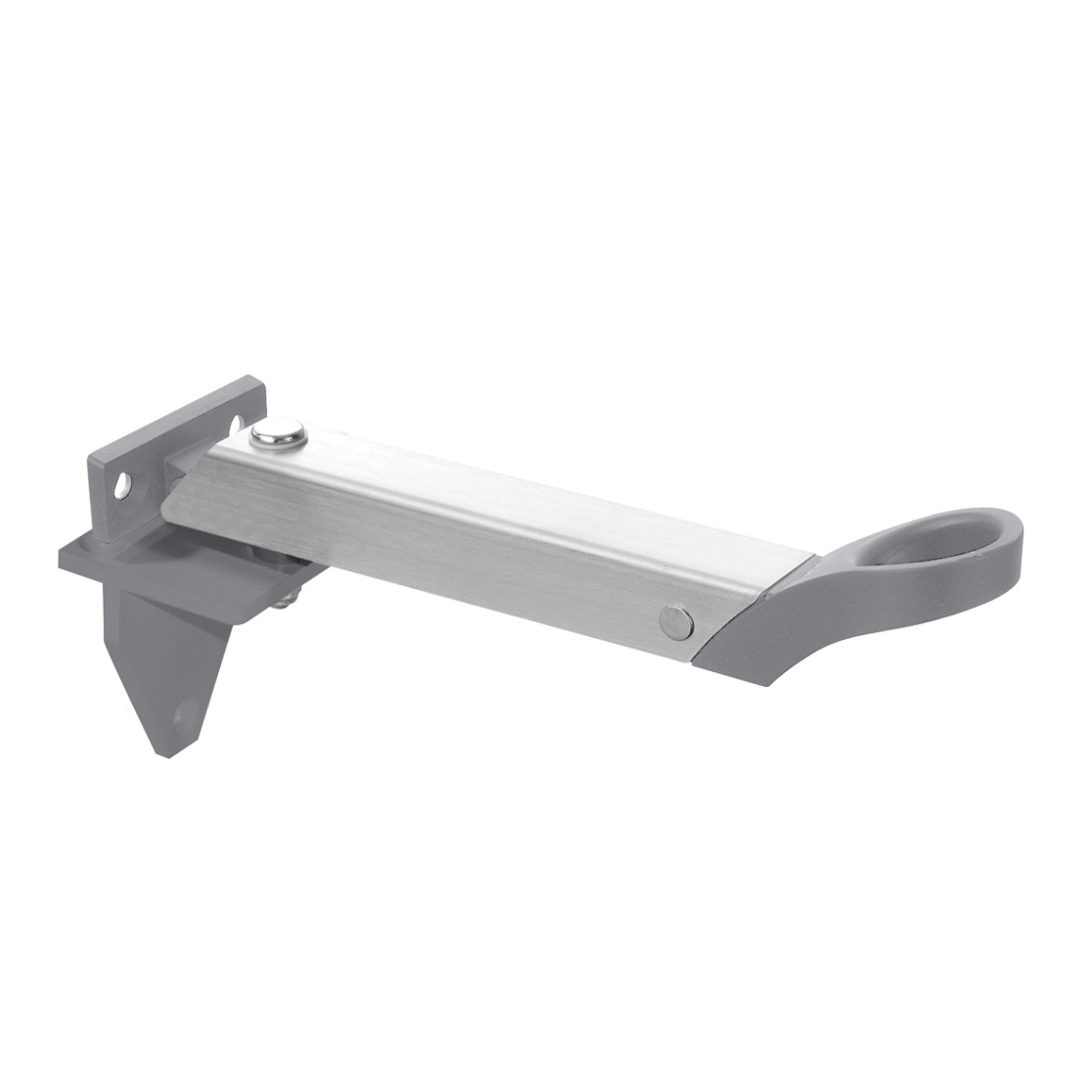

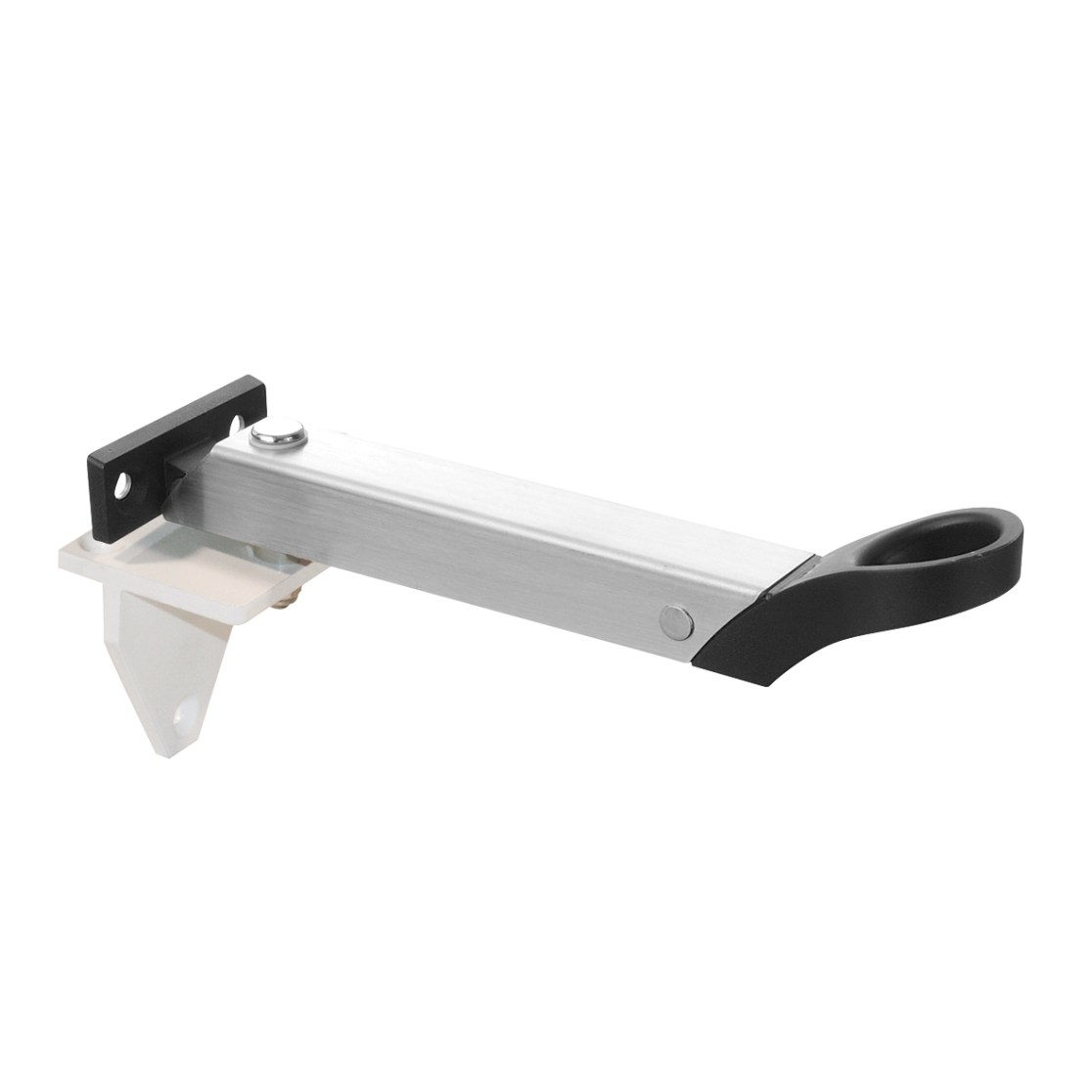

Combi window stay AXAflex Special

2644-20-61/E
arrow_selector
close

The AXAflex Special combi window stay makes it possible to use hopper windows for ventilation purposes.

  • window stay and closer in one
  • variable with three preferred positions for optimal ventilation
  • maximum ventilation opening 160 mm
  • hinged
  • stainless steel lacquered Aluline: T-angle for plastic - and wooden frames
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 30 mm screw: 4 pieces
Commercial information
expand_more
Type AXAflex Special
Use for top-hung windows and skylights
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 180 mm
Product Width 50 mm
Product Height 91 mm
Direction of rotation turning upwards
Maximum gap width 160 mm
Maximum height vertical position 155 mm
Rotatable to the right
Operation variable with 3 preferred positions for optimal ventilation
Material Stainless steel
Finish Aluline
Material 2 Synthetic
Finish 2 Aluline
Assembly information
expand_more
Including Mounting Material False
Mounting length 180 mm
Required depth wood frame 11 mm
Assembly time 15 min
Recommended Mounting Materials
- 4.0 x 30 mm screw: 4 pieces
Logistic information
expand_more
Product Weight 180 gr
Pieces per bulk package 8 piece
EAN bulk package 8713249346212
Weight bulk package 1.57 kg
Dimensions bulk package 200 x 150 x 120 mm

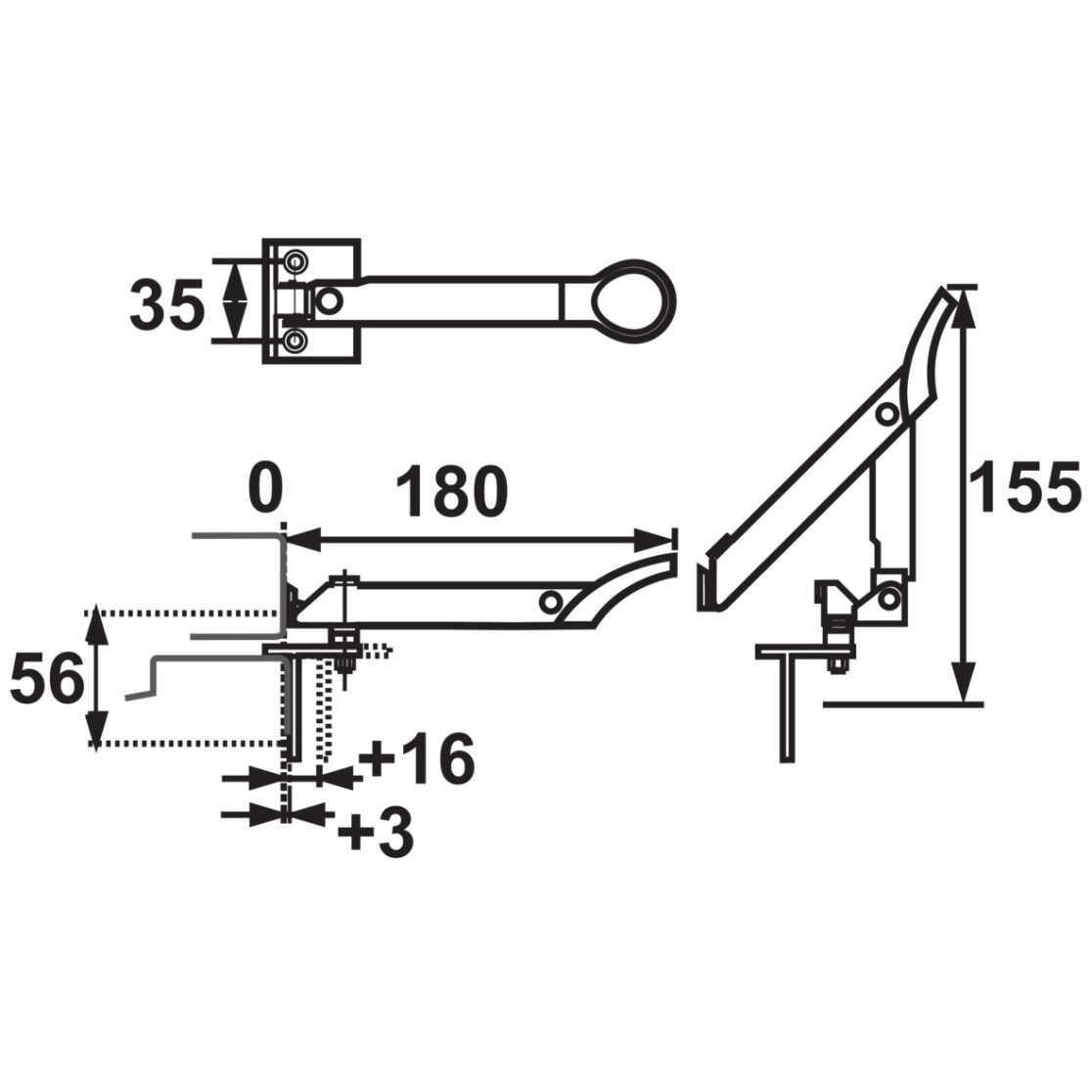

Technical drawings
Combi window stay AXAflex Special
26442061E
