Barrier bar V3-Uni

7610-60-54/BL
arrow_selector
close

SKG 2

Police Hallmark

The barrier bar is burglar-resistant and ideal when using hopper windows for ventilation purposes.

  • easily cut to size
  • fitting between the jambs
  • complies with Police Hallmark for Safe Living and SKG2 (FaΓ§ade Quality Institution hallmark)
Specifications Downloads Technical drawings Alternative products

Specifications

Recommended Mounting Materials
- 5.0 x 50 mm screw: 8 pieces
- 4.8 x 16 mm screw: 1 piece
Commercial information
expand_more
Type V3-Uni
Use for skylights, hopper windows and top-hung windows
Safety information
expand_more
Burglarproof True
SKG SKG 2
Police Hallmark True
CE Applicable False
Technical information
expand_more
Product Length 1100 mm
Material Steel
Finish White lacquered
Assembly information
expand_more
Including Mounting Material True

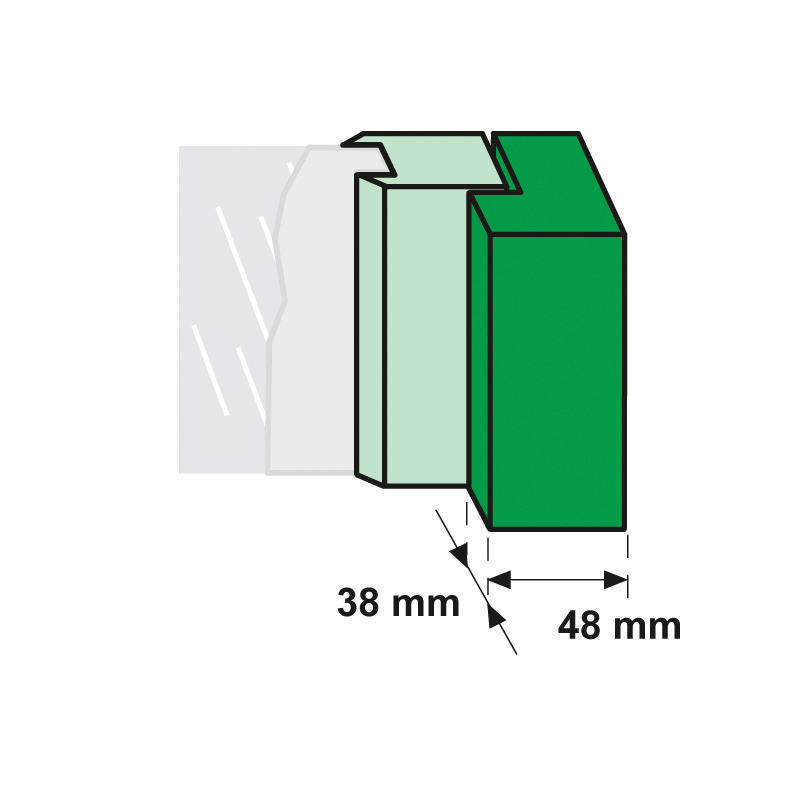

Required depth wood frame 38 mm
Required height/width wood frame 48 mm
Assembly time 15 min
Recommended Mounting Materials
- 5.0 x 50 mm screw: 8 pieces
- 4.8 x 16 mm screw: 1 piece
Logistic information
expand_more
Product Weight 1455 gr
Pieces per small package 1 piece
EAN small package 8713249227351
Weight small package 1.46 kg
Dimensions small package 640 x 100 x 50 mm
Pieces per bulk package 6 piece
EAN bulk package 8713249233055
Weight bulk package 9.86 kg

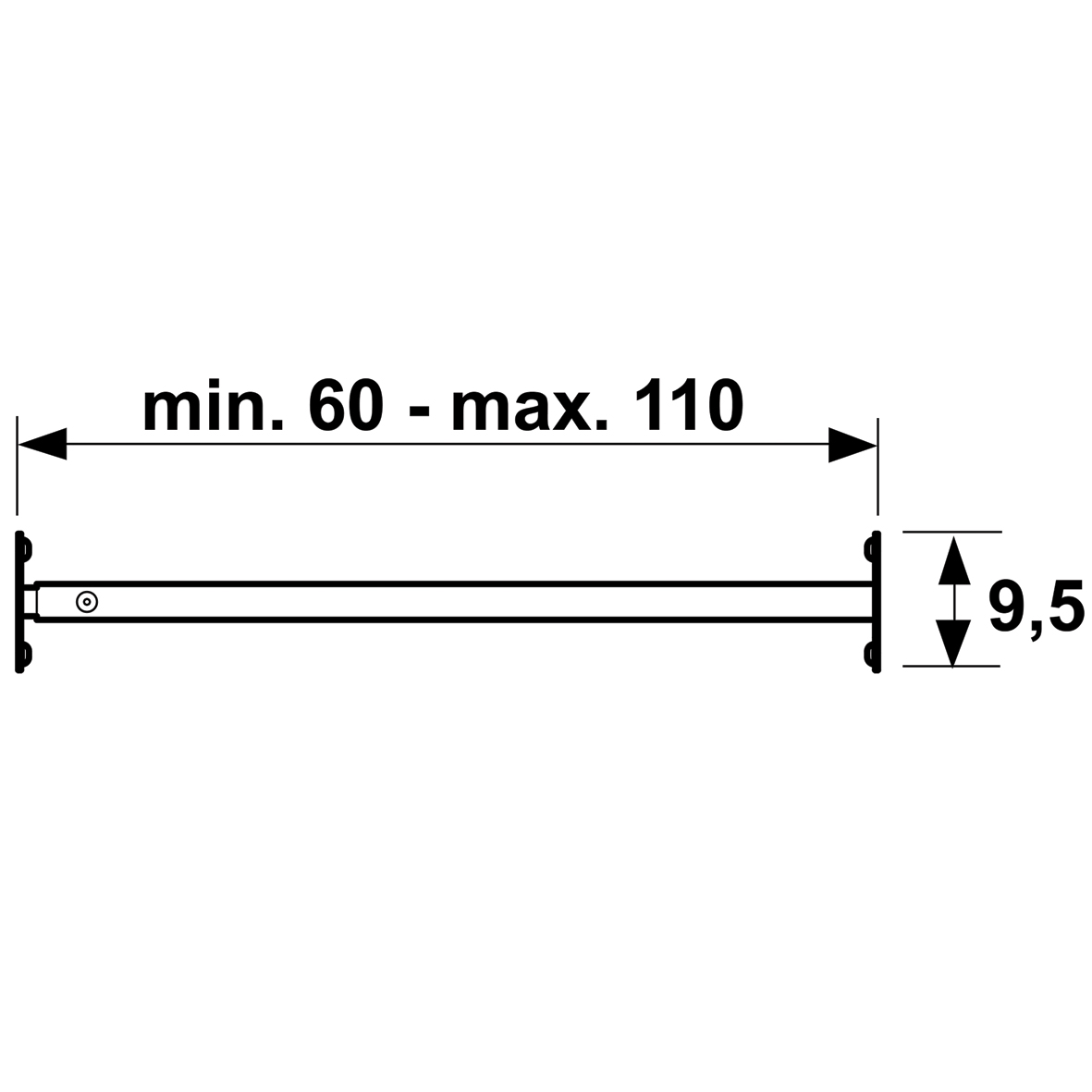

Technical drawings
Barrier bar V3-Uni
76106054BL
