Discover the new generation of AXA titan® security hinges

History Benefits Old vs. New Specifications Disassemble Titan Contact & brochure

The result of an even smarter design!

The new generation of AXA Titan® saves the professional even more money and precious assembly time.

However, the enthusiastic reception of the thieves’ clawless AXA Titan® security hinge in 2018 in the market did not mean that AXA has been sitting still. Thanks to the valuable feedback we received, the hinge has been further developed over the past few years. The end result: a smarter design and thus the new generation of the AXA Titan® security hinge!

All advantages at a glance

Automatic locking of hinge pin with locking spring construction

1 lessscrew needed compared to the old generation Titan®

Applicable on every production line without additional handling or adjustments (upright and horizontal mounting possible, without opening the door)

Disassembly: unlocked with one click

Clean design: for a smooth appearance

All the innovation in one hinge: even fewer assembly operations!

Thus, compared to the old generation of AXA Titan® security hinges, as a professional, you need one less screw and the hinges can be applied to any production line without additional handling or adjustments. In short, you can switch seamlessly!

open_in_new
View brochure!

More innovations? No problem!

The Titan® Topcoat + Klik washer plate is the latest addition to the Titan® product series.

The hinge comes with the 1 mm thick Klik washer plate snapped to the door joint. This makes mounting and adjusting the door even easier.

Thanks to the unique double rolling, the Titan® has a high load capacity (180 kg with 3 hinges). The hinge complies with SKG-3 (resistance class 3) with only 3 instead of 5 hinges.

open_in_new
The new Titan® Topcoat + Klik washer plate

Old vs. new generation AXA Titan®

Are you already a Titan® customer and out of stock of safety hinges? Then order the latest generation of Titan® safety hinges as the old safety version is no longer available!

The new generation of Titan® security hinges

Currently, the new generation Titan® is available in the following variants:

  • Topcoat version
  • Topcoat + Klik wash plate
  • Black version
  • Stainless steel version
All Titan®hinges!

Security hinge Titan+Klik washer plate

1711-09-23/7V2KP

Old and new

Article numbers old variant:

1711-09-23/7V

1711-09-23/VE

Article numbers Titan® V2 topcoat:

1711-09-23/V2E

1711-09-23/7V2*

Article numbers Titan® V2 Black

1711-09-56/V2E

1711-09-56/7V2*

Article numbers Titan® V2 Stainless steel

1711-09-81/V2E

1711-09-81/7V2*

*Unloaded

Same powerhouse as ever!

Even the new AXA Titan® is still the same powerhouse, but now offers even more time savings and assembly options than the original. This is how we open doors for every processor!

All Titan®hinges!

Trusted features

180 KG load capacity with 3 hinges

Suitable for (exterior) doors and window

SKG3 approval with 3 hinges instead of 5 at other providers

Material: steel

Finish: Topcoat galvanized (resistant to weather influences)



Other specifications

Highest security level

The innovative automatic locking spring construction effectively blocks the hinge pin. With this thieves’ clawless locking system, the latest generation of AXA TItan® security hinge also meets the strict requirements of the Police Mark Safe Living.

Only SKG 3-star certification (resistance class 3) requires three AXA Titan® security hinges per door.

‘With the new generation of AXA Titan® security hinges, you only need three instead of five hinges (with other suppliers) for SKG 3-star certification’.

NEN building regulations

The new security hinge also meets the CE requirements according to the NEN-EN 1935 and the requirements of theNEN 5096 of the Building Decree for doors.

Headless hinge pin, clean design

The AXA Titan® headless hinge pin prevents unnecessary mounting damage to the frame and, combined with the hidden locking system, gives a quiet, clean appearance. Because the thief’s claw is missing, the hinge is even less noticeable when the door is open.

Moreover, thanks to its clever dimensioning, the AXA Titan® security hinge fits seamlessly into the recess of a traditional 89x 89 x 3 mm hinge.



Low maintenance thanks to Topcoat®

Made of galvanized steel, the AXA Titan® security hinge is additionally protected with Topcoat®, making it optimally resistant to weathering.

Extreem draagvermogen

The AXA Titan® security hinge is able to withstand torsional forces thanks to the extremely strong double-rolled hinge blades and the extra-thick 8 mm hinge pin.

In fact, the hinges are so strong that you only need three per door at a maximum load of 180 kg. So even with a door closer or door stop you are usually done with three hinges. Saving time and money and looking even neater.



Thieves' claw unnecessary

Het gepatenteerde vergrendelingssysteem vergrendelt de geplaatste scharnierpen met één klik en neemt deze functie over. Dat scheelt schroeven én handelingen: je hoeft bij het voorbereiden van het kozijn bijvoorbeeld geen kwetsbare en lastig af te lakken dievenklauwgat meer te maken.





Wear-resistant bearing combination

The wear-resistant combination of steel and self-lubricating plastic bearings in the hinge significantly reduces the risk of bearing breakage when the hinge pin is inserted. This also prevents the ‘slip-stick’ effect, where cracking or squeaking can occur when two objects slide over each other under high loads.

The plastic bearings of high-quality AXApom not only turn smoothly and silently, they are also designed to stay securely in place at all times.





Reduced assembly time

When using the AXA Titan® security hinge with automatic locking, as with the original design, no more than three security hinges are needed for SKG 3-star certification. This saves significantly in assembly time.

Thanks to the automatic locking feature, you can install the hinge as desired without any additional operation. The headless design of the hinge pin also ensures, that it can be installed from both below and above. Handy!

‘Compared to the previous model, you need one less screw when mounting the new Titan’.





Demontage AXA Titan®

Ontgrendeld met één klik!

open_in_new
Bekijk montagehandleiding!

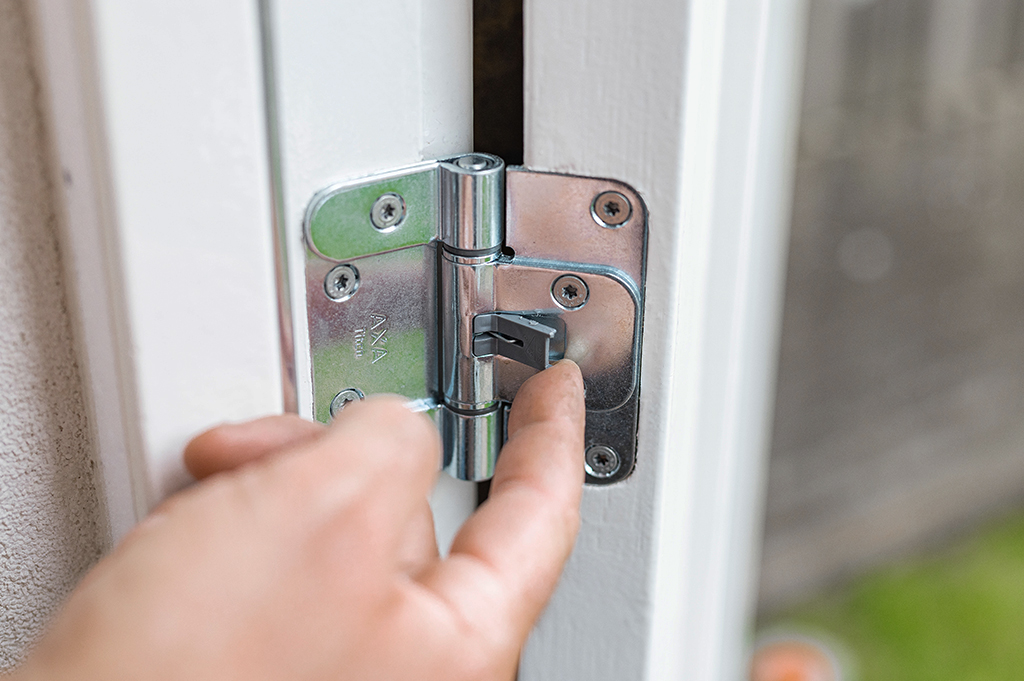

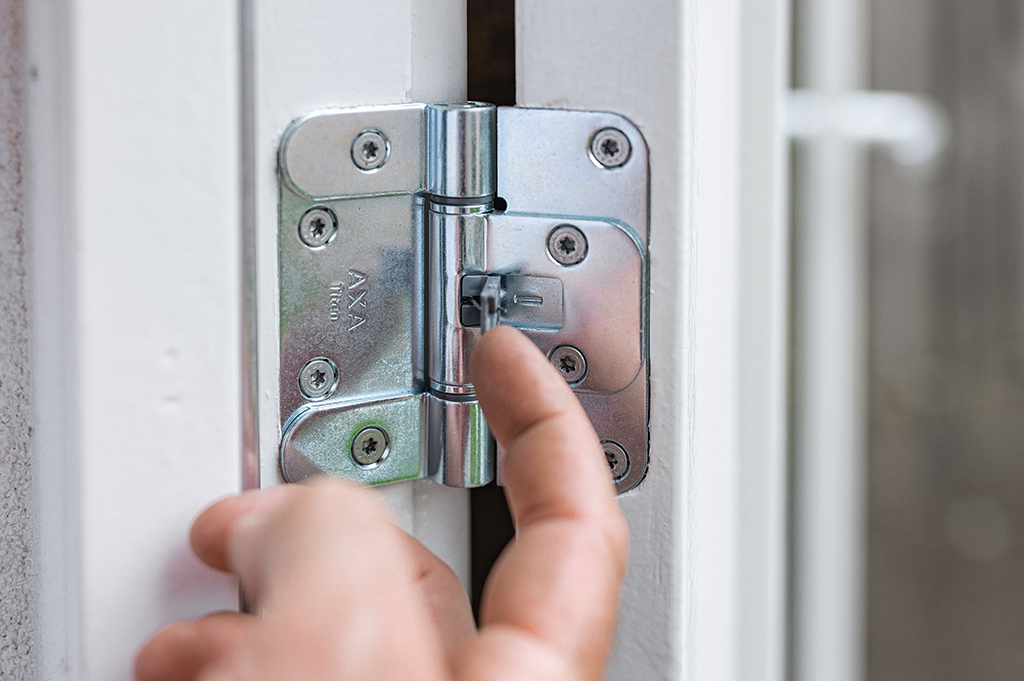

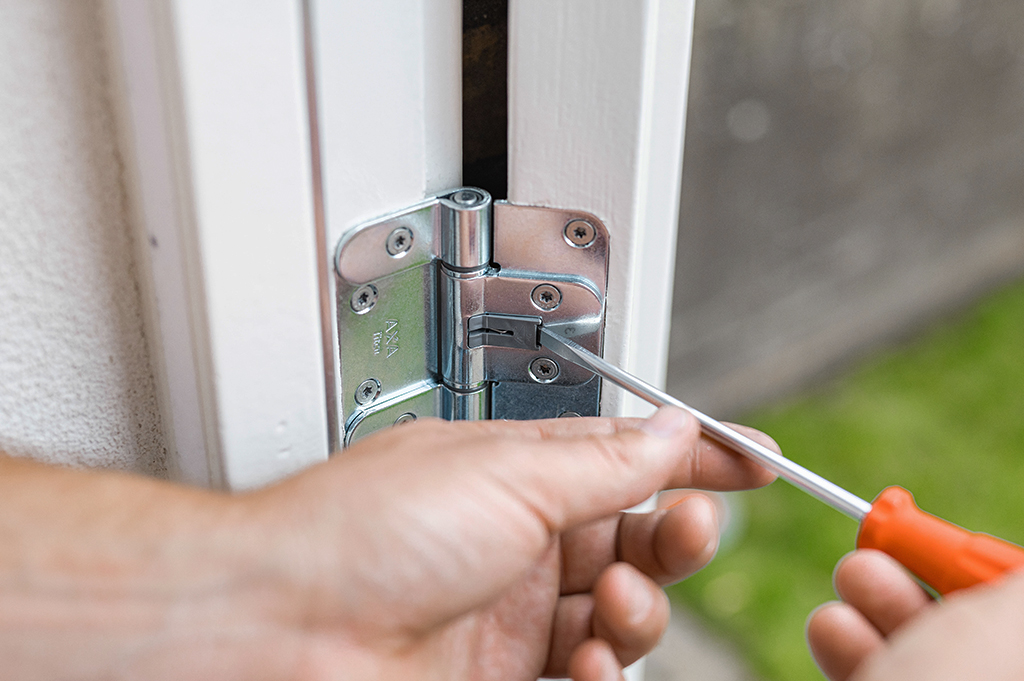

The hinge pin latch of the AXA Titan® security hinge has a locking mechanism with locking spring construction that you only need to lift briefly to click it loose. Once the lock is released, you can tap the headless hinge pin out of the hinge with a simple strike from above or below.

Please note that before you remove the hinge pin, you should always unlock the locking spring first!
