Window fastener 3318

3318-61-92/E
arrow_selector
close

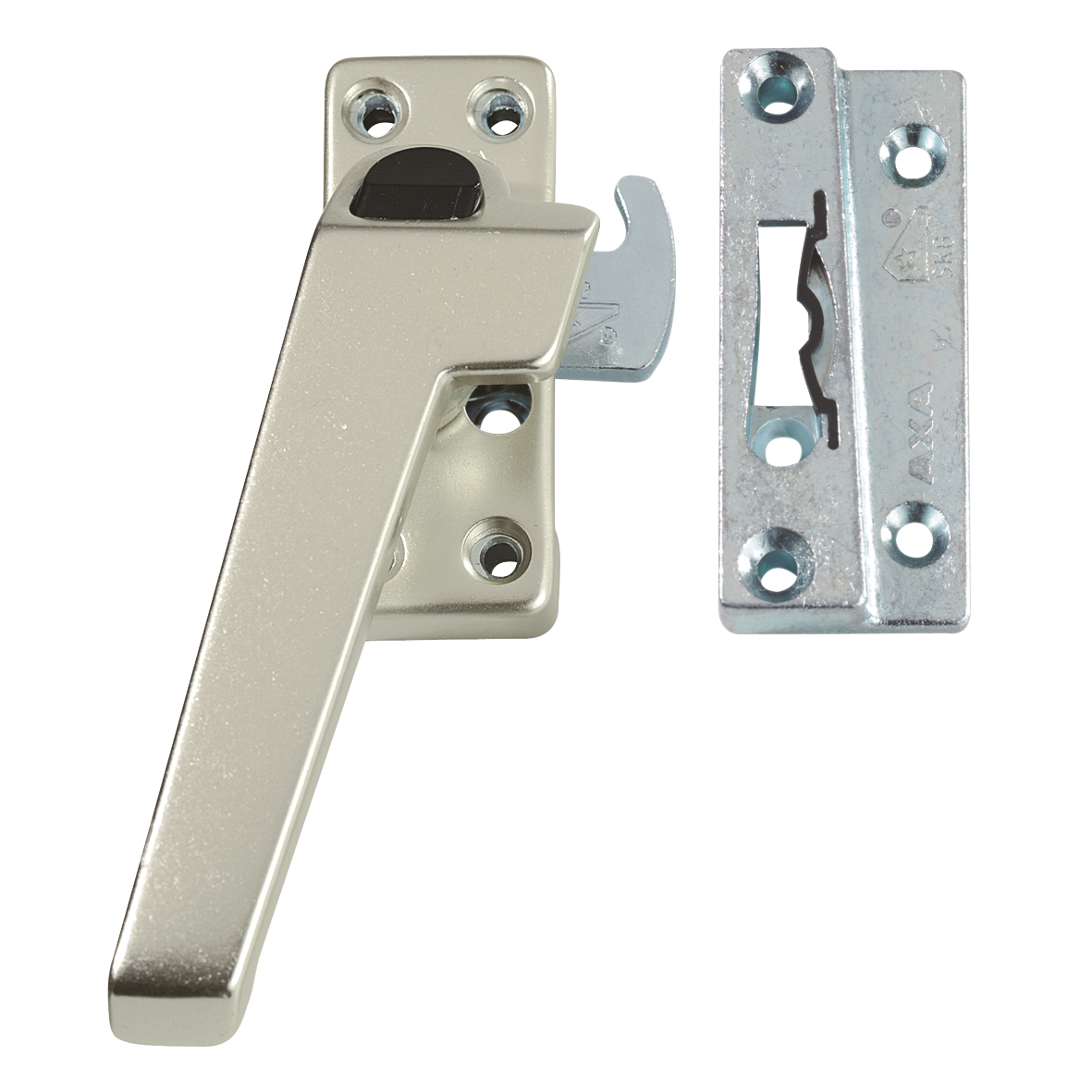

The AXA 3318 window fastener features a ventilation cam while a hook bolt provides increased burglar-resistance.

  • sturdy window fastener
  • with a release knob for locking
  • with a cam for optimal ventilation
  • with a hook bolt for extra security
  • complete with a special surface-mounted striker with a rattle-free ventilation cam holder and attachment materials
  • with a separate washer plate if there is an aluminium draught strip in the groove and/or for windows with narrow frames
  • simple assembly
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 8 pieces
- 4.0 x 20 mm taptites: 4 pieces
- 4.5 x 55 mm screw: 2 pieces
Commercial information
expand_more
Type 3318
Use for outward-opening casement windows and doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 132 mm
Product Width 65 mm
Product Height 40 mm
Direction of rotation left outward-opening
Bolt type hook bolt
Bolt catcher surface-mounted striker
Locking mechanisme push button
Material Aluminum
Finish Anodised F2, champagne
Material 2 Synthetic
Finish 2 Black
Assembly information
expand_more
Including Mounting Material True
Mounting length 132 mm
Required depth wood frame 39 mm
Window/door mounting width requirement 47 mm
Assembly time 20 min
Recommended Mounting Materials
- 4.0 x 40 mm screw: 8 pieces
- 4.0 x 20 mm taptites: 4 pieces
- 4.5 x 55 mm screw: 2 pieces
Logistic information
expand_more
Product Weight 388 gr
Pieces per small package 6 piece
EAN small package 8713249073972
Weight small package 2.43 kg
Dimensions small package 381 x 158 x 56 mm
Pieces per bulk package 36 piece
EAN bulk package 8713249073989
Weight bulk package 14.85 kg
Dimensions bulk package 390 x 200 x 180 mm
