Window fastener 3318

3318-61-91/6
arrow_selector
close

The AXA 3318 window fastener features a ventilation cam while a hook bolt provides increased burglar-resistance.

  • sturdy window fastener
  • with a release knob for locking
  • with a cam for optimal ventilation
  • with a hook bolt for extra security
  • complete with a special surface-mounted striker with a rattle-free ventilation cam holder and attachment materials
  • simple assembly
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 50 mm screw: 4 pieces
- 4.0 x 40 mm screw: 4 pieces
- 4.5 x 55 mm screw: 2 pieces
Commercial information
expand_more
Type 3318
Use for outward-opening casement windows and doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 132 mm
Product Width 65 mm
Product Height 40 mm
Direction of rotation left outward-opening
Bolt type hook bolt
Bolt catcher surface-mounted striker
Locking mechanisme push button
Material Aluminum
Finish Anodised F1, natural
Material 2 Synthetic
Finish 2 Black
Assembly information
expand_more
Including Mounting Material False
Mounting length 132 mm
Required depth wood frame 31 mm
Window/door mounting width requirement 47 mm
Assembly time 20 min
Recommended Mounting Materials
- 4.0 x 50 mm screw: 4 pieces
- 4.0 x 40 mm screw: 4 pieces
- 4.5 x 55 mm screw: 2 pieces
Logistic information
expand_more
Product Weight 388 gr
Pieces per bulk package 50 piece
EAN bulk package 8713249190150
Weight bulk package 19.8 kg
Dimensions bulk package 390 x 320 x 180 mm

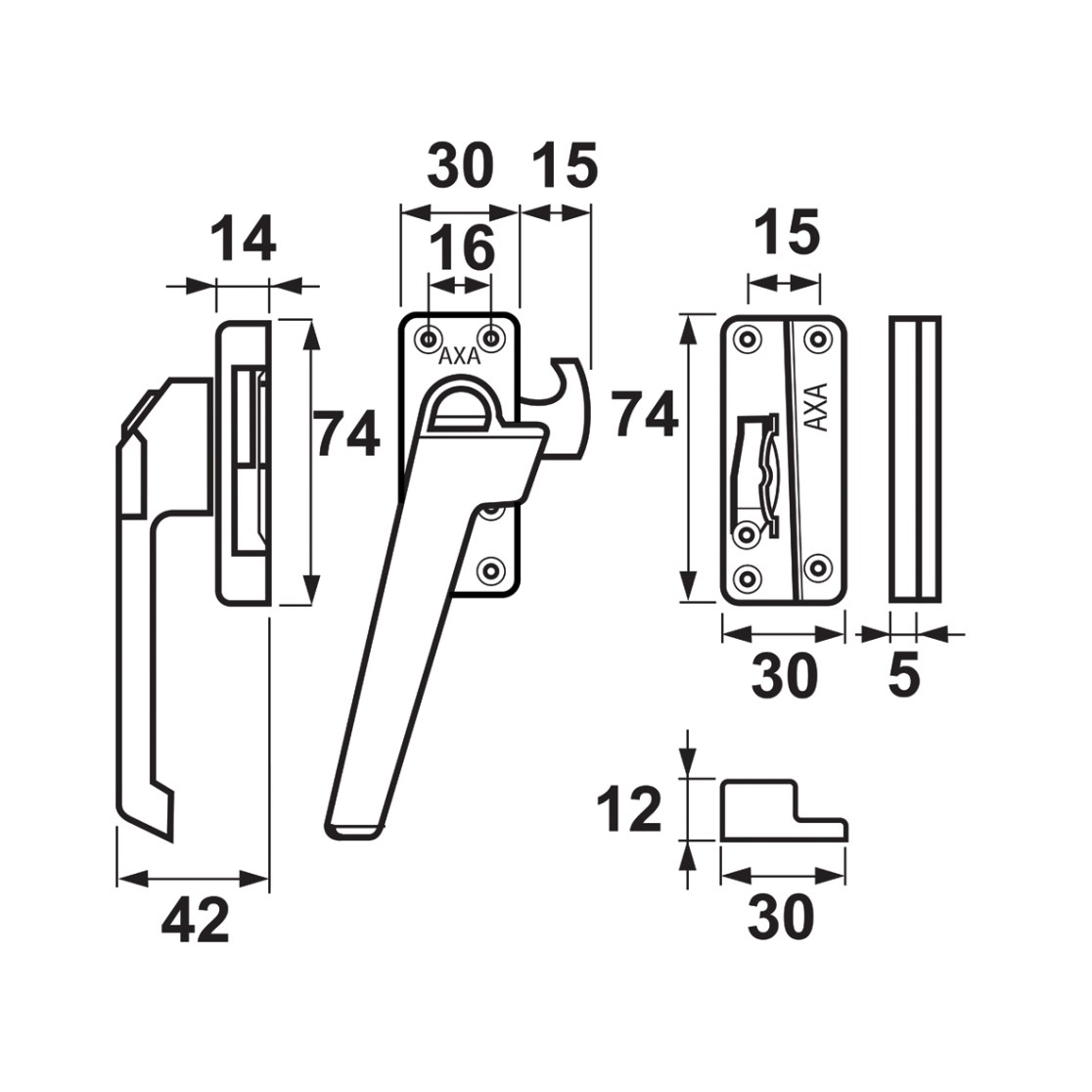

Technical drawings
