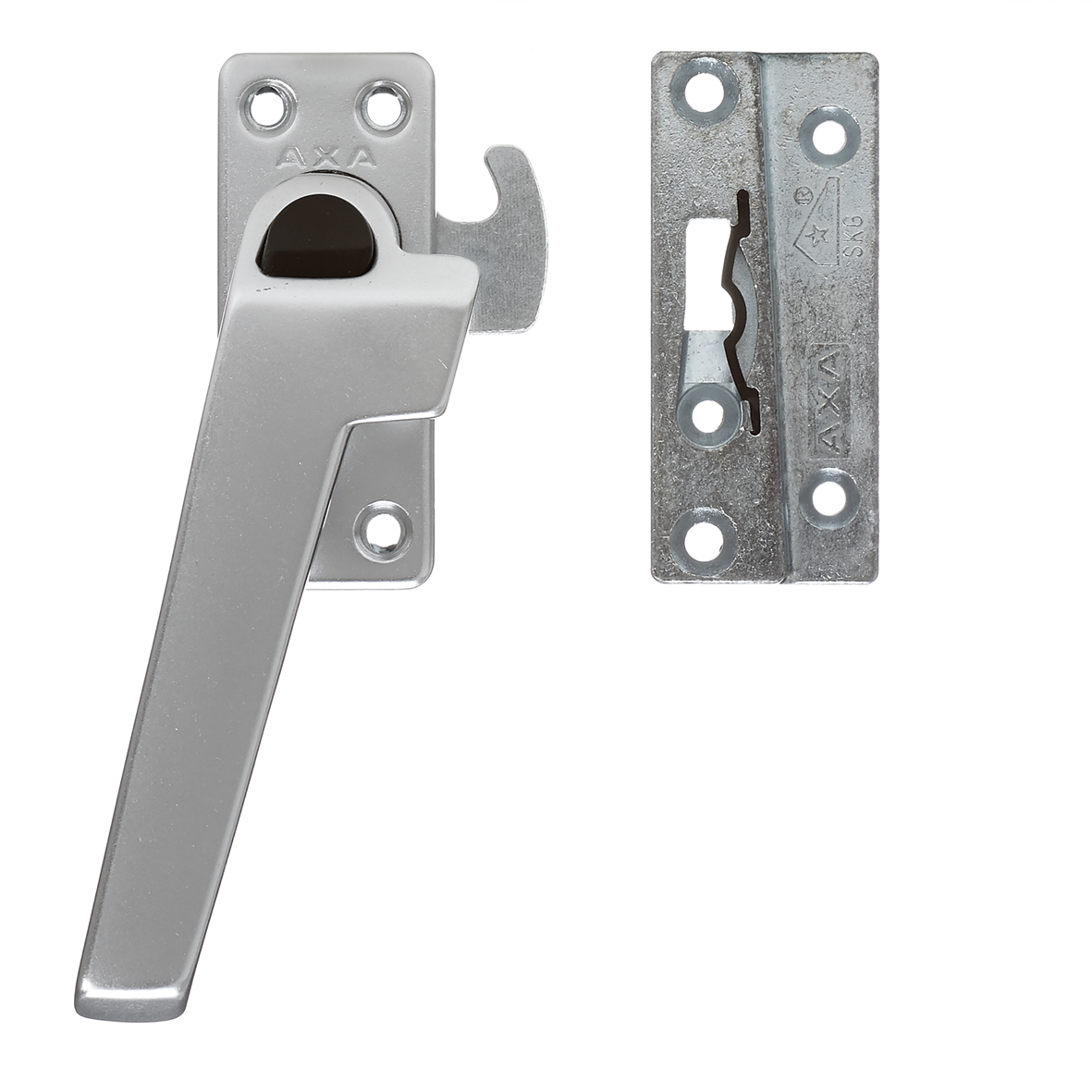

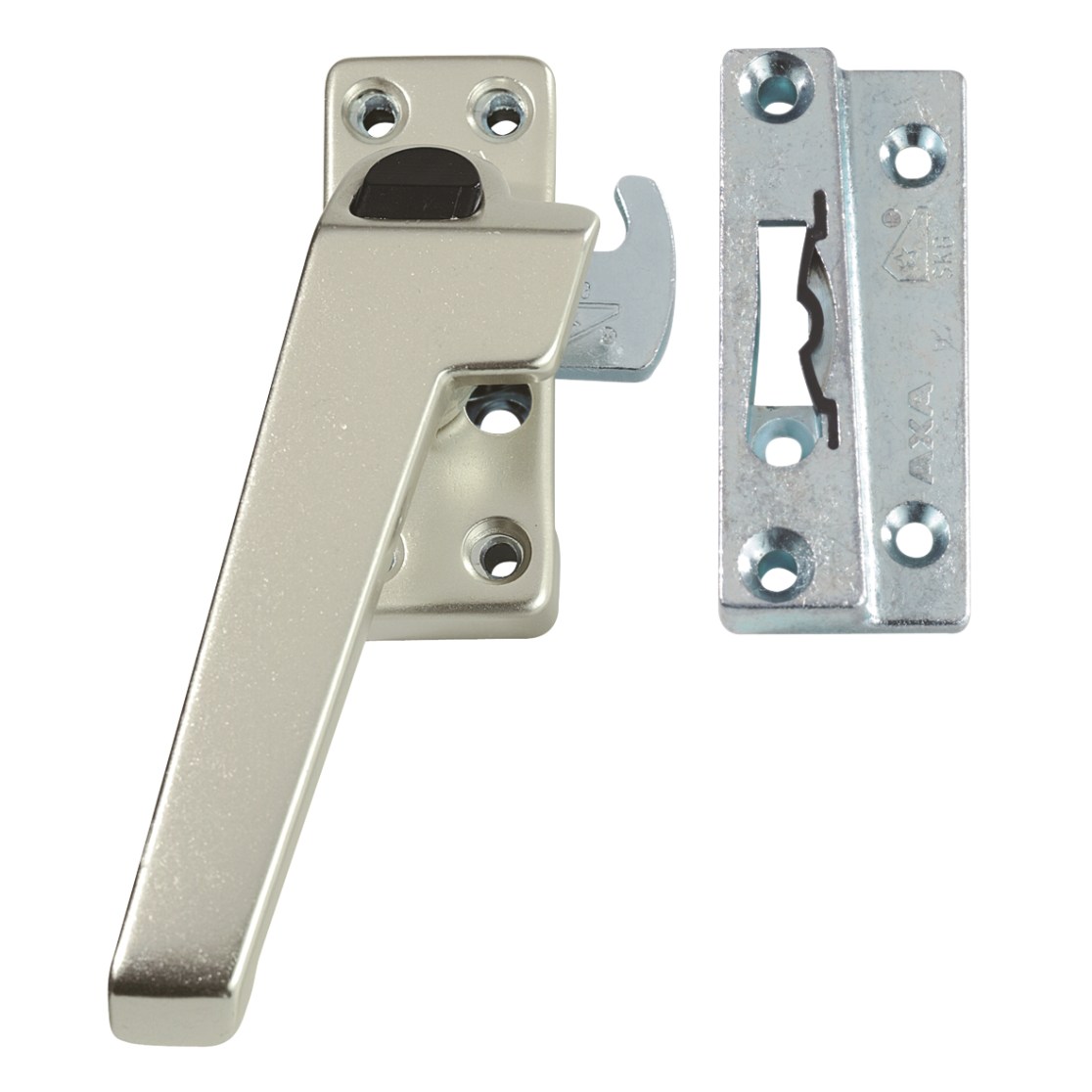

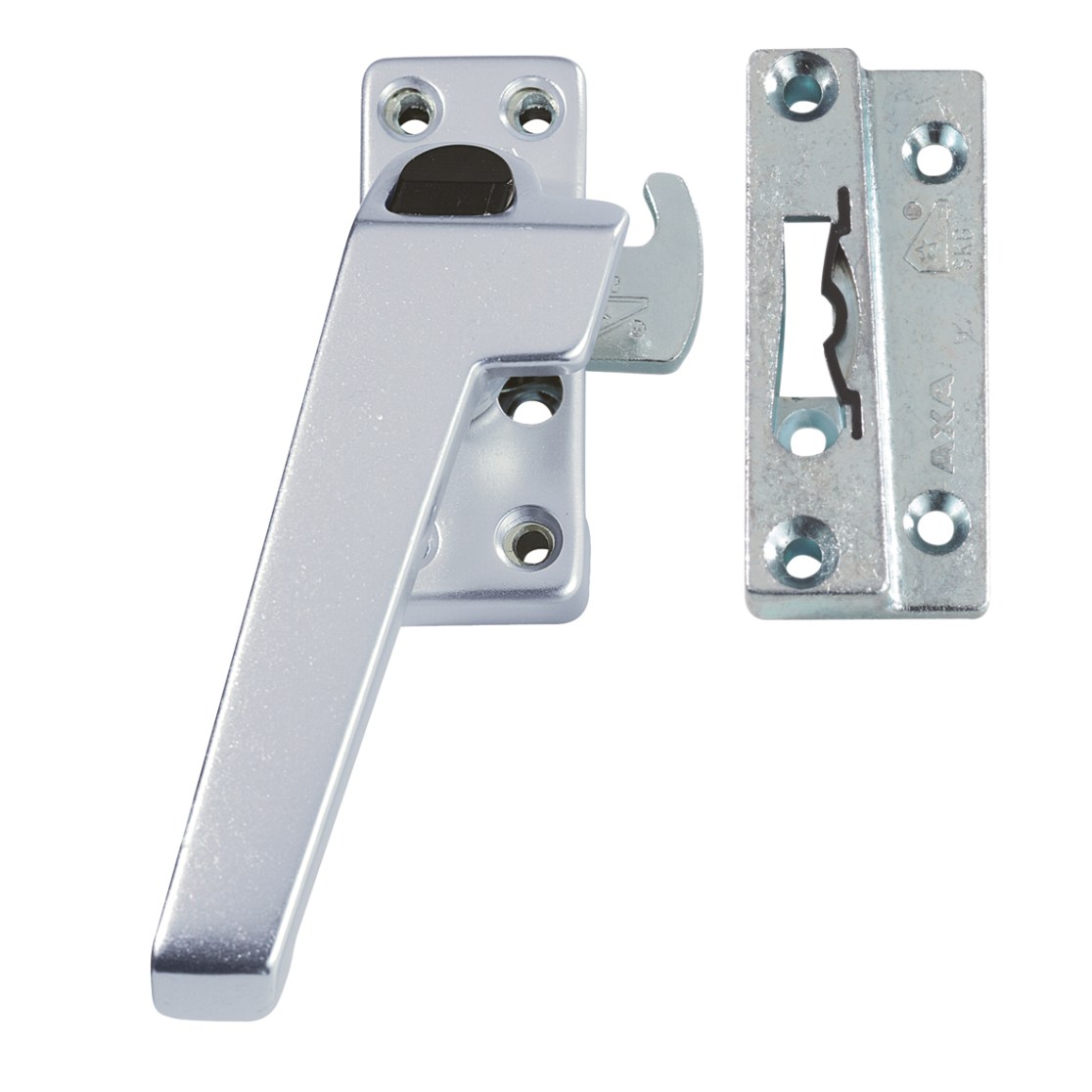

Window fastener 3318
3318-61-91/EThe AXA 3318 window fastener features a ventilation cam while a hook bolt provides increased burglar-resistance.
- sturdy window fastener
- with a release knob for locking
- with a cam for optimal ventilation
- with a hook bolt for extra security
- complete with a special surface-mounted striker with a rattle-free ventilation cam holder and attachment materials
- with a separate washer plate if there is an aluminium draught strip in the groove and/or for windows with narrow frames
- simple assembly

The AXA 3318 window fastener features a ventilation cam while a hook bolt provides increased burglar-resistance.
- sturdy window fastener
- with a release knob for locking
- with a cam for optimal ventilation
- with a hook bolt for extra security
- complete with a special surface-mounted striker with a rattle-free ventilation cam holder and attachment materials
- with a separate washer plate if there is an aluminium draught strip in the groove and/or for windows with narrow frames
- simple assembly
Specifications
Recommended Mounting Materials
- 4.0 x 40 mm screw: 8 pieces
- 4.0 x 20 mm taptites: 4 pieces
- 4.5 x 55 mm screw: 2 pieces
- 4.0 x 40 mm screw: 8 pieces
- 4.0 x 20 mm taptites: 4 pieces
- 4.5 x 55 mm screw: 2 pieces
Commercial information
Type 3318
Use for outward-opening casement windows and doors
Safety information
SKG No
Police Hallmark False
CE Applicable False
Technical information
Product Length 132 mm
Product Width 65 mm
Product Height 40 mm
Direction of rotation left outward-opening
Bolt type hook bolt
Bolt catcher surface-mounted striker
Locking mechanisme push button
Material Aluminum
Finish Anodised F1, natural
Material 2 Synthetic
Finish 2 Black
Assembly information
Including Mounting Material True
Mounting length 132 mm
Required depth wood frame 39 mm
Window/door mounting width requirement 47 mm
Assembly time 20 min
Recommended Mounting Materials
- 4.0 x 40 mm screw: 8 pieces
- 4.0 x 20 mm taptites: 4 pieces
- 4.5 x 55 mm screw: 2 pieces
- 4.0 x 40 mm screw: 8 pieces
- 4.0 x 20 mm taptites: 4 pieces
- 4.5 x 55 mm screw: 2 pieces
Logistic information
Product Weight 388 gr
Pieces per small package 6 piece
EAN small package 8713249342030
Weight small package 2.43 kg
Dimensions small package 381 x 158 x 56 mm
Pieces per bulk package 36 piece
EAN bulk package 8713249342047
Weight bulk package 14.85 kg
Dimensions bulk package 390 x 200 x 180 mm
Downloads

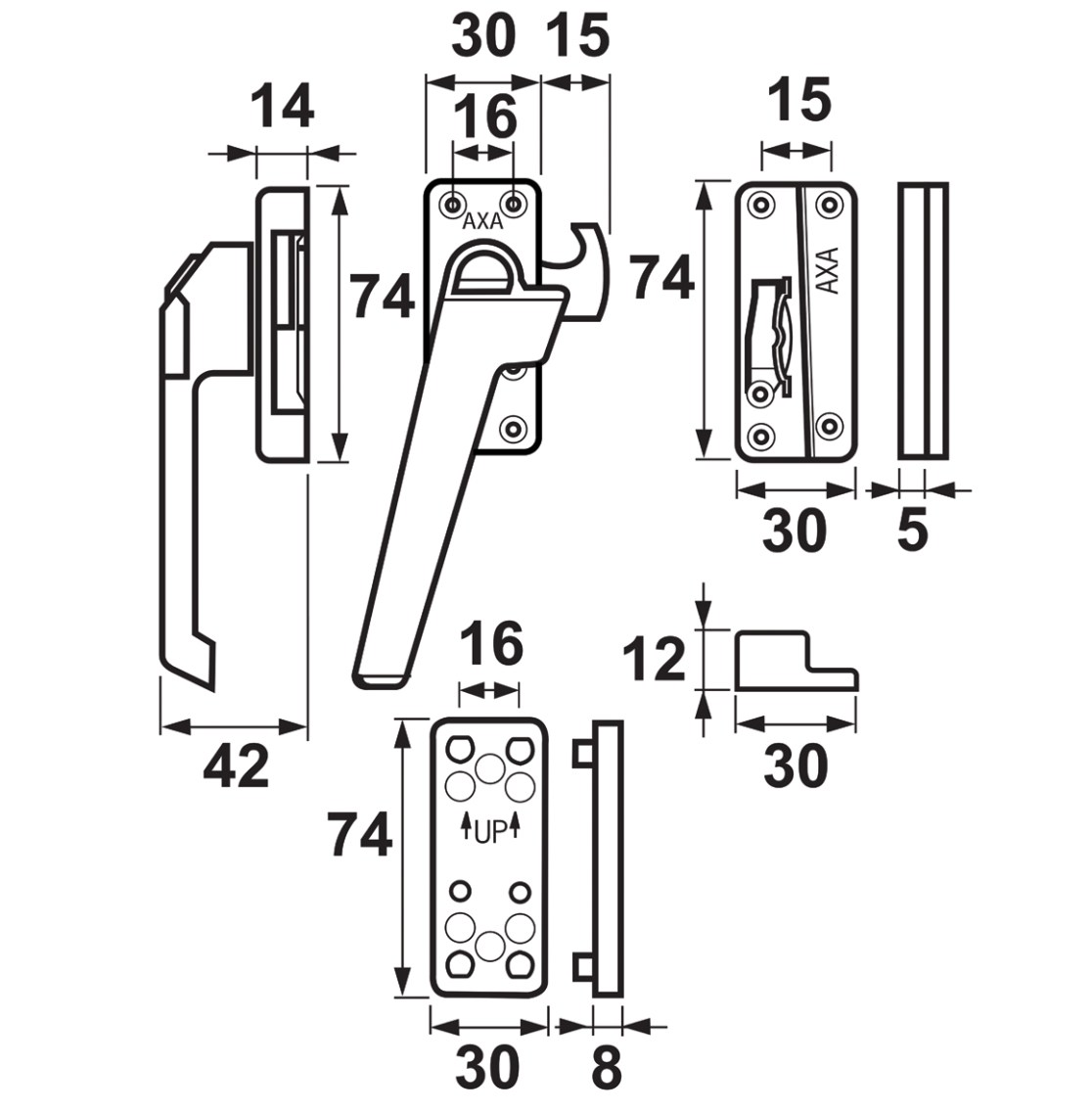

Main Image Environmental Product Declaration (EPD)Technical drawings
