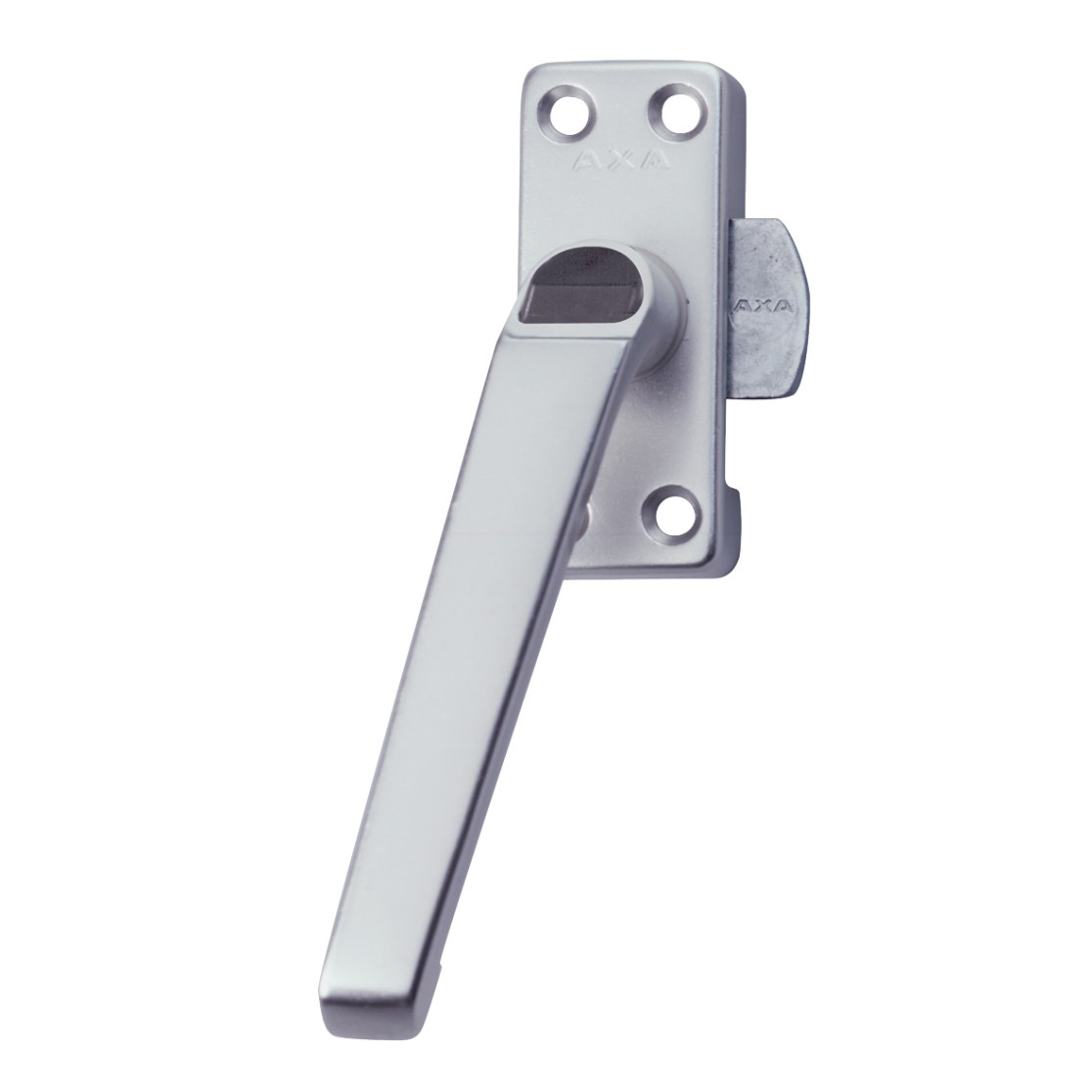

Window fastener 3308
3308-31-91/BLThe AXA 3308 window fastener features a ventilation cam and a release knob provides increased burglar-resistance.
- sturdy window fastener
- with a release knob for locking
- with a cam for optimal ventilation
- simple assembly




+
6The AXA 3308 window fastener features a ventilation cam and a release knob provides increased burglar-resistance.
- sturdy window fastener
- with a release knob for locking
- with a cam for optimal ventilation
- simple assembly
Specifications
Recommended Mounting Materials
- 4.0 x 40 mm screw: 4 pieces
- 3.5 x 20 mm screw pieces
- 4.0 x 40 mm screw: 4 pieces
- 3.5 x 20 mm screw pieces
Commercial information
Type 3308
Use for casement windows and doors
Safety information
SKG No
Police Hallmark False
CE Applicable False
Technical information

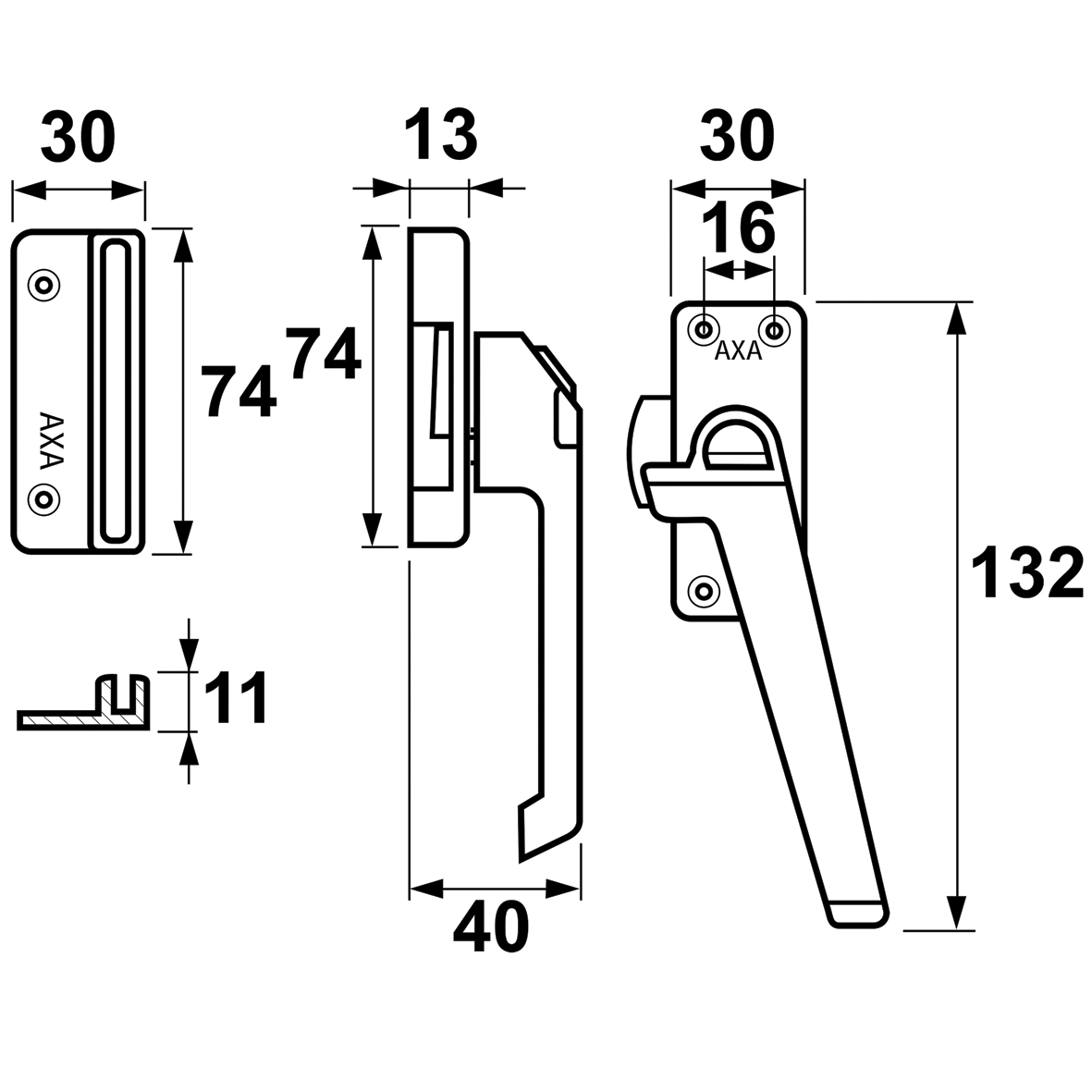

Product Length 132 mm
Product Width 65 mm
Product Height 40 mm
Direction of rotation right outward-opening
Bolt type standard bolt
Bolt catcher surface-mounted striker
Locking mechanisme push button
Material Aluminum
Finish Anodised F1, natural
Material 2 Synthetic
Finish 2 Black
Assembly information
Including Mounting Material False

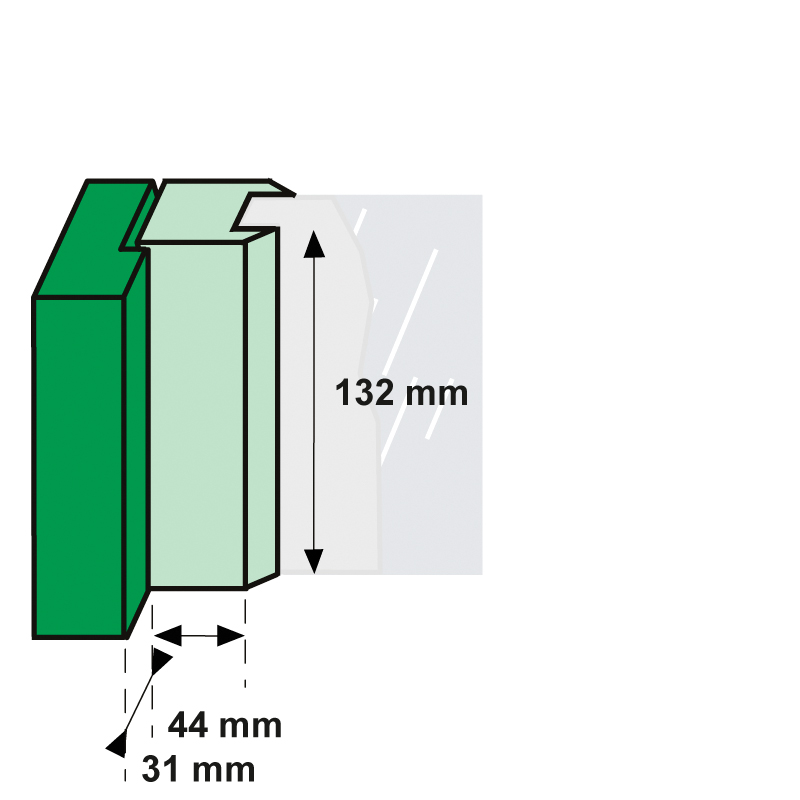

Mounting length 132 mm
Required depth wood frame 31 mm
Window/door mounting width requirement 44 mm
Assembly time 20 min
Recommended Mounting Materials
- 4.0 x 40 mm screw: 4 pieces
- 3.5 x 20 mm screw pieces
- 4.0 x 40 mm screw: 4 pieces
- 3.5 x 20 mm screw pieces
Logistic information
Product Weight 217 gr
Pieces per small package 1 piece
EAN small package 8713249237039
Weight small package 0.22 kg
Dimensions small package 215 x 95 x 48 mm
Pieces per bulk package 8 piece
EAN bulk package 8713249237046
Weight bulk package 2 kg
Dimensions bulk package 390 x 200 x 120 mm
