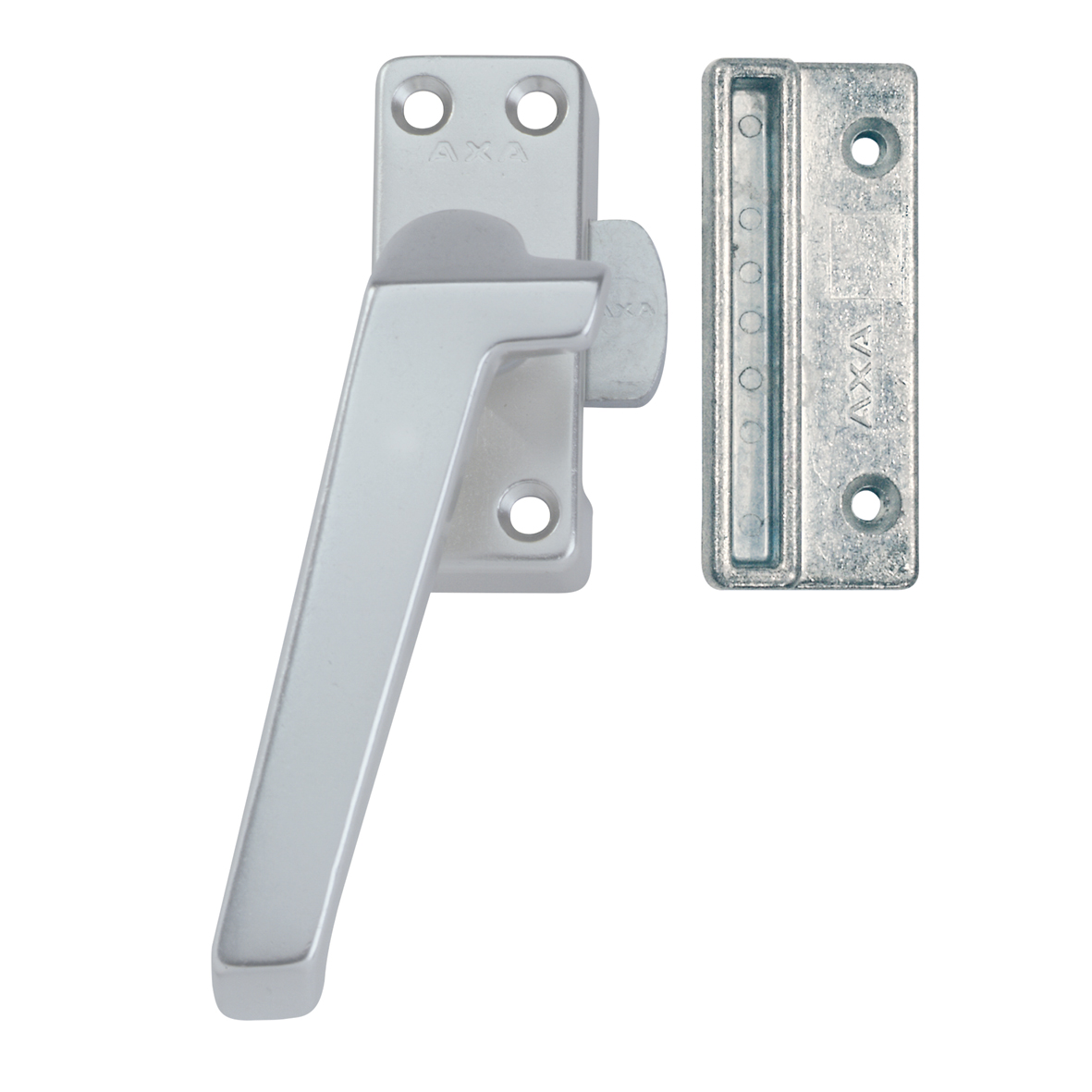

Window fastener 3302
3302-41-91/CPThe 3302 standard window fastener can be used to close windows and doors.
- sturdy window fastener
- with a cam for optimal ventilation
- simple assembly
+
3
The 3302 standard window fastener can be used to close windows and doors.
- sturdy window fastener
- with a cam for optimal ventilation
- simple assembly
Specifications
Recommended Mounting Materials
- 4.0 x 40 mm screw: 4 pieces
- 3.5 x 20 mm screw pieces
- 4.0 x 40 mm screw: 4 pieces
- 3.5 x 20 mm screw pieces
Commercial information
Type 3302
Use for casement windows and doors
Safety information
SKG No
Police Hallmark False
CE Applicable False
Technical information
Product Length 132 mm
Product Width 65 mm
Product Height 40 mm
Direction of rotation left outward-opening
Bolt type standard bolt
Bolt catcher surface-mounted striker
Material Aluminum
Finish Anodised F1, natural
Assembly information
Including Mounting Material False
Mounting length 132 mm
Required depth wood frame 31 mm
Window/door mounting width requirement 44 mm
Assembly time 20 min
Recommended Mounting Materials
- 4.0 x 40 mm screw: 4 pieces
- 3.5 x 20 mm screw pieces
- 4.0 x 40 mm screw: 4 pieces
- 3.5 x 20 mm screw pieces
Logistic information
Product Weight 245 gr

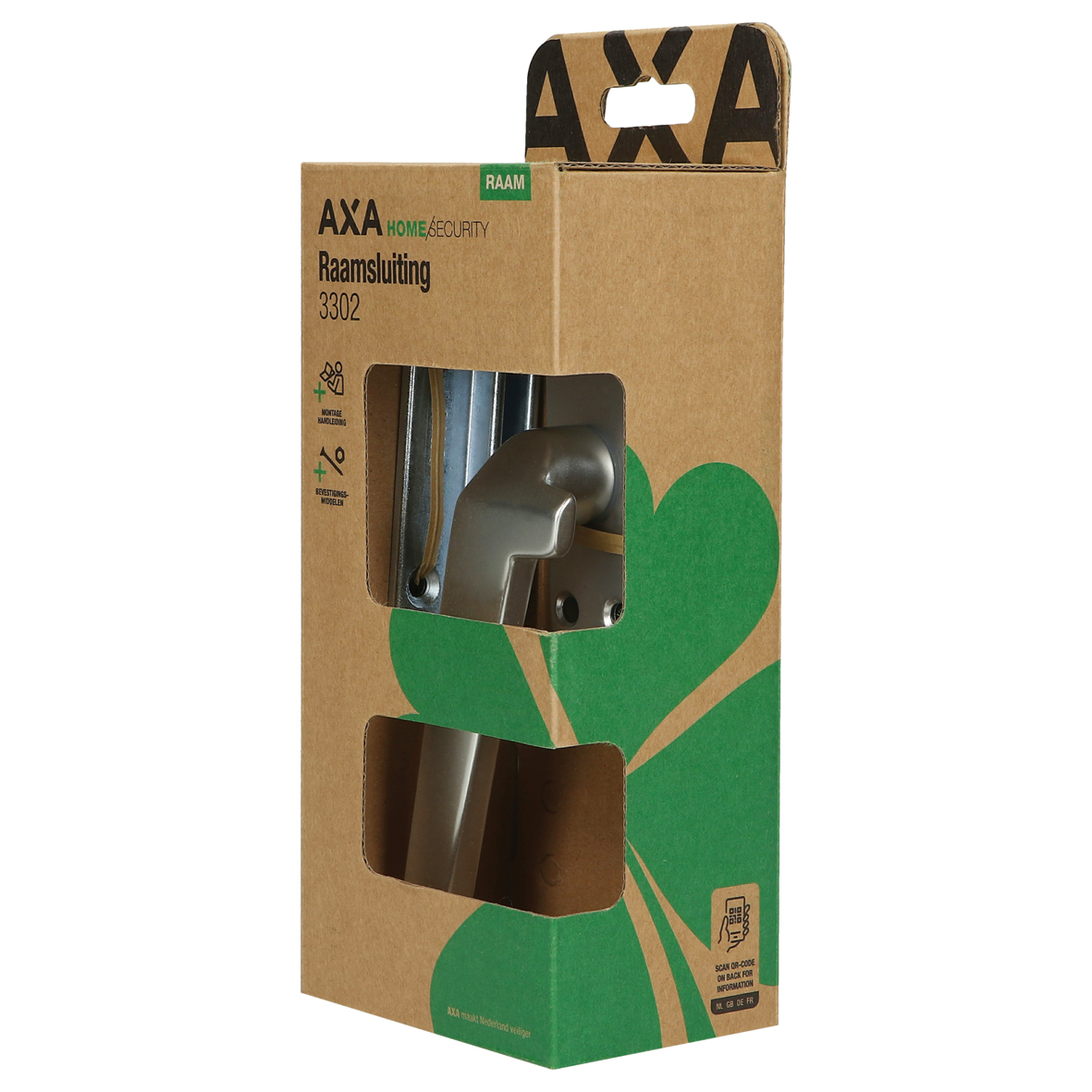

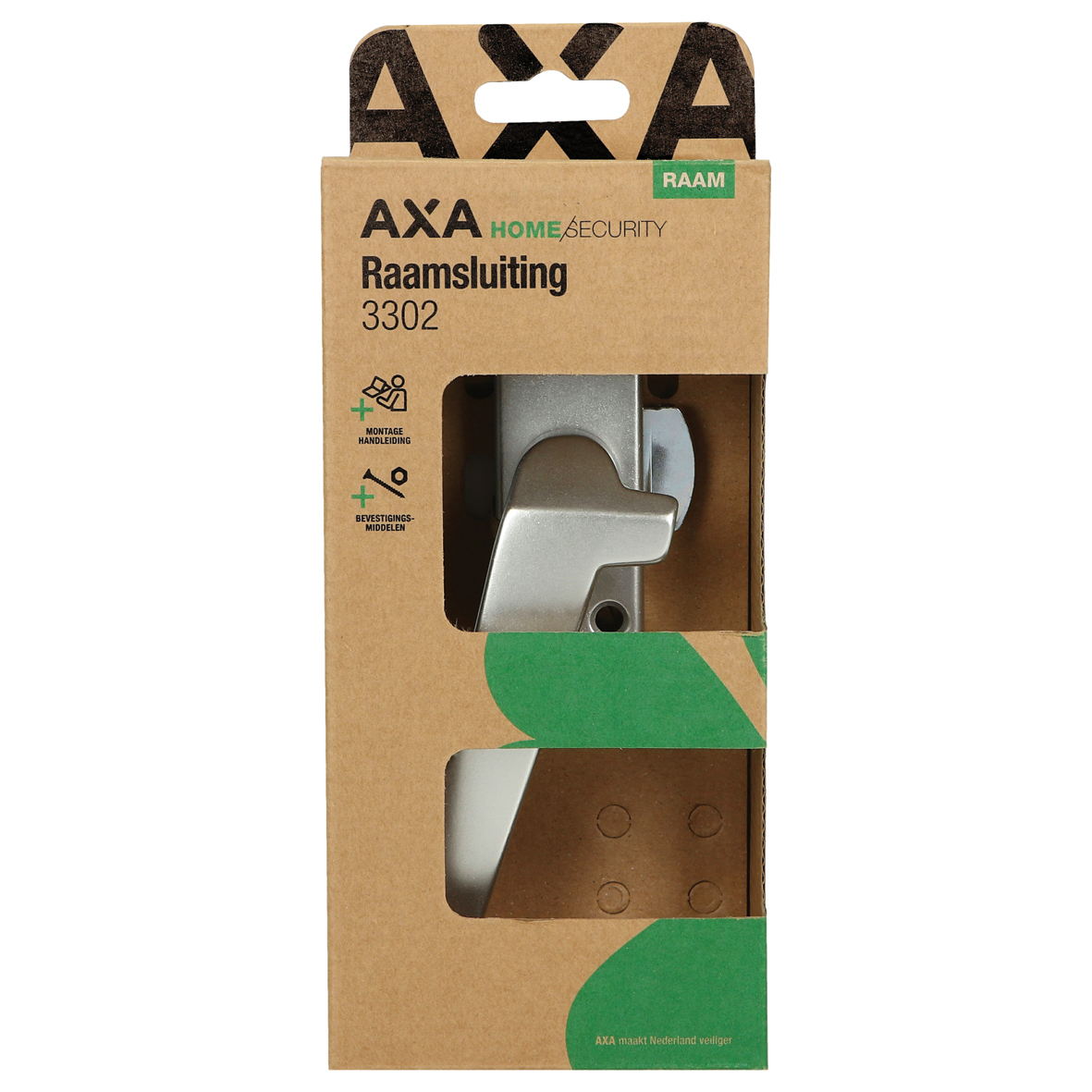

Pieces per small package 1 piece
EAN small package 8713249355870
Weight small package 0.245 kg
Dimensions small package 205 x 85 x 60 mm
Pieces per bulk package 8 piece
EAN bulk package 8713249355887
Weight bulk package 2.16 kg
Dimensions bulk package 355 x 180 x 125 mm
