Window fastener 3302

3302-31-38/BL

+

10
arrow_selector
close

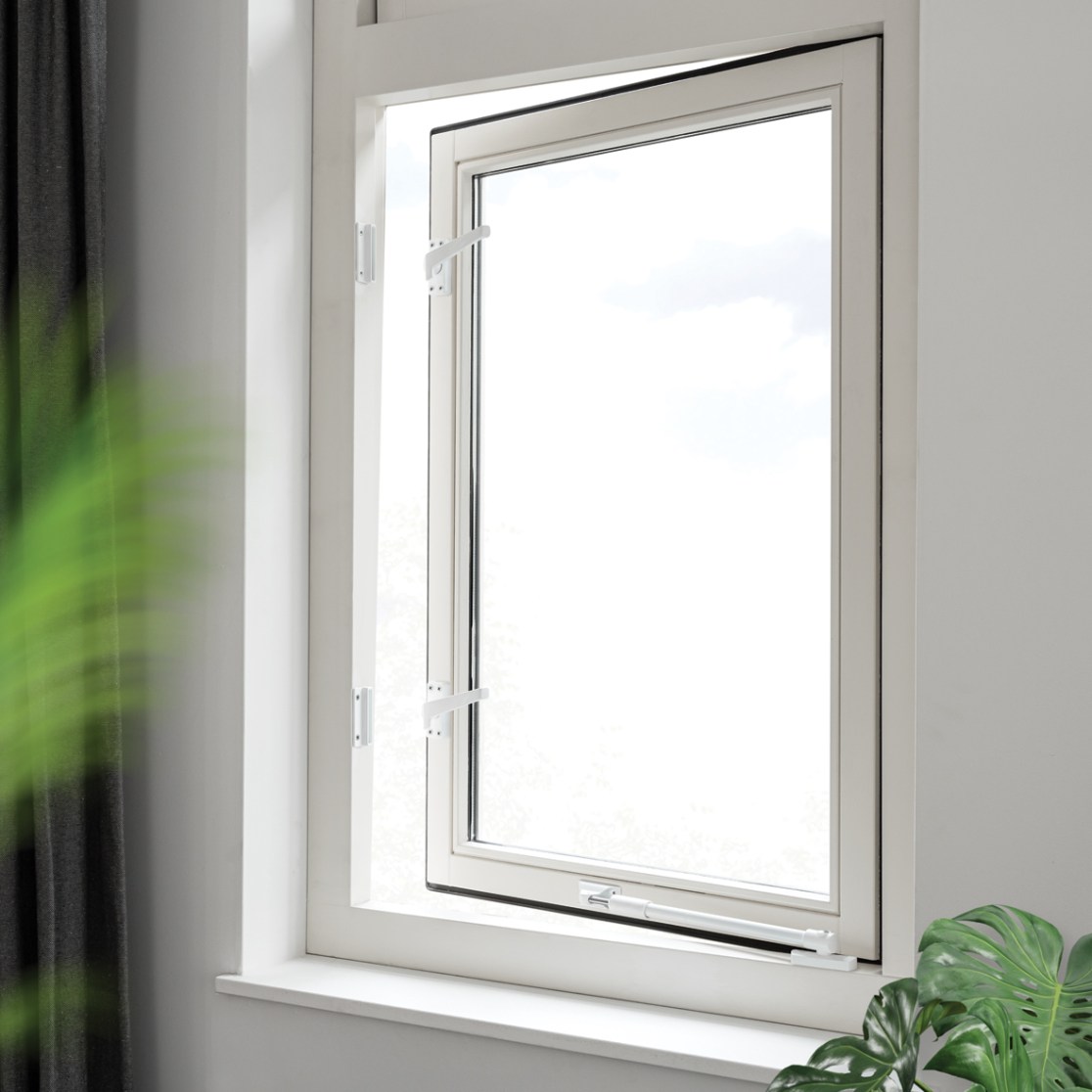

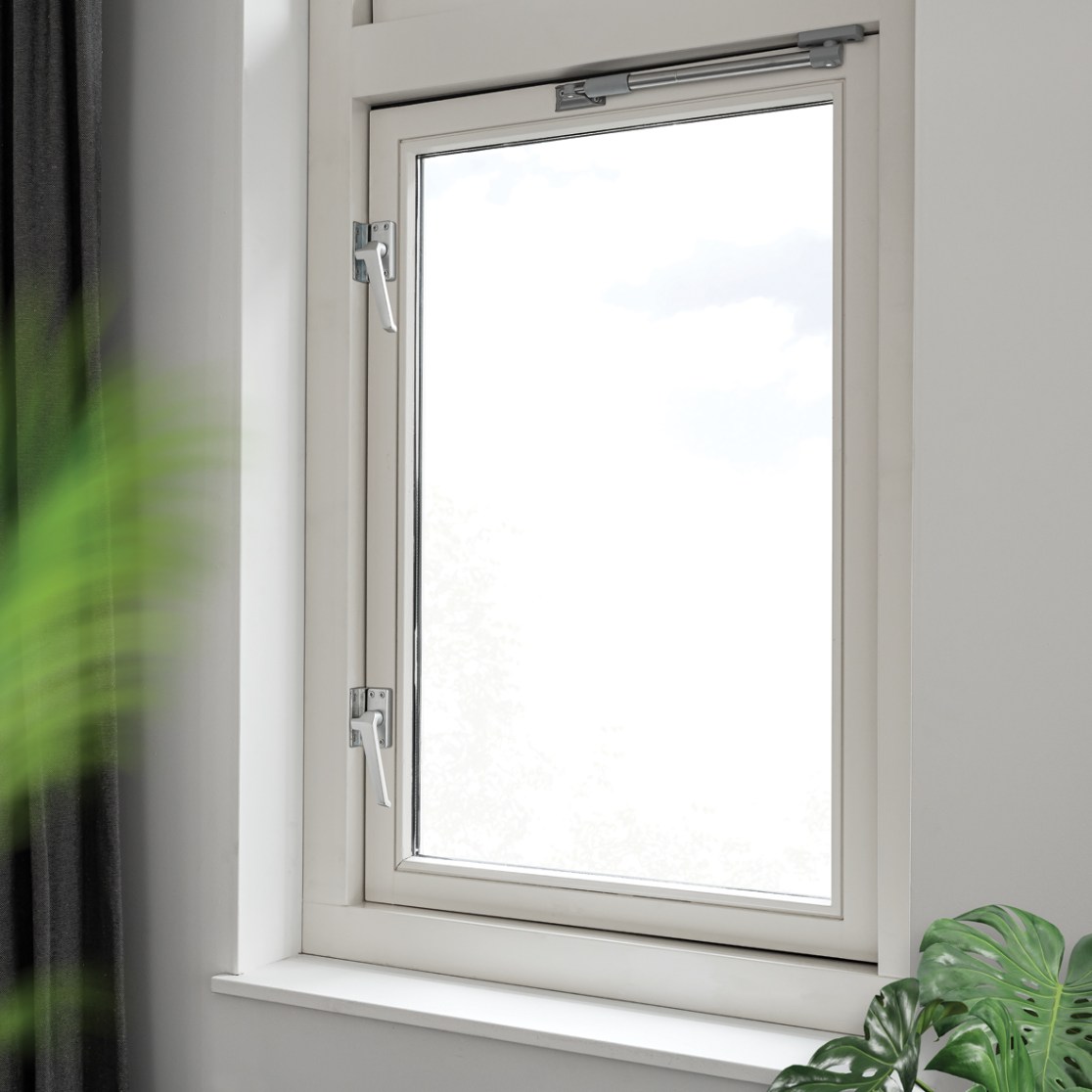

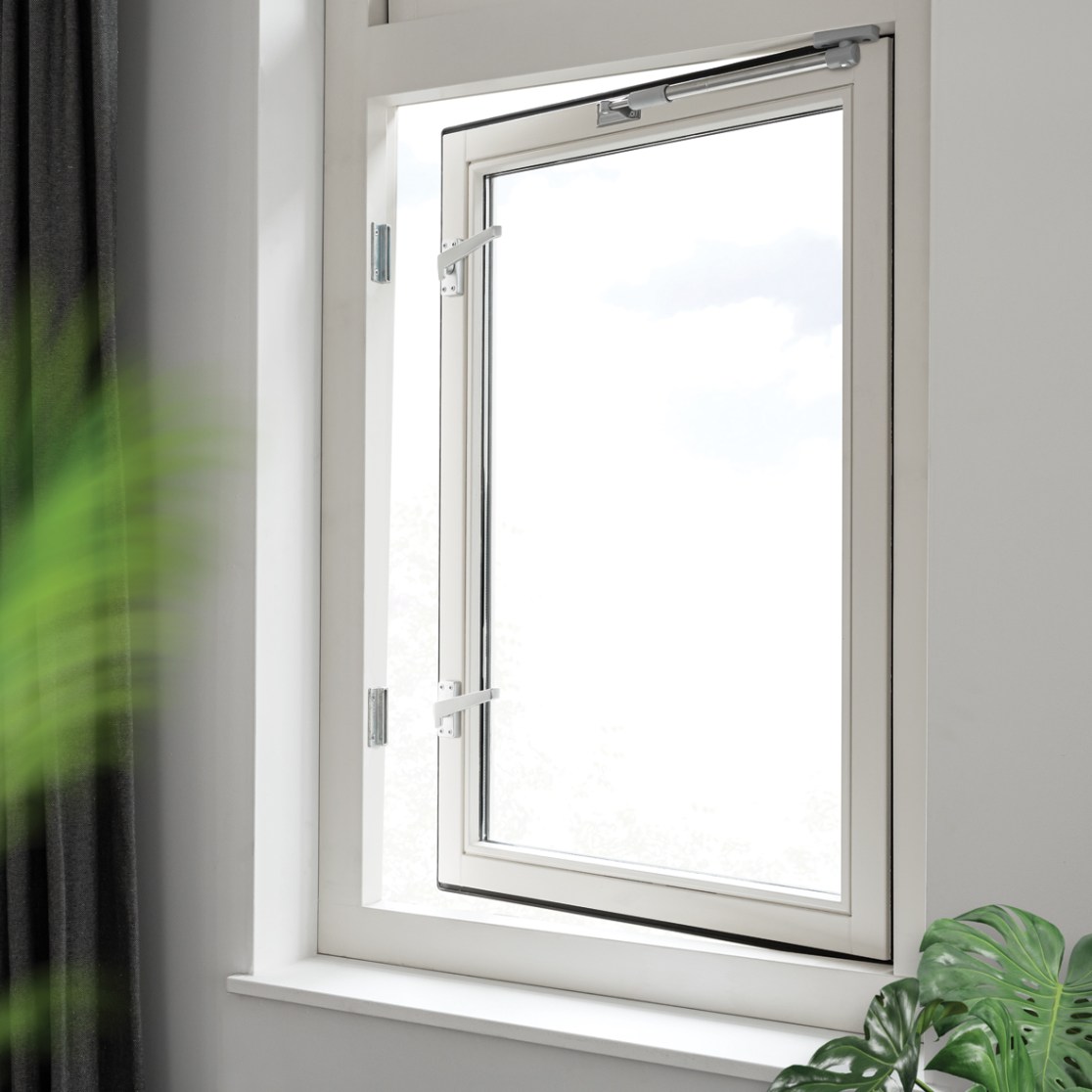

The 3302 standard window fastener can be used to close windows and doors.

  • sturdy window fastener
  • with a cam for optimal ventilation
  • simple assembly
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 4 pieces
- 3.5 x 20 mm screw pieces
Commercial information
expand_more
Type 3302
Use for casement, hopper, top-hung and bottom-hung windows
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 132 mm
Product Width 65 mm
Product Height 40 mm
Direction of rotation right outward-opening
Bolt type standard bolt
Bolt catcher surface-mounted striker
Material Aluminum
Finish Polished anodised F8, black
Assembly information
expand_more
Including Mounting Material False
Mounting length 132 mm
Required depth wood frame 31 mm
Window/door mounting width requirement 44 mm
Assembly time 20 min
Recommended Mounting Materials
- 4.0 x 40 mm screw: 4 pieces
- 3.5 x 20 mm screw pieces
Logistic information
expand_more
Product Weight 208 gr
Pieces per small package 1 piece
EAN small package 8713249269030
Weight small package 0.21 kg
Dimensions small package 215 x 95 x 48 mm
Pieces per bulk package 8 piece
EAN bulk package 8713249269047
Weight bulk package 1.92 kg
Dimensions bulk package 390 x 200 x 120 mm
