Window fastener 3302

3302-41-38/E

+

5
arrow_selector
close

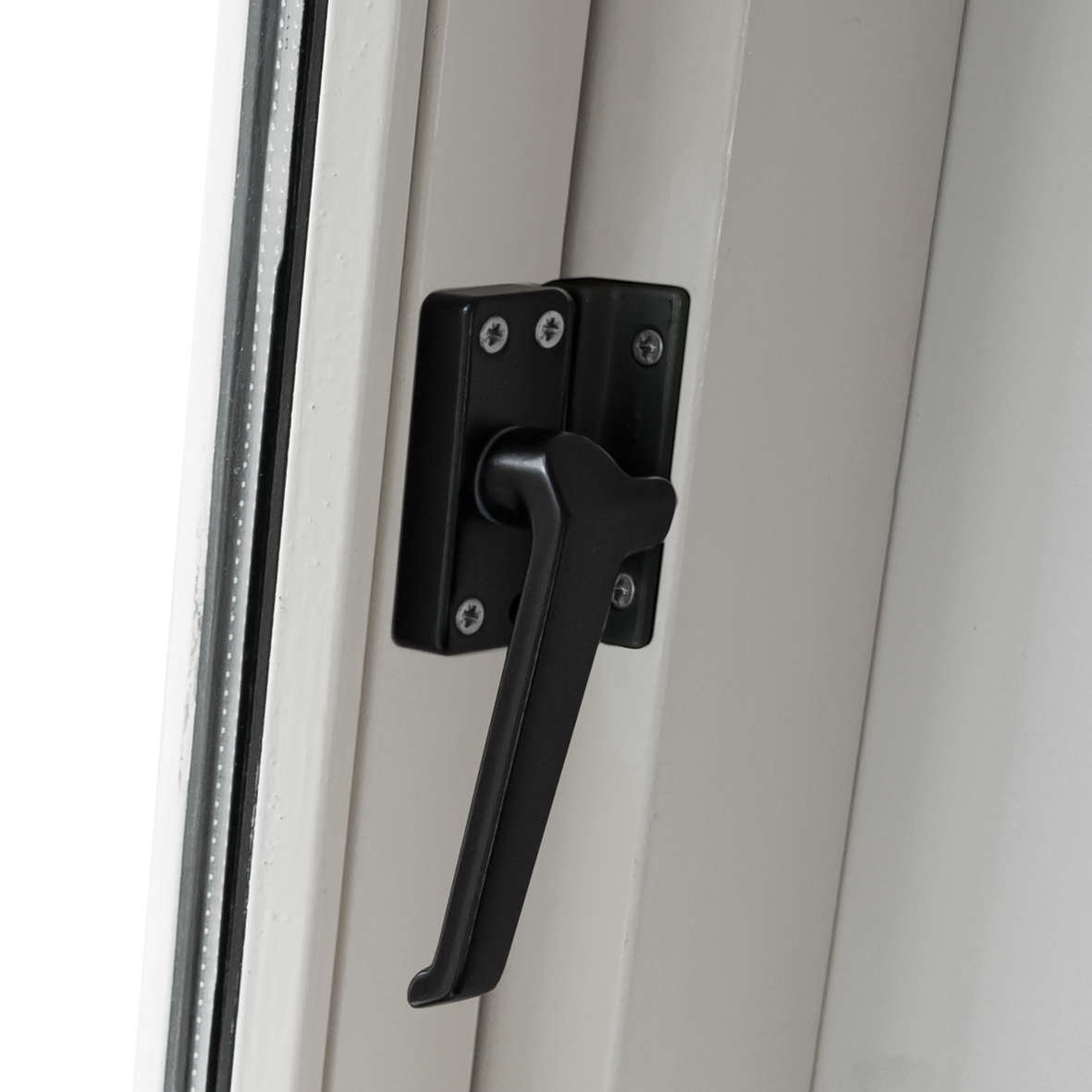

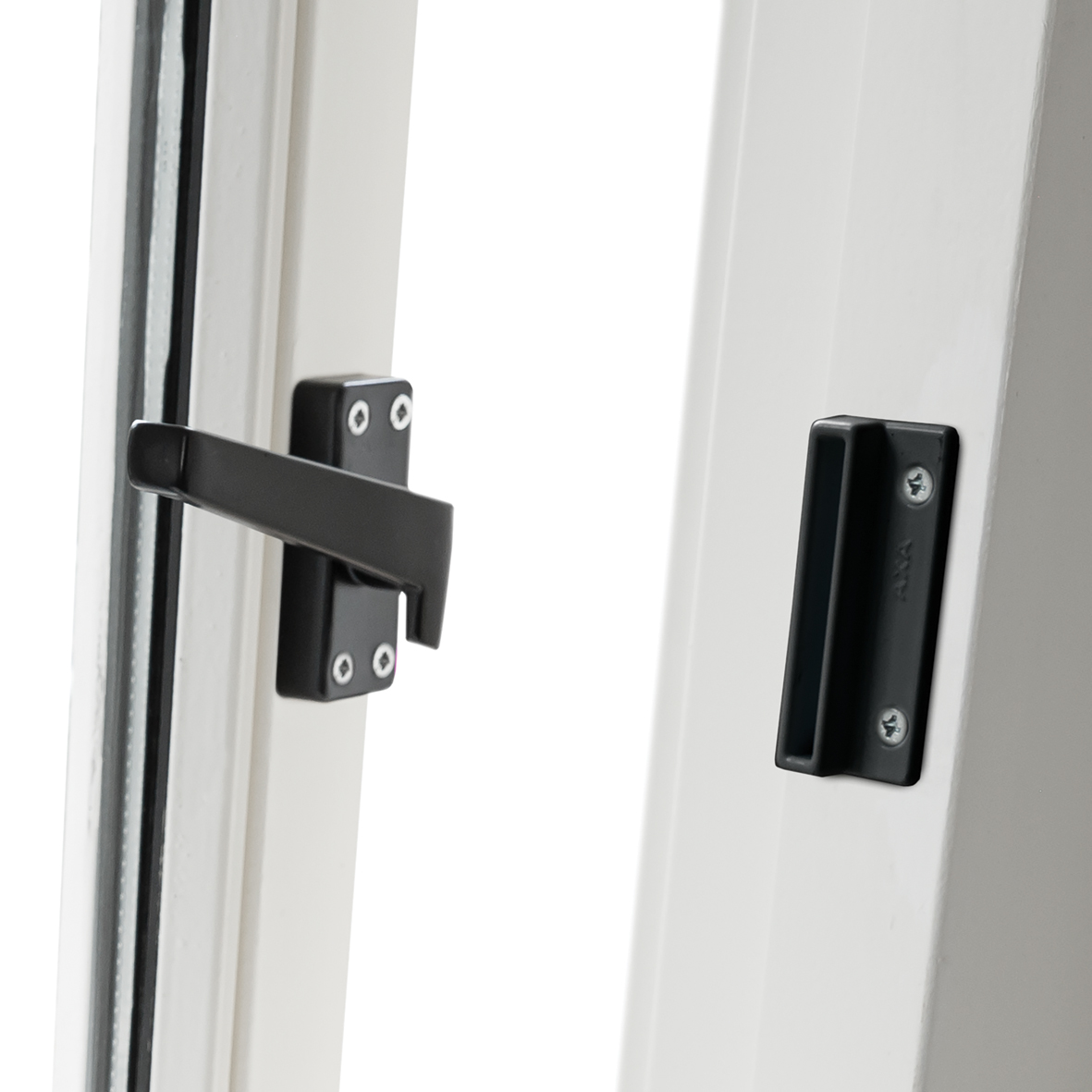

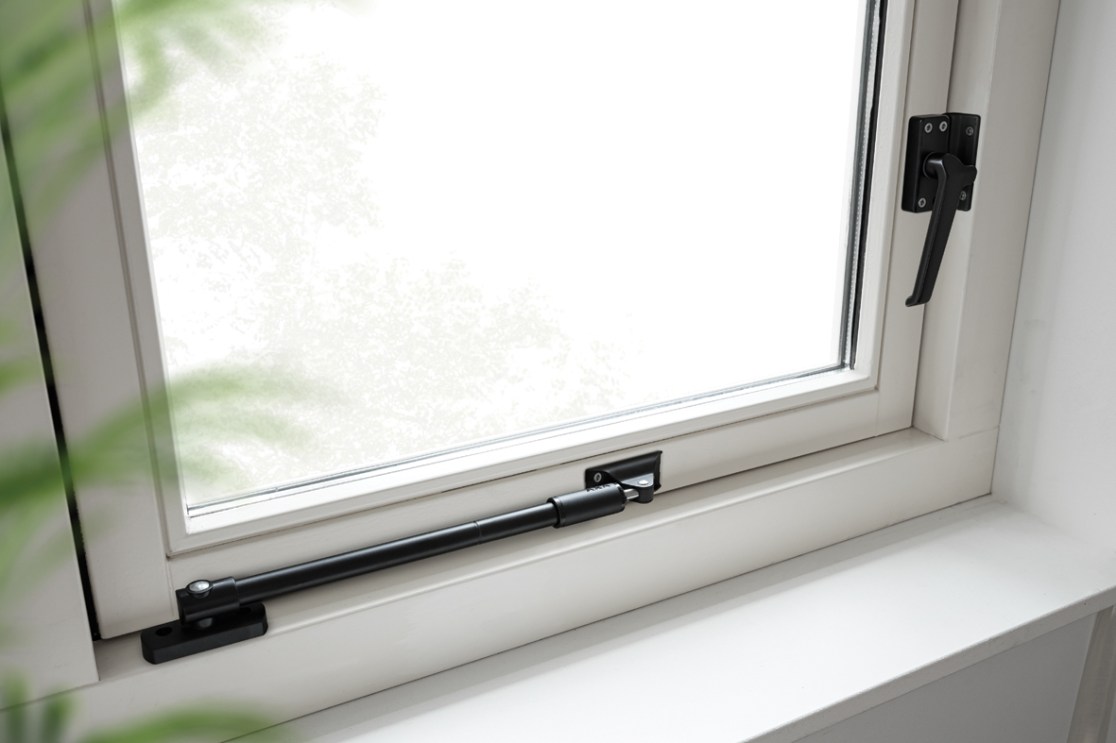

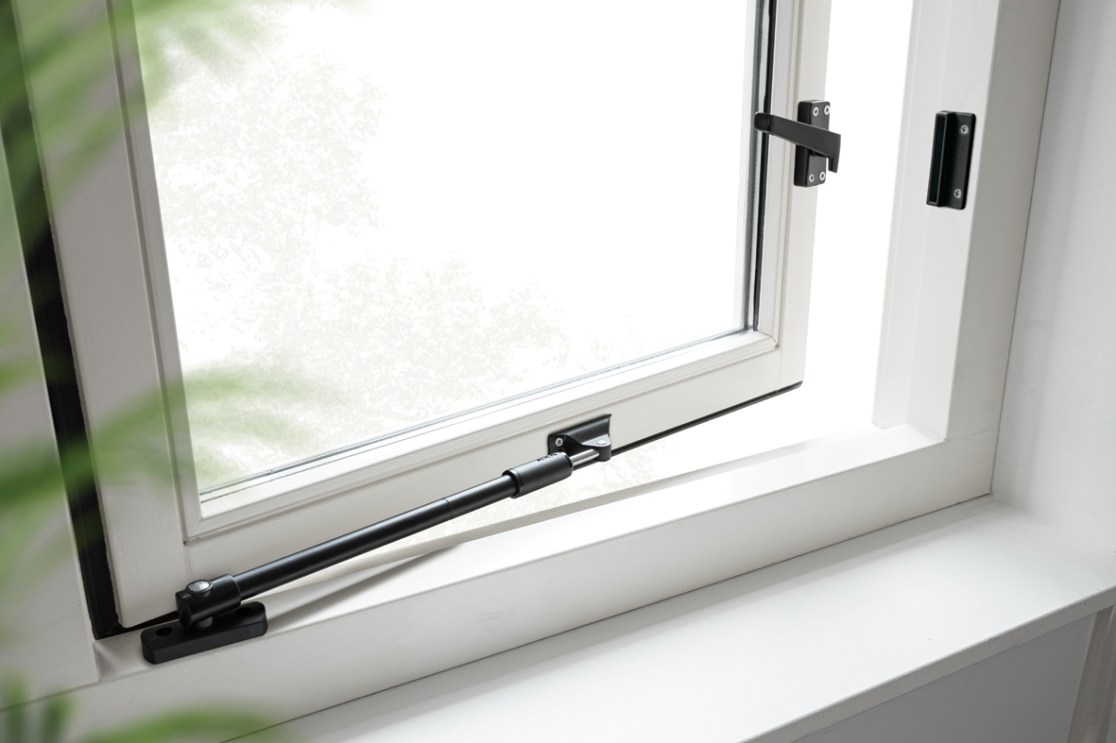

The 3302 standard window fastener can be used to close windows and doors.

  • sturdy window fastener
  • with a cam for optimal ventilation
  • simple assembly
Specifications Downloads Technical drawings Associated products Alternative products Similar products
Commercial information
expand_more
Type 3302
Use for casement windows and doors
Safety information
expand_more
SKG No
Police Hallmark False
CE certificate of conformity False
Technical information
expand_more
Product Length 132 mm
Product Width 65 mm
Product Height 40 mm
Direction of rotation left
Bolt type standard bolt
Material Aluminum
Finish Polished anodised F8, black
Assembly information
expand_more
Including Mounting Material False

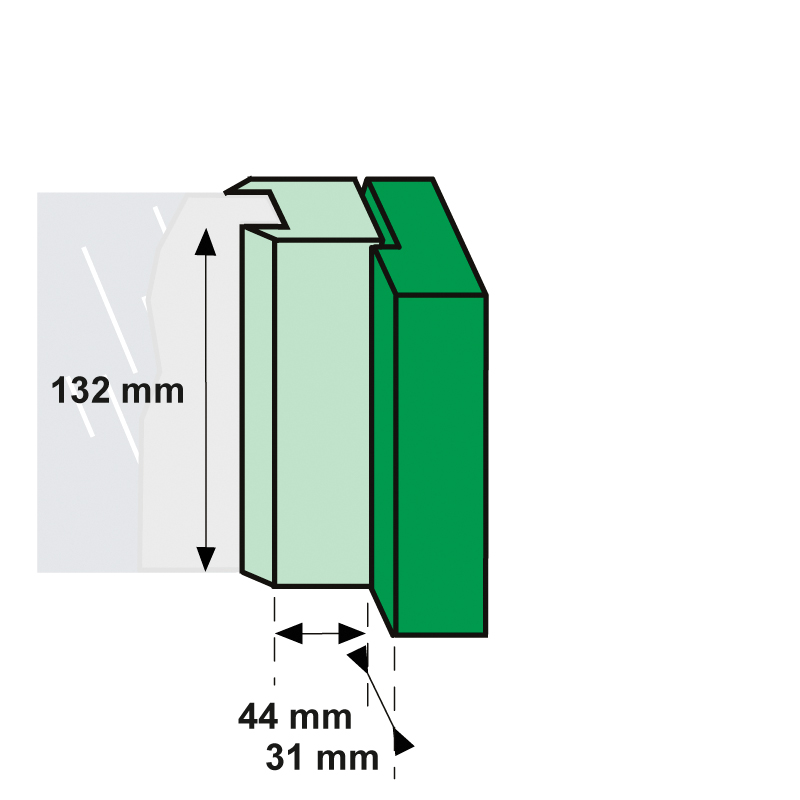

Mounting length 132 mm
Required depth wood frame 31 mm
Window/door mounting width requirement 44 mm
Assembly time 20 min
Recommended Mounting Materials
- 4.0 x 40 mm screw: 4 pieces
Logistic information
expand_more
Product Weight 115 gr
Pieces per small package 10 piece
EAN small package 8713249269252
Weight small package 1.26 kg
Dimensions small package 381 x 158 x 56 mm
Pieces per bulk package 60 piece
EAN bulk package 8713249269269
Weight bulk package 7.93 kg
Dimensions bulk package 390 x 320 x 180 mm

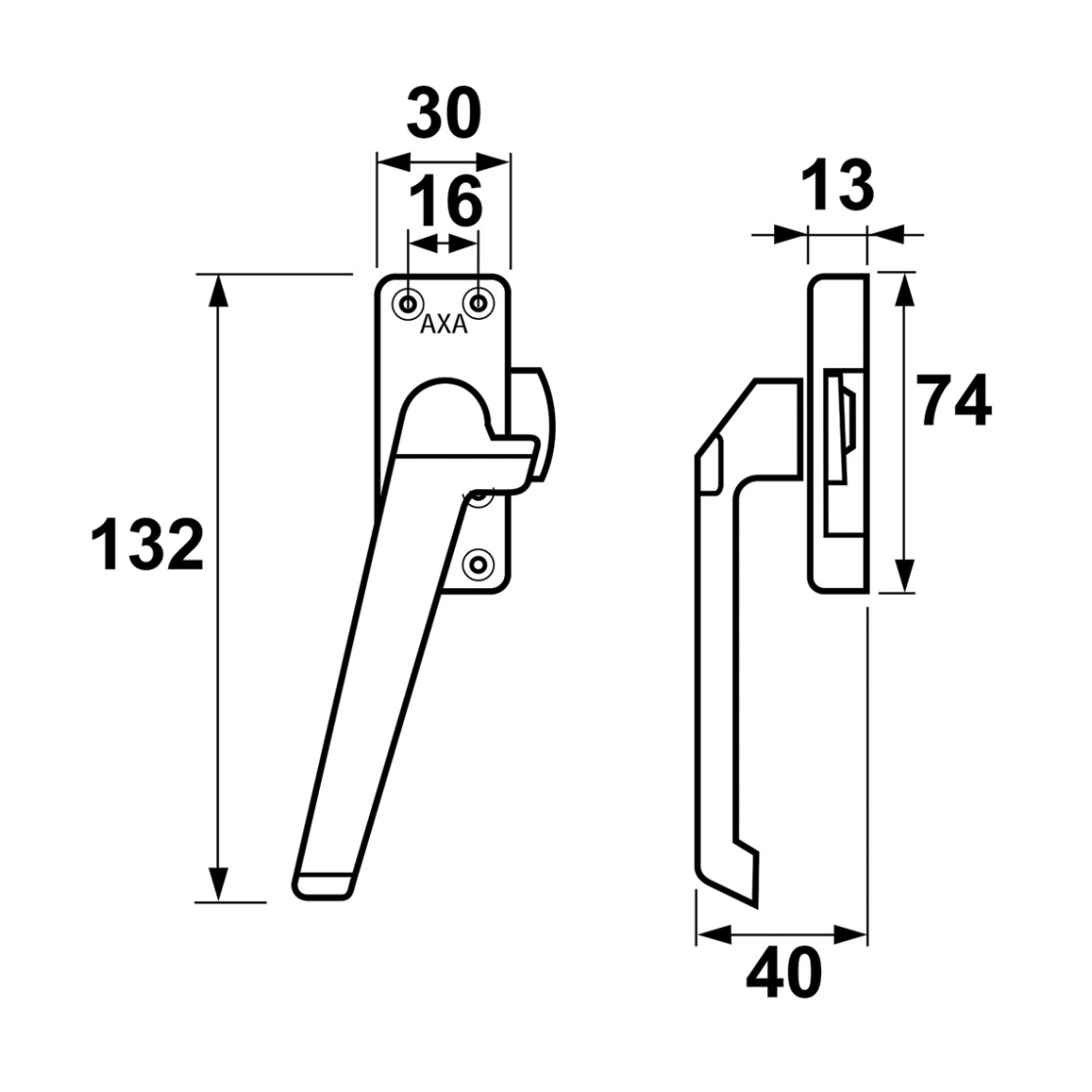

Technical drawings
Window fastener 3302
33024138E
