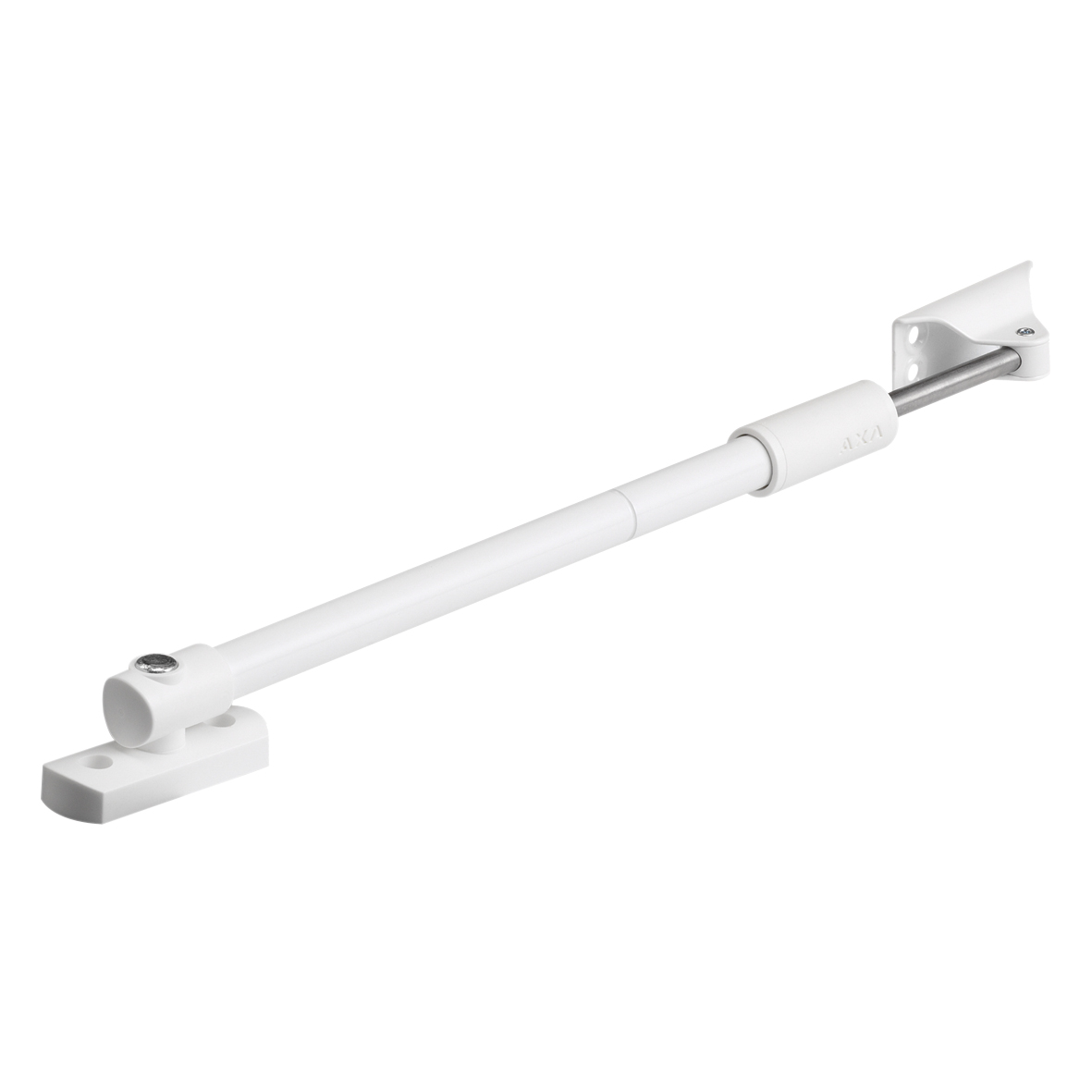

Telescopic stay 35EX

2835-00-54/E

+

7
arrow_selector
close

The 35 EX tele stay has variable ventilation positions, making it ideal for the operation of outward-opening casement windows and doors.

  • variable ventilation
  • does not take up any space inside when opening the window, because of which it can easily be combined with a fly screen, net curtains or window decoration
  • once the brake required has been set, this can be maintained for all ventilation positions
  • also possible to fit to the top edge of a casement window, because of which space is created on the bottom edge to hang out clothes or bedding, for example
  • simple assembly
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 6 pieces
Commercial information
expand_more
Type 35EX
Use for hopper windows, top-hung windows and outward-opening casement windows and doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 375 mm
Product Width 71 mm
Product Height 37 mm
Direction of rotation outward-opening
Operation variable ventilation
Material Steel
Finish White lacquered
Material 2 Synthetic
Finish 2 White
Assembly information
expand_more
Including Mounting Material False
Mounting length 375 mm
Required depth wood frame 38 mm
Window/door mounting width requirement 40 mm
Assembly time 15 min
Recommended Mounting Materials
- 4.0 x 40 mm screw: 6 pieces
Logistic information
expand_more
Product Weight 344 gr
Pieces per small package 5 piece
EAN small package 8713249123264
Weight small package 1.89 kg
Dimensions small package 381 x 158 x 56 mm
Pieces per bulk package 30 piece
EAN bulk package 8713249123271
Weight bulk package 11.88 kg
Dimensions bulk package 390 x 320 x 180 mm
