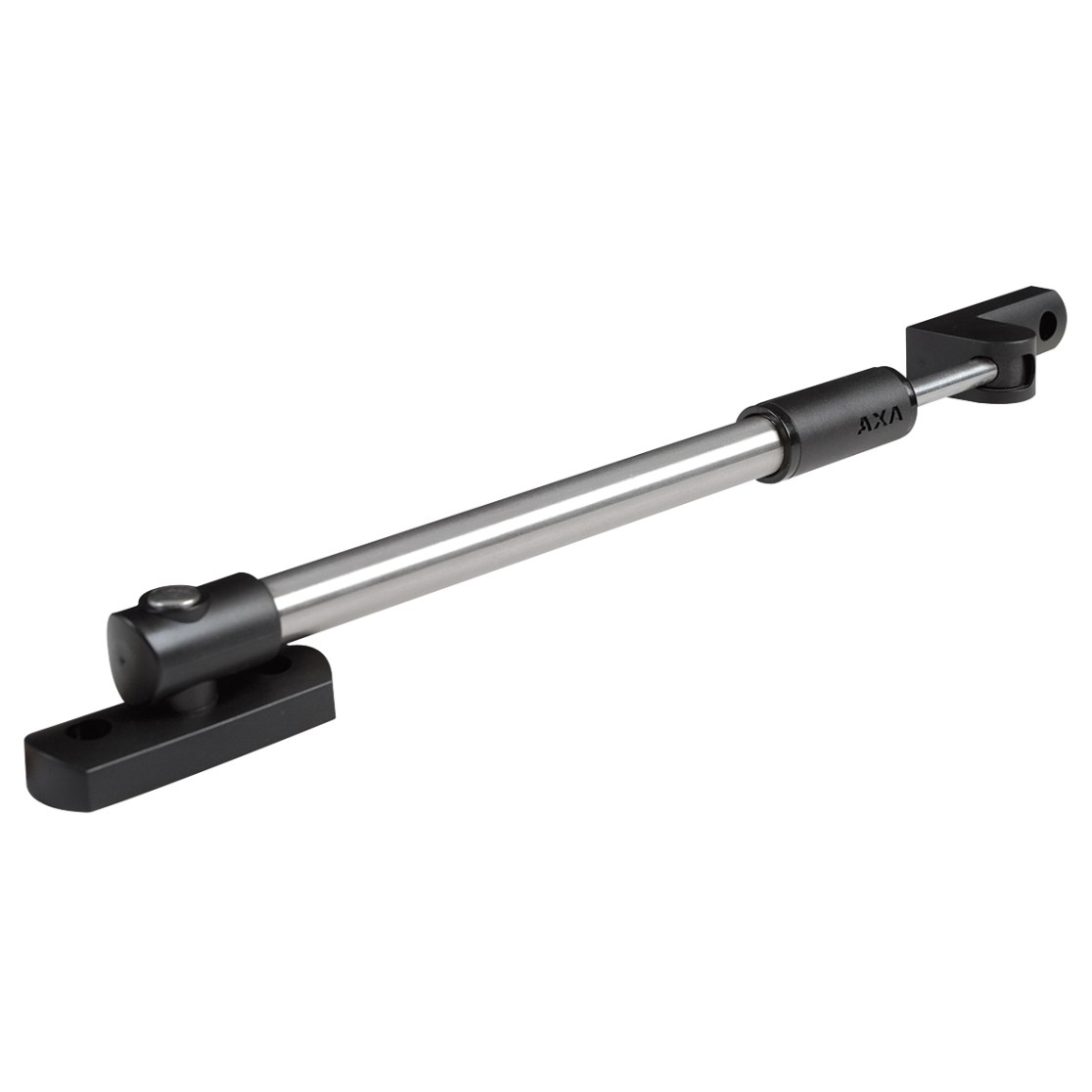

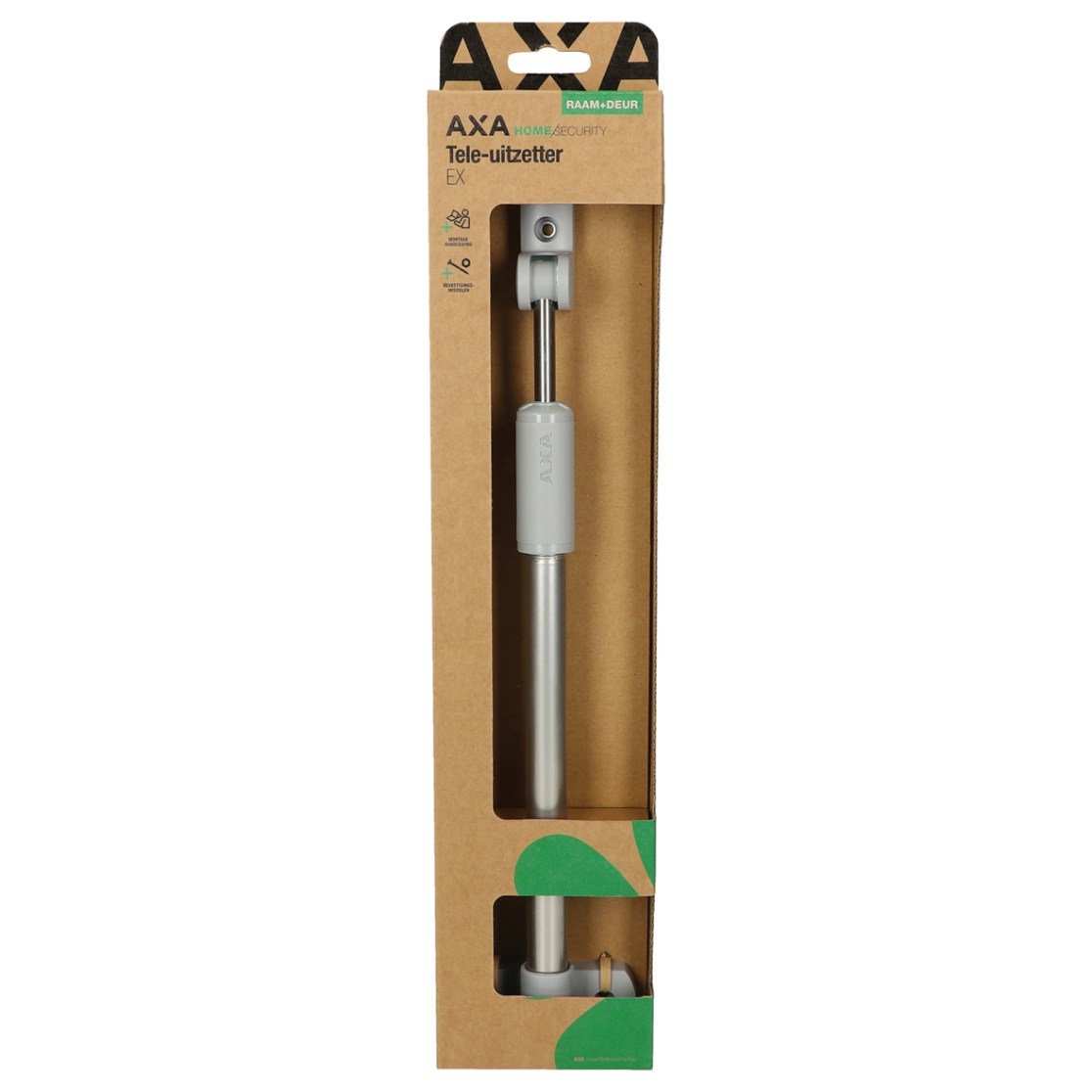

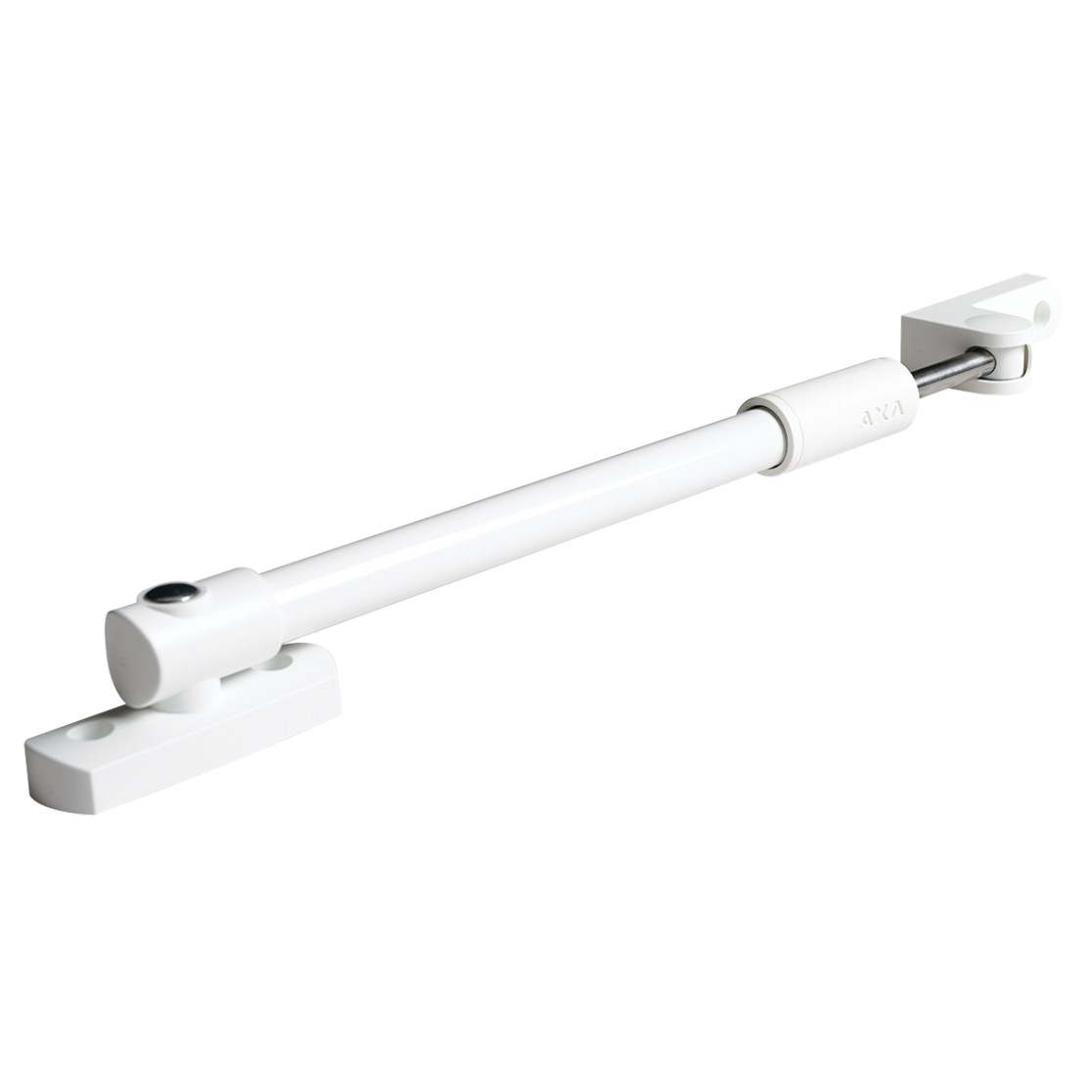

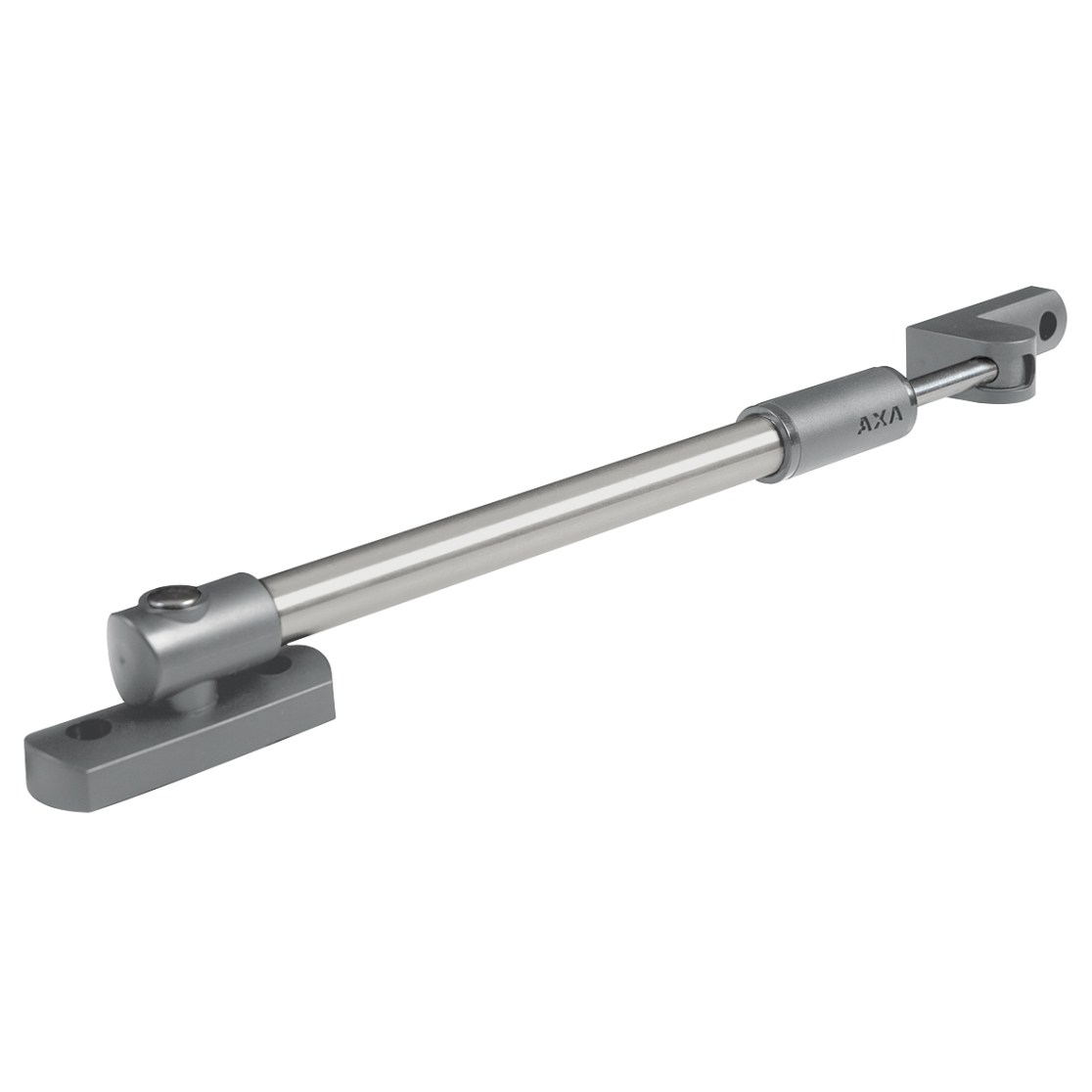

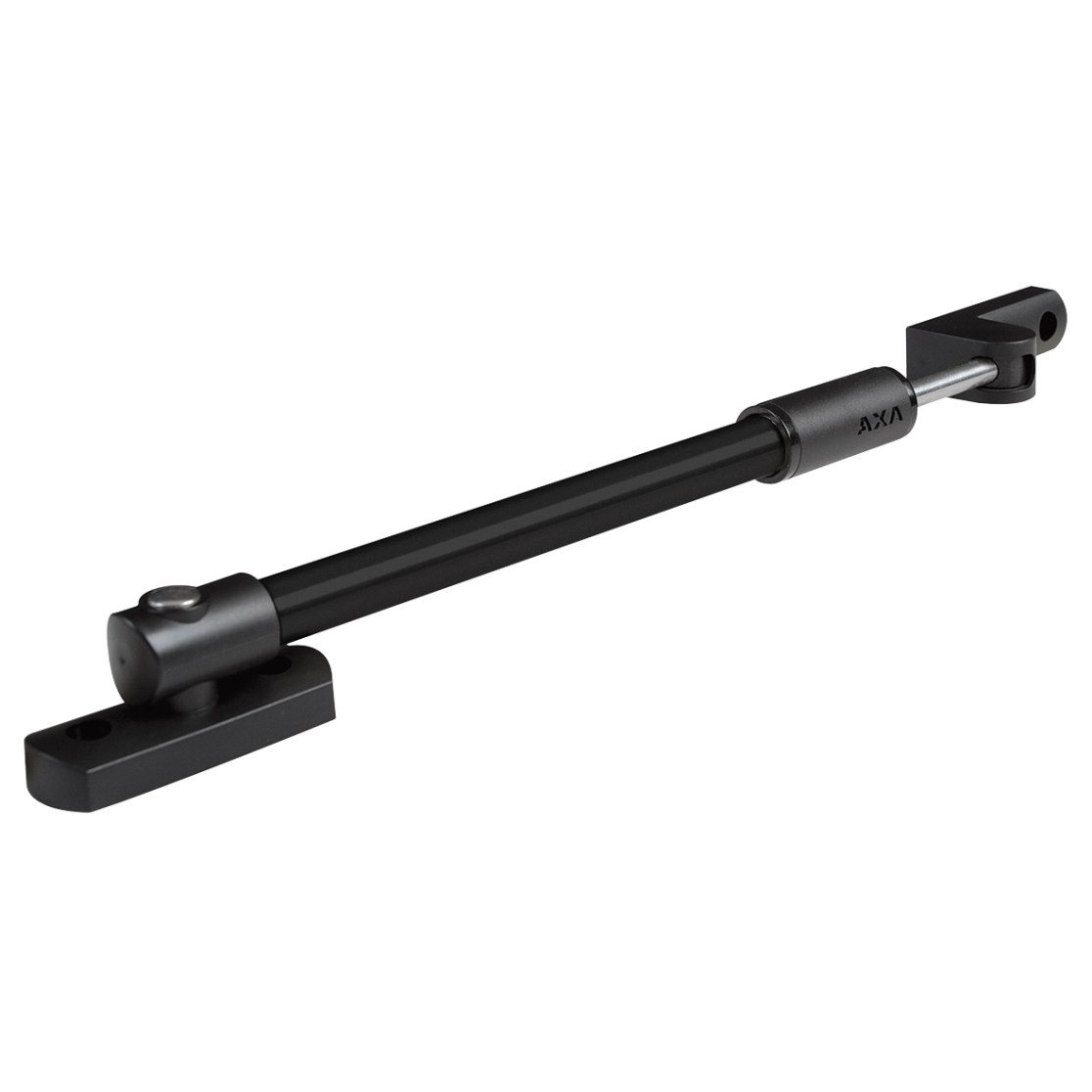

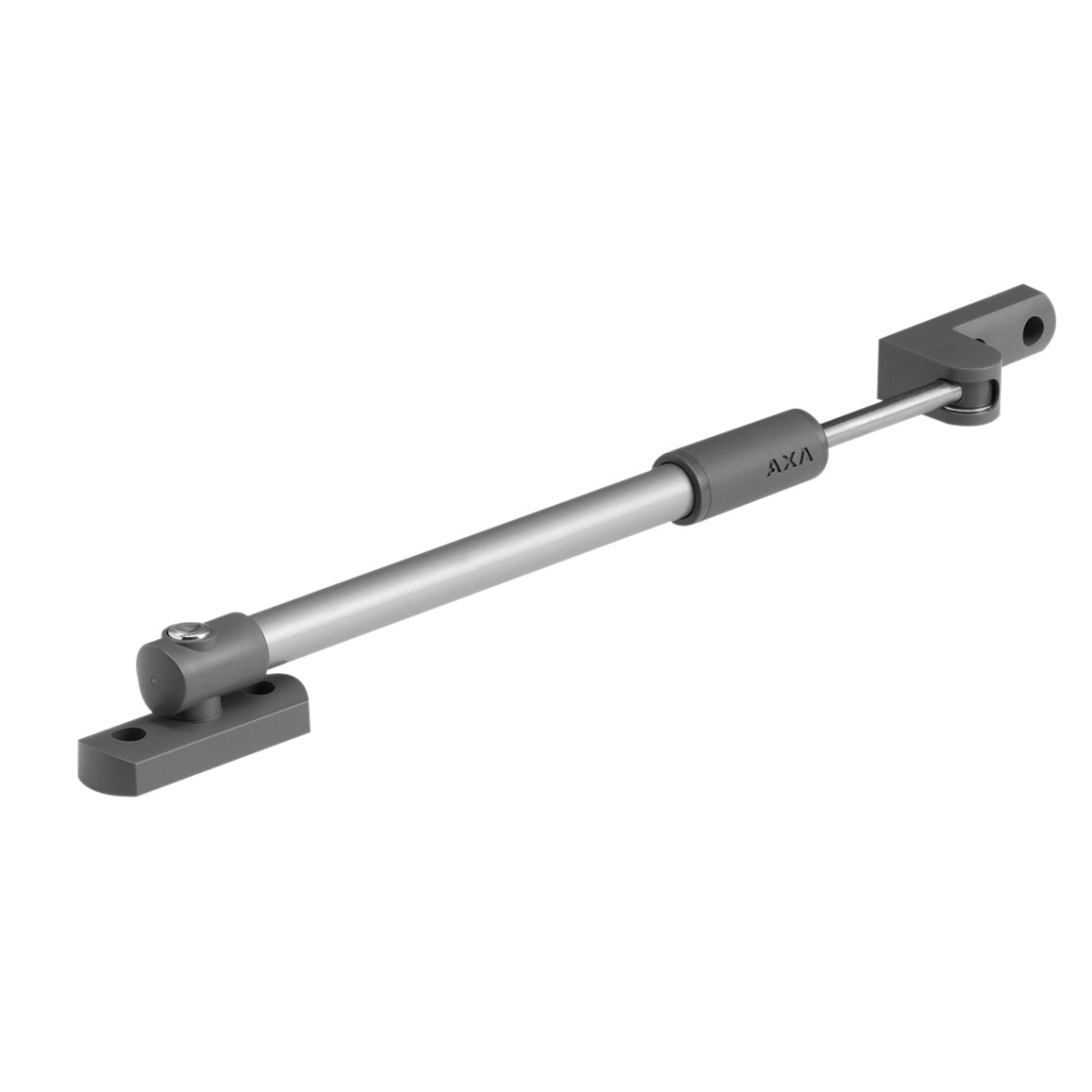

Telescopic stay 30EX

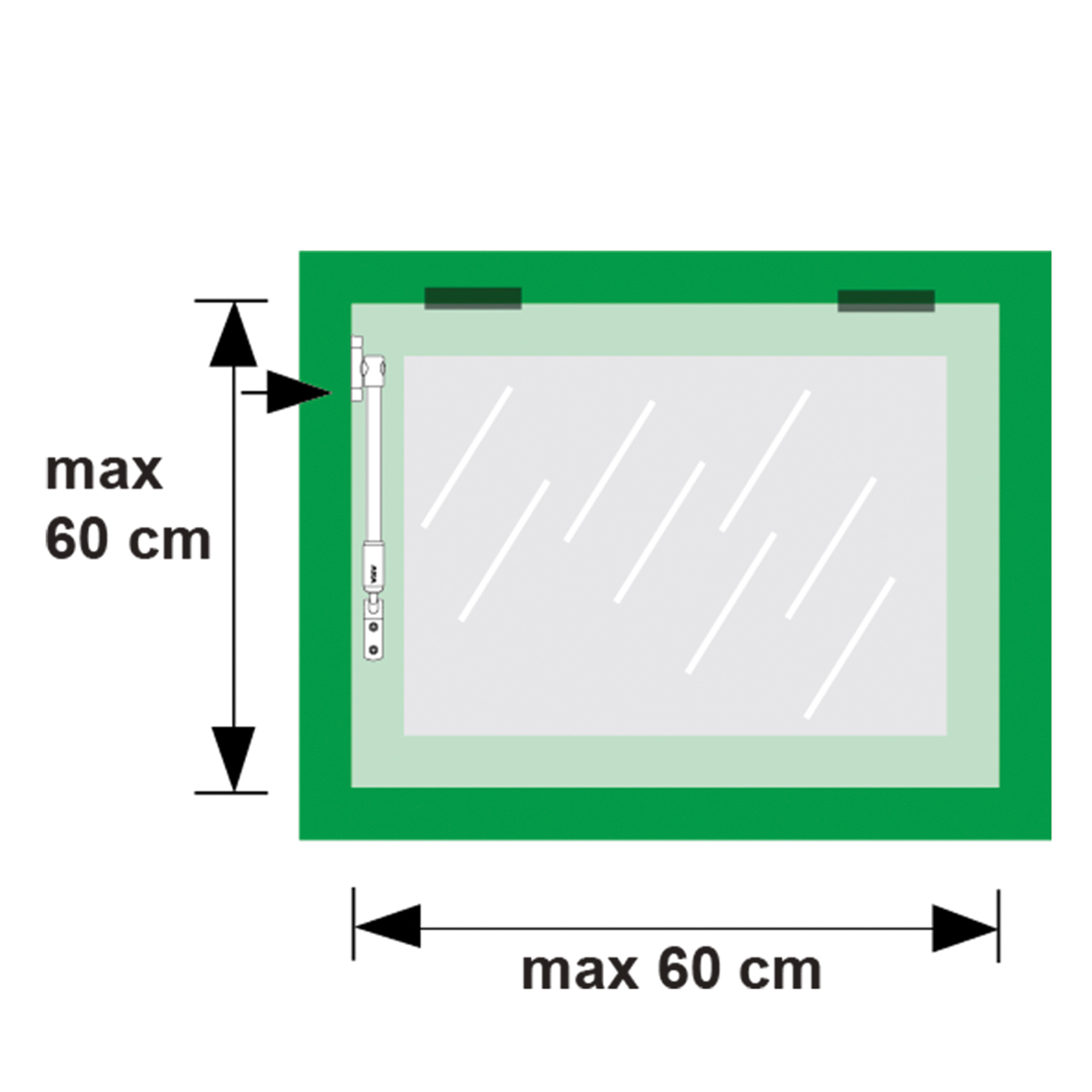

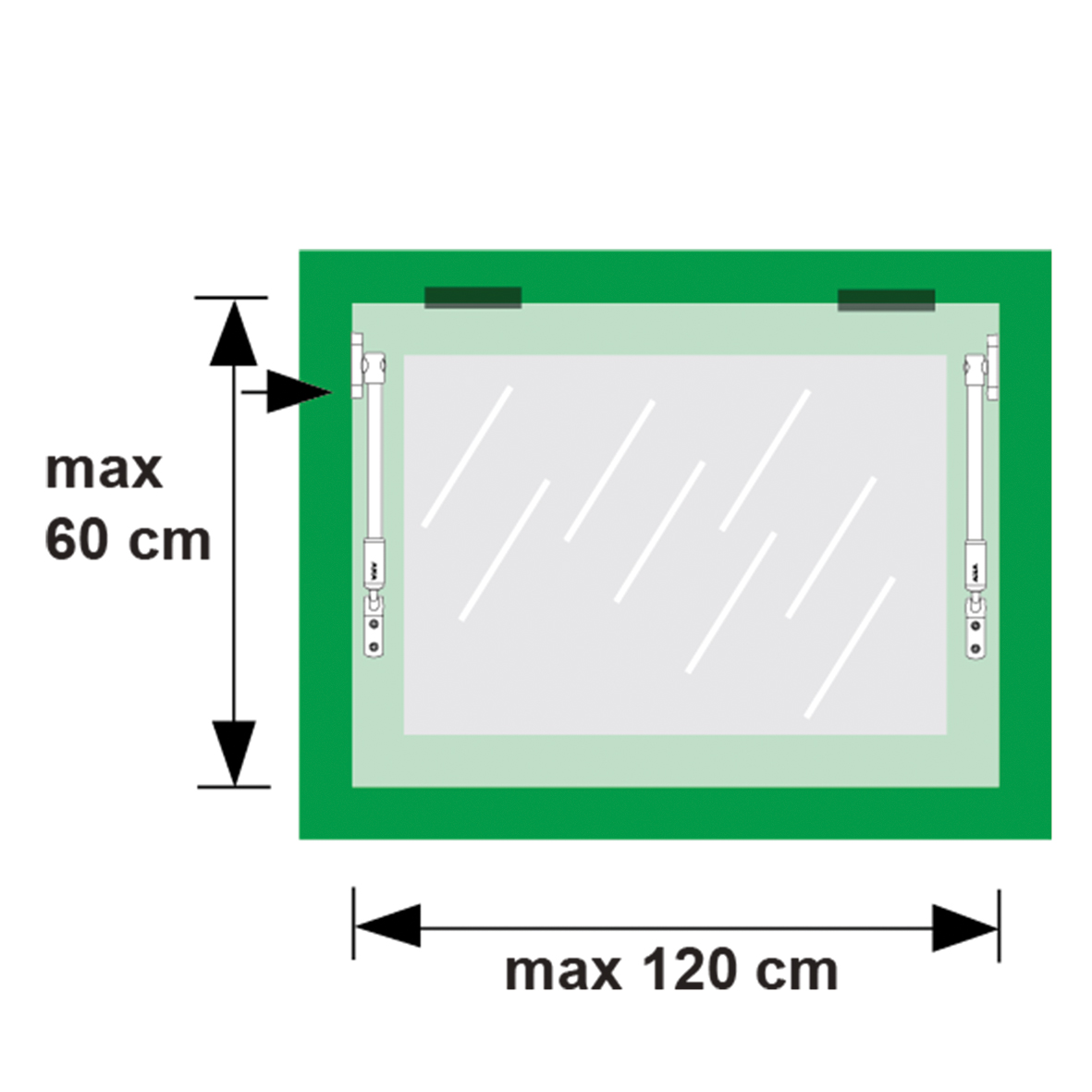

2825-00-54/EThe 30 EX tele stay has variable ventilation positions, making it ideal for the operation of casement and hopper windows.
- variable ventilation
- does not take up any space inside when opening the window, because of which it can easily be combined with a fly screen, net curtains or window decoration
- once the brake required has been set, this can be maintained for all ventilation positions

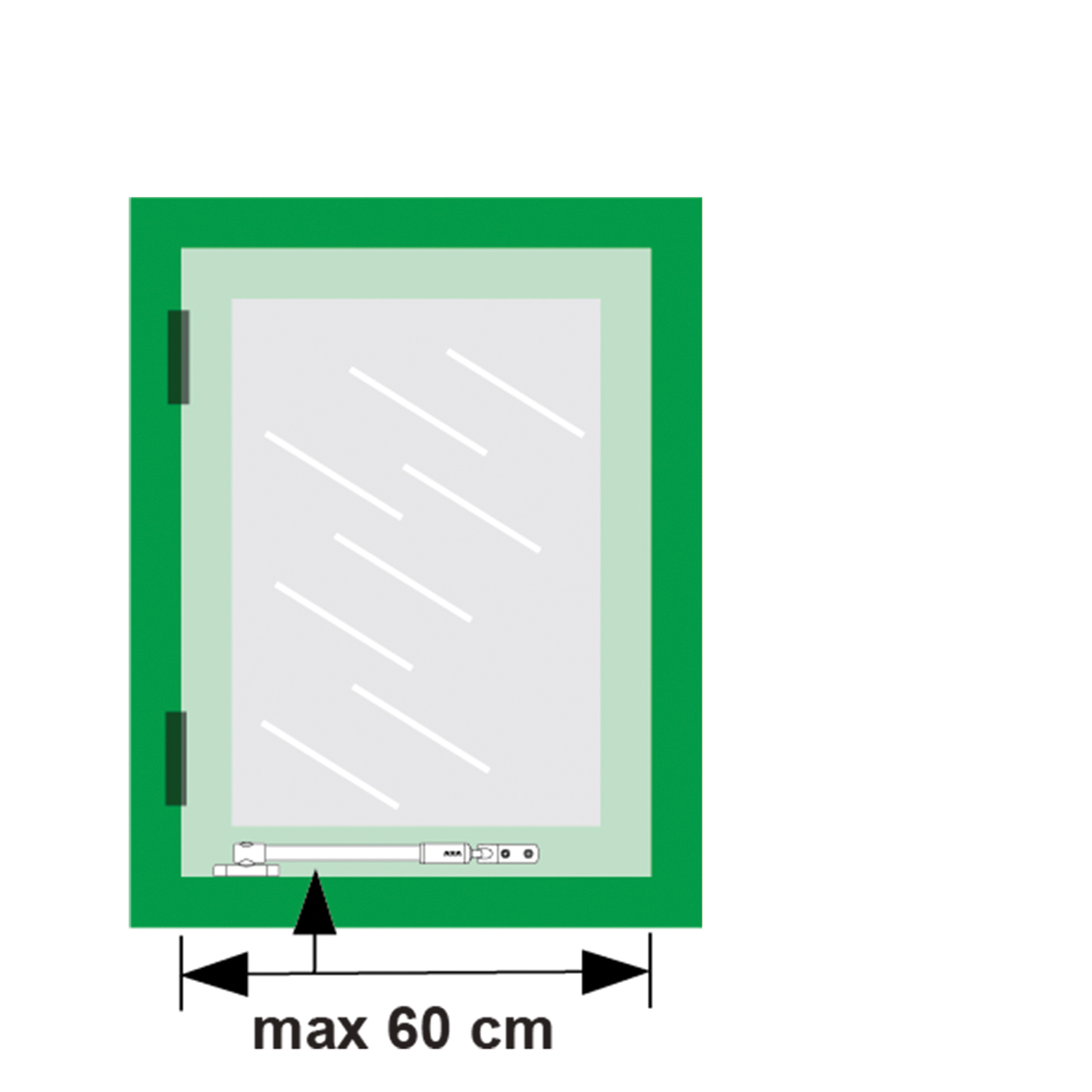

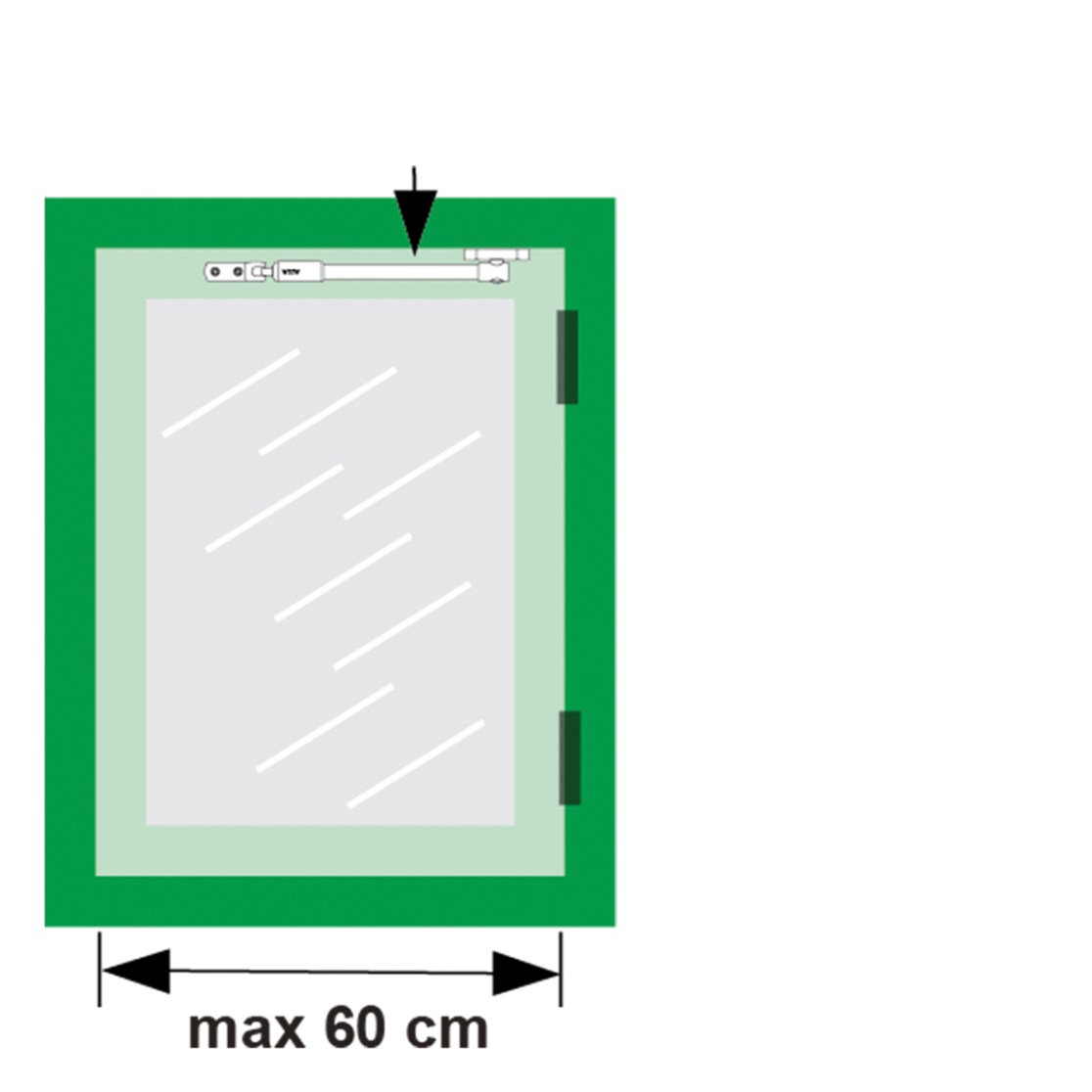

- also possible to fit to the top edge of a casement window, because of which space is created on the bottom edge to hang out clothes or bedding, for example
- simple assembly



The 30 EX tele stay has variable ventilation positions, making it ideal for the operation of casement and hopper windows.
- variable ventilation
- does not take up any space inside when opening the window, because of which it can easily be combined with a fly screen, net curtains or window decoration
- once the brake required has been set, this can be maintained for all ventilation positions
- also possible to fit to the top edge of a casement window, because of which space is created on the bottom edge to hang out clothes or bedding, for example
- simple assembly
Specifications
Recommended Mounting Materials
- 4.0 x 40 mm screw: 4 pieces
- 4.0 x 40 mm screw: 4 pieces
Commercial information
Type 30EX
Use for outward-opening casement windows, skylights and top-hung windows
Safety information
SKG No
Police Hallmark False
CE Applicable False
Technical information

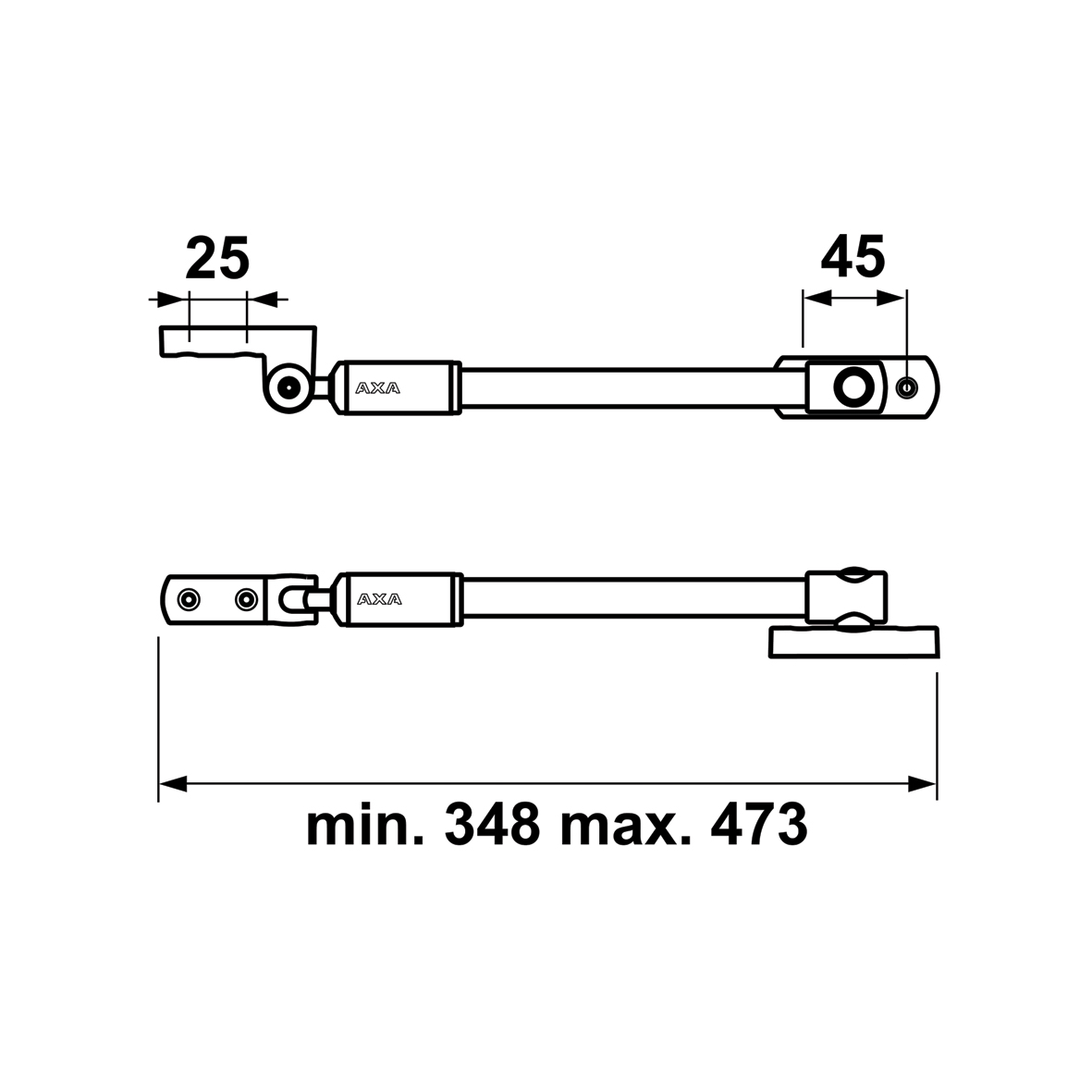

Product Length 348 mm
Product Width 71 mm
Product Height 37 mm
Direction of rotation outward-opening
Operation variable ventilation
Material Steel
Finish White lacquered
Material 2 Synthetic
Finish 2 White
Assembly information
Including Mounting Material False

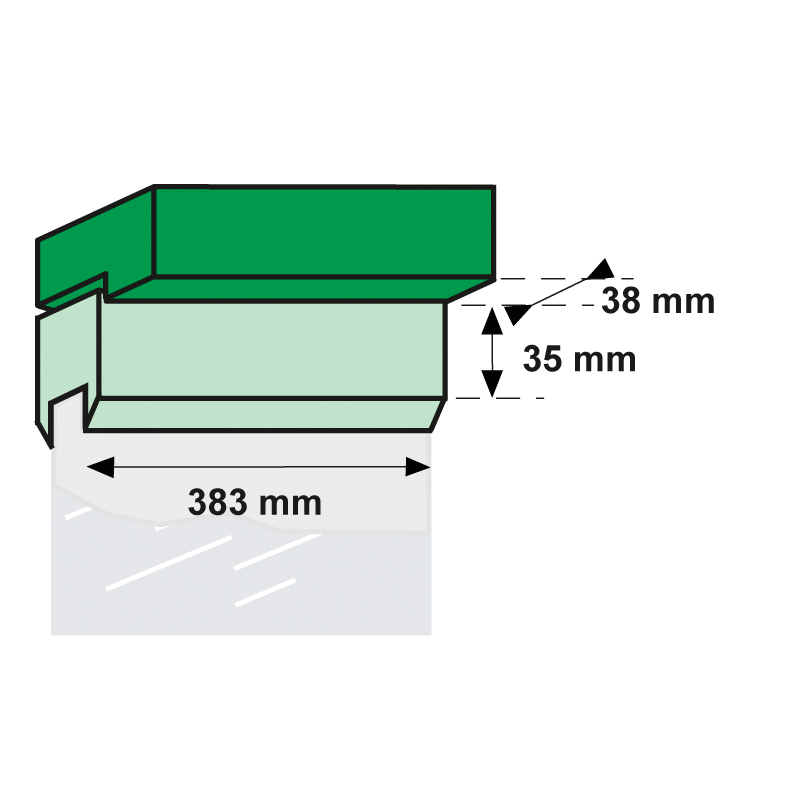

Mounting length 348 mm
Required depth wood frame 38 mm
Window/door mounting width requirement 35 mm
Assembly time 15 min
Recommended Mounting Materials
- 4.0 x 40 mm screw: 4 pieces
- 4.0 x 40 mm screw: 4 pieces
Logistic information
Product Weight 290 gr
Pieces per small package 5 piece
EAN small package 8713249122373
Weight small package 1.66 kg
Dimensions small package 381 x 158 x 56 mm
Pieces per bulk package 30 piece
EAN bulk package 8713249122380
Weight bulk package 10.13 kg
Dimensions bulk package 390 x 320 x 180 mm
