Striking plate security mortice lock 7425 PC55 DIN left

7425-15-81/55EL
arrow_selector
close

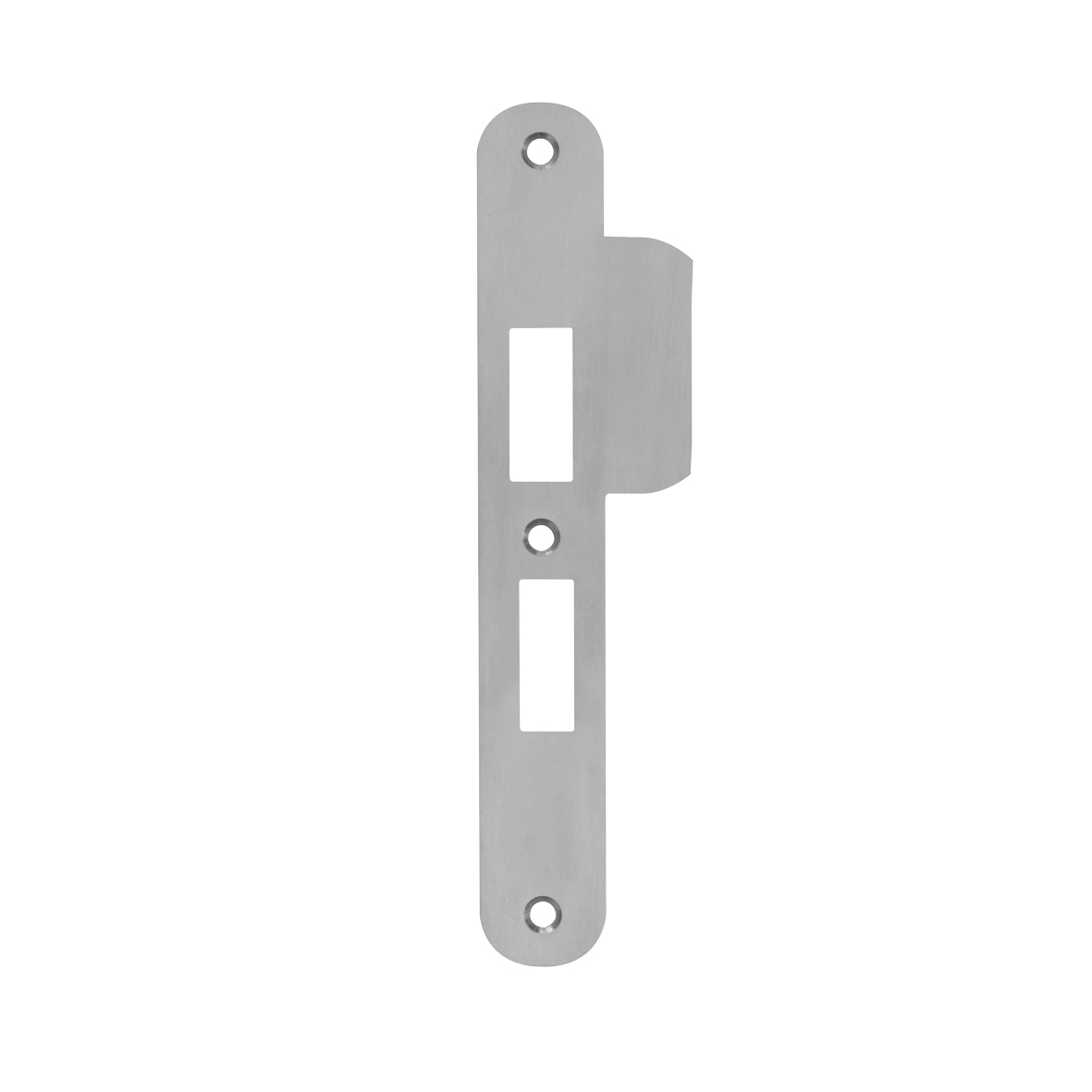

Stainless steel striking plate

to be combined with mortice lock 7420 or 7425
Specifications Downloads Technical drawings Alternative products

Specifications

Recommended Mounting Materials
- 4.0 x 45 mm screw: 3 pieces
Commercial information
expand_more
Type 7425 PC55 DIN left
Use for exterior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 192 mm
Product Width 25 mm
Thickness 1.5 mm
Corner shape round corner
Direction of rotation DIN DIN left
Heart to heart size type handle hole - Euro profile hole (PC)
Material Stainless steel
Finish Brushed
Assembly information
expand_more
Including Mounting Material False
Assembly time 15 min
Recommended Mounting Materials
- 4.0 x 45 mm screw: 3 pieces
Logistic information
expand_more
Product Weight 46 gr
Pieces per small package 10 piece
EAN small package 8713249196848
Weight small package 0.468 kg
Pieces per bulk package 100 piece
EAN bulk package 8713249250106
Weight bulk package 4.71 kg
Dimensions bulk package 181 x 81 x 100 mm

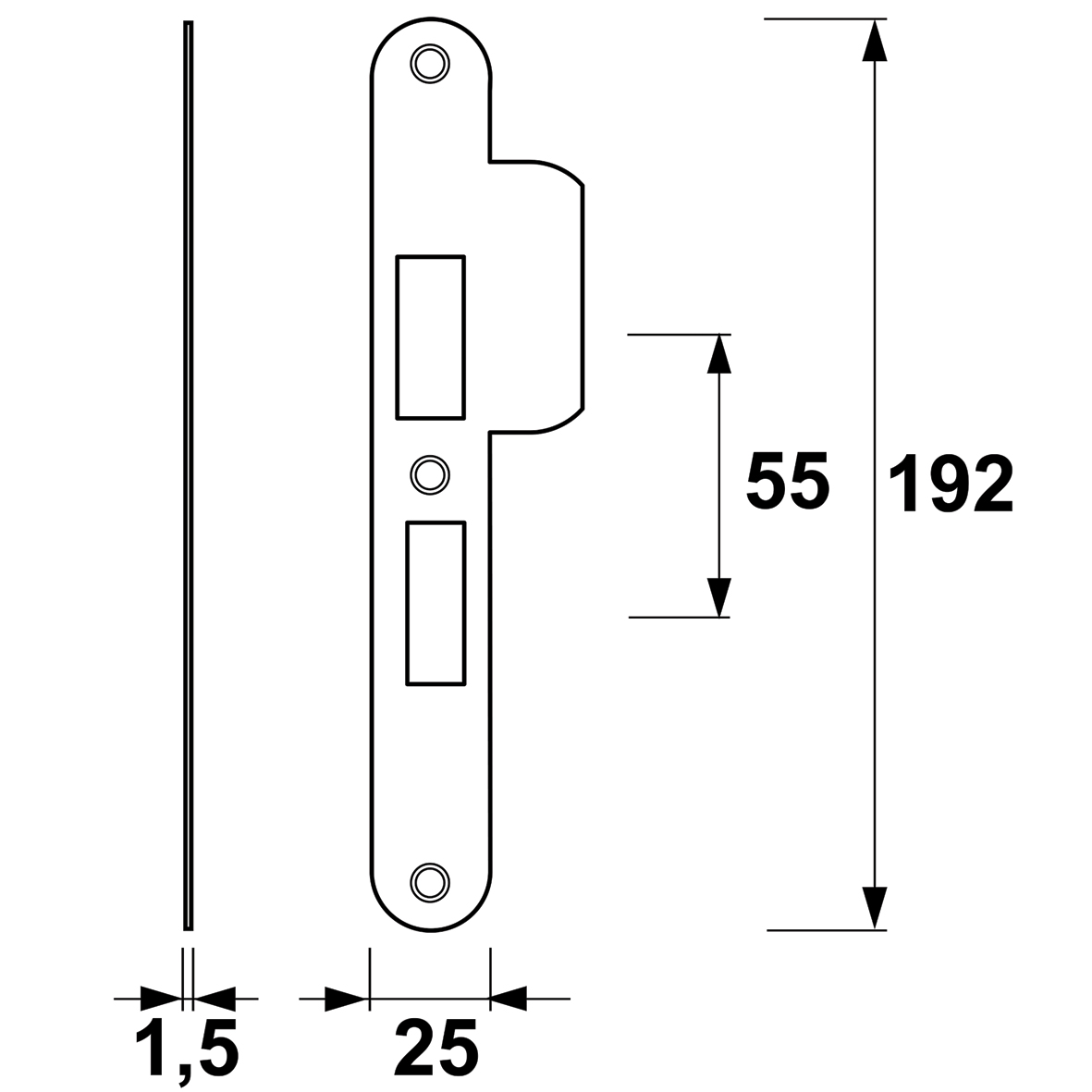

Technical drawings

Alternative products

Striking plate security mortice lock 7420 PC55 DIN left

7420-10-81/55EL

Striking plate security mortice lock 7425 PC55 DIN left

7425-25-81/55EL
