Single securitycylinder Xtreme Security extended 30-10

7263-00-08/BL

+

2
arrow_selector

SKG 3

Police Hallmark

Reliable Xtreme Security security cylinders for the entire home.

  • single brass nickel-plated cylinder
  • patented profile with Security Card, prevents illegal duplication
  • with cylinder core protection
  • with anti-pick protection
  • with anti-drilling protection provided by hard-metal spindles
  • with lock-bumping protection
  • more than 240,000 different key combinations
  • asymmetrical key head, for extra ease of use
  • with 3 ‘new silver’, wear-resistant keys per cilinder
  • complies with (PKVW) Police Hallmark for Safe Living and SKG3 (Façade Quality Institution hallmark)
  • complete with attachment materials

Specifications

Recommended Mounting Materials
- M5 x 70 mm bolt: 1 piece
Commercial information
expand_more
Type Xtreme Security extended 30-10
Use for exterior doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable False
Technical information
expand_more
Product Length 40 mm
Product Width 17 mm
Product Height 33 mm
Number of Keys 3
Keyed alike False
Material Brass
Finish Nickel-plated
Assembly information
expand_more
Including Mounting Material True
Assembly time 5 min
Recommended Mounting Materials
- M5 x 70 mm bolt: 1 piece
Logistic information
expand_more
Product Weight 180 gr
Pieces per small package 1 piece
EAN small package 8713249260396
Dimensions small package 215 x 95 x 23 mm
Pieces per bulk package 8 piece
EAN bulk package 8713249260402
Weight bulk package 1.63 kg
Dimensions bulk package 290 x 200 x 120 mm

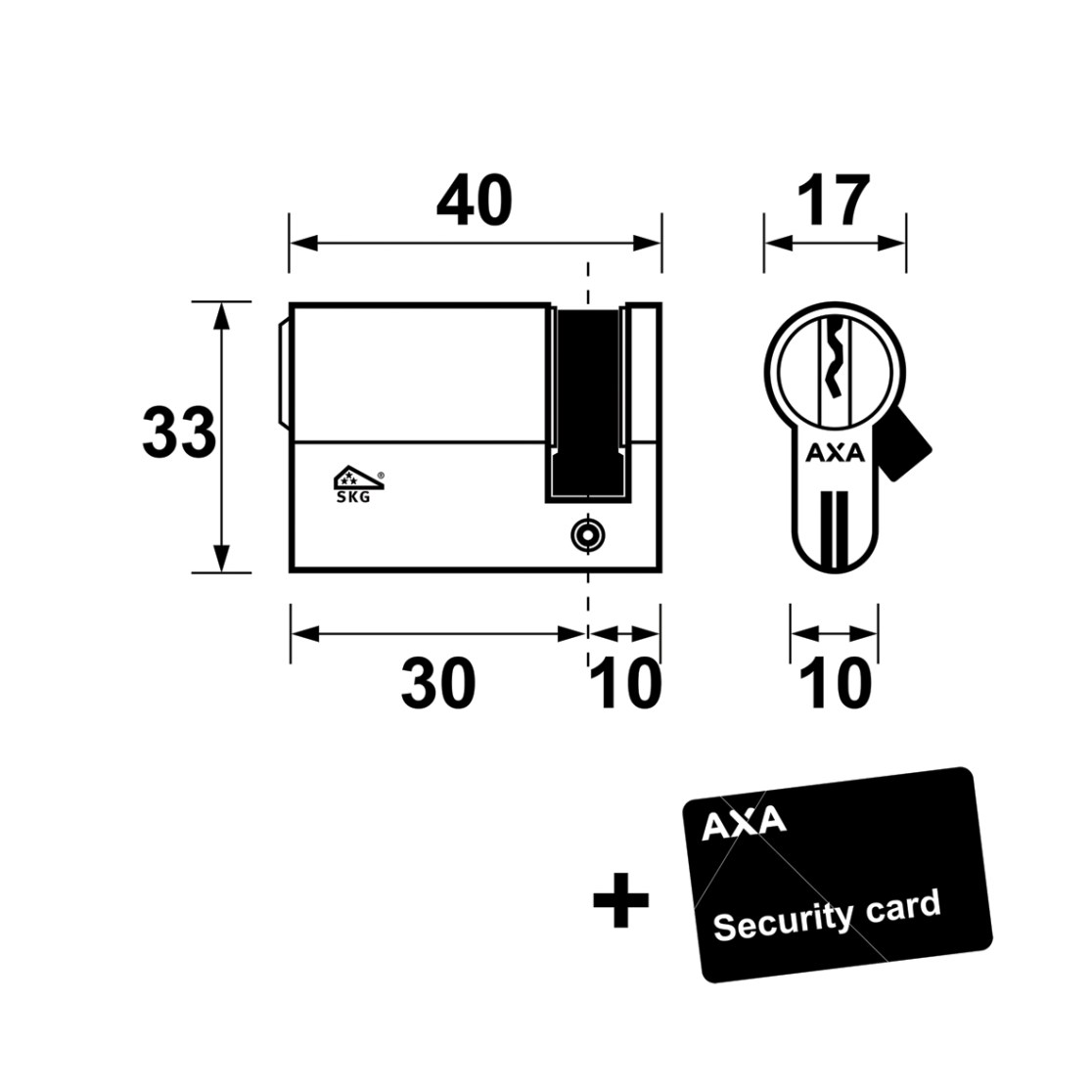

Technical drawings
