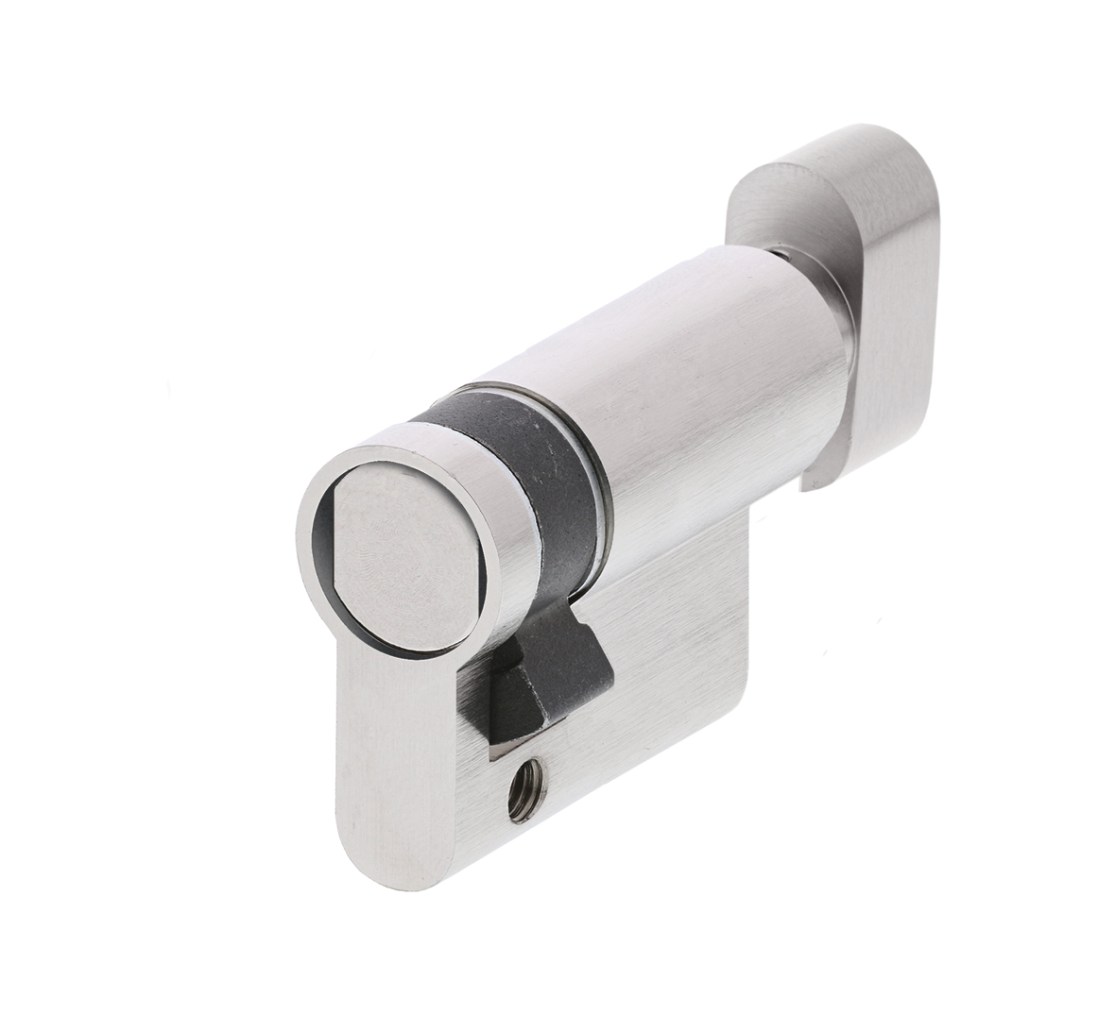

Single knobcylinder Security extended 40-10

7214-02-08
arrow_selector
close

Universal knob cylinder for interior doors.

  • Knob cylinder
  • nickel-plated
  • keyed-alike
  • with 3 nickel-plated brass keys
  • complete with attachment materials
Specifications Downloads Technical drawings

Specifications

Recommended Mounting Materials
- M5 x 70 mm bolt: 1 piece
Commercial information
expand_more
Type Security extended 40-10
Use for doors
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 50 mm
Product Width 17 mm
Product Height 33 mm
Keyed alike False
Cylinder length knob side (knob cylinder) 40 mm
Material Brass
Finish Nickel-plated
Assembly information
expand_more
Including Mounting Material True
Assembly time 5 min
Recommended Mounting Materials
- M5 x 70 mm bolt: 1 piece
Logistic information
expand_more
Product Weight 198 gr
Pieces per small package 1 piece
EAN small package 8713249272320
Weight small package 0.224 kg
Dimensions small package 115 x 55 x 30 mm
Pieces per bulk package 12 piece
EAN bulk package 8713249272337
Weight bulk package 2.82 kg
Dimensions bulk package 200 x 150 x 120 mm

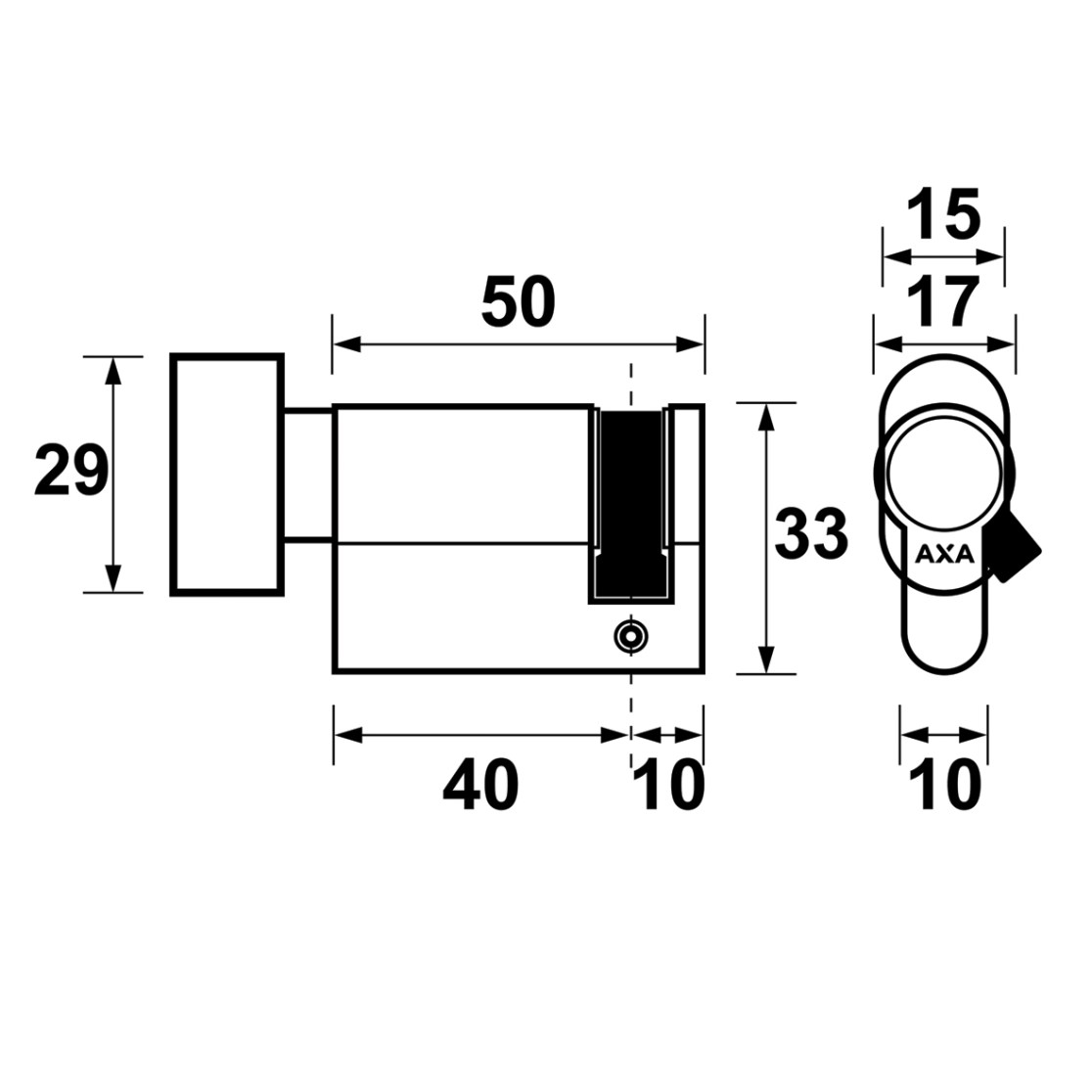

Technical drawings
Single knobcylinder Security extended 40-10
72140208
