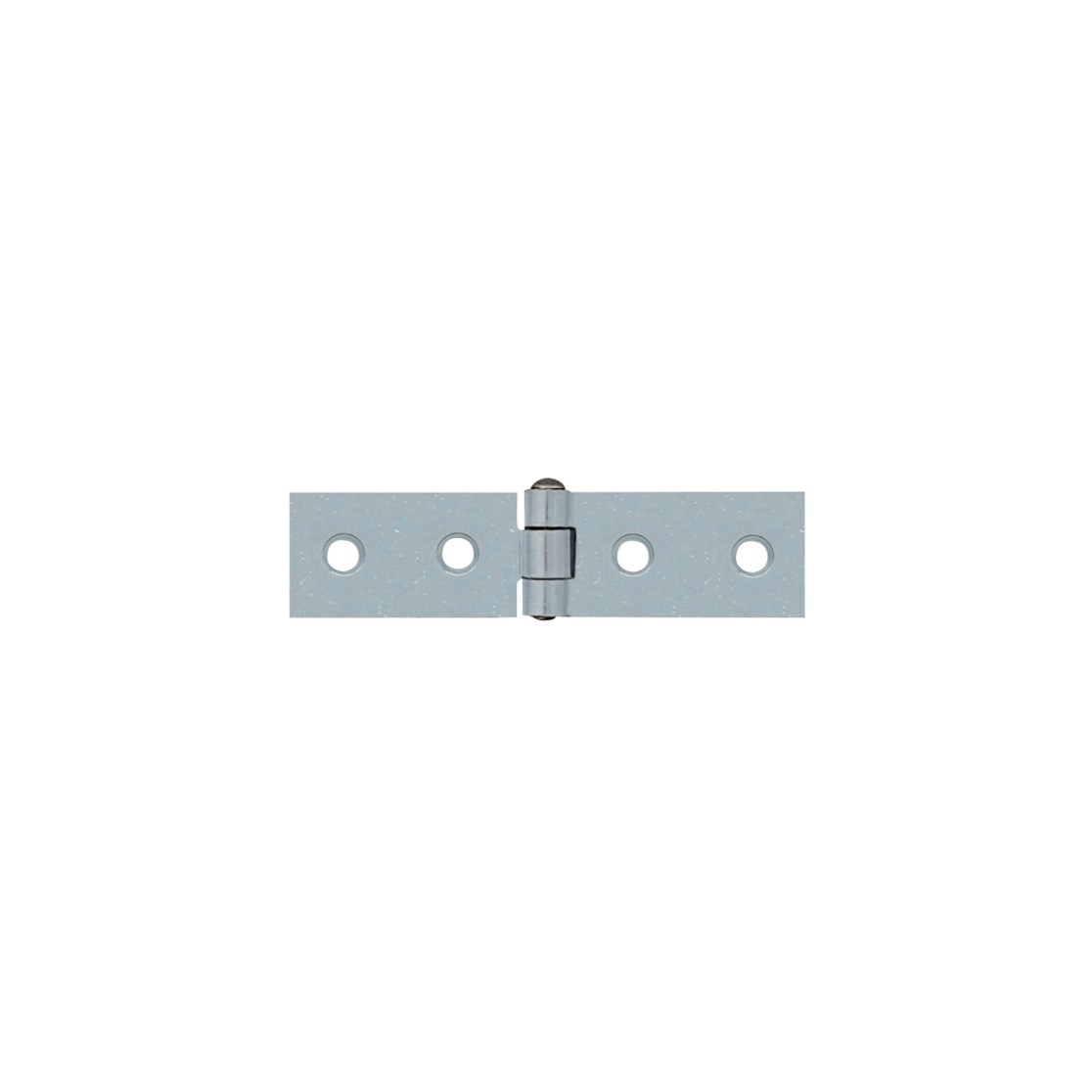

Single-axis hinge bearing-free

1108-21-22/0WE
arrow_selector
close

The AXA single-axis hinge is ideal for use in light structures like cupboards.

hinge pin not removable
Specifications Downloads Technical drawings Alternative products

Specifications

Recommended Mounting Materials
- 3.0 x 20 mm screw: 4 pieces
Commercial information
expand_more
Type bearing-free
Use for light constructions
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Width 80 mm
Product Height 20 mm
Diameter knuckle 6 mm
Corner shape right angle
Material Steel
Finish Topcoat galvanized
Assembly information
expand_more
Including Mounting Material False
Recommended Mounting Materials
- 3.0 x 20 mm screw: 4 pieces
Logistic information
expand_more
Product Weight 23 gr
Pieces per small package 30 piece
EAN small package 8713249106748
Weight small package 0.72 kg
Dimensions small package 116 x 68 x 62 mm
Pieces per bulk package 180 piece
EAN bulk package 8713249106755
Weight bulk package 4.45 kg
Dimensions bulk package 200 x 150 x 120 mm

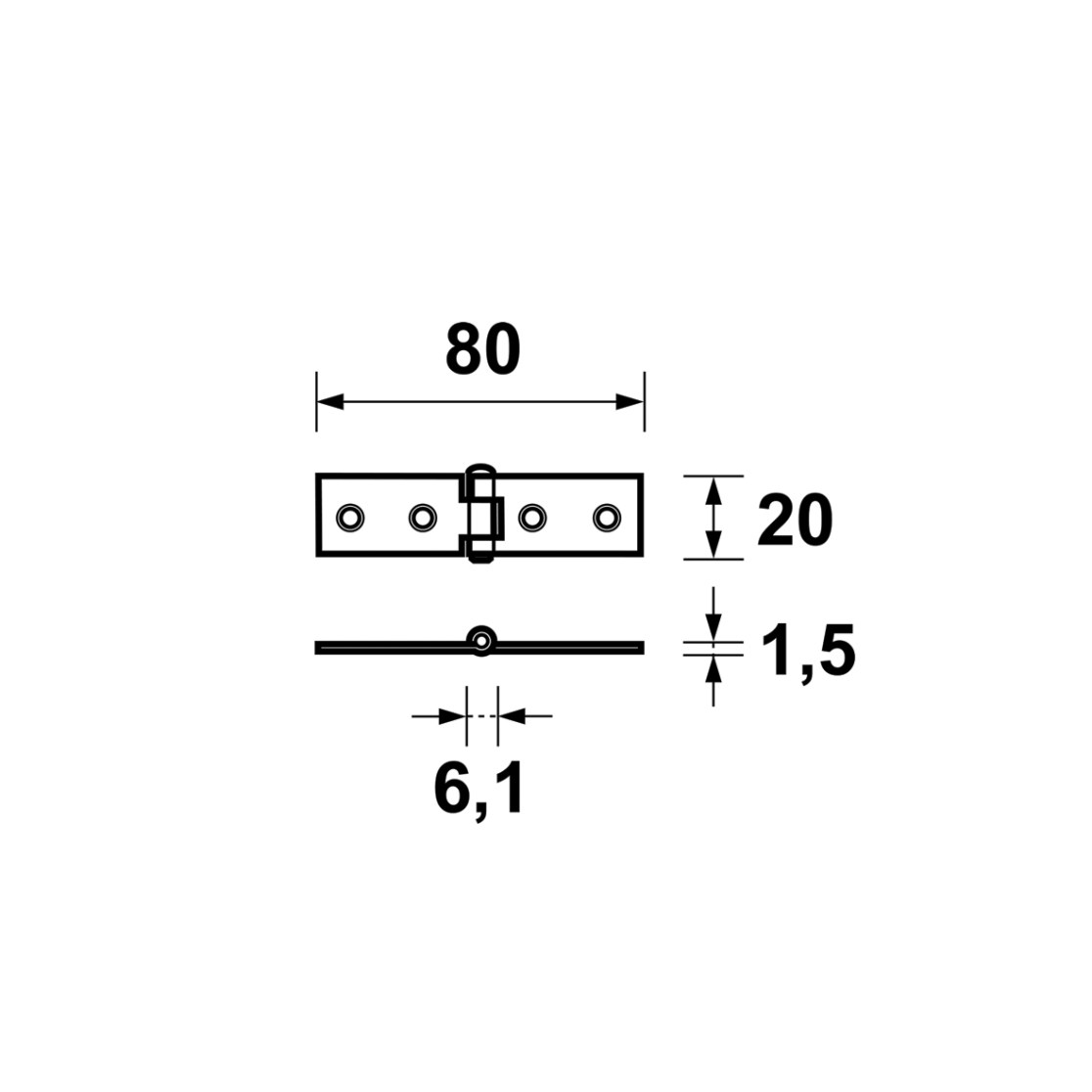

Technical drawings

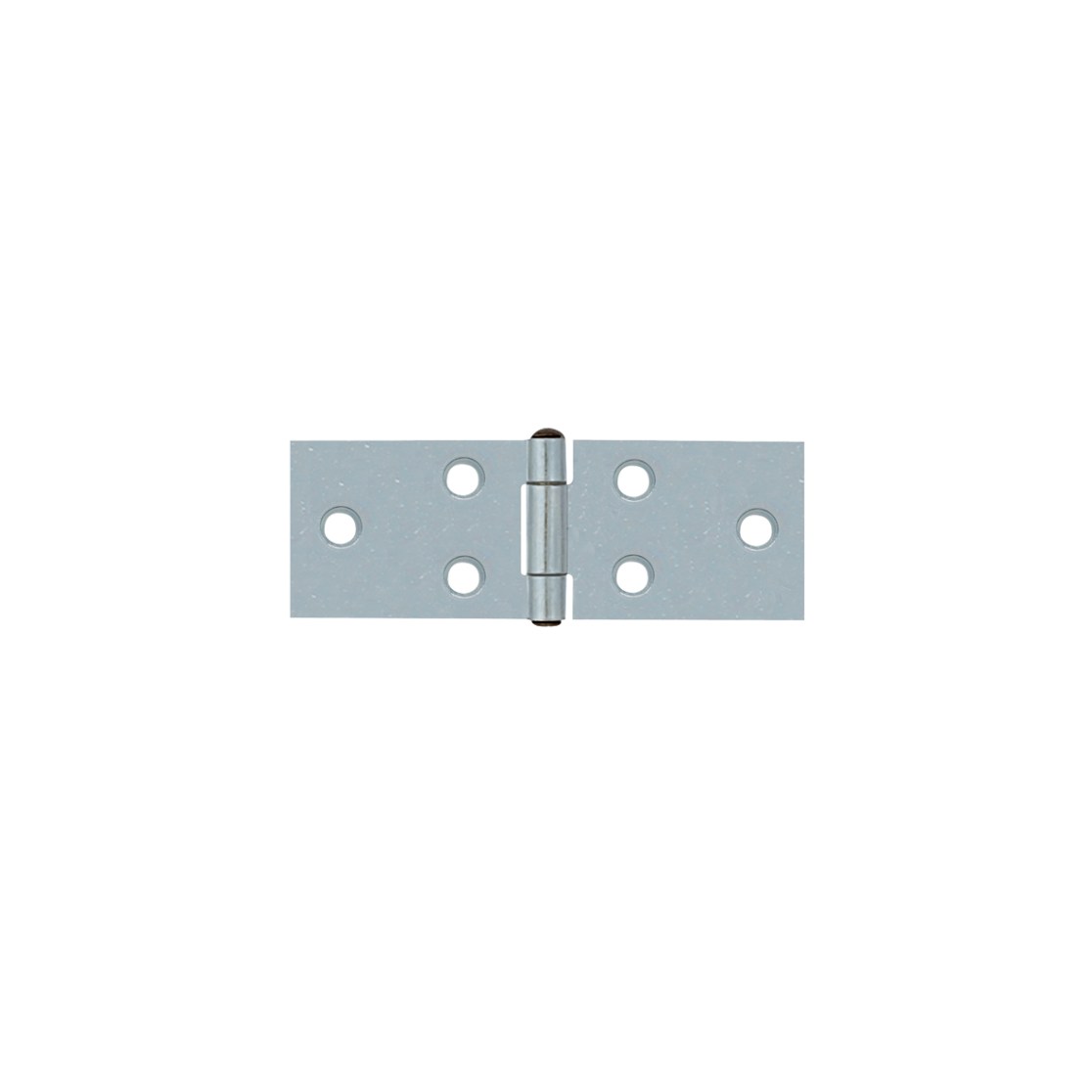

Alternative products
