Security window fastener 3320

3320-51-92/E

+

3
arrow_selector
close

SKG 1

Police Hallmark

The popular AXA 3320 security window fastener features a ventilation cam while a sturdy hook bolt provides increased burglar-resistance.

  • sturdy window fastener
  • complete with a special surface-mounted striker with a rattle-free ventilation cam holder and attachment materials
  • with a separate washer plate if there is an aluminium draught strip in the groove and/or for windows with narrow frames
  • child-proof: once locked, it cannot be opened by small children
  • with push-twist knob for locking
  • complies with Police Hallmark for Safe Living and SKG1 (Façade Quality Institution hallmark)
  • simple assembly
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 8 pieces
- 4.0 x 20 mm taptites: 4 pieces
- 4.5 x 55 mm screw: 2 pieces
Commercial information
expand_more
Type 3320
Use for outward-opening casement windows and doors
Safety information
expand_more
Burglarproof True
SKG SKG 1
Police Hallmark True
CE Applicable False
Technical information
expand_more
Product Length 132 mm
Product Width 65 mm
Product Height 40 mm
Direction of rotation right outward-opening
Bolt type hook bolt
Bolt catcher surface-mounted striker
Locking mechanisme push/turn button
Material Aluminum
Finish Anodised F2, champagne
Material 2 Synthetic
Finish 2 Anthracite
Assembly information
expand_more
Including Mounting Material True
Mounting length 132 mm
Required depth wood frame 39 mm
Window/door mounting width requirement 47 mm
Assembly time 20 min
Recommended Mounting Materials
- 4.0 x 40 mm screw: 8 pieces
- 4.0 x 20 mm taptites: 4 pieces
- 4.5 x 55 mm screw: 2 pieces
Logistic information
expand_more
Product Weight 393 gr
Pieces per small package 6 piece
EAN small package 8713249131504
Weight small package 2.46 kg
Dimensions small package 381 x 158 x 56 mm
Pieces per bulk package 36 piece
EAN bulk package 8713249131511
Weight bulk package 15.16 kg
Dimensions bulk package 390 x 320 x 180 mm

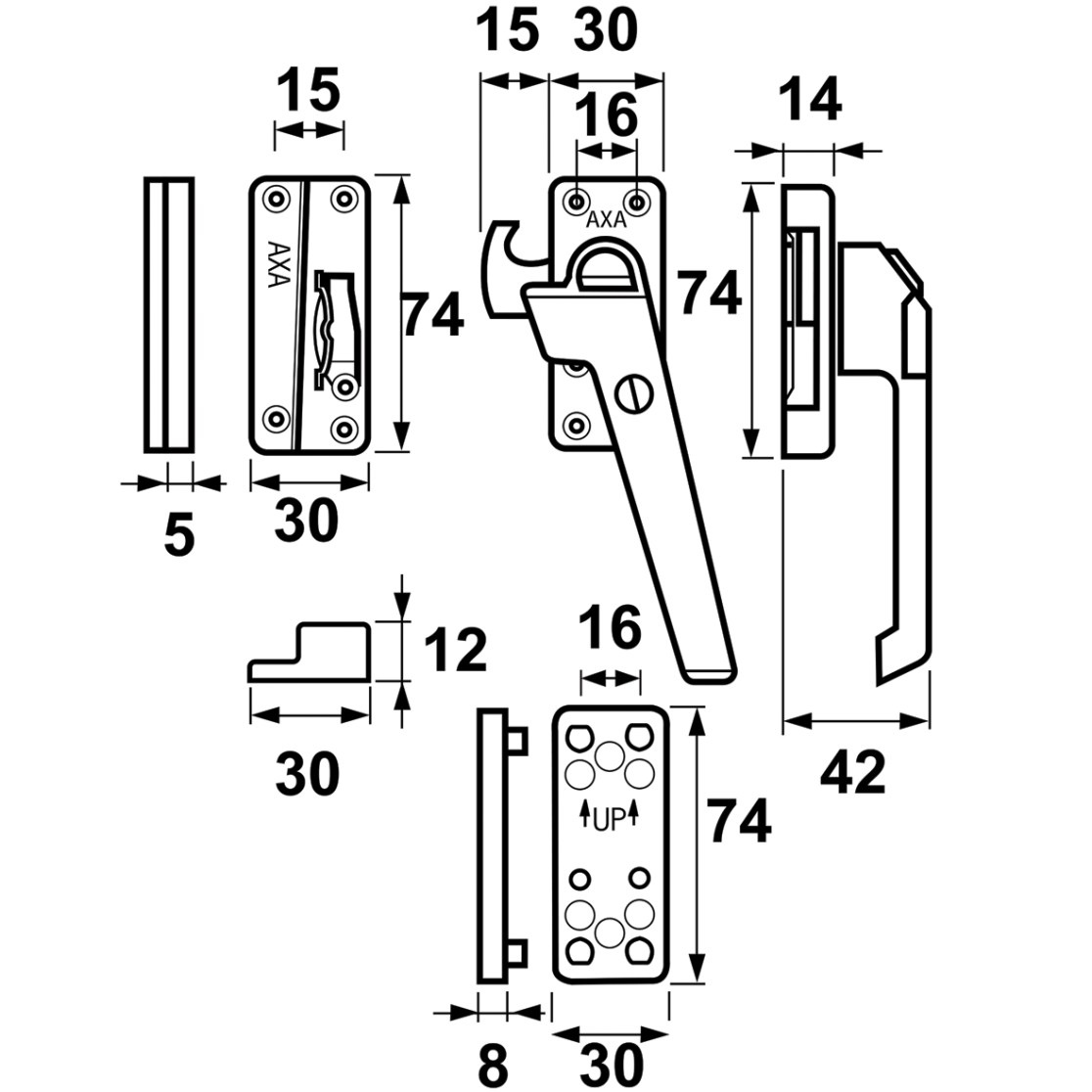

Technical drawings
