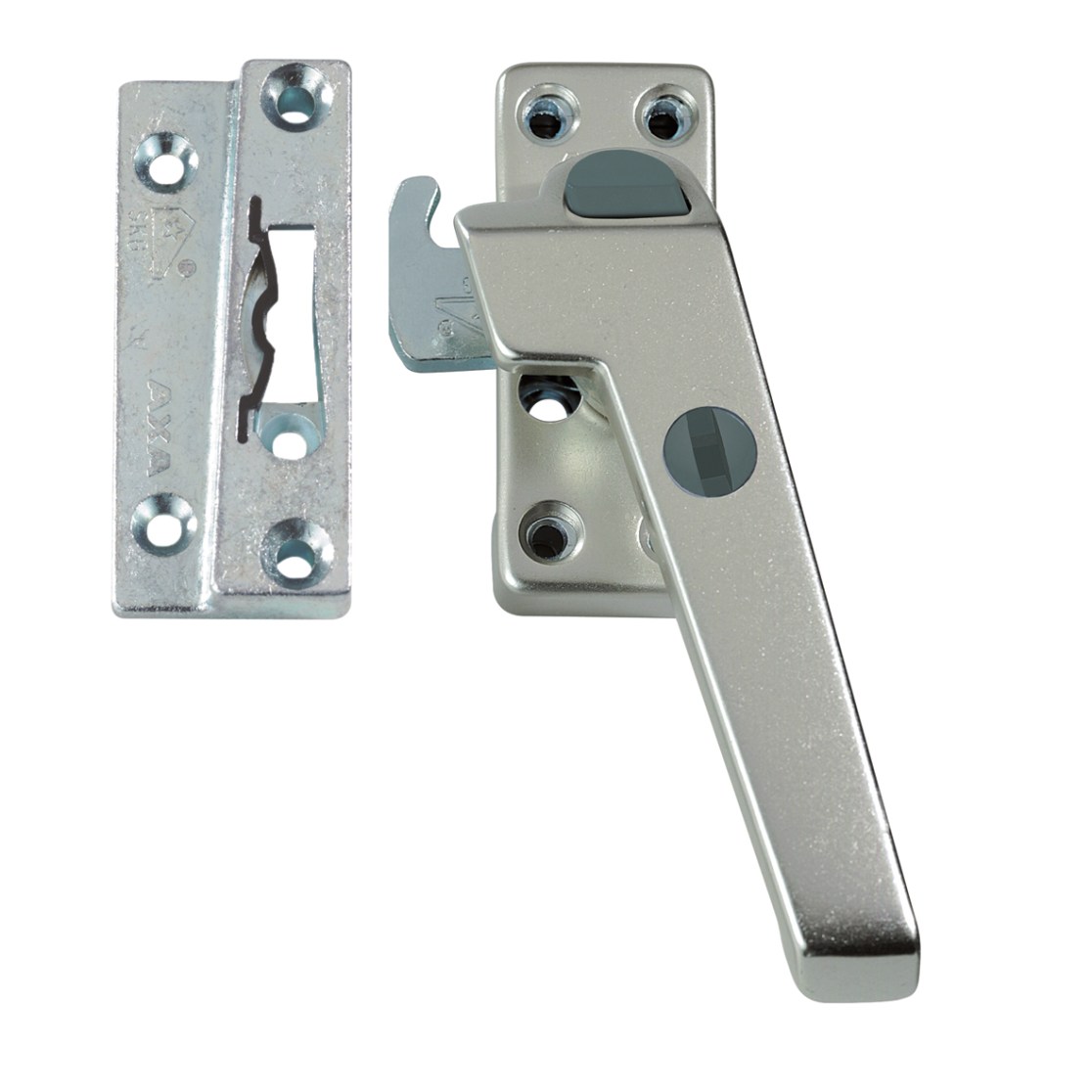

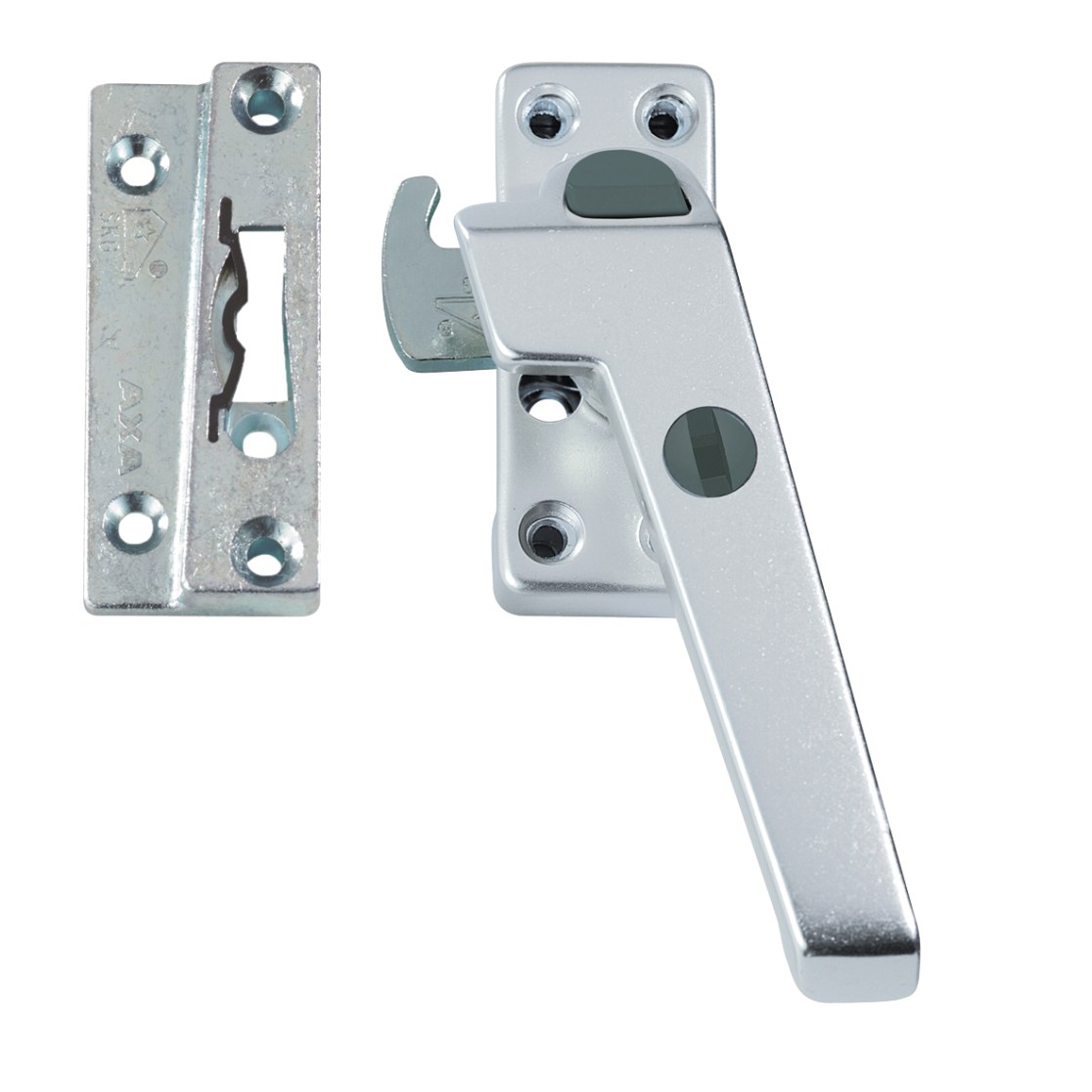

Security window fastener 3320
3320-51-91/6

The popular AXA 3320 security window fastener features a ventilation cam while a sturdy hook bolt provides increased burglar-resistance.
- sturdy window fastener
- complete with a special surface-mounted striker with a rattle-free ventilation cam holder and attachment materials
- child-proof: once locked, it cannot be opened by small children
- with push-twist knob for locking
- complies with Police Hallmark for Safe Living and SKG1 (Façade Quality Institution hallmark)
- simple assembly




+
11

The popular AXA 3320 security window fastener features a ventilation cam while a sturdy hook bolt provides increased burglar-resistance.
- sturdy window fastener
- complete with a special surface-mounted striker with a rattle-free ventilation cam holder and attachment materials
- child-proof: once locked, it cannot be opened by small children
- with push-twist knob for locking
- complies with Police Hallmark for Safe Living and SKG1 (Façade Quality Institution hallmark)
- simple assembly
Specifications
Recommended Mounting Materials
- 4.0 x 50 mm screw: 4 pieces
- 4.0 x 40 mm screw: 4 pieces
- 4.5 x 55 mm screw: 2 pieces
- 4.0 x 50 mm screw: 4 pieces
- 4.0 x 40 mm screw: 4 pieces
- 4.5 x 55 mm screw: 2 pieces
Commercial information
Type 3320

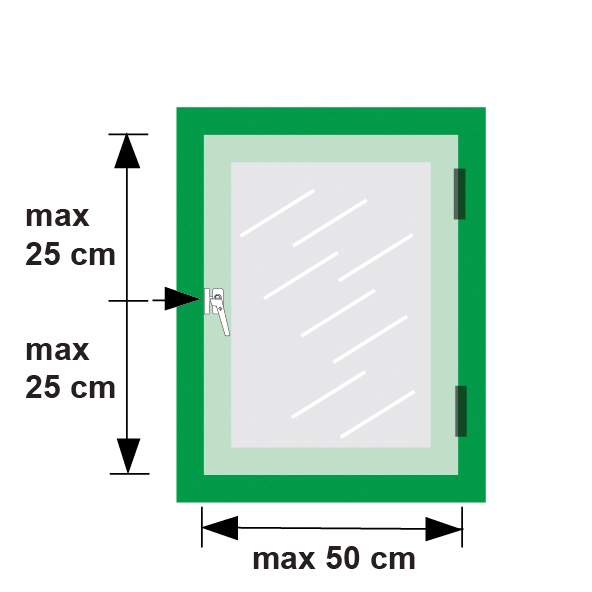

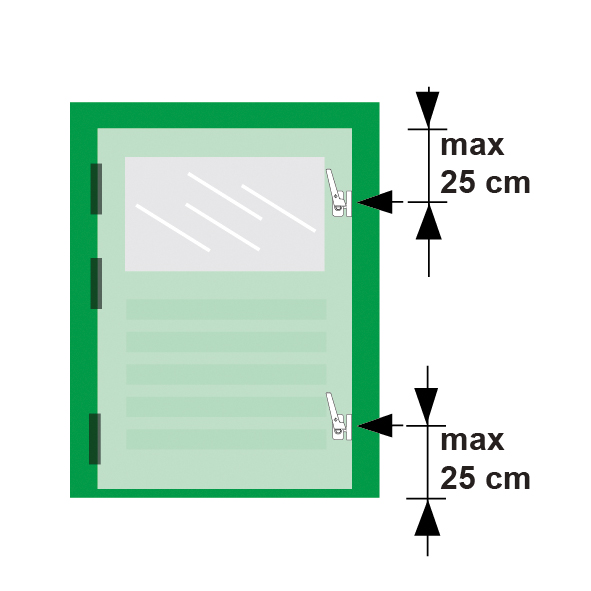

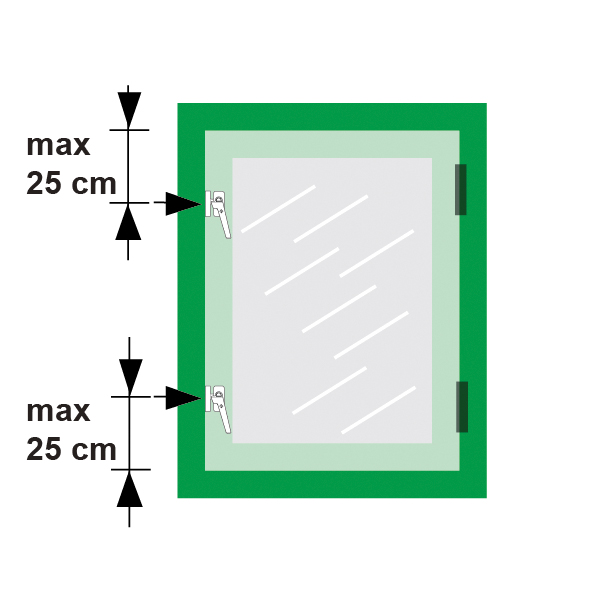

Use for outward-opening casement windows and doors
Safety information
Burglarproof True
SKG SKG 1
Police Hallmark True
CE Applicable False
Technical information

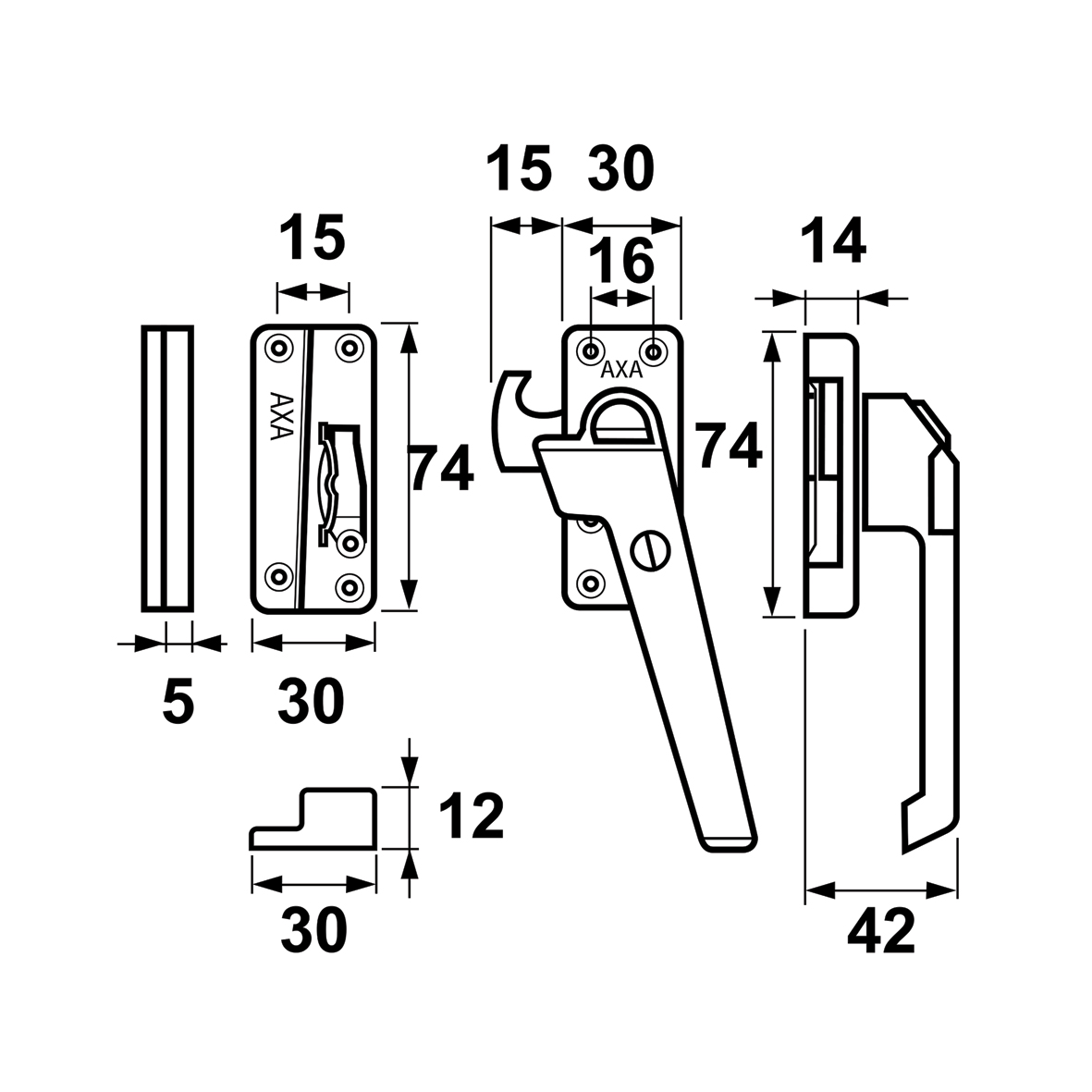

Product Length 132 mm
Product Width 65 mm
Product Height 40 mm
Direction of rotation right outward-opening
Bolt type hook bolt
Bolt catcher surface-mounted striker
Locking mechanisme push/turn button
Material Aluminum
Finish Anodised F1, natural
Material 2 Synthetic
Finish 2 Anthracite
Assembly information
Including Mounting Material False

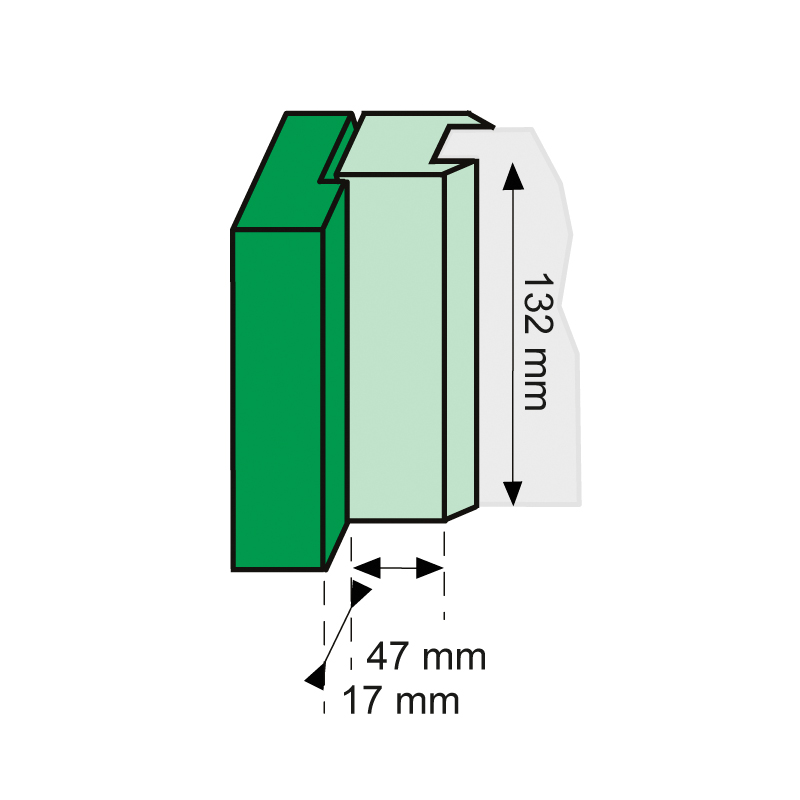

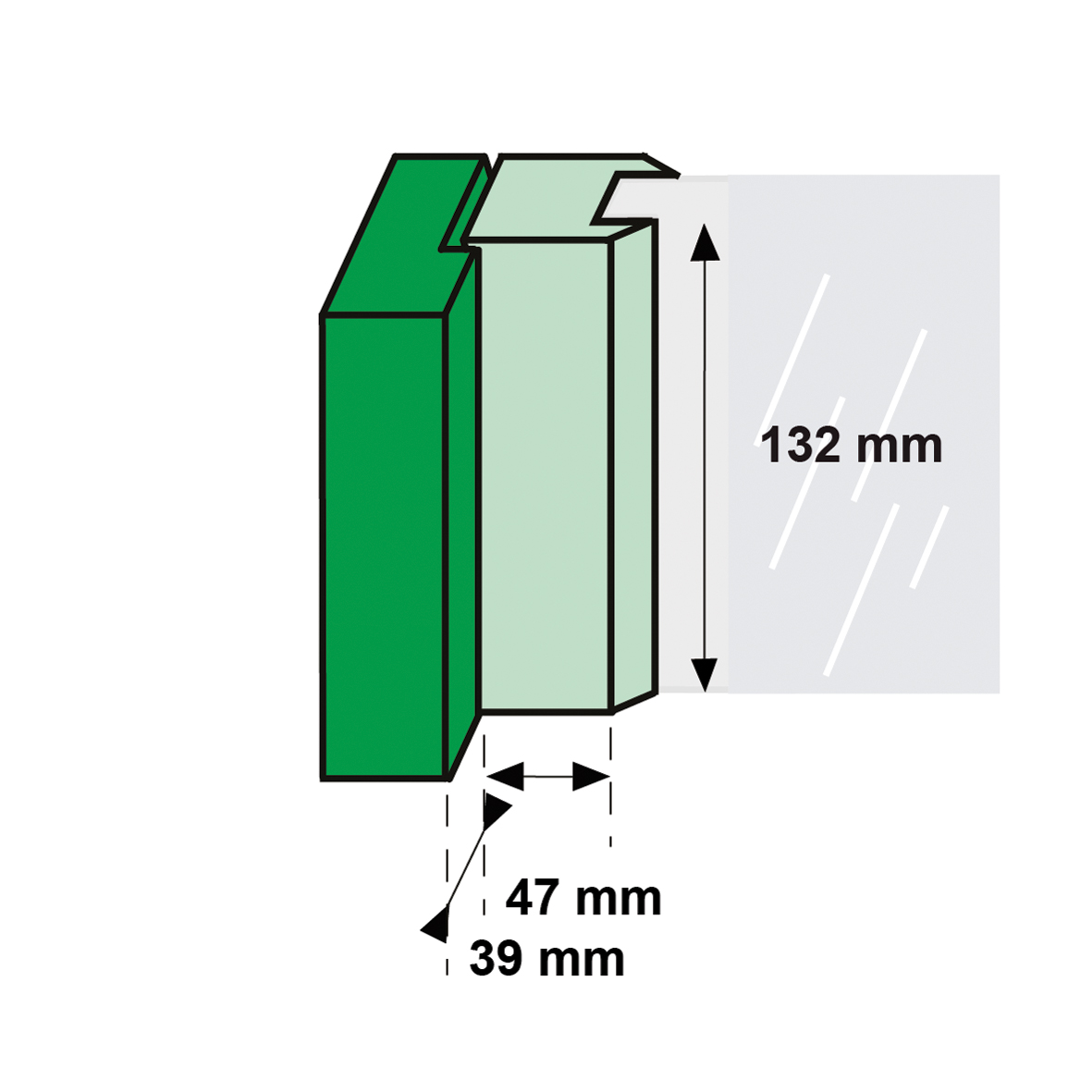

Mounting length 132 mm
Required depth wood frame 31 mm
Window/door mounting width requirement 47 mm
Assembly time 20 min
Recommended Mounting Materials
- 4.0 x 50 mm screw: 4 pieces
- 4.0 x 40 mm screw: 4 pieces
- 4.5 x 55 mm screw: 2 pieces
- 4.0 x 50 mm screw: 4 pieces
- 4.0 x 40 mm screw: 4 pieces
- 4.5 x 55 mm screw: 2 pieces
Logistic information
Product Weight 306 gr
Pieces per bulk package 50 piece
EAN bulk package 8713249134536
Weight bulk package 15.69 kg
Dimensions bulk package 390 x 320 x 180 mm
Downloads
Main Image Environmental Product Declaration (EPD)Technical drawings
