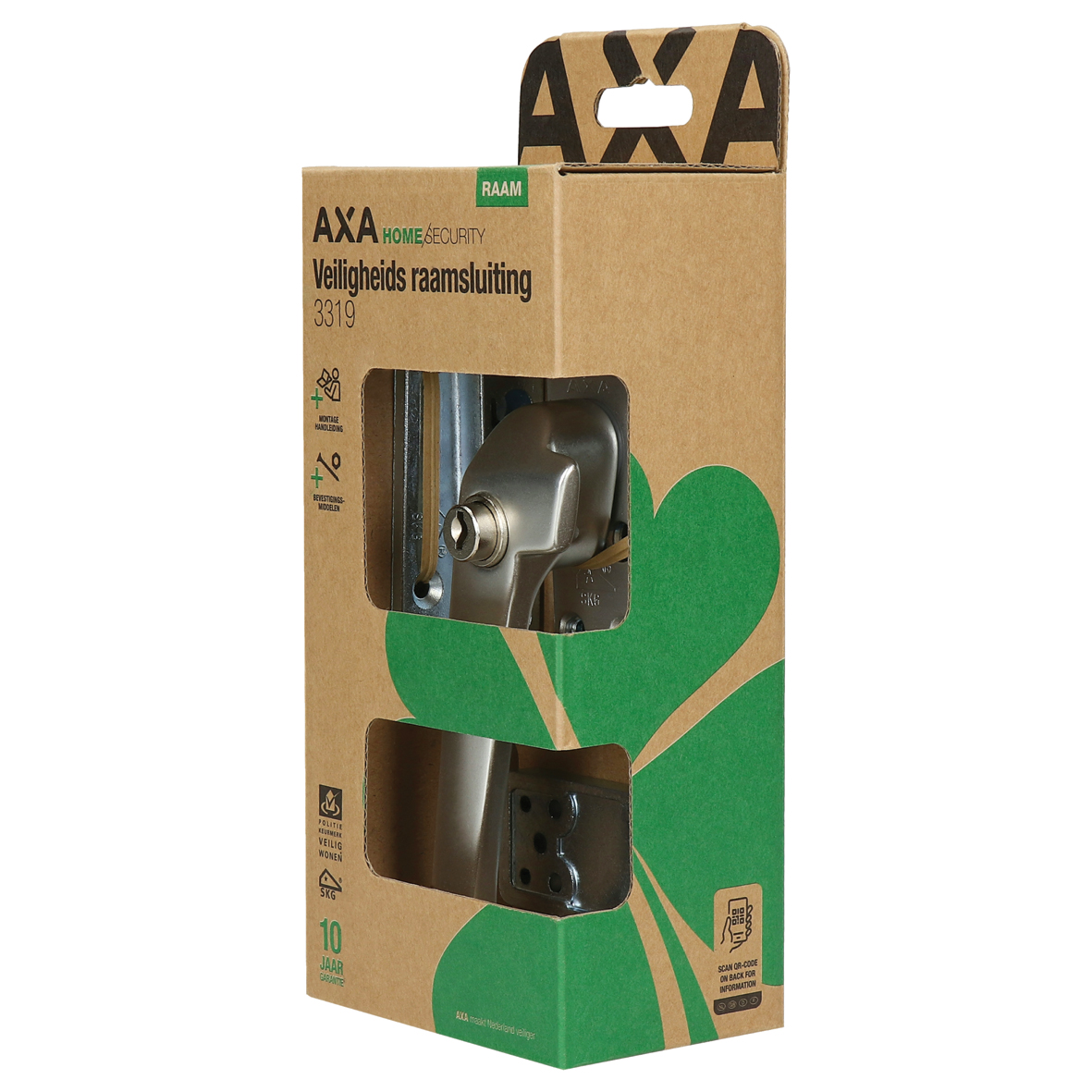

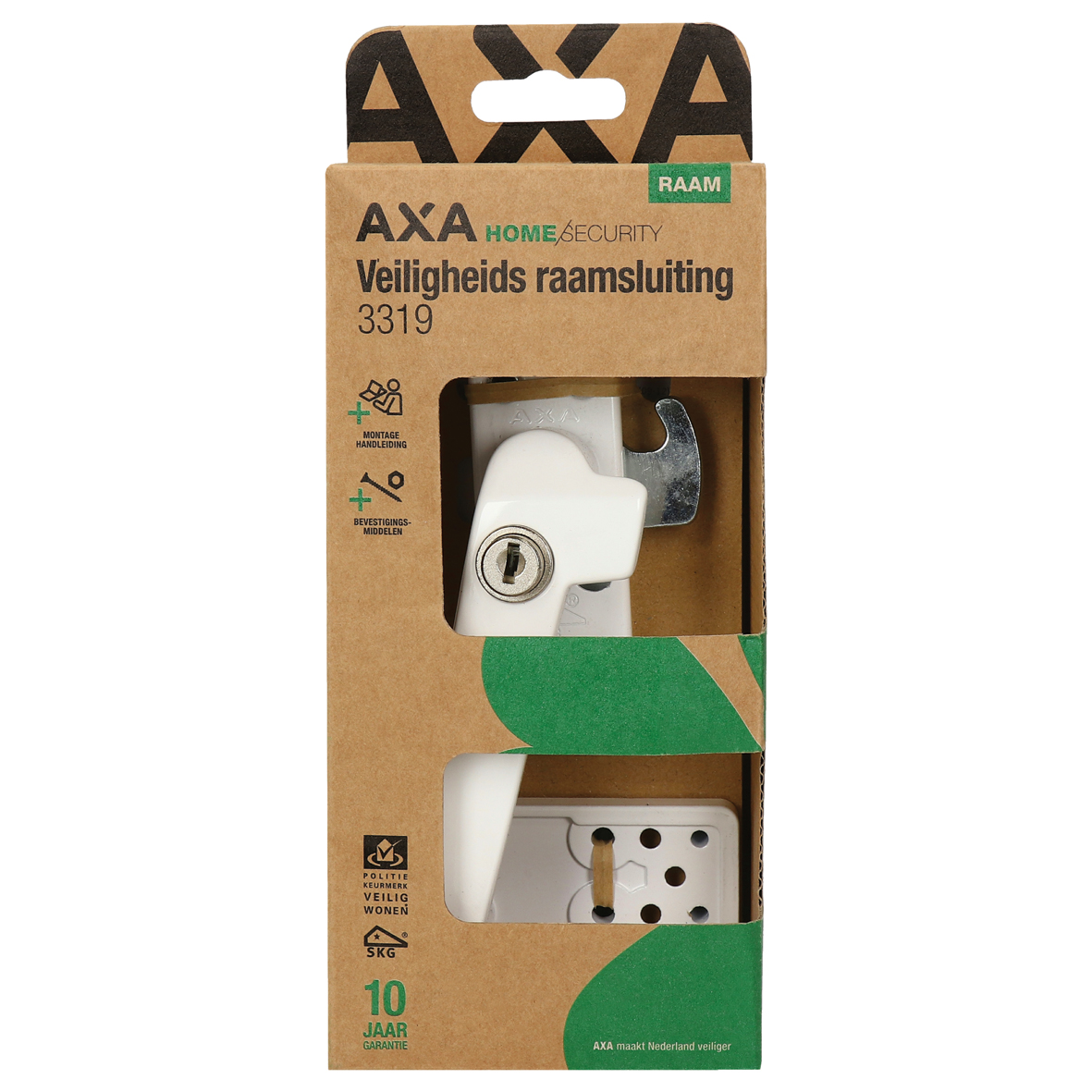

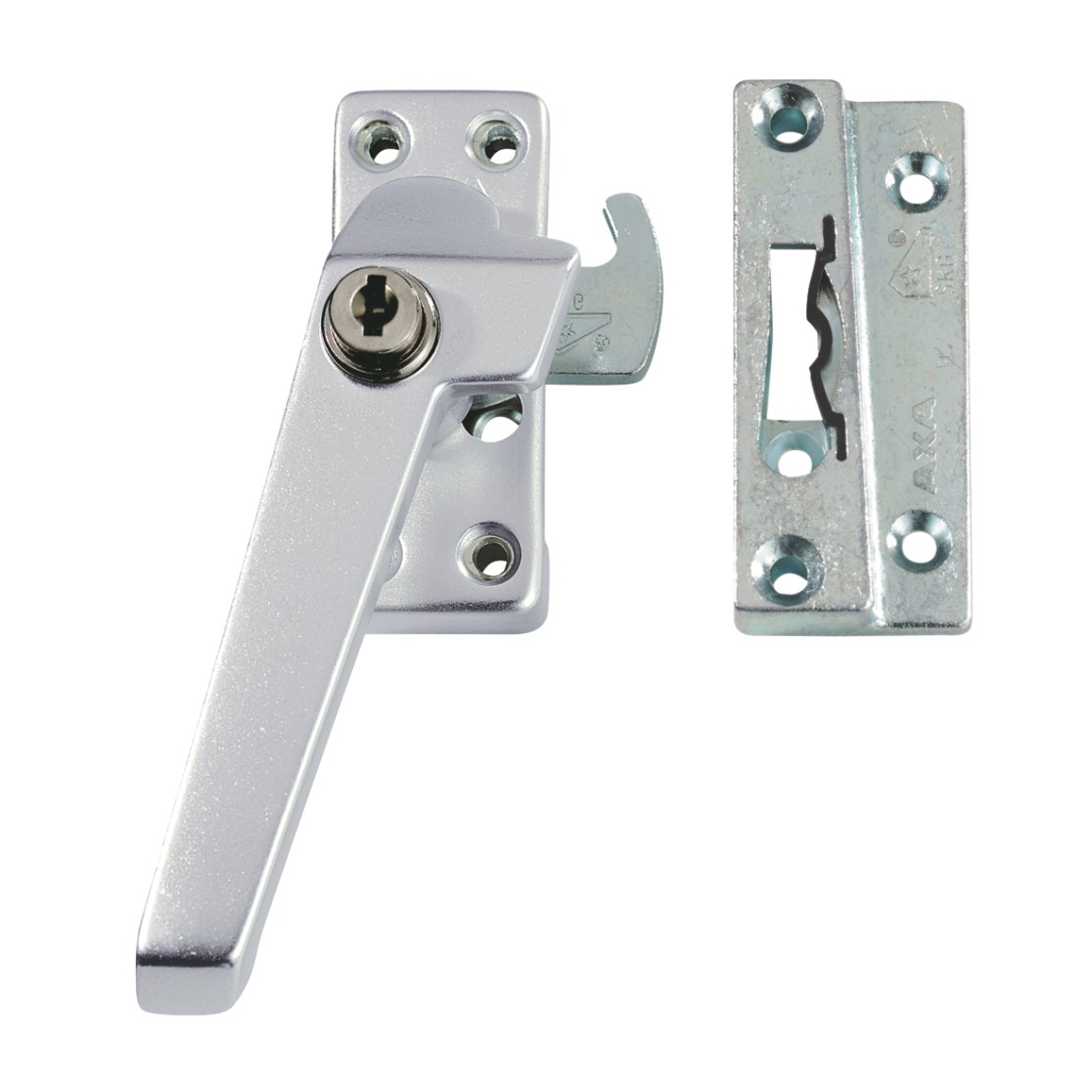

Security window fastener 3319

3319-61-38/BL

+

8
arrow_selector
close

SKG 1

Police Hallmark
  • sturdy window fastener
  • optimal ease of use: keyed-alike, just one key for the entire home
  • complete with a special surface-mounted striker with a rattle-free ventilation cam holder and attachment materials
  • with a separate washer plate if there is an aluminium draught strip in the groove and/or for windows with narrow frames
  • child-proof: once locked, it cannot be opened by small children
  • with a cylinder lock for locking
  • complies with Police Hallmark for Safe Living and SKG1 (Façade Quality Institution hallmark)
  • simple assembly
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 8 pieces
- 4.0 x 20 mm taptites: 4 pieces
- 4.5 x 55 mm screw: 2 pieces
Commercial information
expand_more
Type 3319
Use for outward-opening casement windows and doors
Safety information
expand_more
Burglarproof True
SKG SKG 1
Police Hallmark True
CE Applicable False
Technical information
expand_more
Product Length 132 mm
Product Width 65 mm
Product Height 40 mm
Direction of rotation left outward-opening
Bolt type hook bolt
Bolt catcher surface-mounted striker
Locking mechanisme cylinder lock
Number of Keys 1
Keyed alike True
Material Aluminum
Finish Polished anodised F8, black
Material 2 zamac
Finish 2 Black
Assembly information
expand_more
Including Mounting Material True
Mounting length 132 mm
Required depth wood frame 39 mm
Window/door mounting width requirement 47 mm
Assembly time 20 min
Logistic information
expand_more
Product Weight 431 gr
Pieces per small package 1 piece
EAN small package 8713249269092
Weight small package 0.43 kg
Dimensions small package 215 x 95 x 63 mm
Pieces per bulk package 8 piece
EAN bulk package 8713249269108
Weight bulk package 3.71 kg
Dimensions bulk package 390 x 200 x 120 mm
