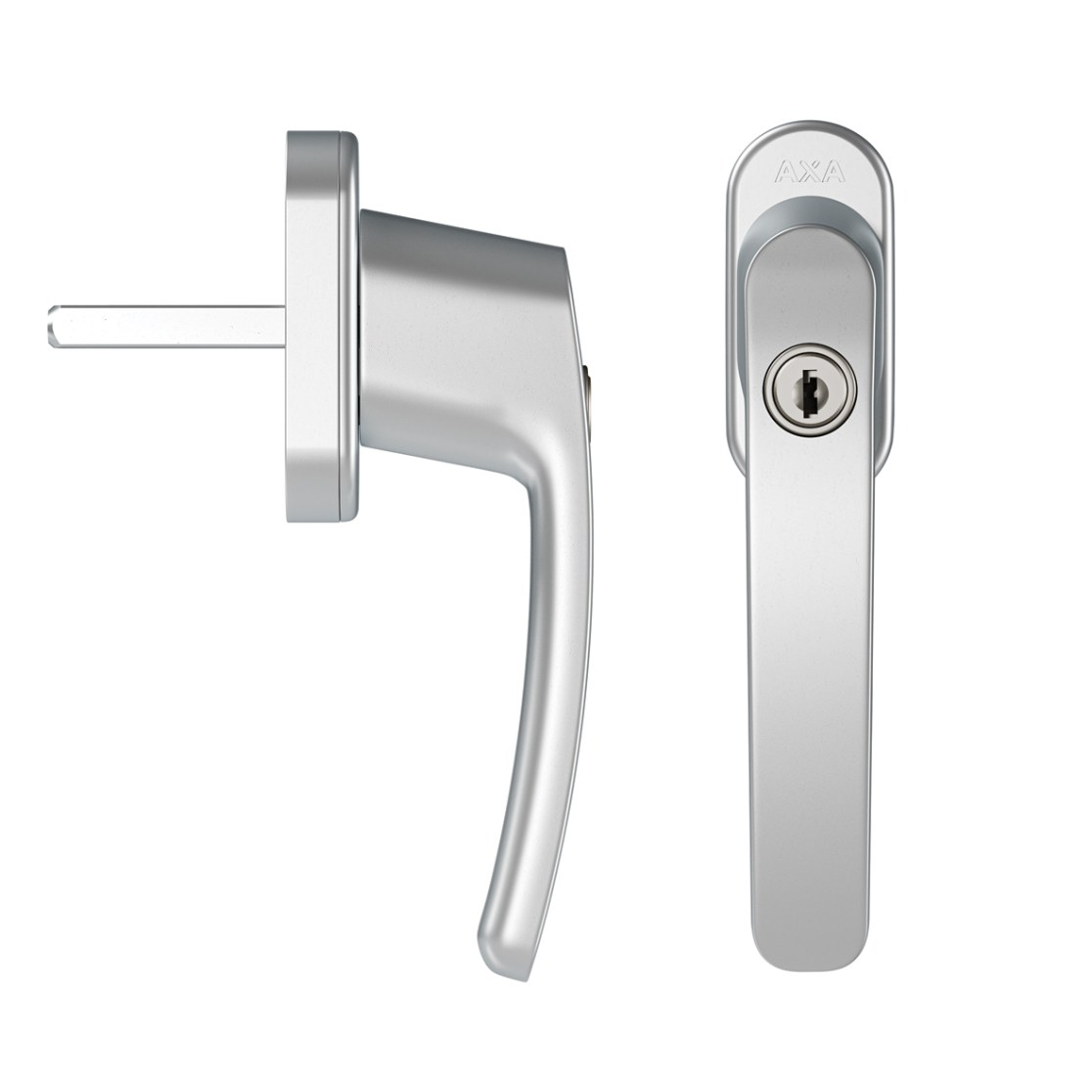

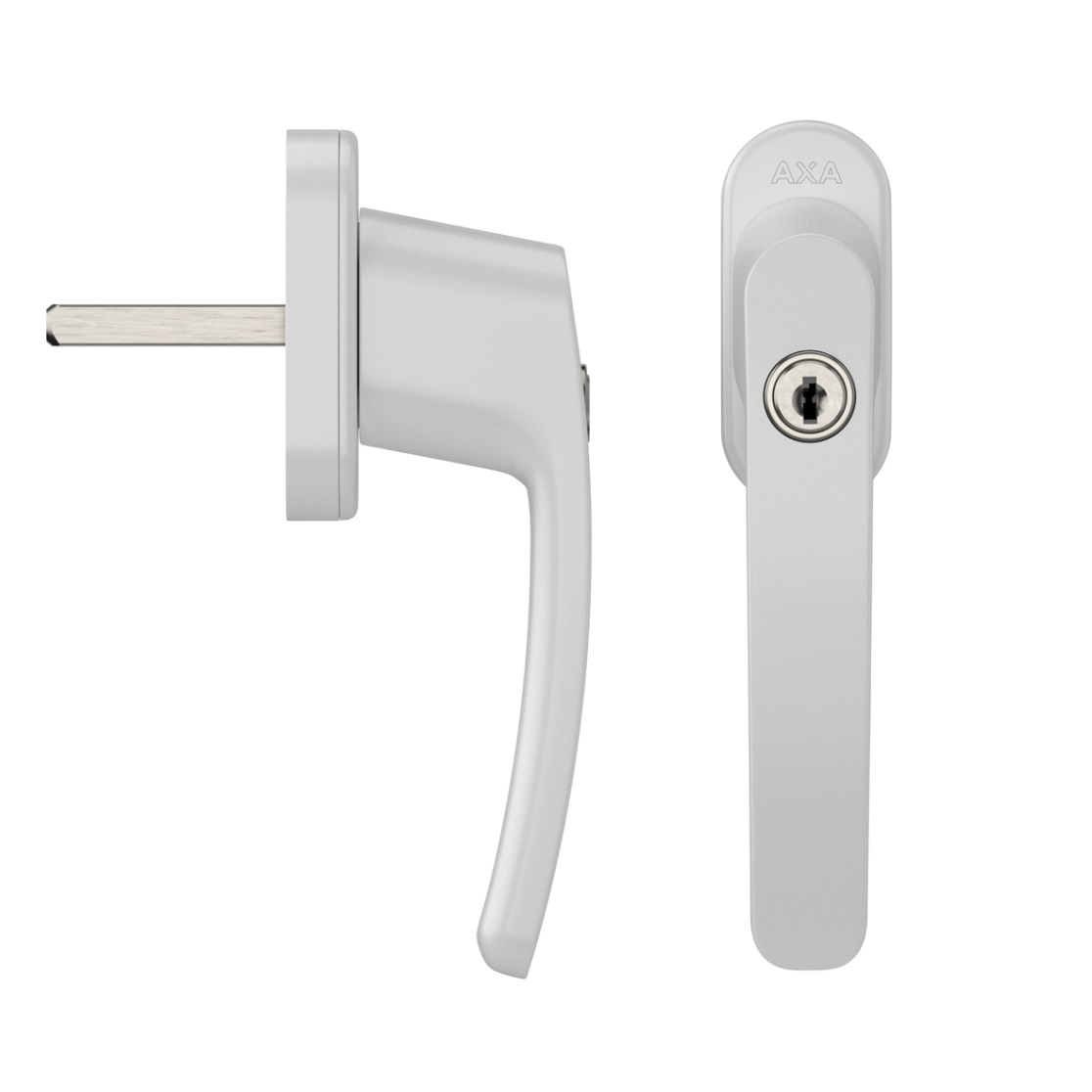

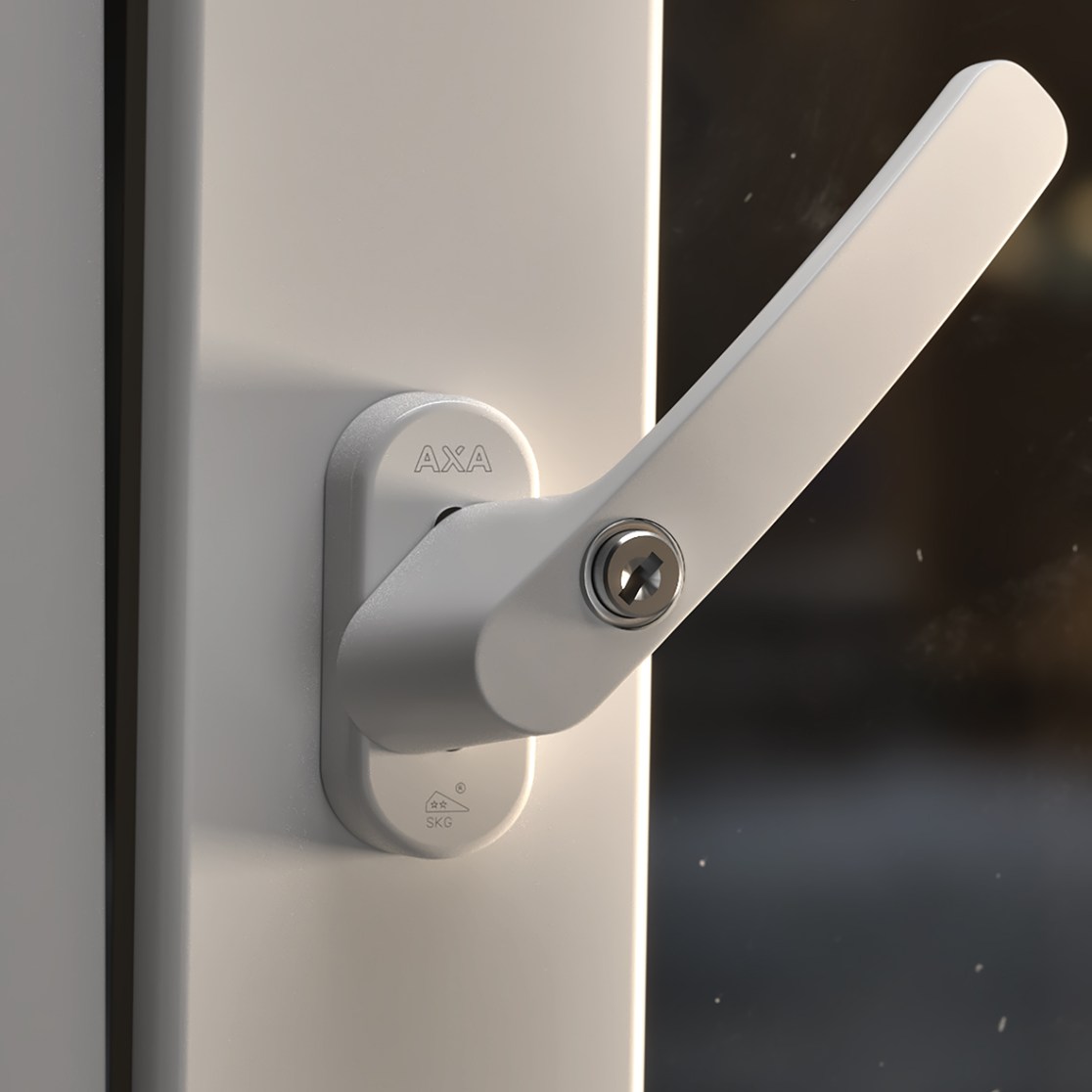

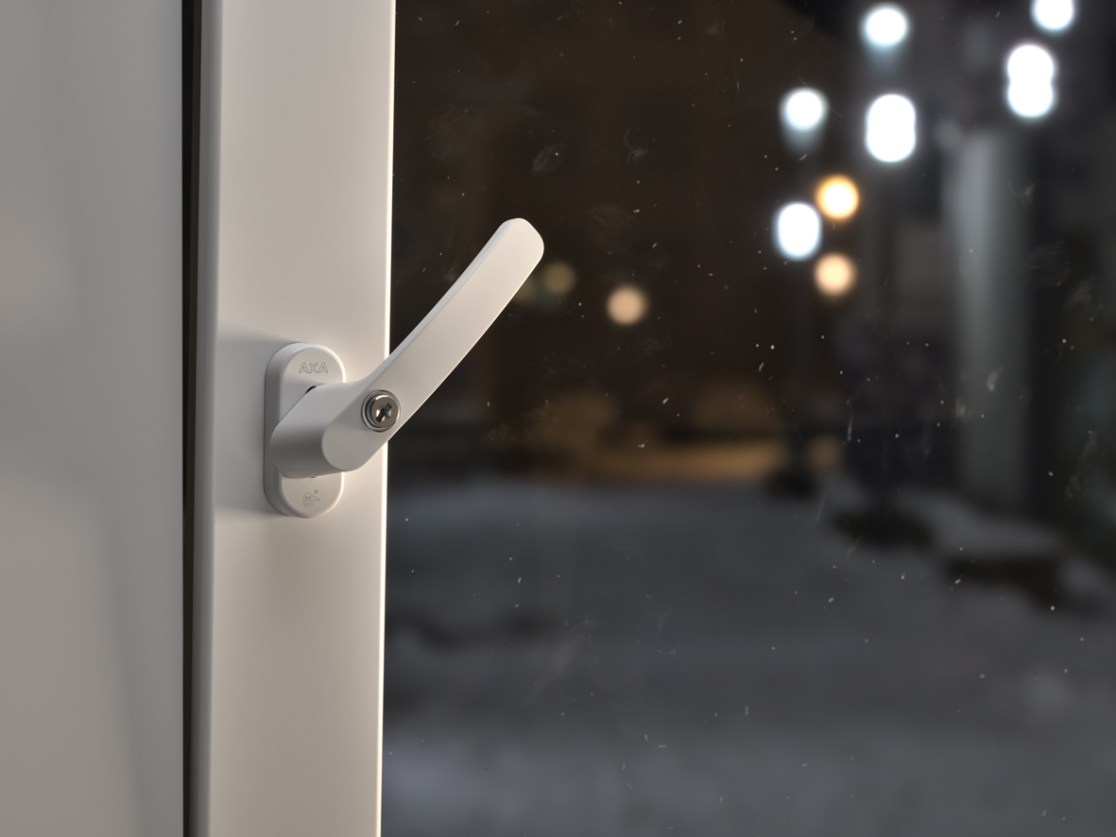

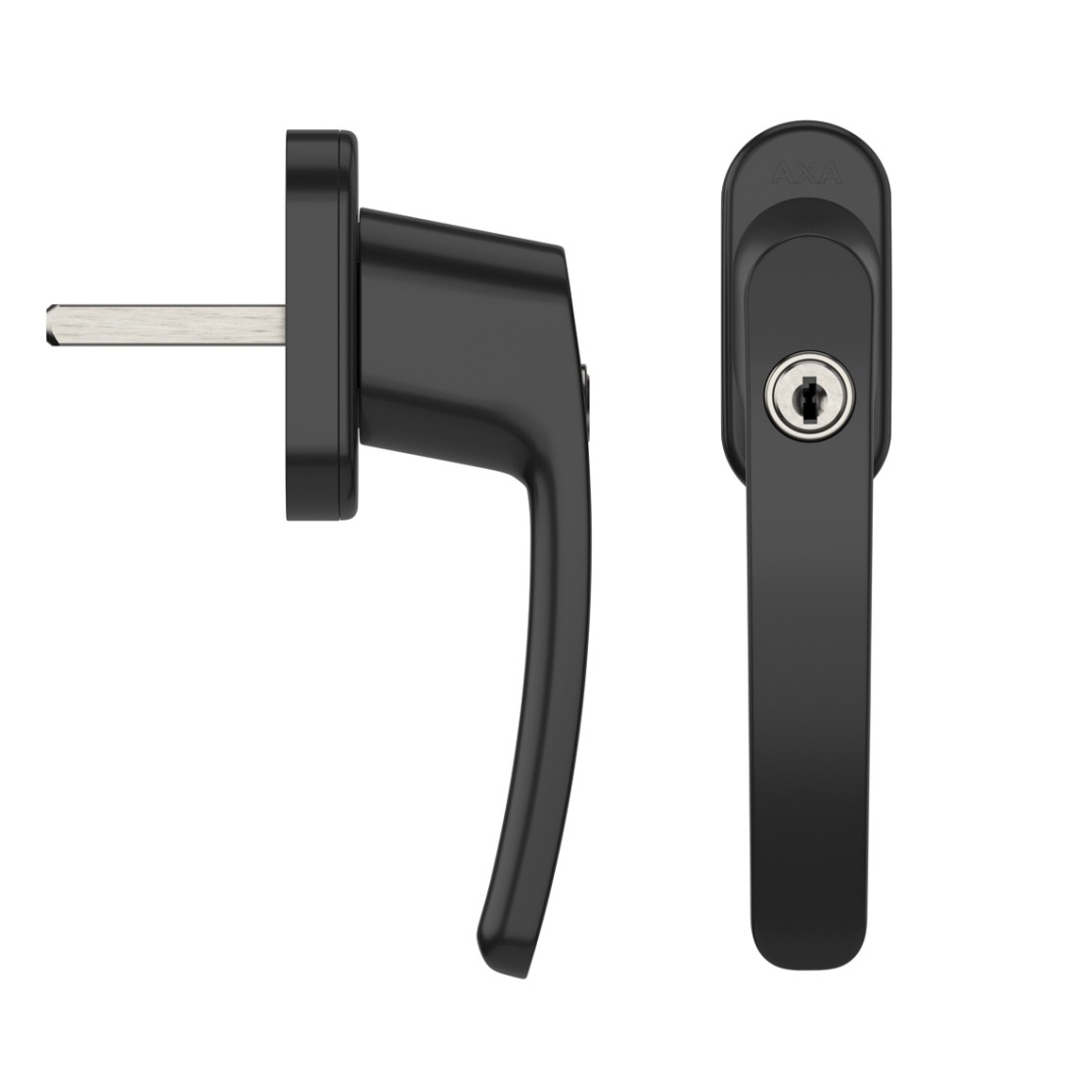

Security tilt-and-turn window handle Oval Roma 45-90

3341-40-88/E45

+

3
arrow_selector
close

SKG 2

Police Hallmark

The AXA Roma tilt-and-turn security window handle is lockable, has a night ventilation mode and guarantees the problem-free operation of tilt and turn windows.

  • optimal ease of use: just one key for the entire home
  • lockable
  • no visible attachment points
  • with night ventilation mode (45Ëš), suitable for windows that have this feature
  • child-proof: once locked, it cannot be opened by small children
  • complies with Police Hallmark for Safe Living and SKG2 (Façade Quality Institution hallmark)
  • simple assembly
Specifications Downloads Technical drawings Associated products Similar products

Specifications

Recommended Mounting Materials
- bolt M5 x 50 mm: 2 pieces
Commercial information
expand_more
Type Oval Roma 45-90
Use for tilt and turn windows
Safety information
expand_more
Burglarproof True
SKG SKG 2
Police Hallmark True
CE Applicable False
Technical information
expand_more
Product Length 144 mm
Product Width 30 mm
Direction of rotation inward-opening
Locking mechanisme cylinder lock
Handle type Roma
Handle length 130 mm
Handle depth 53 mm
Spindle dimension 7 x 40 mm
Number of Keys 1
Keyed alike True
Material Aluminum
Finish White lacquered
Assembly information
expand_more
Including Mounting Material True
Assembly time 5 min
Recommended Mounting Materials
- bolt M5 x 50 mm: 2 pieces
Logistic information
expand_more
Pieces per small package 10 piece
EAN small package 8713249360096
Dimensions small package 164 x 116 x 153 mm
Pieces per bulk package 60 piece
EAN bulk package 8713249360102
Dimensions bulk package 390 x 320 x 180 mm

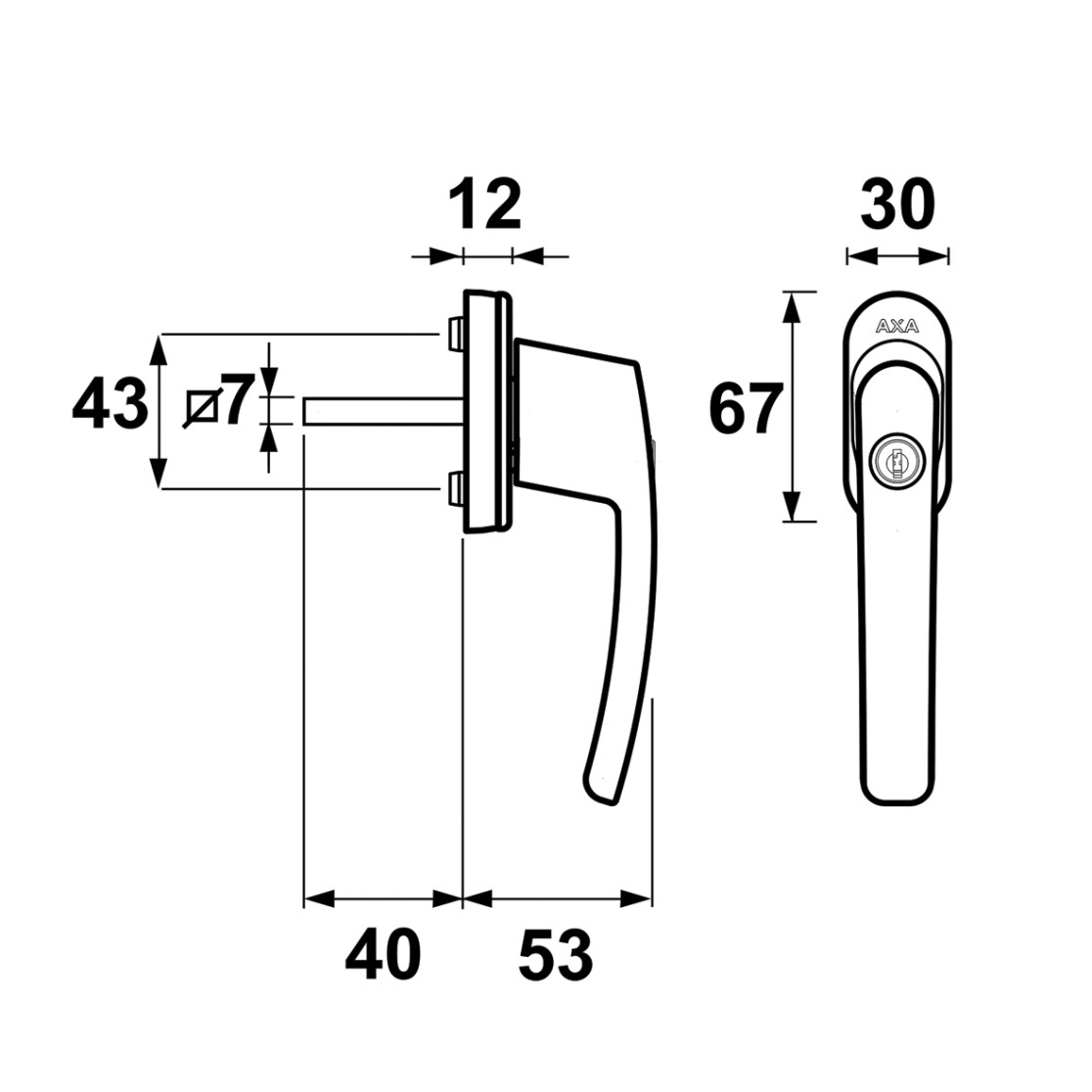

Technical drawings
