Security rim lock 3012
3012-20-90/G

The handy AXA rim lock 3012 increases the burglar-resistance of different types of outward-opening windows, skylights and patio doors.
- lockable
- optimal ease of use: keyed-alike, just one key for the entire home
- complete with built-in striker and attachment materials
- complies with Police Hallmark for Safe Living and SKG1 (Façade Quality Institution hallmark)
- simple assembly



The handy AXA rim lock 3012 increases the burglar-resistance of different types of outward-opening windows, skylights and patio doors.
- lockable
- optimal ease of use: keyed-alike, just one key for the entire home
- complete with built-in striker and attachment materials
- complies with Police Hallmark for Safe Living and SKG1 (Façade Quality Institution hallmark)
- simple assembly
Specifications
Recommended Mounting Materials
- 4.0 x 40 mm screw: 6 pieces
- 4.0 x 40 mm screw: 6 pieces
Commercial information
Type 3012

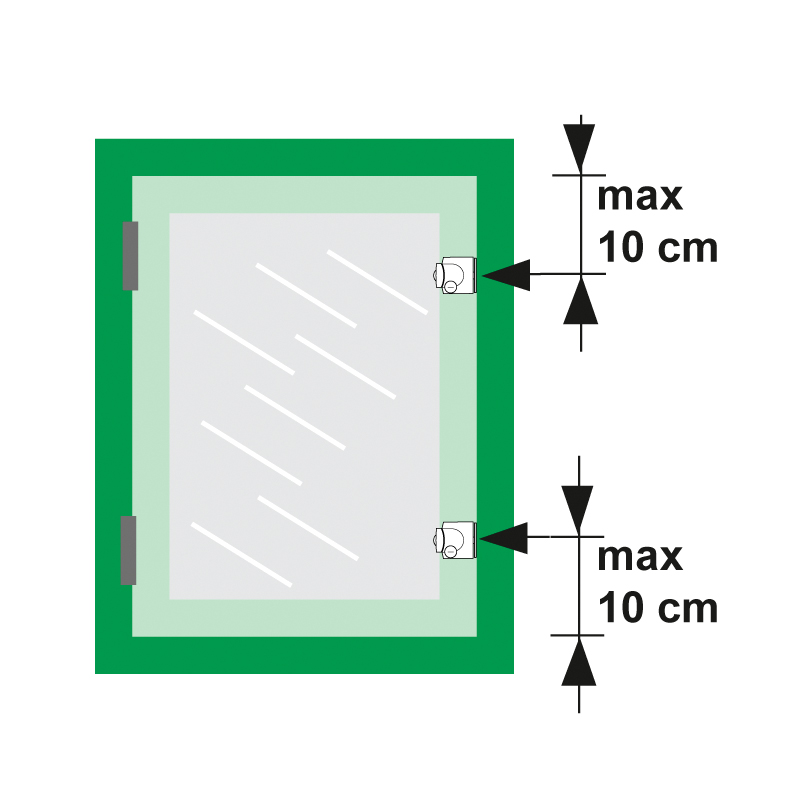

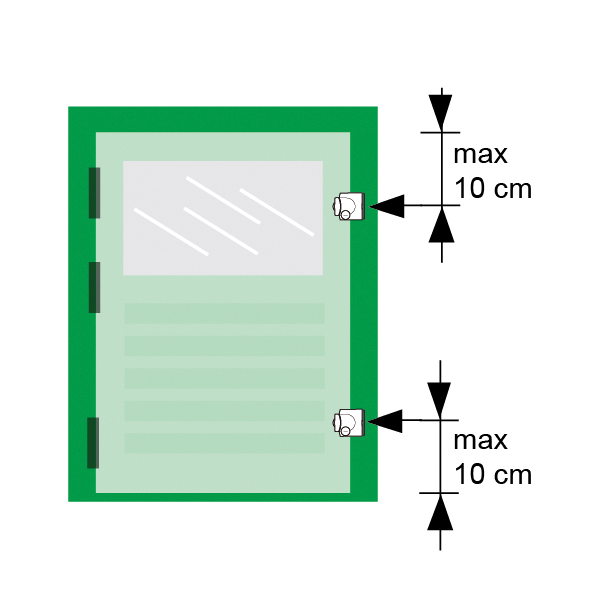

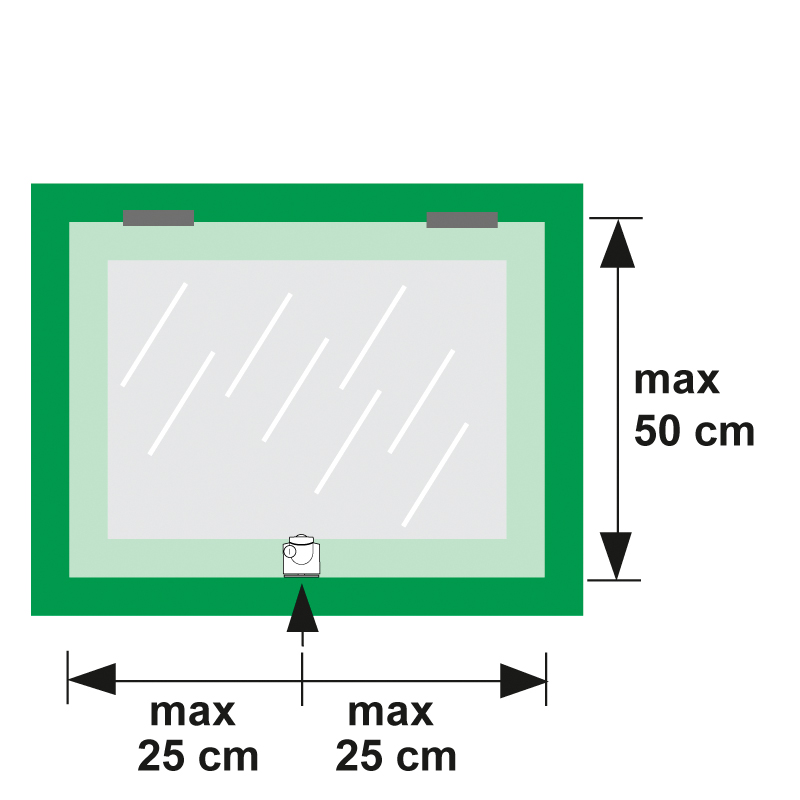

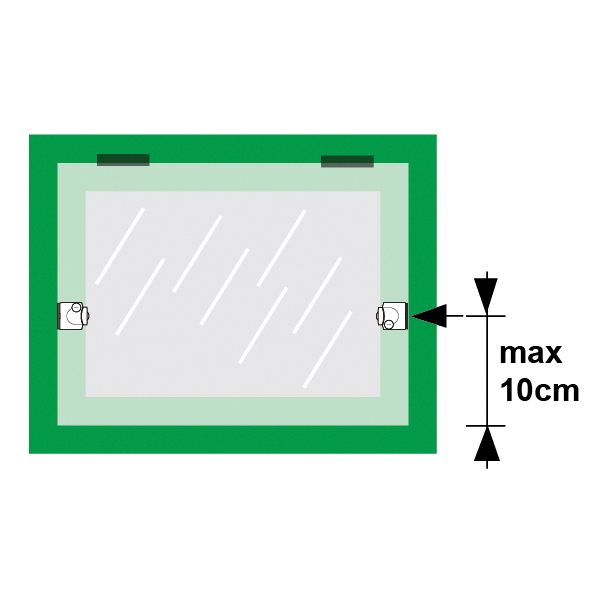

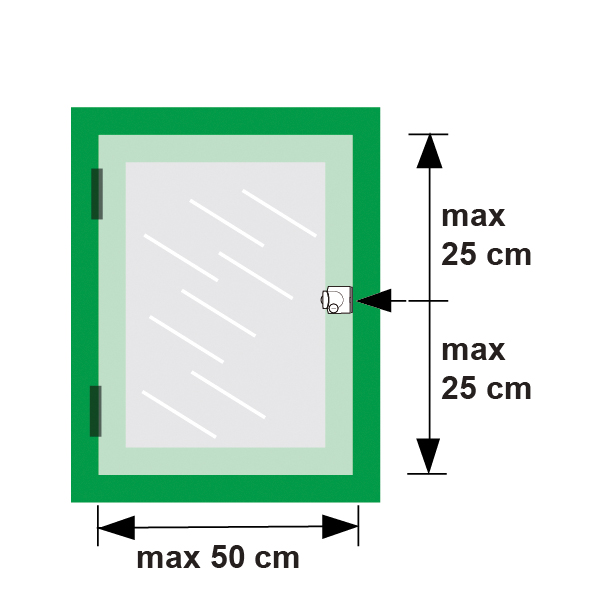

Use for outward-opening casement, hopper and top-hung windows and doors and patio doors
Safety information
Burglarproof True
SKG SKG 1
Police Hallmark True
CE Applicable False

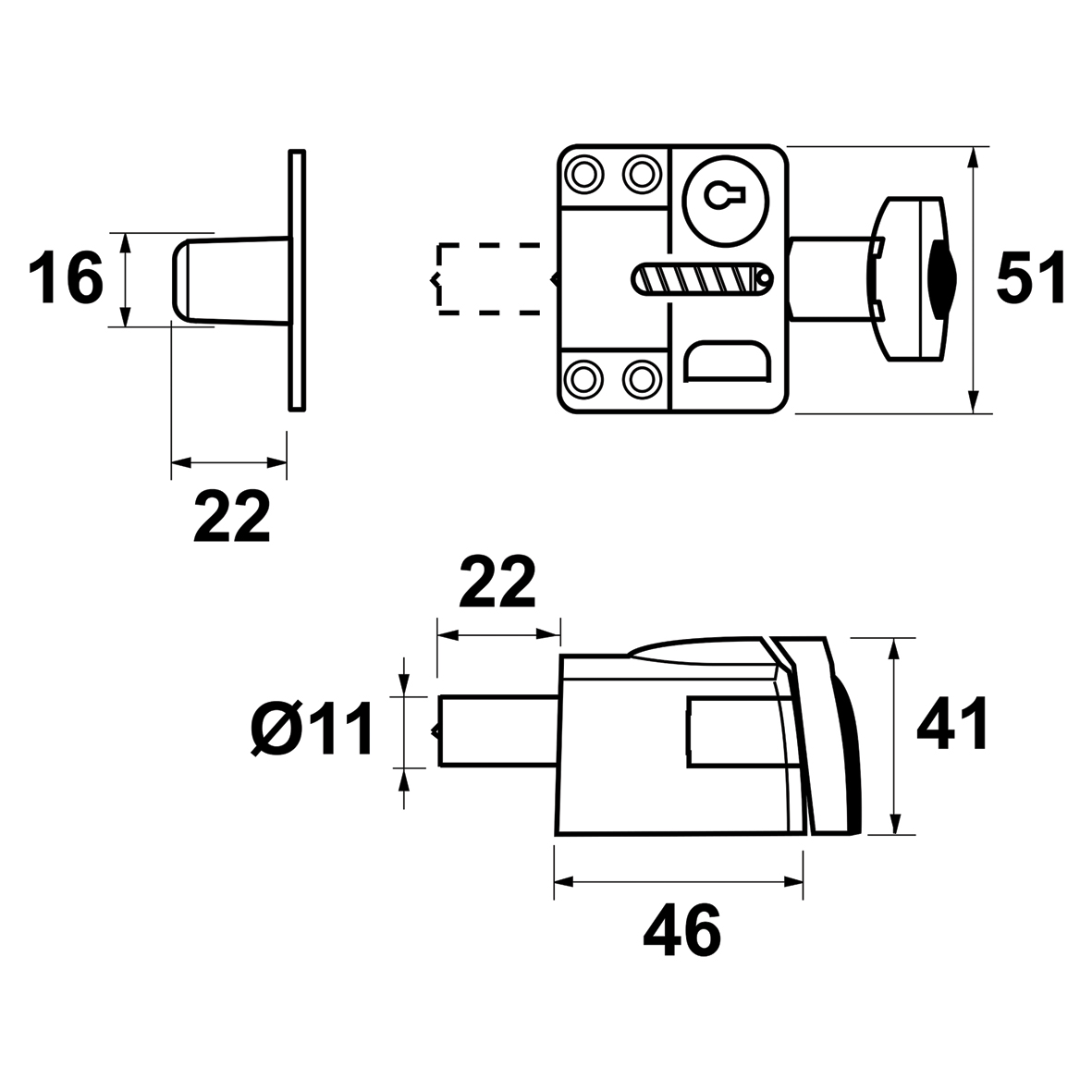

Technical information
Product Length 68 mm
Product Width 51 mm
Product Height 41 mm
Direction of rotation outward-opening
Bolt type pin bolt
Bolt catcher built-in striker
Locking mechanisme cylinder lock
Number of Keys 1
Keyed alike True
Material Synthetic
Finish Silverline
Material 2 zamac
Finish 2 Galvanized
Assembly information
Including Mounting Material True

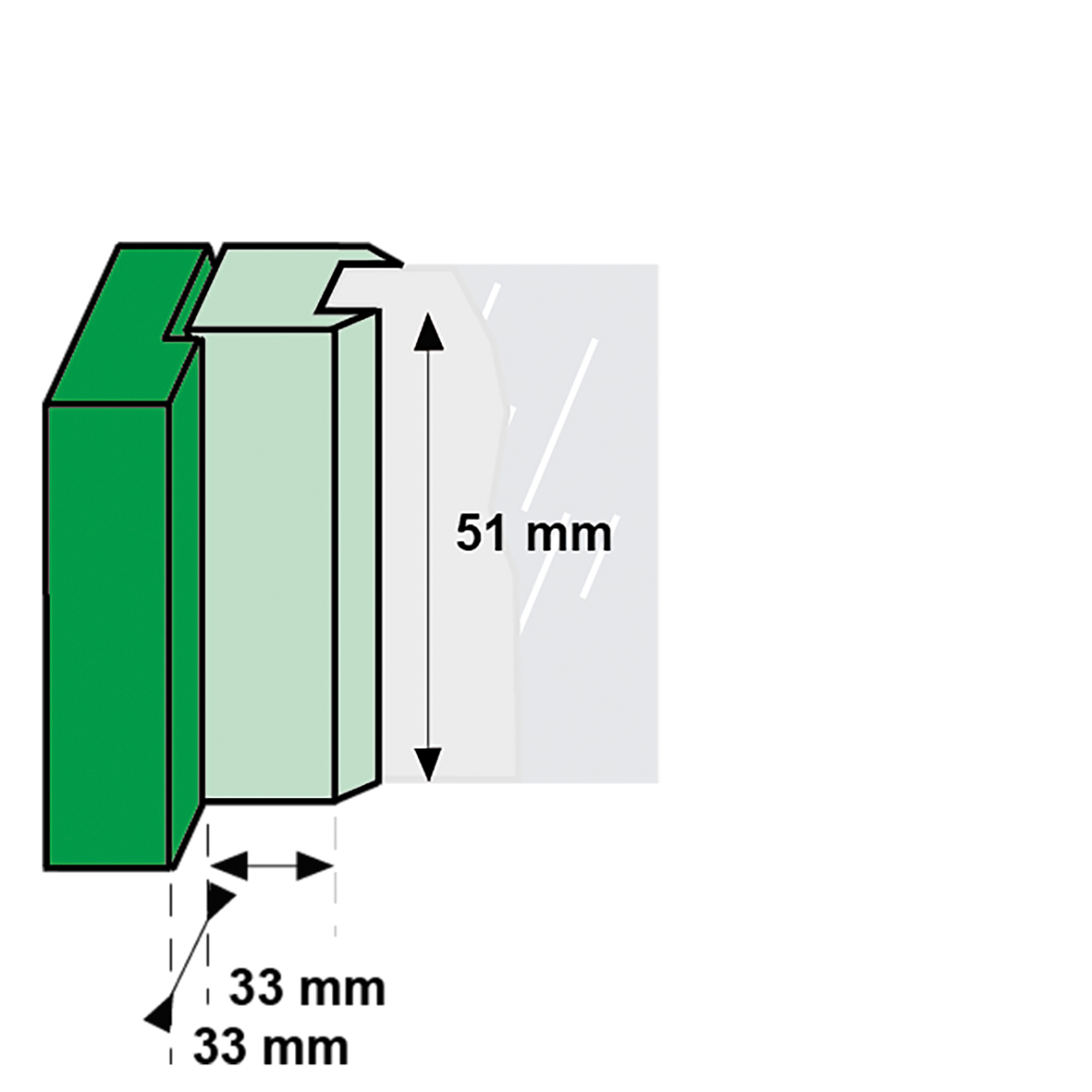

Mounting length 47 mm
Required depth wood frame 33 mm
Window/door mounting width requirement 33 mm
Assembly time 15 min
Recommended Mounting Materials
- 4.0 x 40 mm screw: 6 pieces
- 4.0 x 40 mm screw: 6 pieces
Logistic information
Product Weight 345 gr
Pieces per small package 1 piece
EAN small package 8713249029436
Weight small package 0.345 kg
Dimensions small package 94 x 68 x 57 mm
Pieces per bulk package 16 piece
EAN bulk package 8713249051093
Weight bulk package 5.72 kg
Dimensions bulk package 290 x 200 x 120 mm
