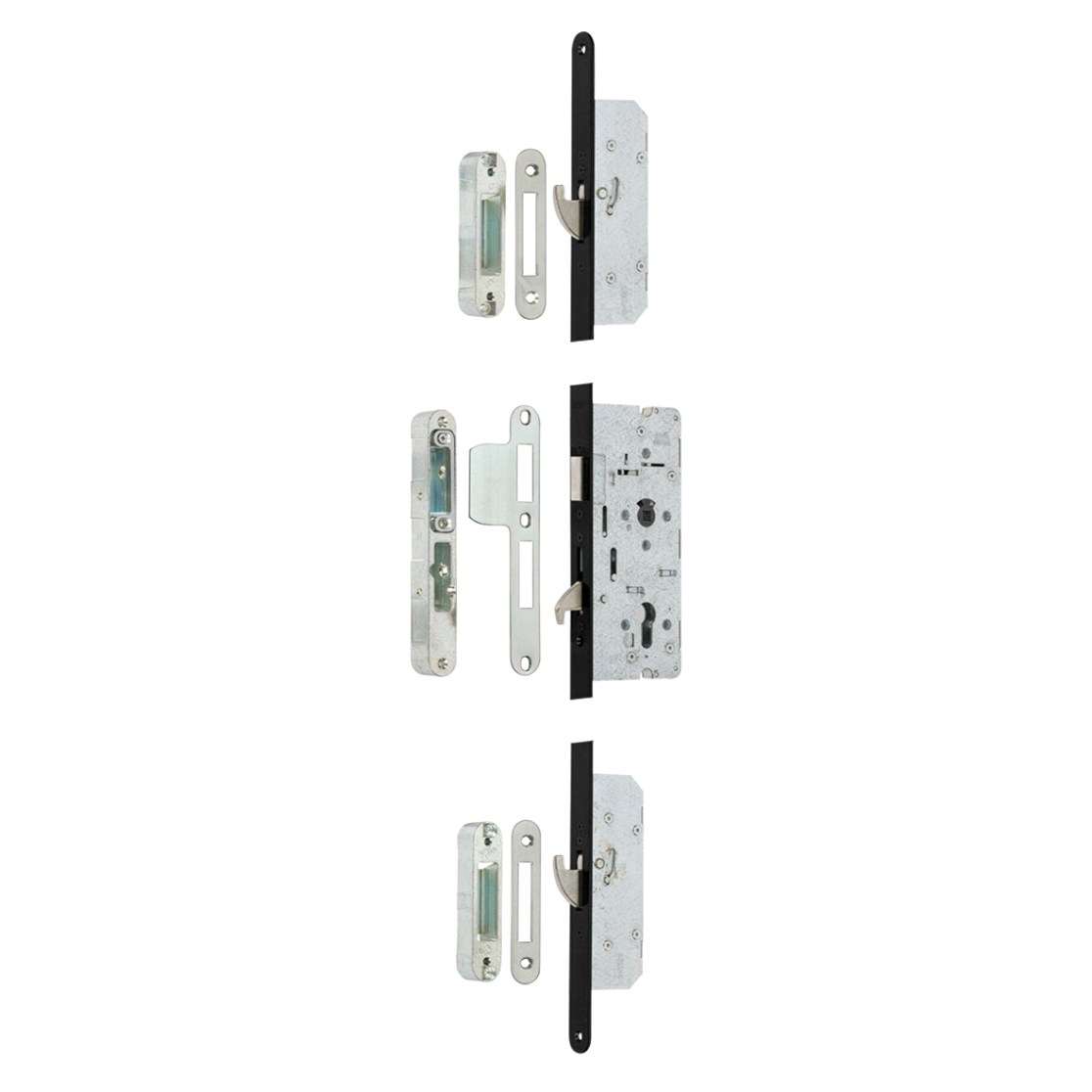

Security multi-point lock Solid C 1700×24

7437-55-56/72VP24
arrow_selector

SKG 3

Police Hallmark

Burglar-resistant multi-point lock for sound security.

  • 3-point security lock, cylinder-operated
  • a gearwheel construction in combination with hardened steel bevelled hook bolts and adjustable locking bowls guarantees problem-free operation of the door
  • can be used for right and left-handed doors, thanks to fast-reversing brass nickel-plated latch bolt
  • including security locking bowls, strike plates and clear installation instructions
  • use of milling equipment
Commercial information
expand_more
Type Solid C 1700x24
Use for exterior doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
Technical information
expand_more
Product Length 1700 mm
Product Width 24 mm
Thickness 3 mm
Mounting depth 84 mm
Corner shape round corner
Direction of rotation all directions
Direction of rotation DIN all directions
Bolt type hook bolt
Bolt catcher striker
Heart to heart size type handle hole - Euro profile hole (PC)
Material Steel
Finish Black
Assembly information
expand_more
Including Mounting Material False
Recommended Mounting Materials
- 4.5 x 45 mm screw: 13 pieces
Logistic information
expand_more
Pieces per small package 1 piece
EAN small package 8713249351278
Dimensions small package 1705 x 110 x 45 mm

Technical drawings
