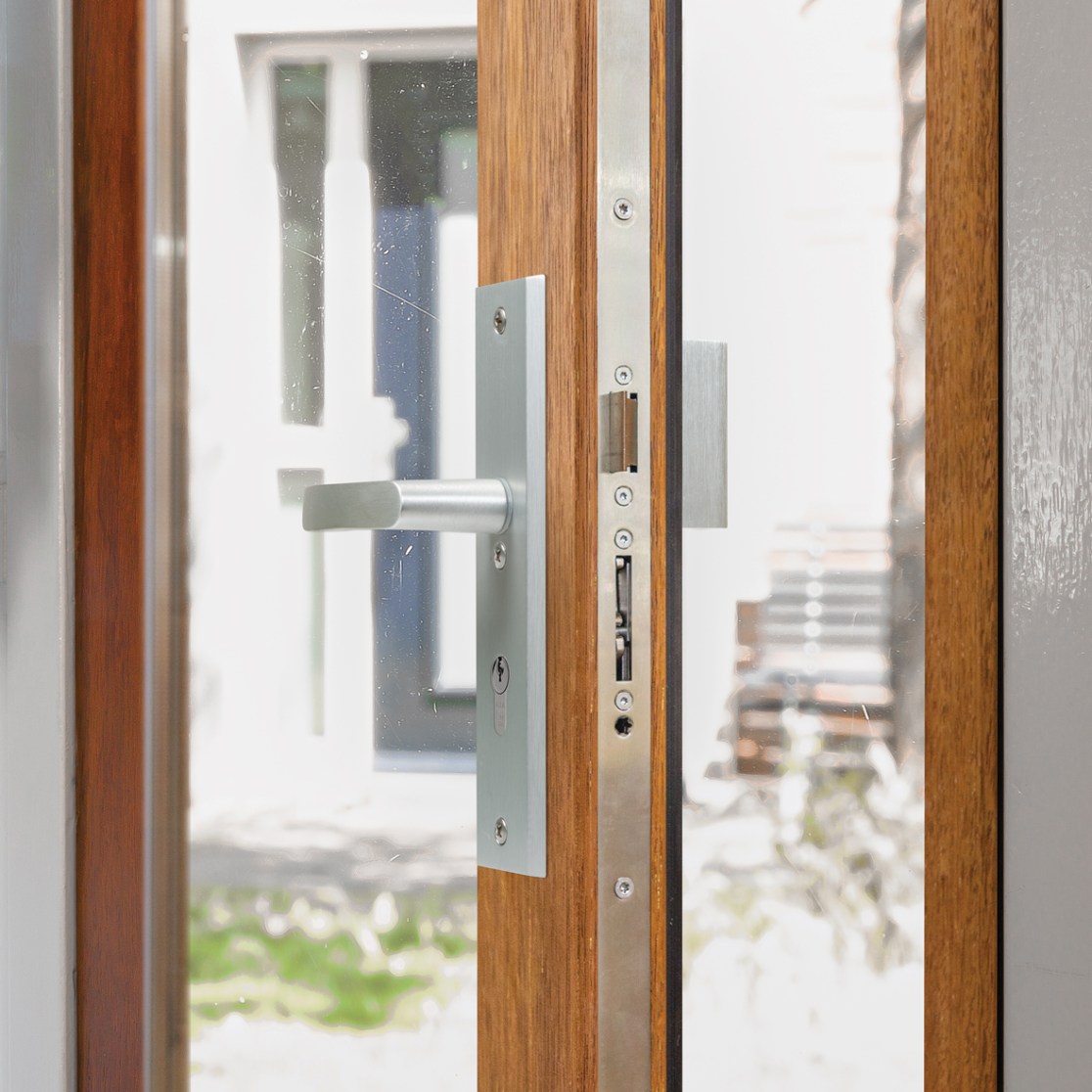

Security multi-point lock Solid C 1700×24

7437-55-52/72VP24
arrow_selector
close

SKG 3

Police Hallmark

Burglar-resistant multi-point lock for sound security.

  • 3-point security lock, cylinder-operated
  • a gearwheel construction in combination with hardened steel bevelled hook bolts and adjustable locking bowls guarantees problem-free operation of the door
  • can be used for right and left-handed doors, thanks to fast-reversing brass nickel-plated latch bolt
  • including security locking bowls, strike plates and clear installation instructions
  • use of milling equipment
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.5 x 45 mm screw: 13 pieces
Commercial information
expand_more
Type Solid C 1700x24
Use for exterior doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
Technical information
expand_more
Product Length 1700 mm
Product Width 24 mm
Thickness 3 mm
Mounting depth 84 mm
Corner shape round corner
Direction of rotation all directions
Direction of rotation DIN all directions
Heart to heart size type handle hole - Euro profile hole (PC)
Material Steel
Finish Galvanized
Assembly information
expand_more
Including Mounting Material False
Recommended Mounting Materials
- 4.5 x 45 mm screw: 13 pieces
Logistic information
expand_more
Pieces per small package 1 piece
EAN small package 8713249347851
Dimensions small package 1705 x 110 x 45 mm

Technical drawings

Alternative products

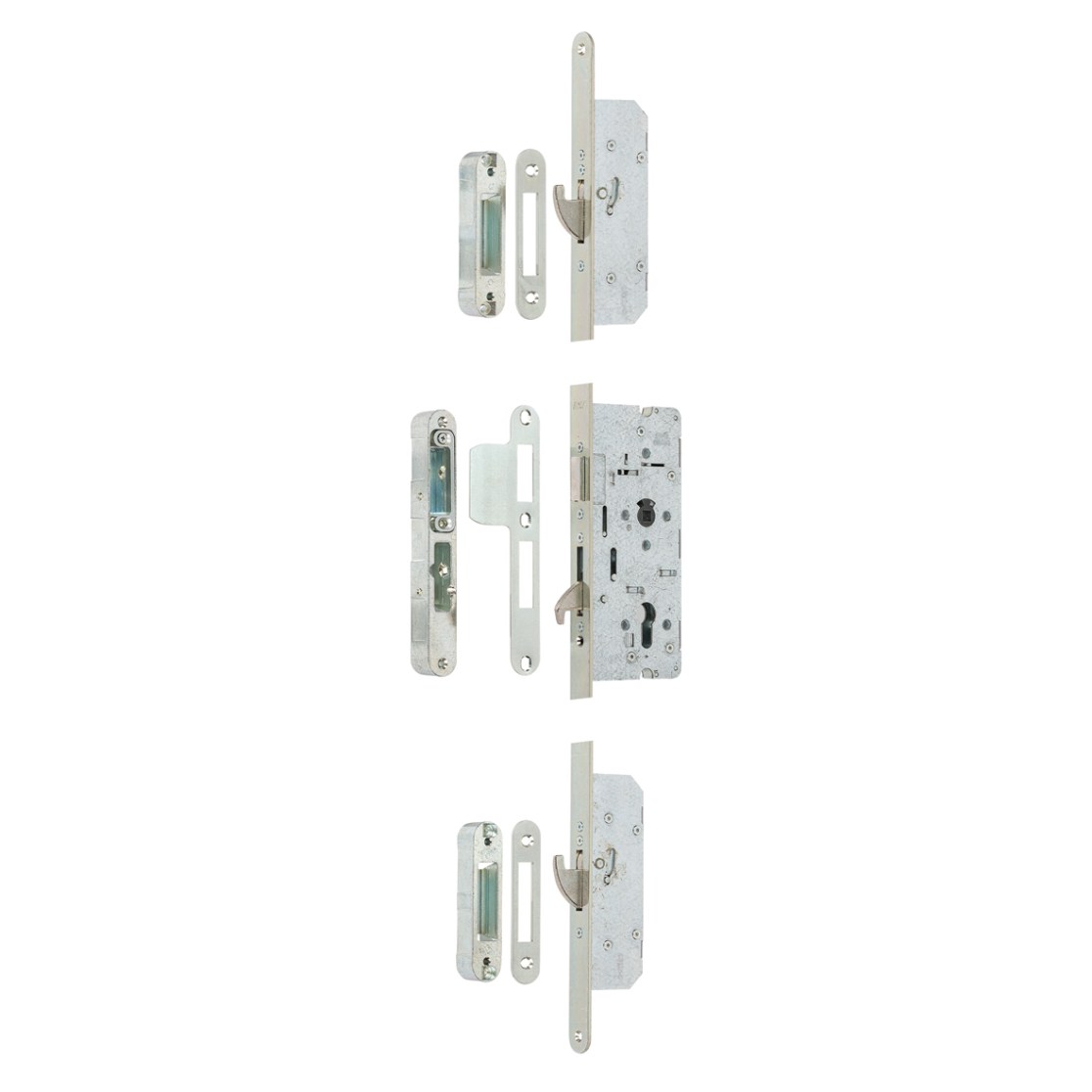

Security multi-point lock Solid K 1700×24
