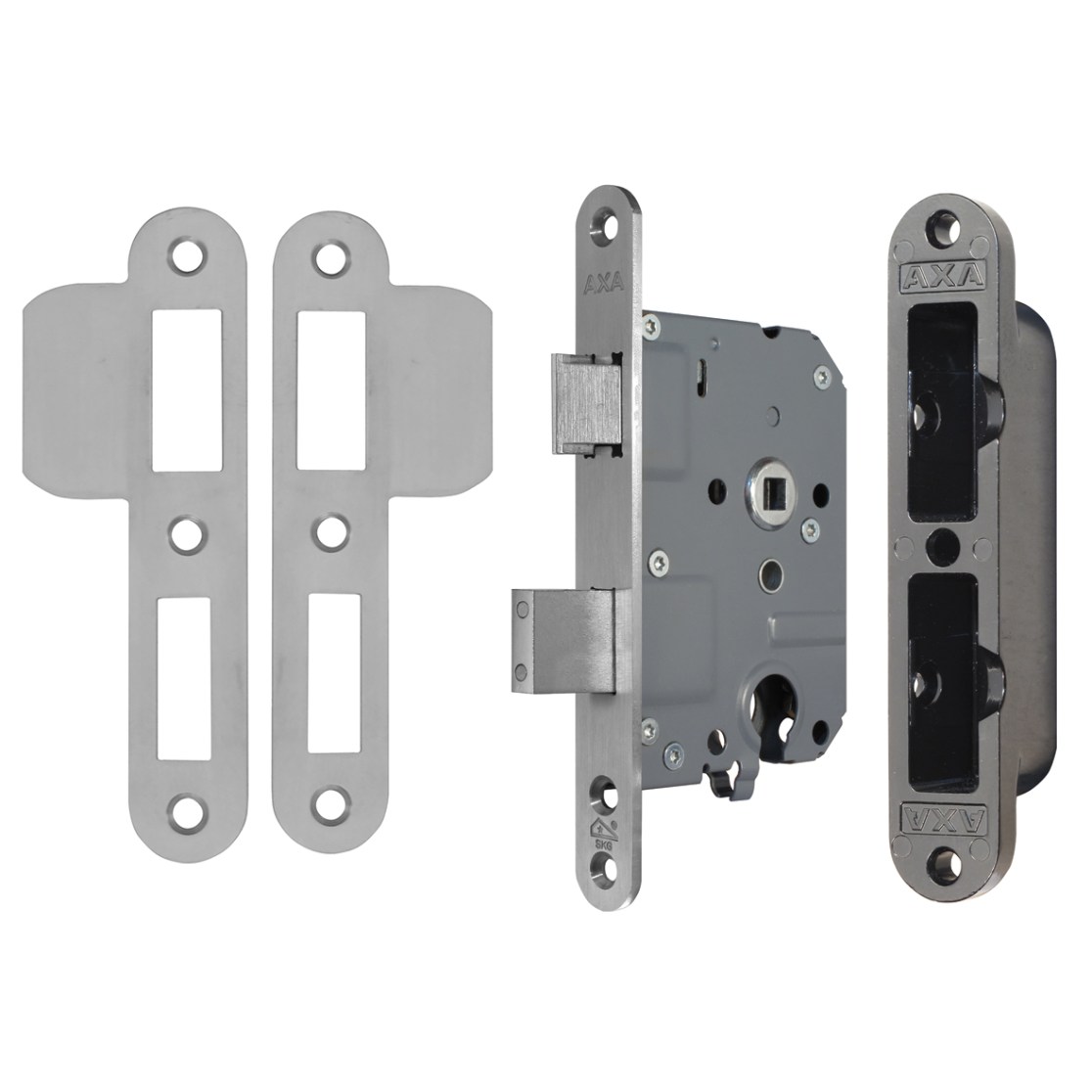

Security mortice lock PC55

7415-50-81/55E
arrow_selector
close

SKG 1

Police Hallmark

Burglar-resistant mortice lock for sound security.

  • with stainless steel faceplate
  • nickel-plated brass mortice lock hardened steel security pins
  • quick reversible nickel-plated brass latch
  • sturdy spindle mechanism
  • complies with Police Hallmark for Safe Living and SKG1 (Façade Quality Institution hallmark)
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 2 pieces
Commercial information
expand_more
Type PC55
Use for exterior doors
Safety information
expand_more
Burglarproof True
SKG SKG 1
Police Hallmark True
CE Applicable False
Technical information
expand_more
Product Length 174 mm
Product Width 20 mm
Thickness 16 mm
Mounting depth 82 mm
Corner shape round corner
Direction of rotation DIN all directions
Bolt type dead bolt
Heart to heart size type handle hole - Euro profile hole (PC)
Backset 50 mm
Material Stainless steel
Finish Brushed
Material 2 Steel
Finish 2 Galvanized
Assembly information
expand_more
Including Mounting Material False
Assembly time 45 min
Recommended Mounting Materials
- 4.0 x 40 mm screw: 2 pieces
Logistic information
expand_more
Product Weight 460 gr
Pieces per small package 5 piece
EAN small package 8713249169262
Weight small package 2.37 kg
Dimensions small package 189 x 89 x 108 mm
Pieces per bulk package 20 piece
EAN bulk package 8713249169279
Weight bulk package 9.54 kg
Dimensions bulk package 390 x 192 x 121 mm

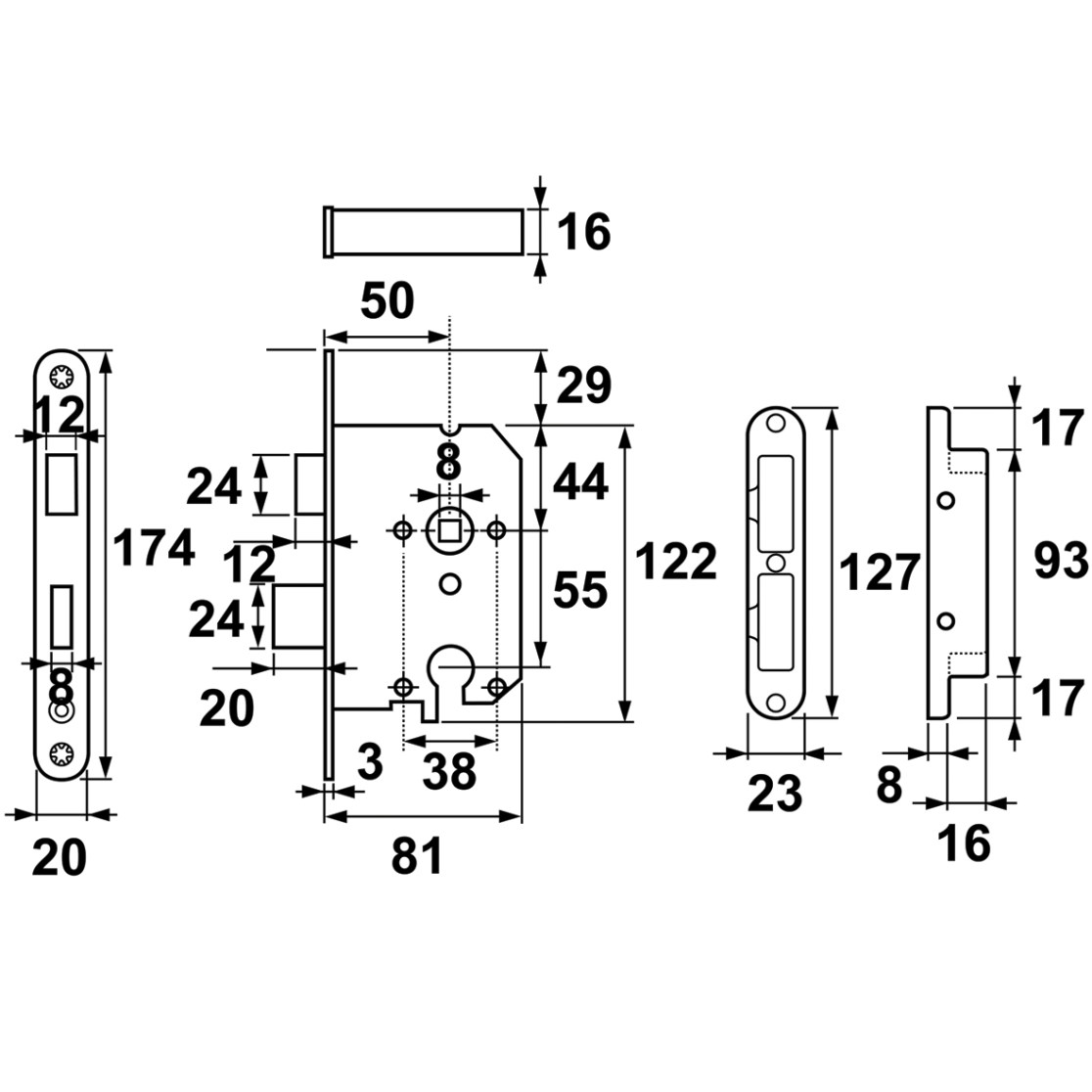

Technical drawings
