Security hinge ball bearing

1543-45-23/V4
arrow_selector
close

SKG 3

Police Hallmark

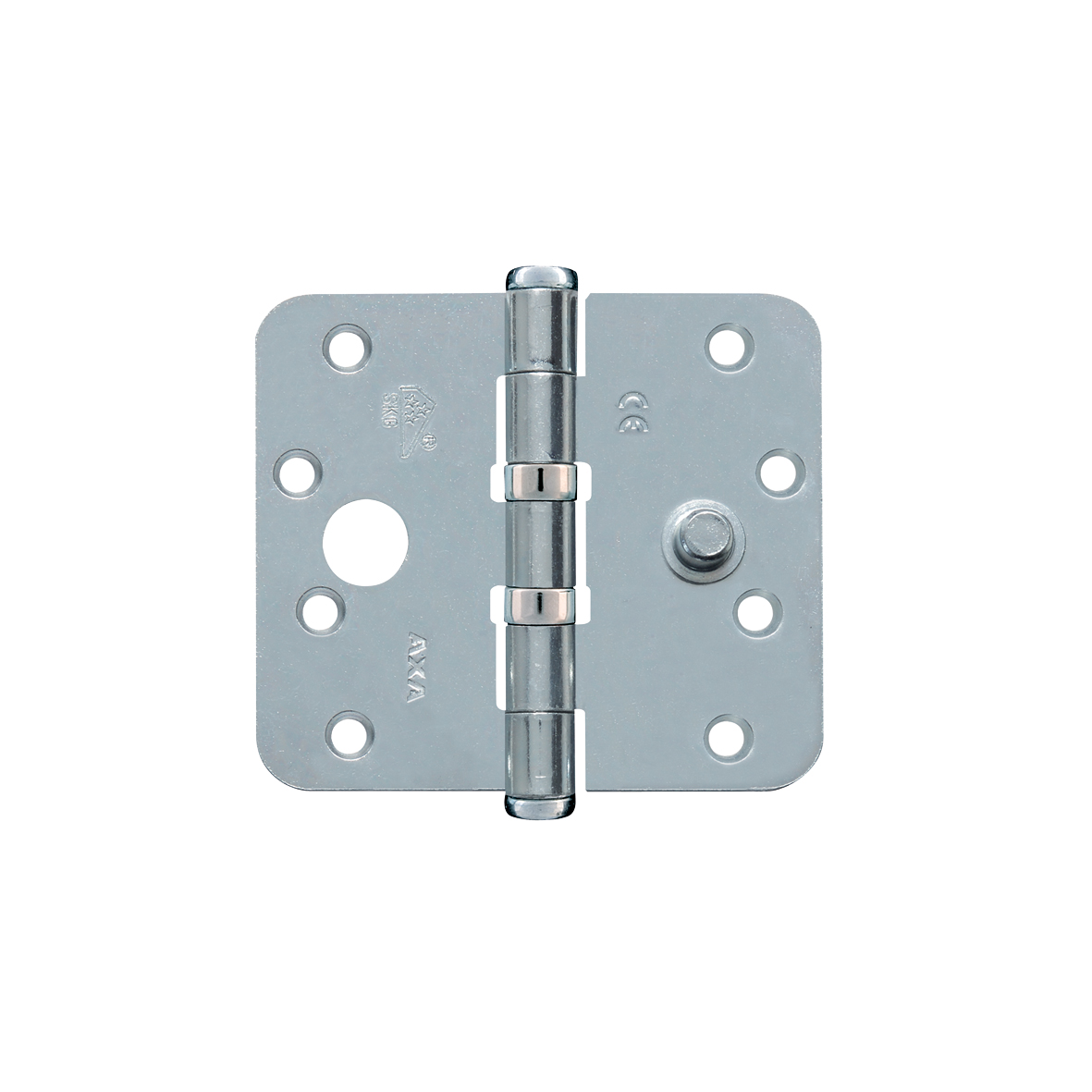

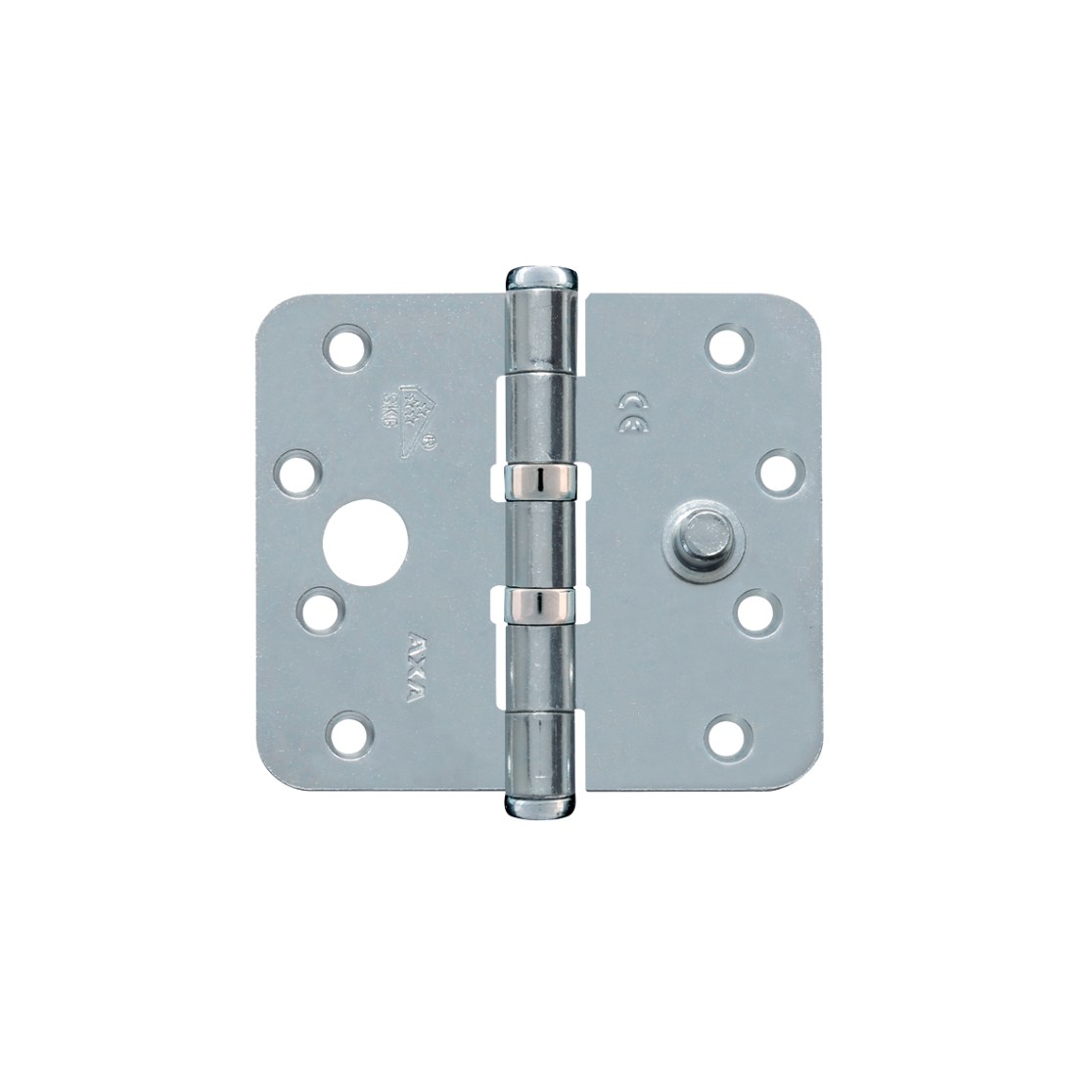

The AXA security ball bearing hinge is a smooth-running, burglar-resistant hinge with a high bearing capacity.

  • security model with built-in security pin
  • smooth-running
  • high bearing capacity
  • complies with the Police Hallmark for Safe Living and SKG3
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 8 pieces
Commercial information
expand_more
Type ball bearing
Use for windows and exterior doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable True
Technical information
expand_more
Product Width 102 mm
Product Height 89 mm
Thickness 2.4 mm
Diameter knuckle 12 mm
Corner shape round corner
Bearing ball-bearing
Direction of rotation outward-opening
Security pin size 18 mm
Diameter security pin 10 mm
Load bearing capacity 2 hinges 50 kg
Load bearing capacity 3 hinges 70 kg
Load bearing capacity 4 hinges 80 kg
Material Steel
Finish Topcoat galvanized
Assembly information
expand_more
Including Mounting Material False
Recommended Mounting Materials
- 4.0 x 40 mm screw: 8 pieces
Logistic information
expand_more
Product Weight 233 gr
Pieces per small package 6 piece
EAN small package 8713249095349
Weight small package 1.44 kg
Dimensions small package 140 x 94 x 57 mm
Pieces per bulk package 48 piece
EAN bulk package 8713249101330
Weight bulk package 11.77 kg
Dimensions bulk package 290 x 200 x 120 mm

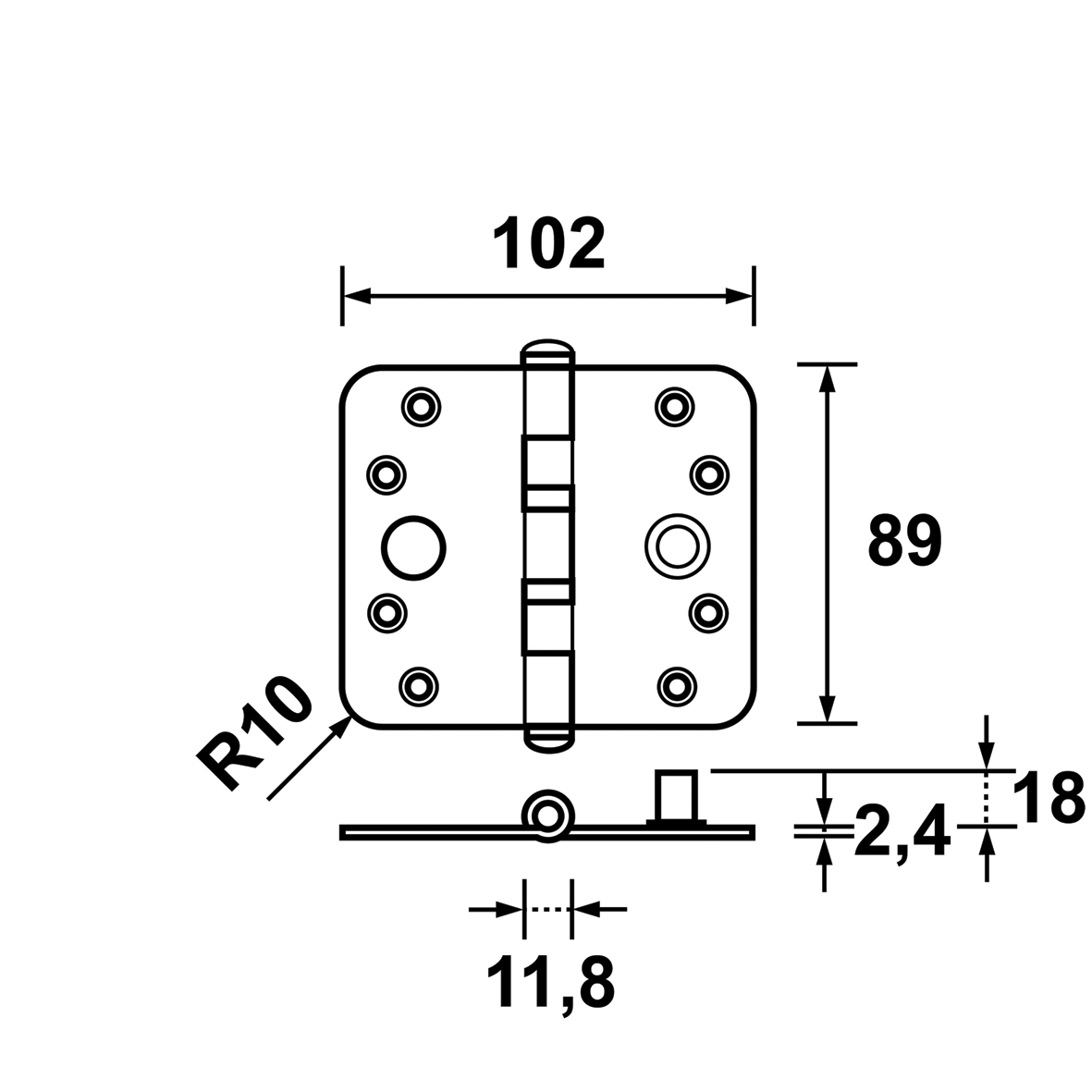

Technical drawings
