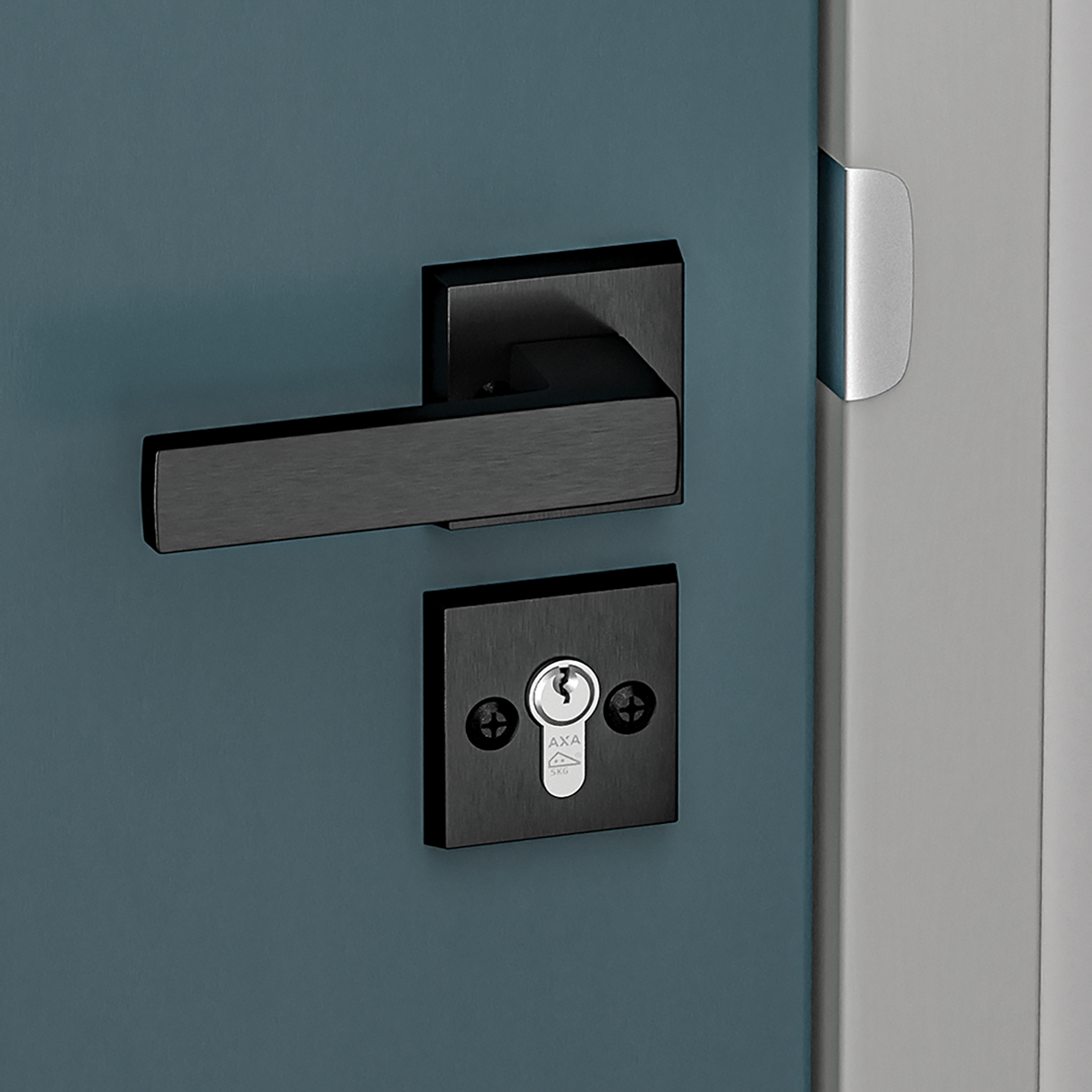

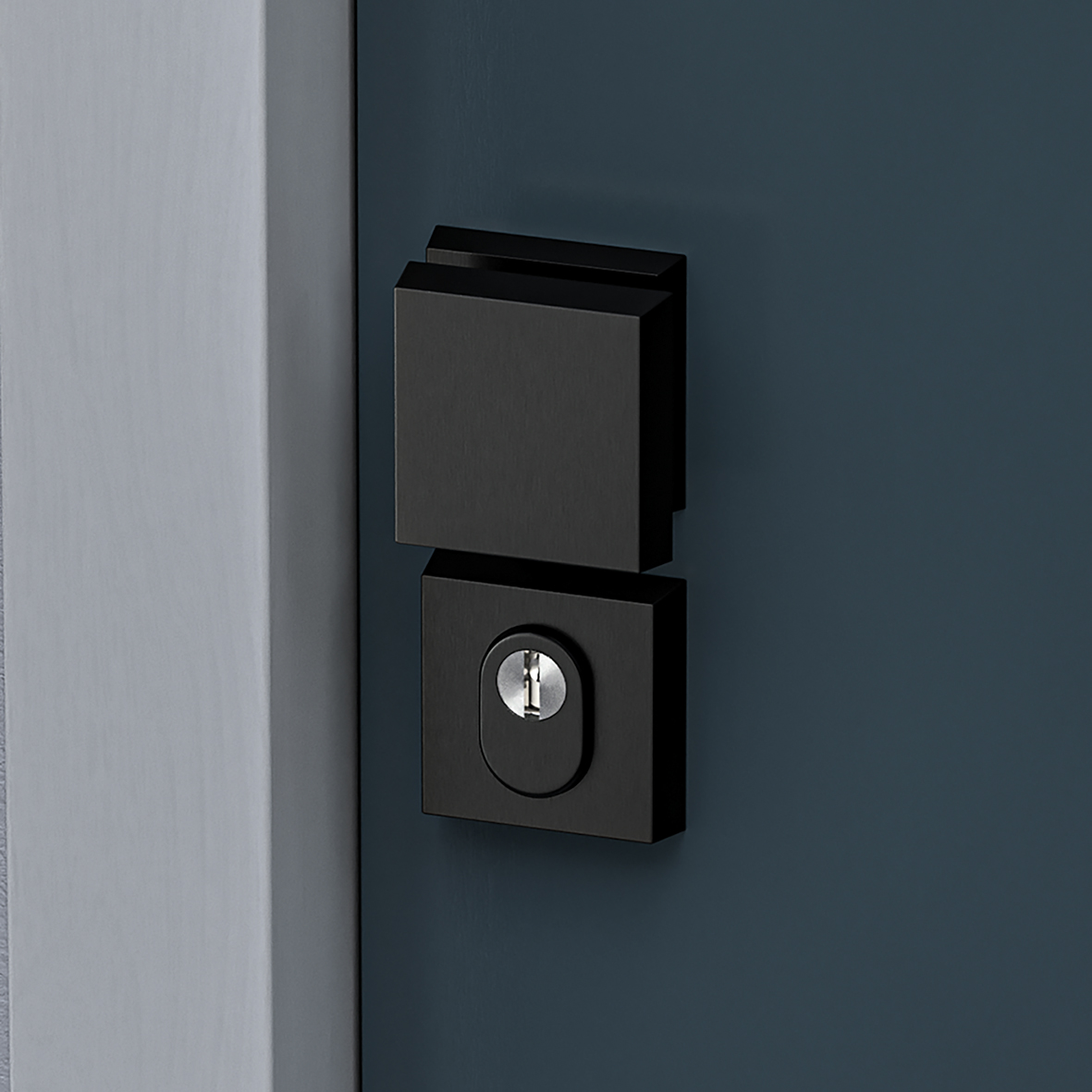

Security fitting Pro rosettes square+PC knob+handle Cube core protection

6605-20-18/QS

+

3
arrow_selector
close

SKG 3

bronze

Police Hallmark

Reliable and stylish Plus burglar-resistant security rosettes fittings.

  • sturdy and reliable, handle directly on rosette specially made for intensive use
  • with Self-aligning Cylinder Core Protection (SCP)
  • finely polished and less sensitive to scratches
  • spring-supported handle, prevents dropping handles due to limp lock spring
  • seal prevents damage to the paintwork when dismounting and keeps water and draught out effectively
  • possible to use on all doors with a thickness from 38 to 42 mm
  • complies with the Police Hallmark for Safe Living and SKG3
  • complete with attachment materials
Specifications Downloads Technical drawings Alternative products Similar products
Commercial information
expand_more
Type Pro rosettes square+PC knob+handle Cube core protection
Use for front doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE certificate of conformity False
Cradle to Cradle sustainability label bronze
Technical information
expand_more
Product Length 62 mm
Product Width 62 mm
Thickness Security backplate/rosette outside 15 mm
Thickness Security backplate/rosette inside 8,5 mm
Direction of rotation inward-opening
Shape square
Outside security backplate handle-pusher-knob type Square-knob
Inside security backplate handle type handle Cube
Handle length 127 mm
Handle depth 41 mm
Handle assembly handle integrated in backplate/rosettes
Spring supported handle True
Spindle dimension 8 x 75 mm
Diameter knob 65 mm
Diameter rosette 62 mm
Material Aluminum
Finish Polished anodised F8, black
Assembly information
expand_more
Including Mounting Material True
Assembly time 20 min
Recommended Mounting Materials
- M5 x 50 mm bolt: 2 pieces
- M6 x 55 mm bolt: 2 pieces
- 8 x 75 mm exchangeable shank: 1 piece
Logistic information
expand_more
Product Weight 857 gr
Pieces per small package 1 piece
EAN small package 8713249332390
Weight small package 0.987 kg
Dimensions small package 257 x 122 x 72 mm
Pieces per bulk package 5 piece
EAN bulk package 8713249332406
Weight bulk package 5.21 kg
Dimensions bulk package 320 x 265 x 157 mm
