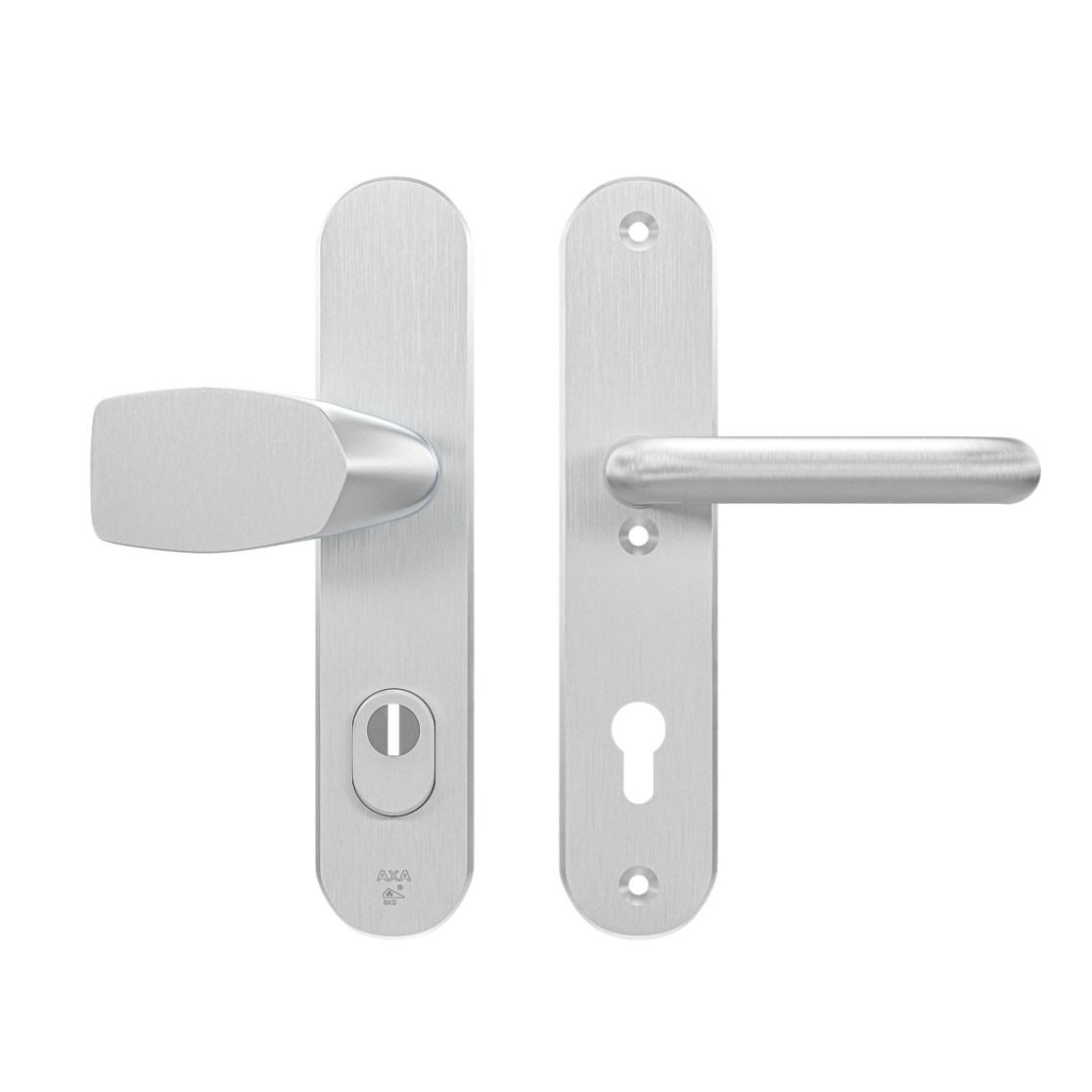

Security fitting Oval Plus Wing-knob+handle U PC85 core protection

6668-49-18/85U

Reliable and stylish Oval Plus burglar-resistant security fittings.

sturdy and reliable
with Self-aligning Cylinder Core Protection (SCP)
finely polished and less sensitive to scratches
round shapes for optimal run-off stops moisture from affecting paintwork.
possible to use on all doors with a thickness from 35-43 and 54-56 mm
a seal prevents damage to the paintwork when dismounting and keeps water and draught out effectively
larger shield size usually completely covers the imprint of the old shield
extended exchangeable shanks and bolts are available for thicker doors
complies with the Police Hallmark for Safe Living and SKG3
complete with attachment materials

Reliable and stylish Oval Plus burglar-resistant security fittings.

sturdy and reliable
with Self-aligning Cylinder Core Protection (SCP)
finely polished and less sensitive to scratches
round shapes for optimal run-off stops moisture from affecting paintwork.
possible to use on all doors with a thickness from 35-43 and 54-56 mm
a seal prevents damage to the paintwork when dismounting and keeps water and draught out effectively
larger shield size usually completely covers the imprint of the old shield
extended exchangeable shanks and bolts are available for thicker doors
complies with the Police Hallmark for Safe Living and SKG3
complete with attachment materials

Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- M6 x 70 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 2 pieces
- 8 x 75 mm exchangeable shank: 1 piece

Commercial information

expand_more

Type Oval Plus Wing-knob+handle U PC85 core protection

Use for front doors

Safety information

expand_more

Burglarproof True

SKG SKG 3

Police Hallmark True

CE Applicable False

Cradle to Cradle certification bronze

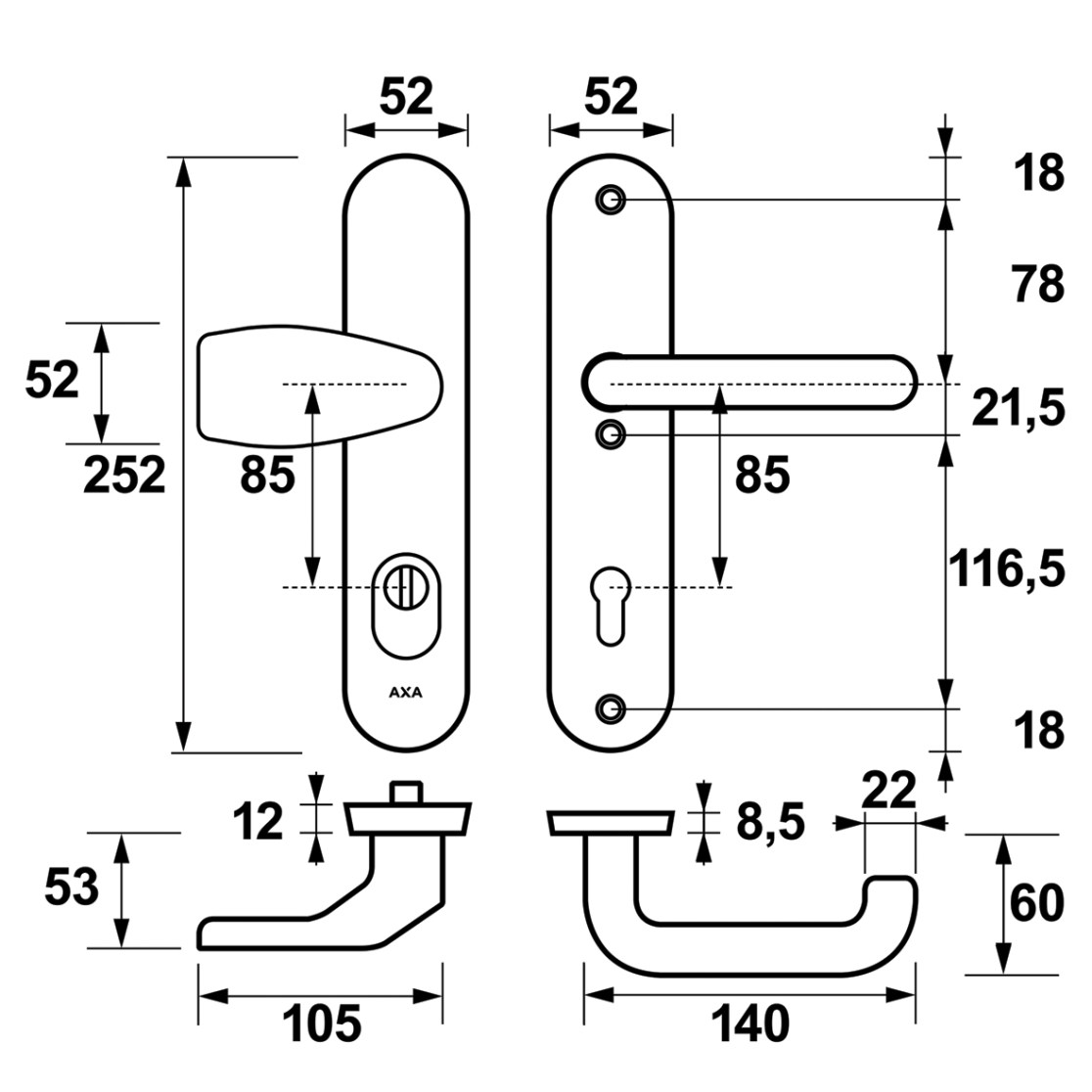

Technical information

expand_more

Product Length 252 mm

Product Width 52 mm

Thickness outside 12 mm

Thickness inside 8.5 mm

Direction of rotation inward-opening

Shape oval

Suitable for door thickness 35 - 43 mm

Suitable for door thickness 54 - 56 mm

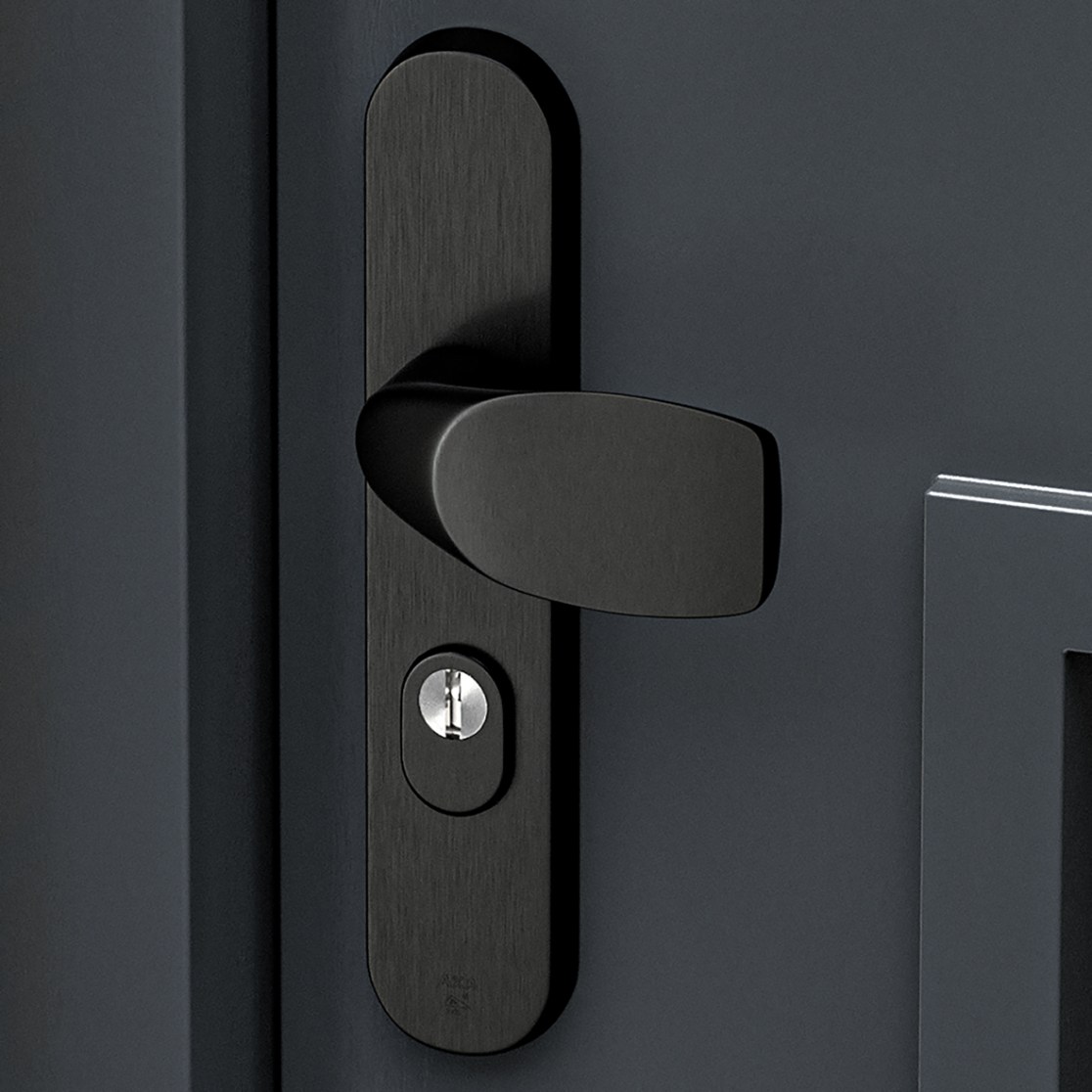

Outside handle-Pusher-Knob type Wing-Knob

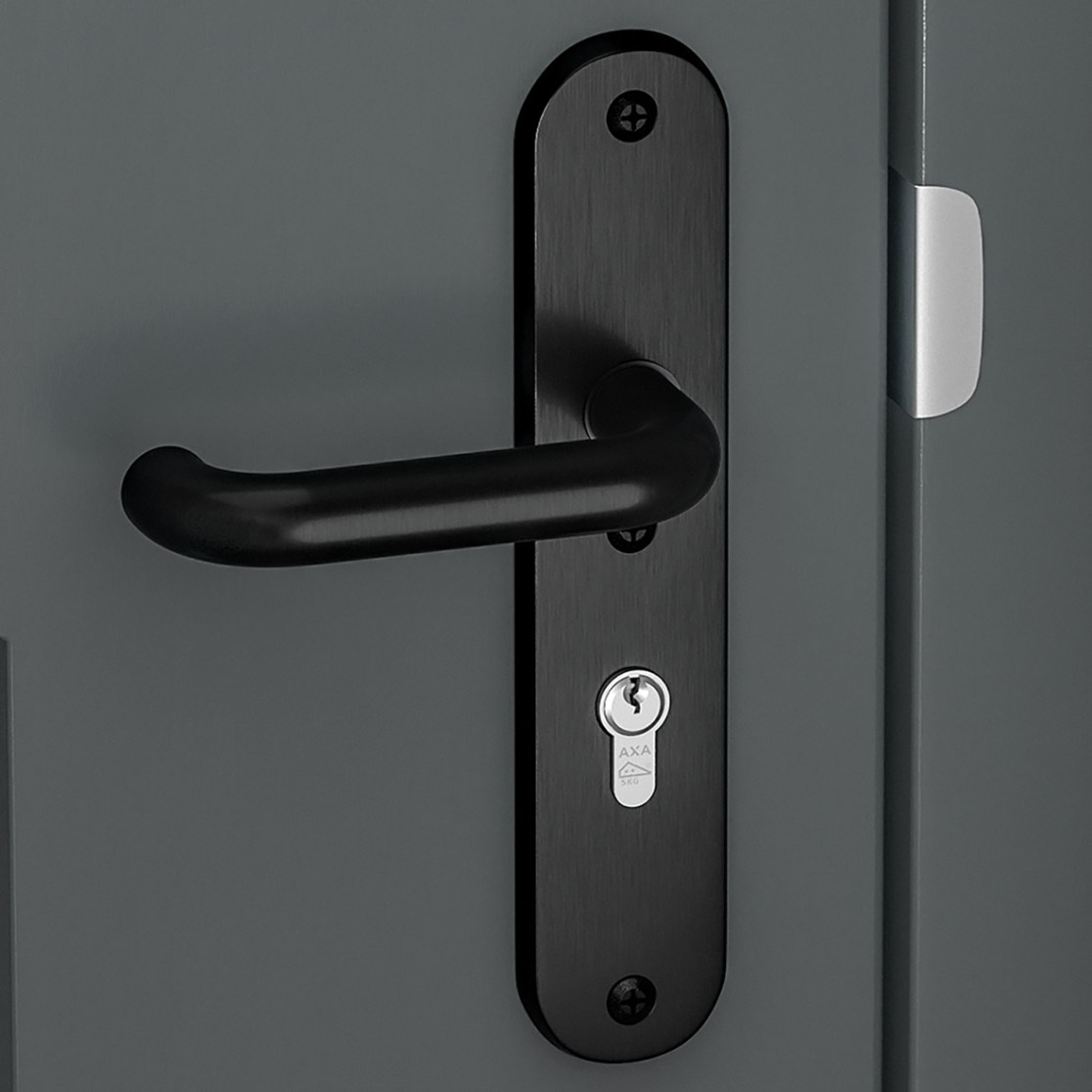

Inside handle type handle U

Handle length 140 mm

Handle depth 57 mm

Diameter handle 22 mm

Handle assembly grub screw fix

Spring supported handle False

Spindle dimension 8 x 75 mm

Heart to heart size type handle hole - Euro profile hole (PC)

Material Aluminum

Finish Polished anodised F8, black

Assembly information

expand_more

Including Mounting Material True

Assembly time 20 min

Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- M6 x 70 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 2 pieces
- 8 x 75 mm exchangeable shank: 1 piece
