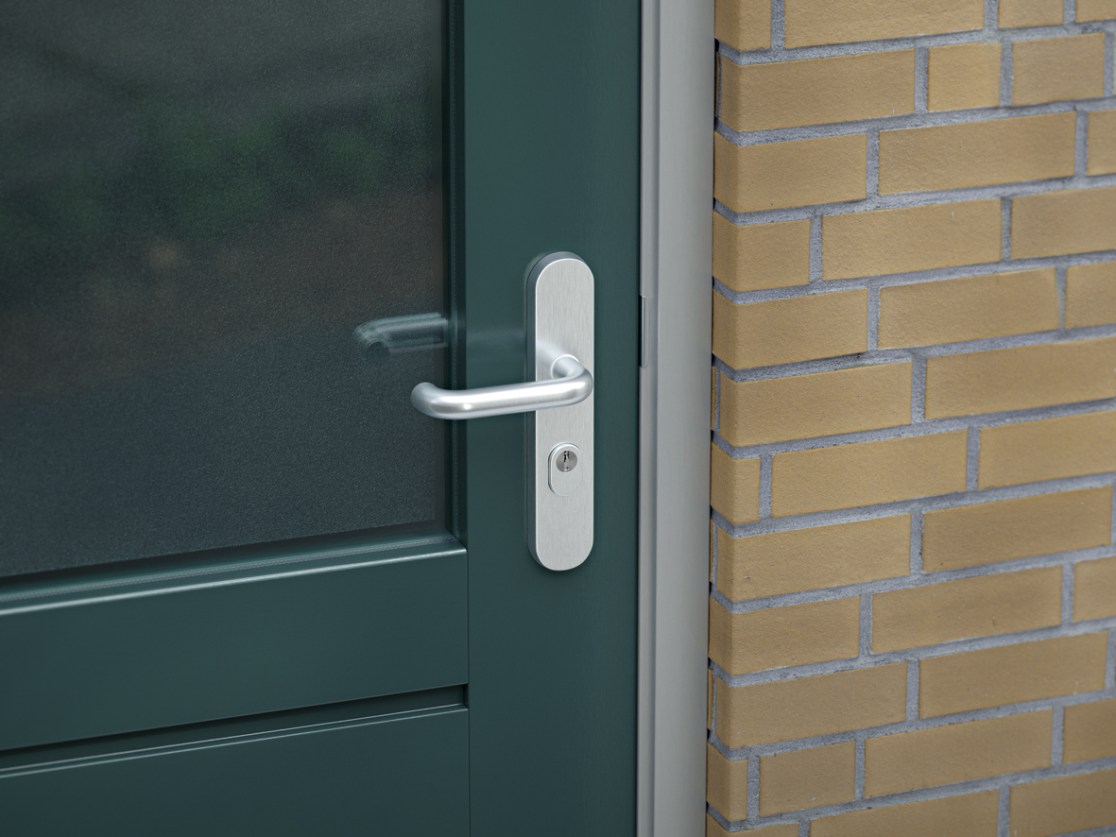

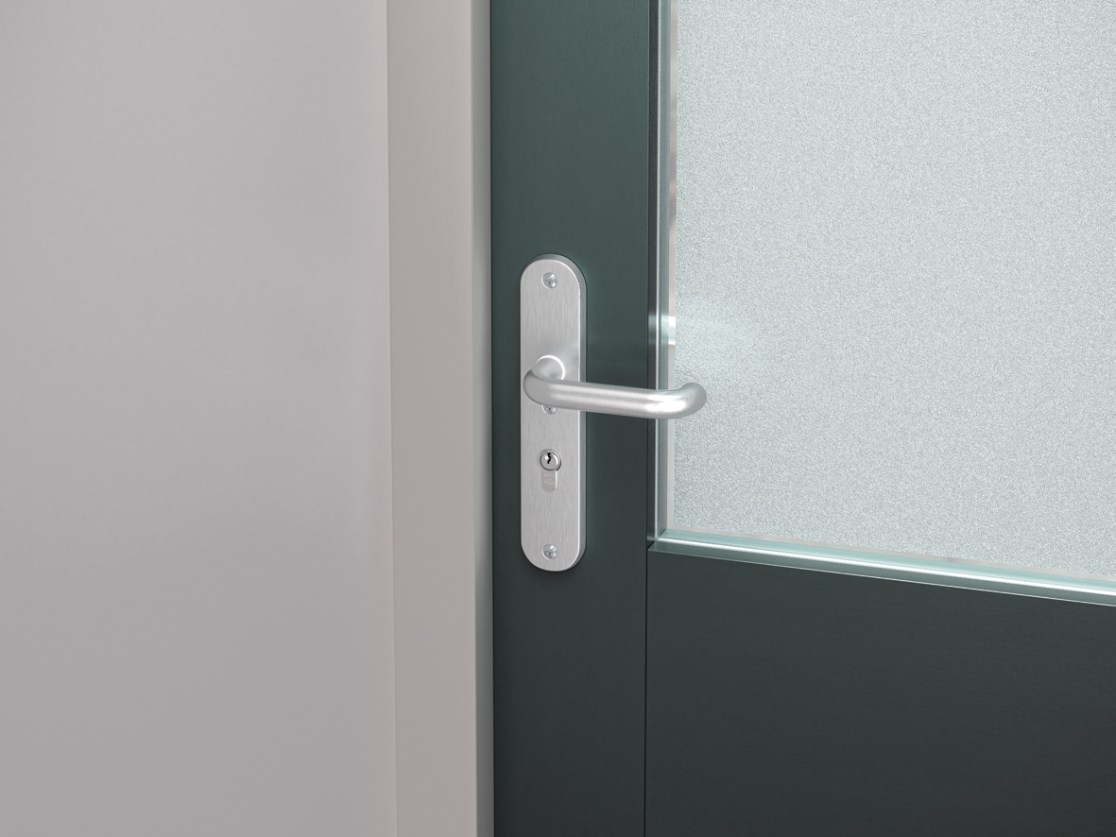

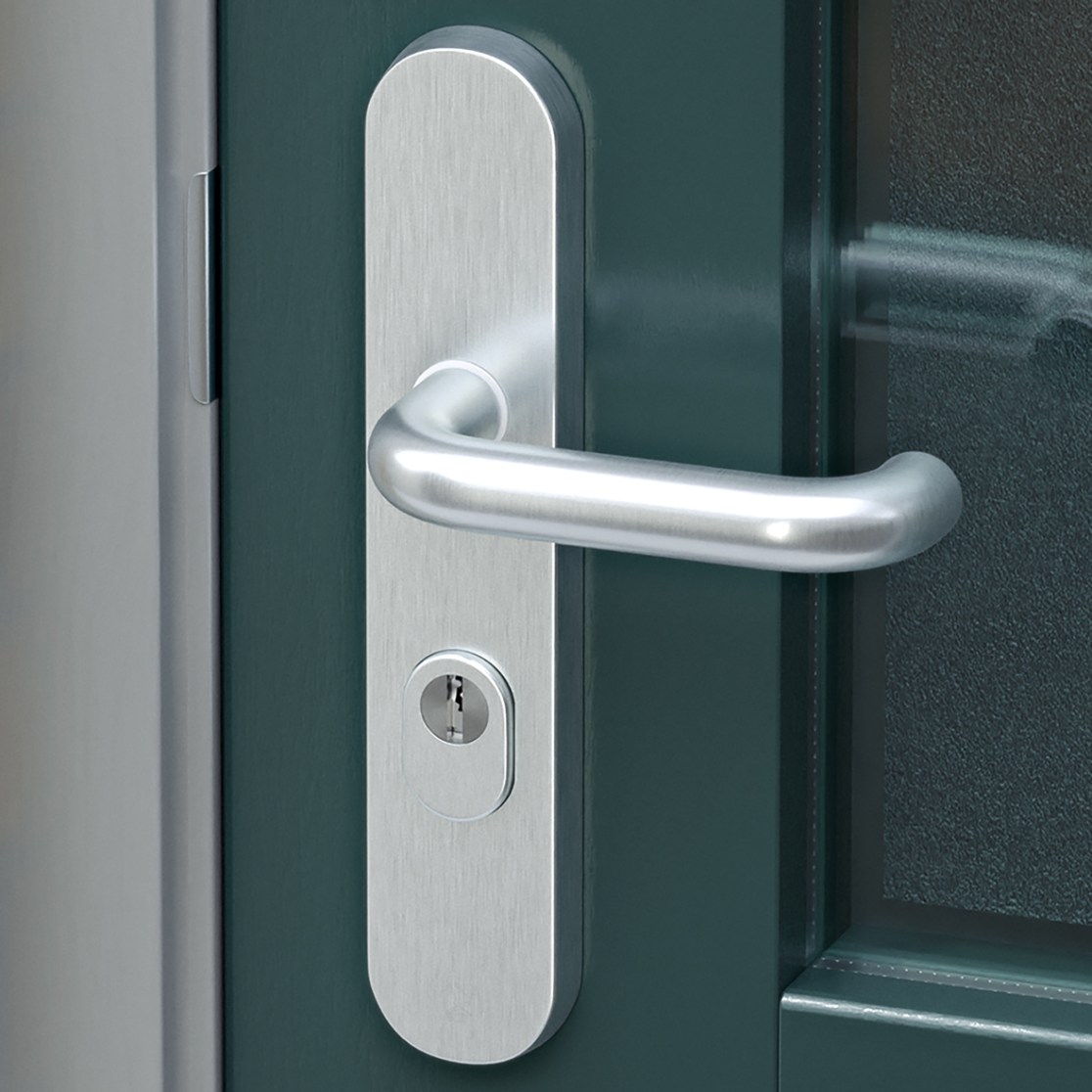

Security fitting Oval Plus handle U PC72 core protection

6668-10-11/72U

+

4
arrow_selector

SKG 3

bronze

Police Hallmark

  • sturdy and reliable
  • with Self-aligning Cylinder Core Protection (SCP)
  • round shapes for optimal run-off stops moisture from affecting paintwork.
  • possible to use on all doors with a thickness from 38 to 54 mm
  • a seal prevents damage to the paintwork when dismounting and keeps water and draught out effectively
  • larger shield size usually completely covers the imprint of the old shield
  • extended handle spindles and bolts are available for thicker doors
  • complies with the Police Hallmark for Safe Living and SKG3
  • complete with attachment materials

Specifications

Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- M6 x 70 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 2 pieces
- 8 x 110 mm spindle: 1 piece
Commercial information
expand_more
Type Oval Plus handle U PC72 core protection
Use for back doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable False
Cradle to Cradle certification bronze
Technical information
expand_more
Product Length 252 mm
Product Width 52 mm
Thickness outside 12 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape oval
Outside handle-Pusher-Knob type handle U
Inside handle type handle U
Handle type U
Handle length 140 mm
Handle depth 57 mm
Diameter handle 22 mm
Handle assembly grub screw fix
Spring supported handle False
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Polished anodised F1, natural
Assembly information
expand_more
Including Mounting Material True
Assembly time 20 min
Logistic information
expand_more
Product Weight 1119 gr
Pieces per small package 1 piece
EAN small package 8713249321981
Weight small package 1.26 kg
Dimensions small package 257 x 122 x 72 mm
Pieces per bulk package 10 piece
EAN bulk package 8713249321998
Weight bulk package 11.35 kg
Dimensions bulk package 530 x 320 x 171 mm

Technical drawings

Associated products

Alternative products

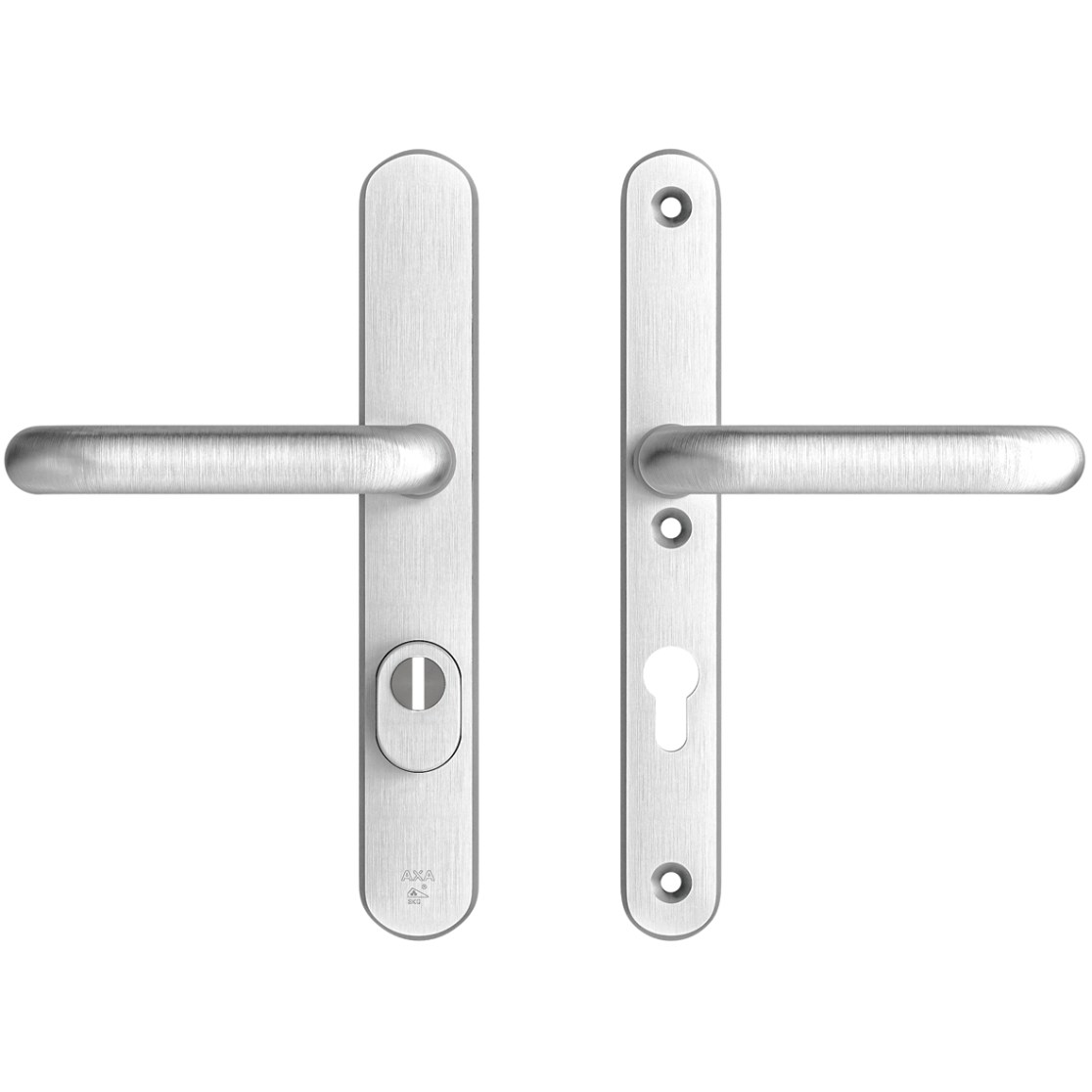

Security fitting Oval Plus narrow handle U PC72 core protection

6768101172U

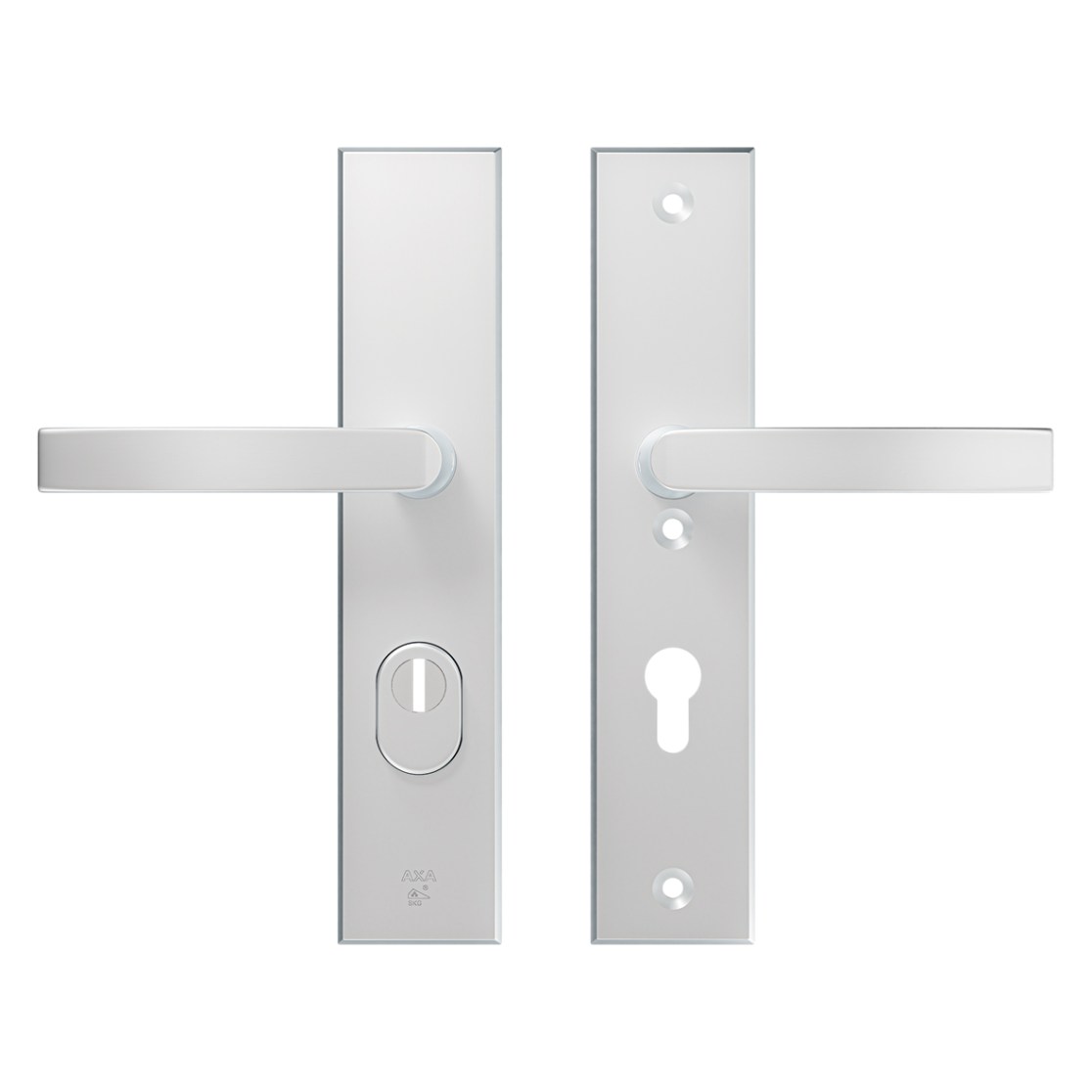

Security fitting Edge Plus handle Blok PC72 core protection
