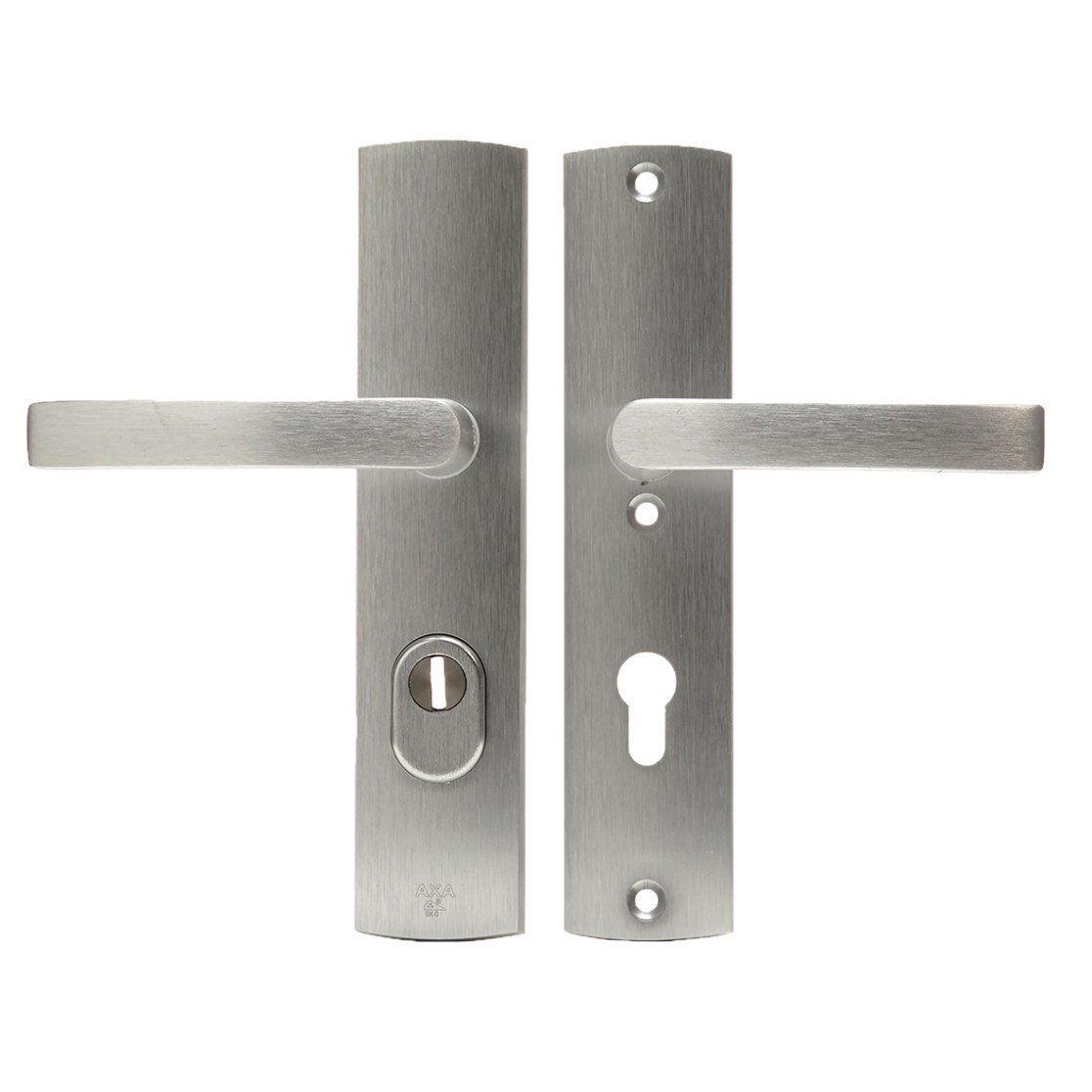

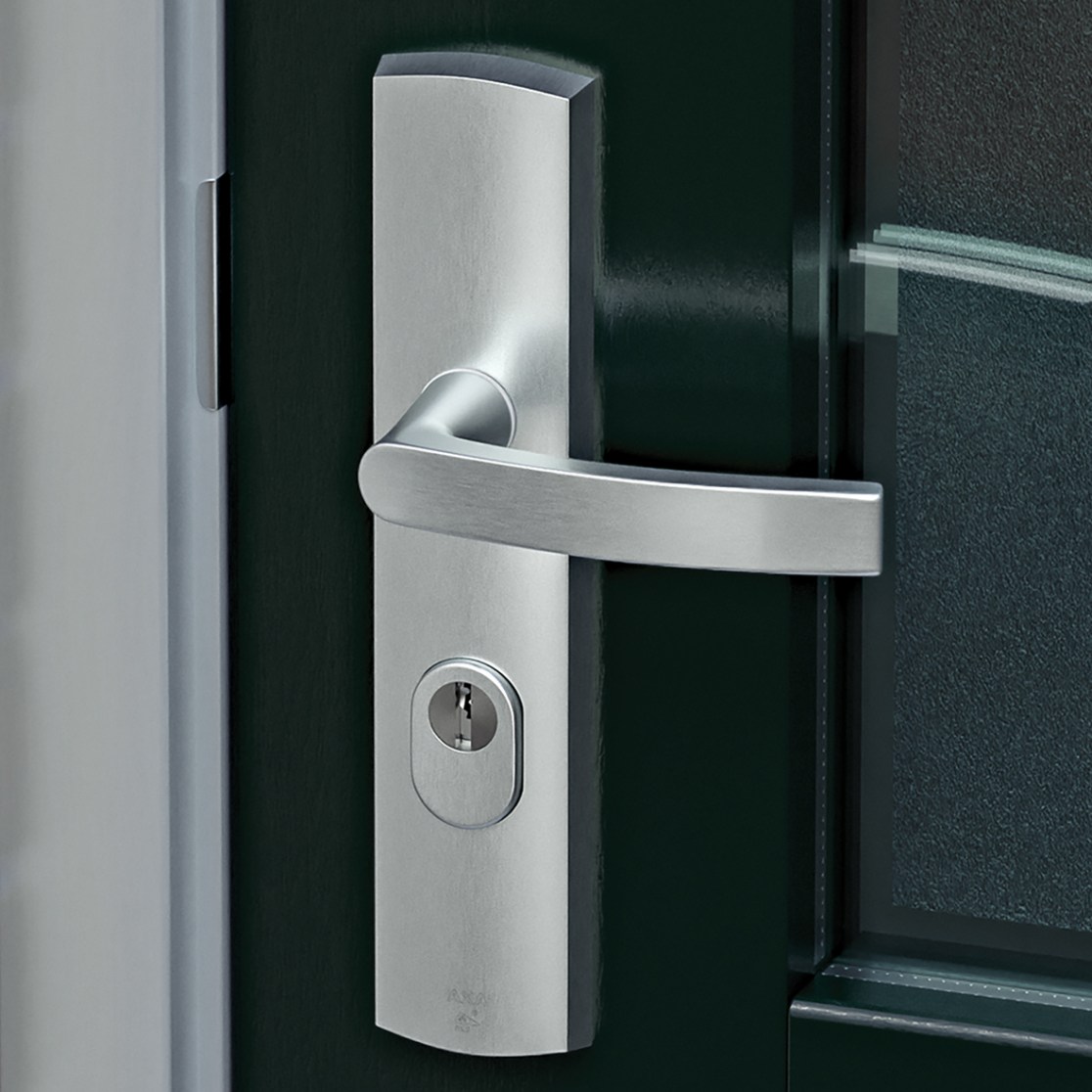

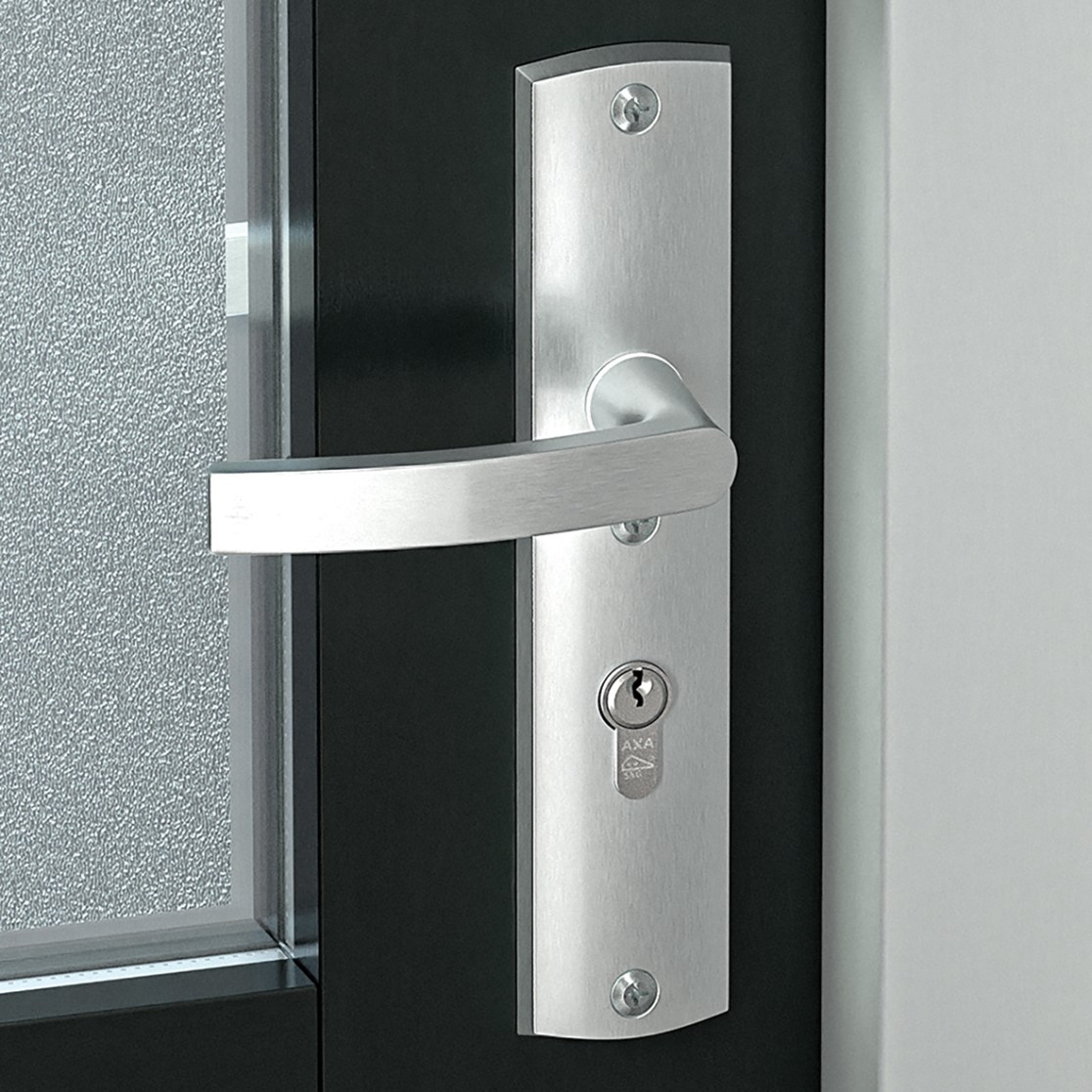

Security fitting Curve Plus handle Blok PC72 core protection

6665-10-11/72K

+

4
arrow_selector
close

SKG 3

bronze

Police Hallmark

Reliable and stylish Curve Plus burglar-resistant security fittings.

  • sturdy and reliable
  • with Self-aligning Cylinder Core Protection (SCP)
  • finely polished and less sensitive to scratches
  • round shapes for optimal run-off stops moisture from affecting paintwork.
  • seal prevents damage to the paintwork when dismounting and keeps water and draught out effectively
  • possible to use on all doors with a thickness from 35-43 and 54-58 mm
  • extended handle spindles and bolts are available for thicker doors
  • complies with the Police Hallmark for Safe Living and SKG3
  • complete with attachment materials
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

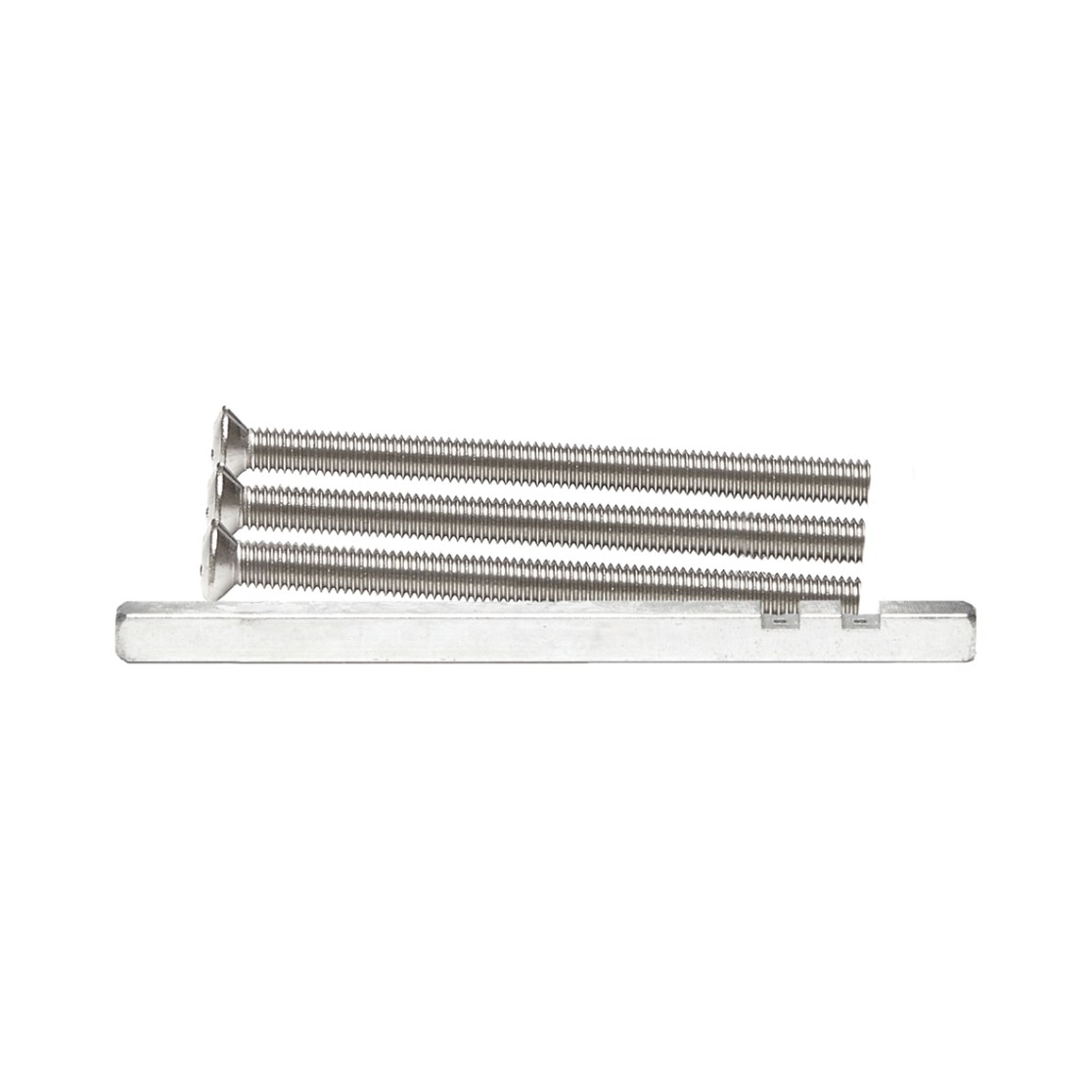

Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- M6 x 70 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 2 pieces
- 8 x 110 mm spindle: 1 piece
Commercial information
expand_more
Type Curve Plus handle Blok PC72 core protection
Use for back doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable False
Cradle to Cradle certification bronze
Technical information
expand_more
Product Length 242 mm
Product Width 52 mm
Thickness outside 13 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape curved
Suitable for door thickness 35 - 43 mm
Suitable for door thickness 54 - 58 mm
Outside handle-Pusher-Knob type handle Block
Inside handle type handle Block
Handle type Block
Handle length 125 mm
Handle depth 60 mm
Handle assembly grub screw fix
Spring supported handle False
Spindle dimension 8 x 110 mm
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Polished anodised F1, natural
Assembly information
expand_more
Including Mounting Material True
Assembly time 20 min
Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- M6 x 70 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 2 pieces
- 8 x 110 mm spindle: 1 piece
Logistic information
expand_more
Product Weight 1014 gr
Pieces per small package 1 piece
EAN small package 8713249215563
Weight small package 1.09 kg
Dimensions small package 257 x 122 x 72 mm
Pieces per bulk package 10 piece
EAN bulk package 8713249216171
Weight bulk package 11.35 kg
Dimensions bulk package 530 x 320 x 171 mm

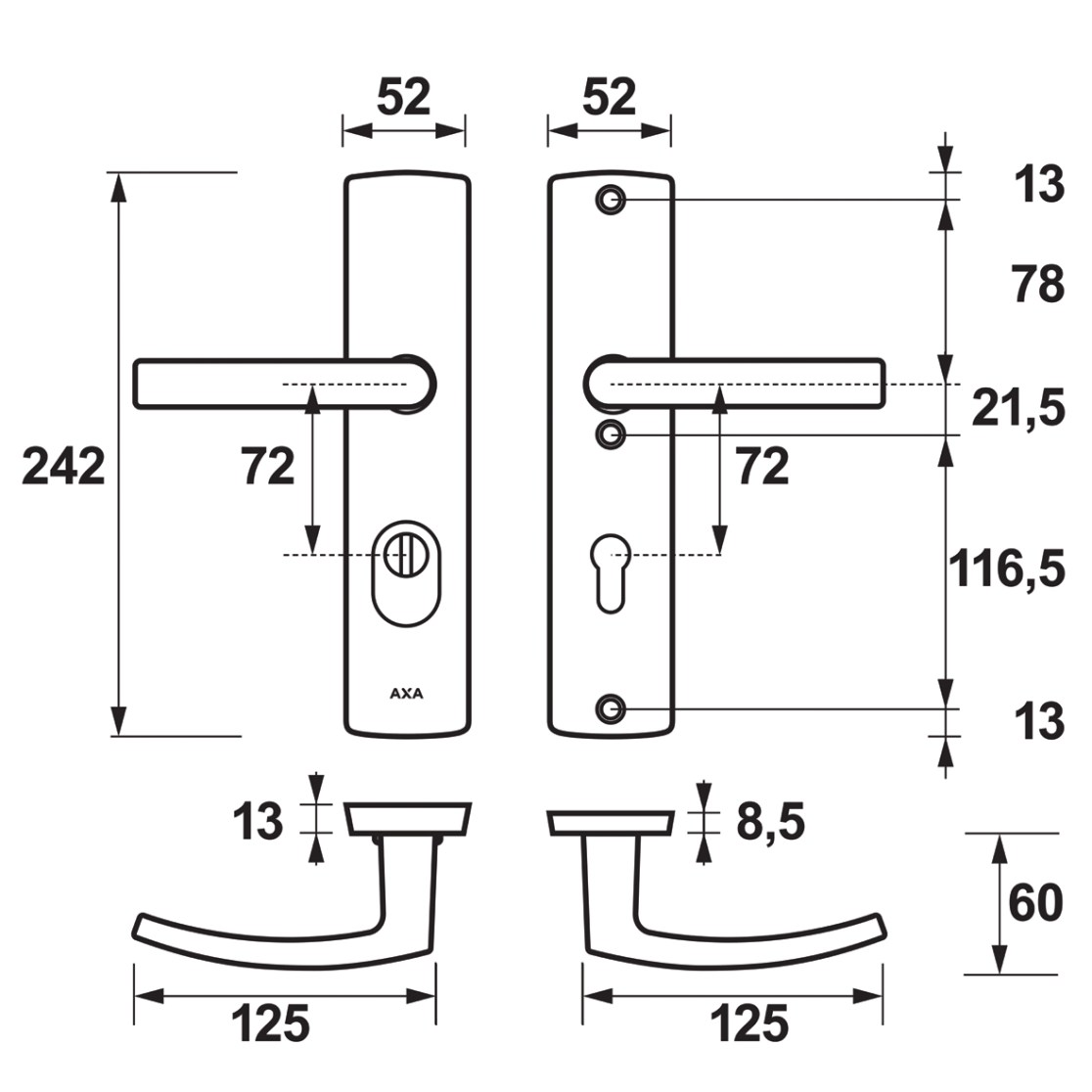

Technical drawings

Associated products

Alternative products

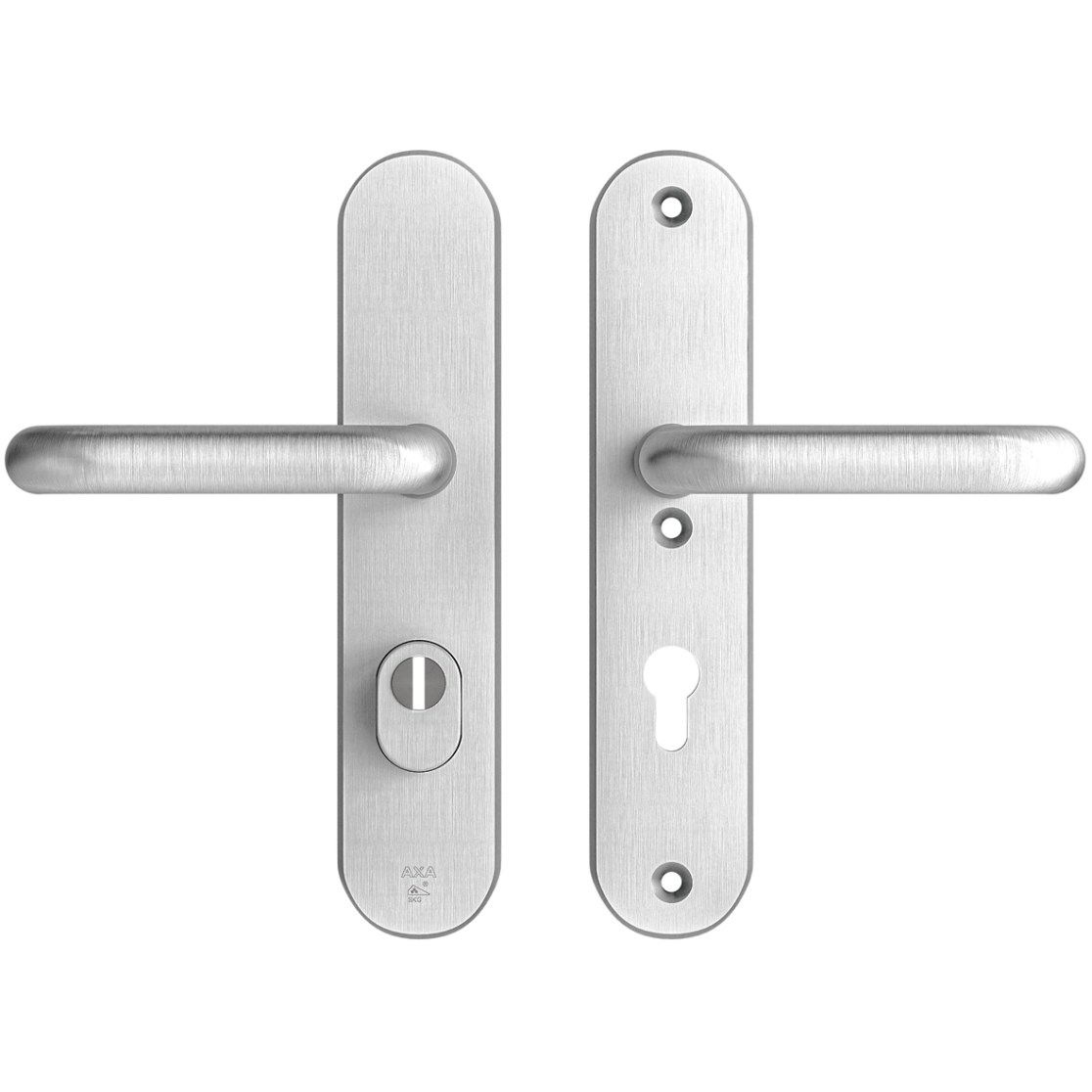

Security fitting Oval Plus handle U PC72 core protection

6668-10-11/72U

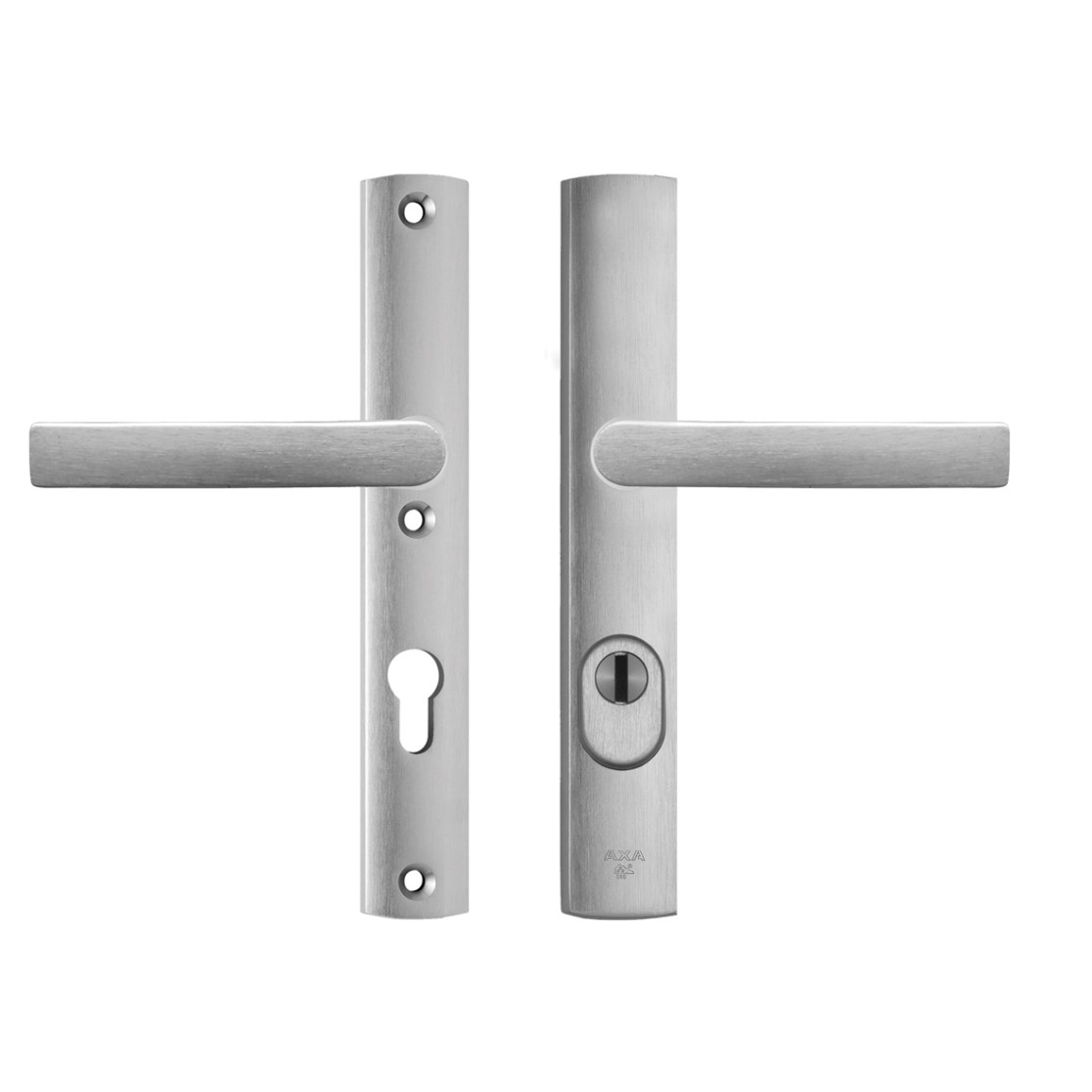

Security fitting Edge Plus handle Blok PC72 core protection
