Security fitting Curve short handle Blok PC55

6670-10-11/55K
arrow_selector
close

SKG 3

bronze

Police Hallmark

Reliable and stylish Curve burglar-resistant security fittings.

  • sturdy and reliable
  • finely polished and less sensitive to scratches
  • round shapes for optimal run-off stops moisture from affecting paintwork.
  • universally usable on doors with a thickness of 35-43 and 54-58 mm
  • complies with the Police Hallmark for Safe Living and SKG3
  • complete with attachment materials
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- M6 x 70 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 2 pieces
- spindle: 1 piece
Commercial information
expand_more
Type Curve short handle Blok PC55
Use for back doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable False
Cradle to Cradle certification bronze
Technical information
expand_more
Product Length 189 mm
Product Width 52 mm
Thickness outside 13 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape curved
Suitable for door thickness 35 - 43 mm
Suitable for door thickness 54 - 58 mm
Outside handle-Pusher-Knob type handle Block
Inside handle type handle Block
Handle type Block
Handle length 125 mm
Handle depth 60 mm
Handle assembly grub screw fix
Spring supported handle False
Spindle dimension 8 x 110 mm
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Polished anodised F1, natural
Assembly information
expand_more
Including Mounting Material True
Assembly time 20 min
Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- M6 x 70 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 2 pieces
- spindle: 1 piece
Logistic information
expand_more
Product Weight 846 gr
Pieces per small package 1 piece
EAN small package 8713249299754
Weight small package 0.913 kg
Dimensions small package 257 x 122 x 72 mm
Pieces per bulk package 10 piece
EAN bulk package 8713249299761
Weight bulk package 10.54 kg
Dimensions bulk package 530 x 320 x 171 mm

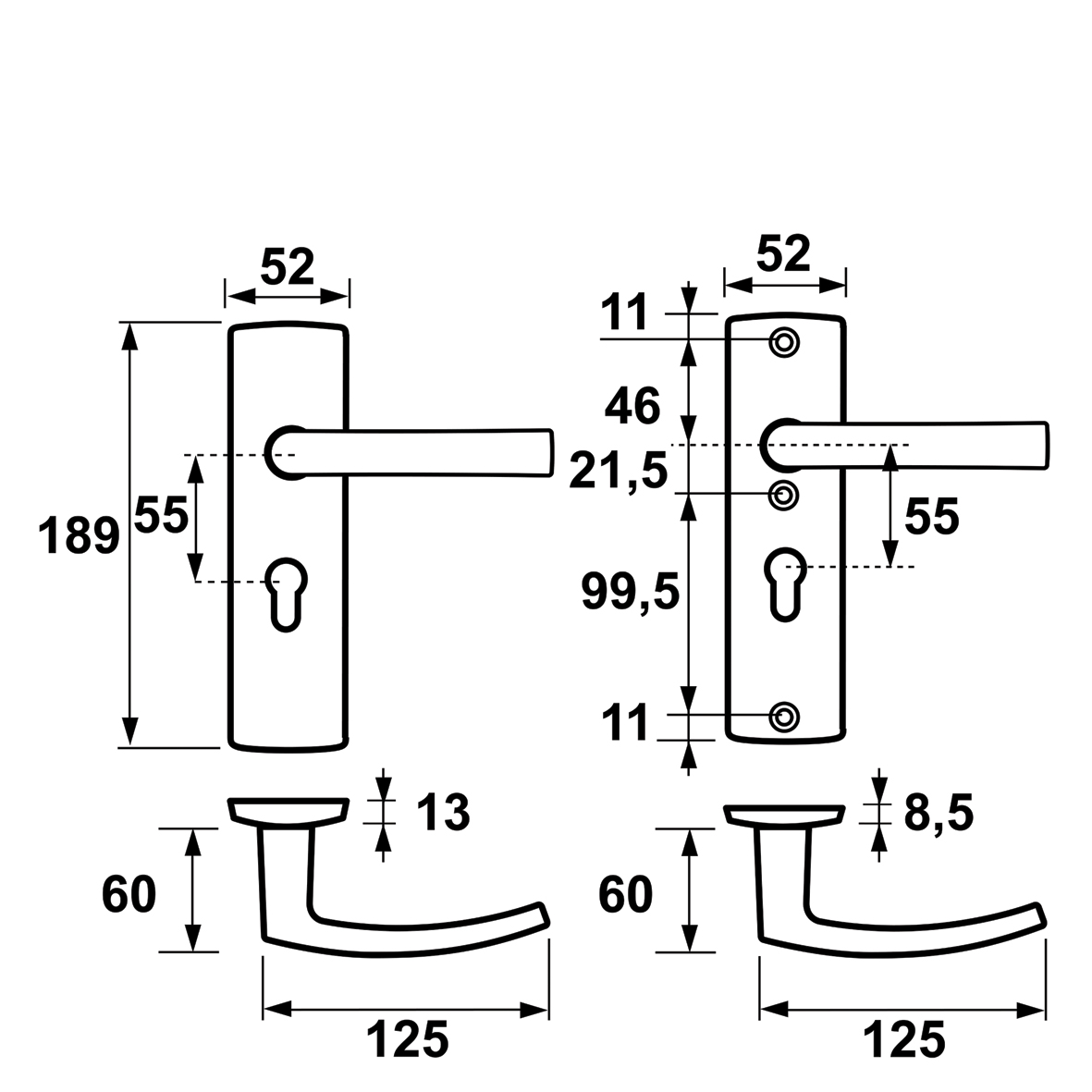

Technical drawings

Associated products

Alternative products

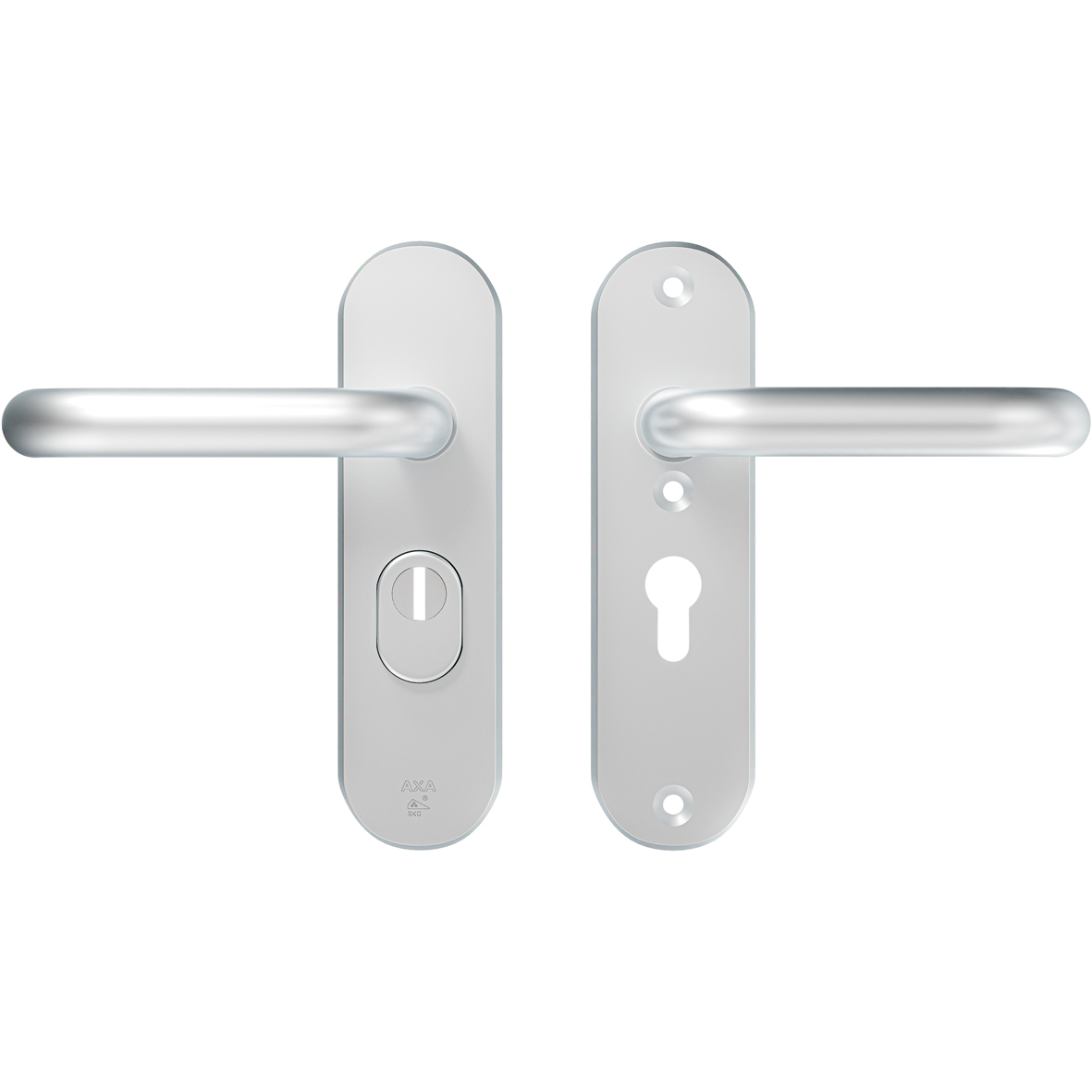

Security fitting Oval Plus short handle U PC55 core protection

6678-10-11/55U

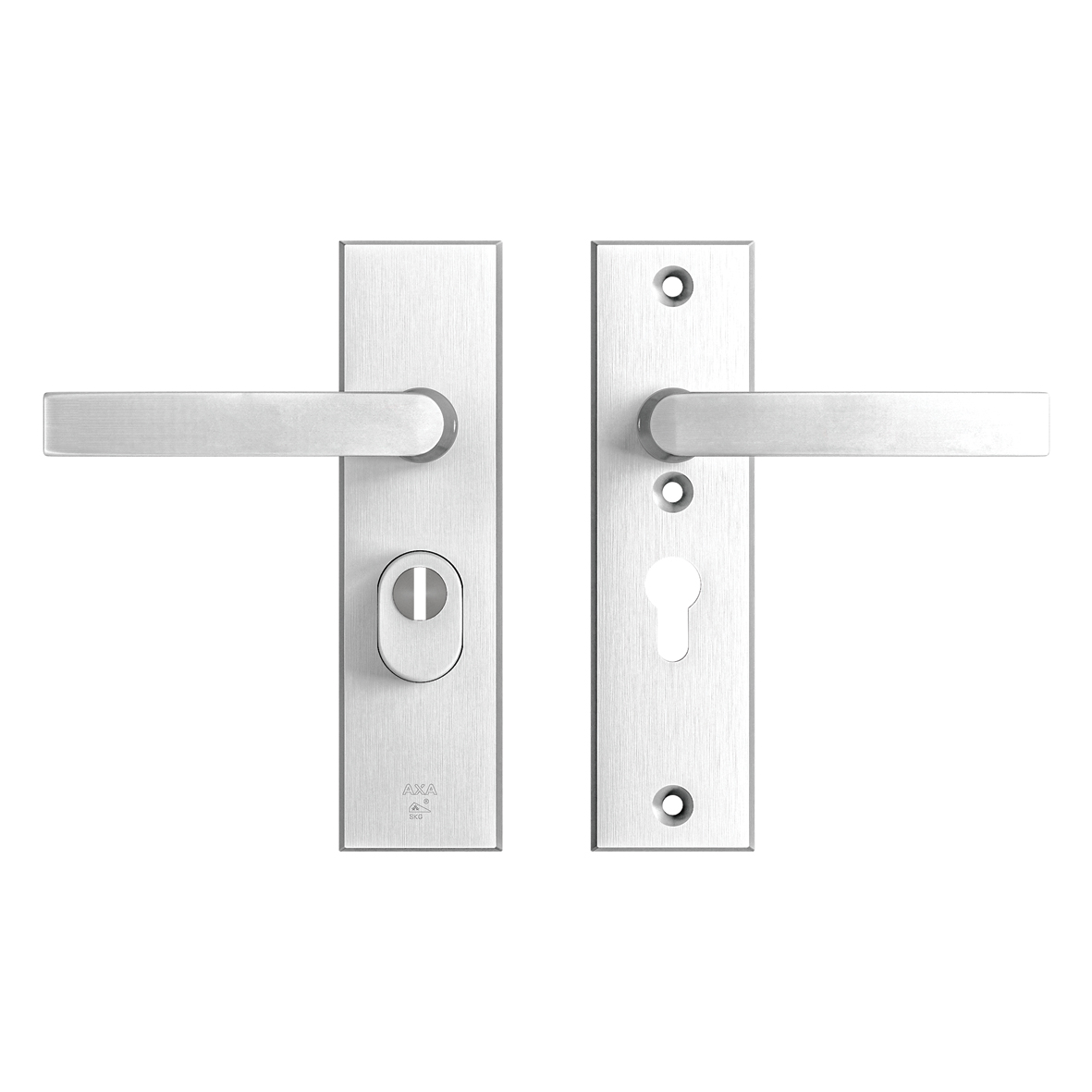

Security fitting Edge Plus short handle Blok PC55 core protection
