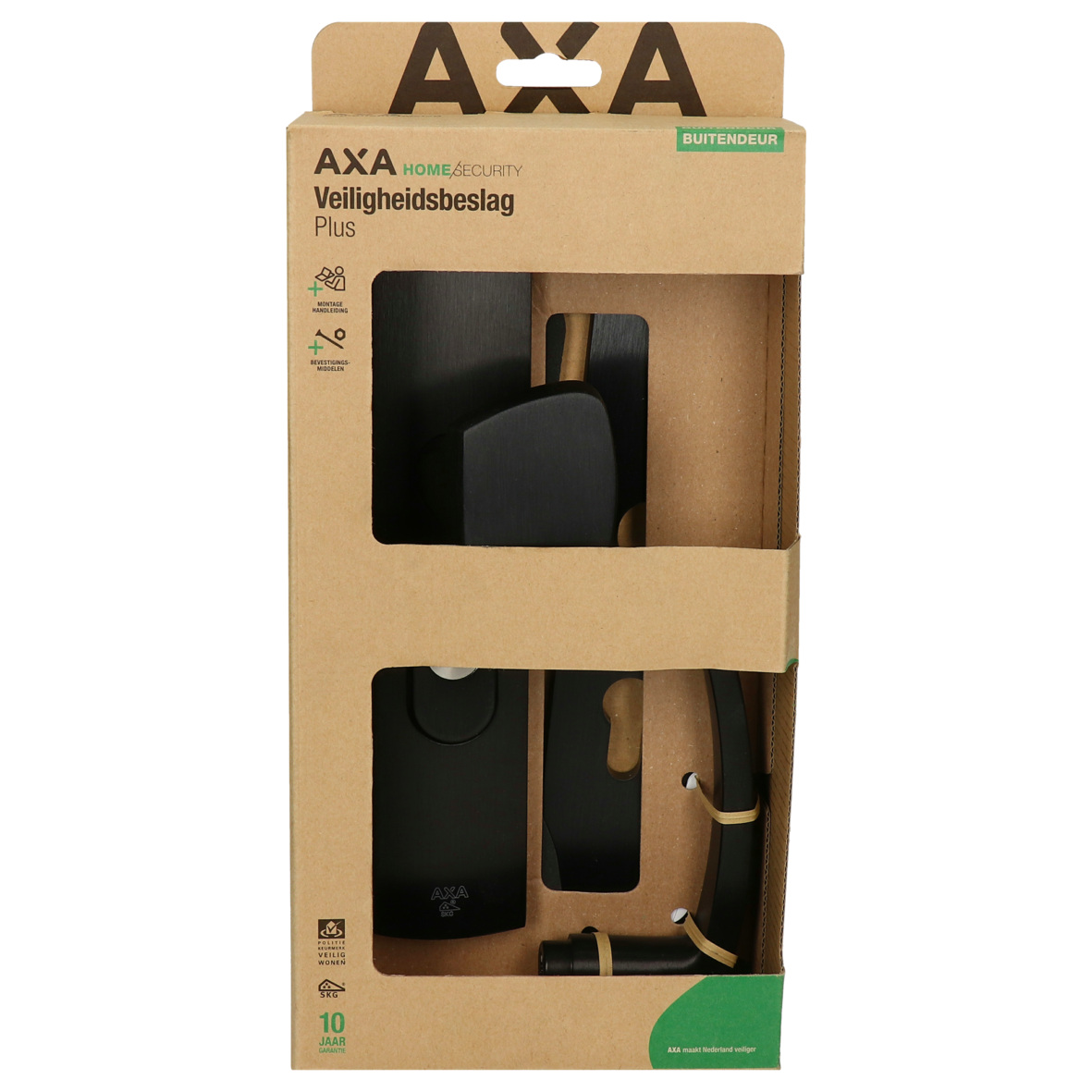

Security fitting Curve Plus S-knob+handle Blok PC55 core protection

6665-51-11/BL55

+

5
arrow_selector
close

SKG 3

bronze

Police Hallmark

Reliable and stylish Curve burglar-resistant security fittings.

  • sturdy and reliable
  • for both left and right-opening doors (the knob is reversible)
  • with Self-aligning Cylinder Core Protection (SCP)
  • finely polished and less sensitive to scratches
  • round shapes for optimal run-off stops moisture from affecting paintwork.
  • seal prevents damage to the paintwork when dismounting and keeps water and draught out effectively
  • possible to use on all doors with a thickness from 35-43 and 54-56 mm
  • extended handle spindles and bolts are available for thicker doors
  • complies with the Police Hallmark for Safe Living and SKG3
  • complete with attachment materials
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- M6 x 70 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 1 piece
- exchangeable shank: 2 pieces
Commercial information
expand_more
Type Curve Plus S-knob+handle Blok PC55 core protection
Use for front doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable False
Cradle to Cradle certification bronze
Technical information
expand_more
Product Length 242 mm
Product Width 52 mm
Thickness outside 13 mm
Thickness inside 8.5 mm
Direction of rotation inward-opening
Shape curved
Suitable for door thickness 35 - 43 mm
Suitable for door thickness 54 - 56 mm
Outside handle-Pusher-Knob type S-Knob
Inside handle type handle Block
Handle length 125 mm
Handle depth 60 mm
Handle assembly grub screw fix
Spring supported handle False
Spindle dimension 8 x 75 mm
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Polished anodised F1, natural
Assembly information
expand_more
Including Mounting Material True
Assembly time 20 min
Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- M6 x 70 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 1 piece
- exchangeable shank: 2 pieces
Logistic information
expand_more
Product Weight 1130 gr
Pieces per small package 1 piece
EAN small package 8713249226606
Weight small package 1.13 kg
Dimensions small package 340 x 187 x 60 mm
Pieces per bulk package 2 piece
EAN bulk package 8713249226613
Weight bulk package 2.49 kg
Dimensions bulk package 390 x 200 x 120 mm
