Security fitting Curve Plus narrow Wing-knob PC55 core protection
6765-49-11/55
Reliable and stylish Curve Plus burglar-resistant security fittings.
- sturdy and reliable
- with Self-aligning Cylinder Core Protection (SCP)
- finely polished and less sensitive to scratches
- round shapes for optimal run-off stops moisture from affecting paintwork.
- seal prevents damage to the paintwork when dismounting and keeps water and draught out effectively
- possible to use on all doors with a thickness from 35-43 mm
- extended exchangeable shanks and bolts are available for thicker doors
- complies with the Police Hallmark for Safe Living and SKG3
- complete with attachment materials
Reliable and stylish Curve Plus burglar-resistant security fittings.
- sturdy and reliable
- with Self-aligning Cylinder Core Protection (SCP)
- finely polished and less sensitive to scratches
- round shapes for optimal run-off stops moisture from affecting paintwork.
- seal prevents damage to the paintwork when dismounting and keeps water and draught out effectively
- possible to use on all doors with a thickness from 35-43 mm
- extended exchangeable shanks and bolts are available for thicker doors
- complies with the Police Hallmark for Safe Living and SKG3
- complete with attachment materials
Specifications
Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- 8 x 75 mm exchangeable shank: 1 piece
- M6 x 50 mm bolt: 3 pieces
- 8 x 75 mm exchangeable shank: 1 piece
Commercial information
Type Curve Plus narrow Wing-knob PC55 core protection
Use for front doors
Safety information
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable False
Cradle to Cradle certification bronze
Technical information
Product Length 242 mm
Product Width 38 mm
Thickness outside 13 mm
Thickness inside 8.5 mm
Direction of rotation inward-opening
Shape curved
Suitable for door thickness 35 - 43 mm
Outside handle-Pusher-Knob type Wing-Knob
Spring supported handle False
Spindle dimension 8 x 75 mm
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Polished anodised F1, natural
Assembly information
Including Mounting Material True
Assembly time 20 min
Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- 8 x 75 mm exchangeable shank: 1 piece
- M6 x 50 mm bolt: 3 pieces
- 8 x 75 mm exchangeable shank: 1 piece
Logistic information
Pieces per small package 1 piece
EAN small package 8713249285658
Dimensions small package 257 x 122 x 72 mm
Pieces per bulk package 10 piece
EAN bulk package 8713249285665
Dimensions bulk package 530 x 320 x 171 mm
Downloads

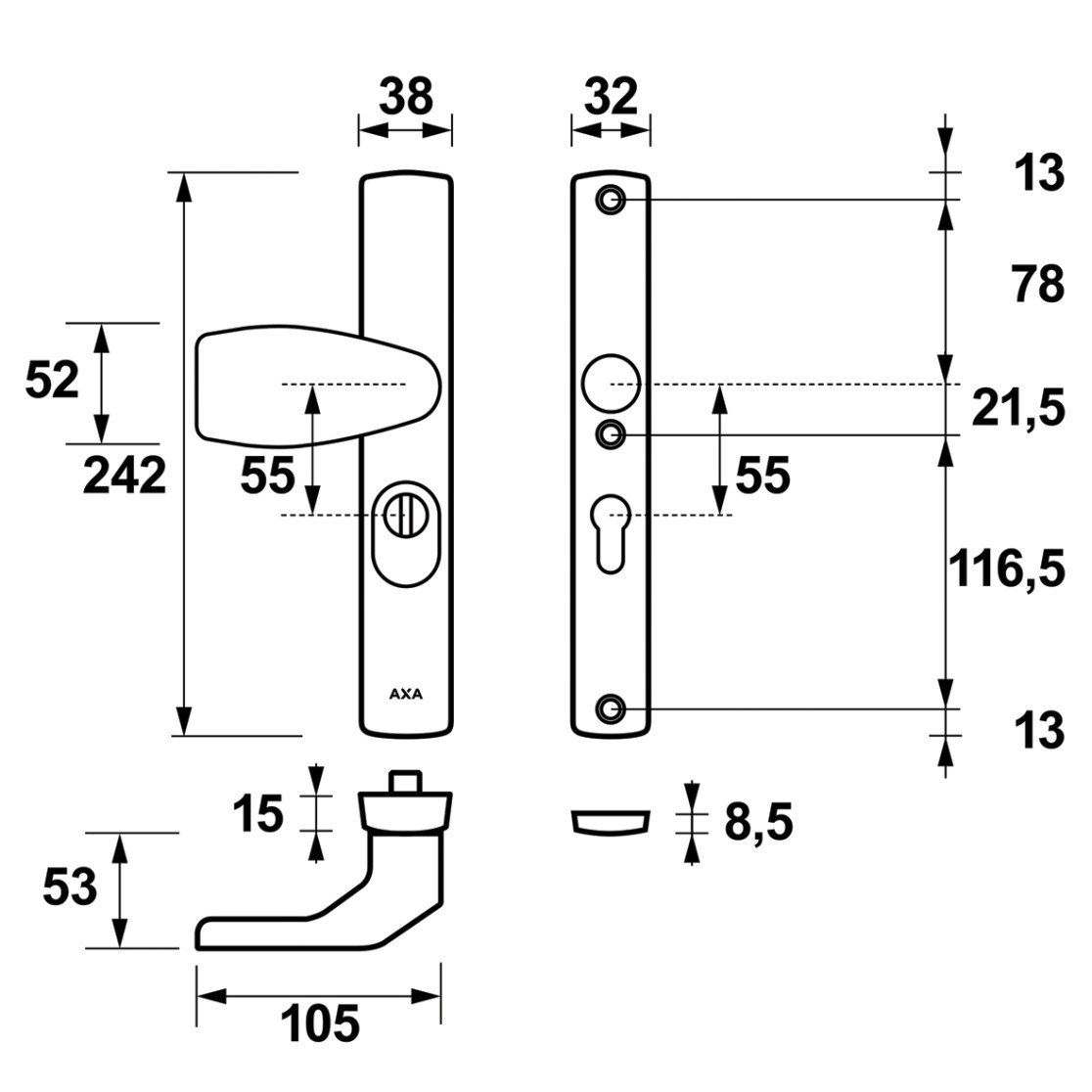

Main Image Brochure SKG Certificate Environmental Product Declaration (EPD)Technical drawings
