Security fitting Curve Plus narrow handle Blok PC72 core protection

6765-10-11/BL72

+

4
arrow_selector
close

SKG 3

bronze

Police Hallmark

Reliable and stylish Curve burglar-resistant security fittings.

  • sturdy and reliable
  • with Self-aligning Cylinder Core Protection (SCP)
  • finely polished and less sensitive to scratches
  • round shapes for optimal run-off stops moisture from affecting paintwork.
  • seal prevents damage to the paintwork when dismounting and keeps water and draught out effectively
  • universally usable on doors with a thickness of 35-43 and 54-56 mm
  • complies with the Police Hallmark for Safe Living and SKG3
  • complete with attachment materials
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- M6 x 70 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 2 pieces
- 8 x 110 mm spindle: 1 piece
Commercial information
expand_more
Type Curve Plus narrow handle Blok PC72 core protection
Use for back doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable False
Cradle to Cradle certification bronze
Technical information
expand_more
Product Length 242 mm
Product Width 38 mm
Product Width 2 32 mm
Thickness outside 15 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape curved
Suitable for door thickness 35 - 43 mm
Suitable for door thickness 54 - 56 mm
Outside handle-Pusher-Knob type handle Block
Inside handle type handle Block
Handle type Block
Handle length 128 mm
Handle depth 56 mm
Handle assembly handle integrated in backplate/rosettes
Spring supported handle False
Spindle dimension 8 x 110 mm
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Polished anodised F1, natural
Assembly information
expand_more
Including Mounting Material True
Assembly time 20 min
Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- M6 x 70 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 2 pieces
- 8 x 110 mm spindle: 1 piece
Logistic information
expand_more
Product Weight 966 gr
Pieces per small package 1 piece
EAN small package 8713249226767
Weight small package 0.97 kg
Dimensions small package 340 x 187 x 30 mm
Pieces per bulk package 4 piece
EAN bulk package 8713249226774
Weight bulk package 4.1 kg
Dimensions bulk package 390 x 200 x 120 mm

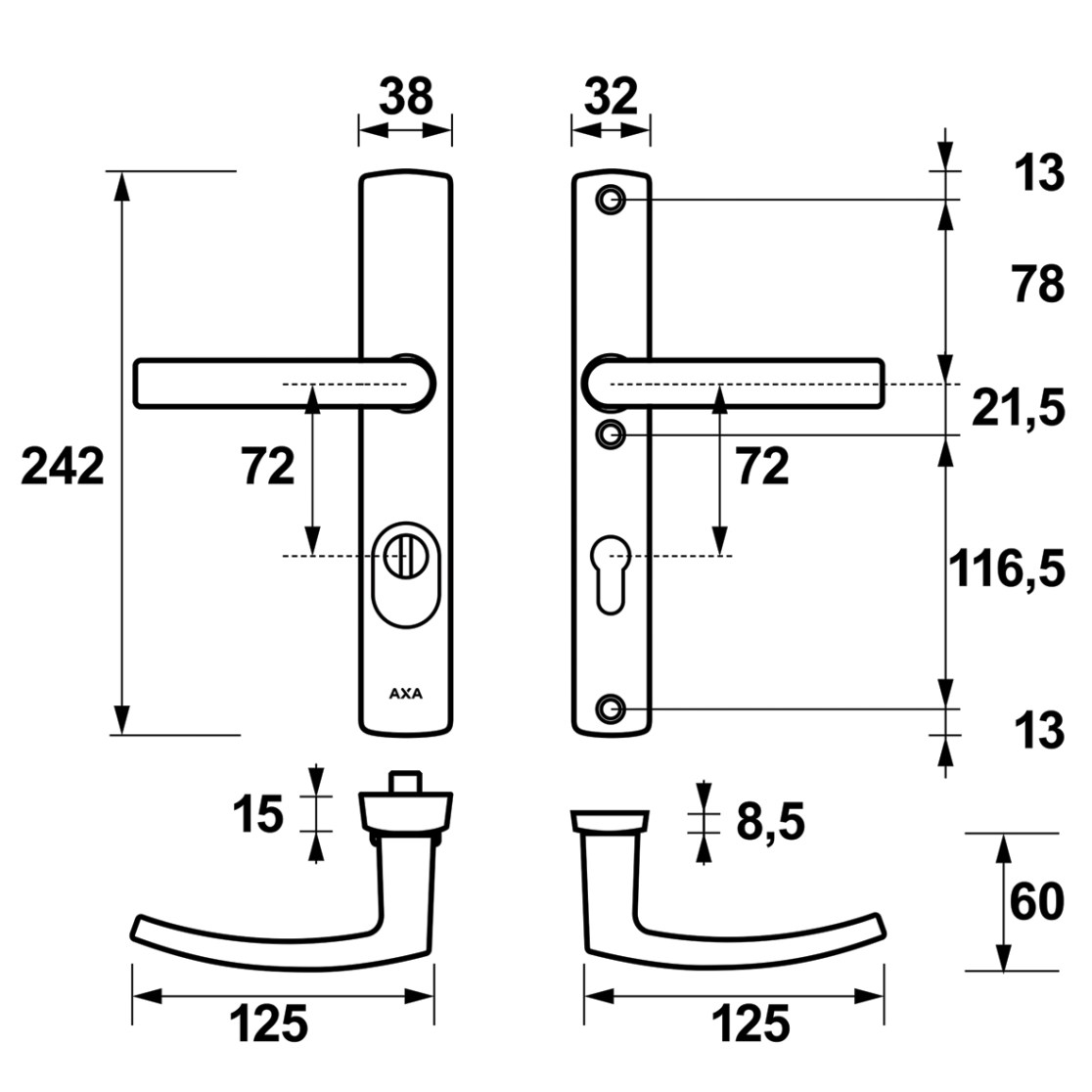

Technical drawings

Associated products

Alternative products

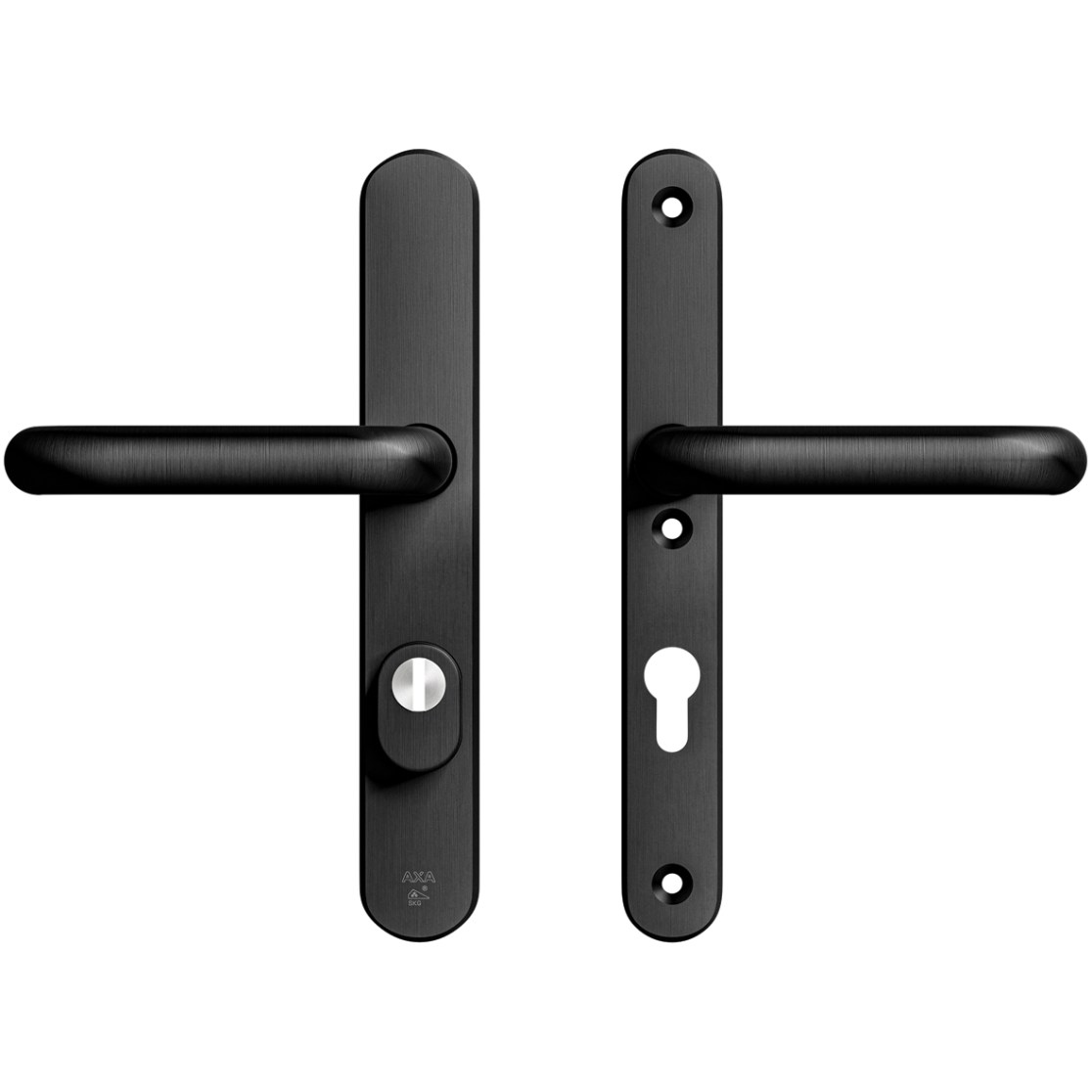

Security fitting Oval Plus narrow handle U PC72 core protection

6768-10-11/72U

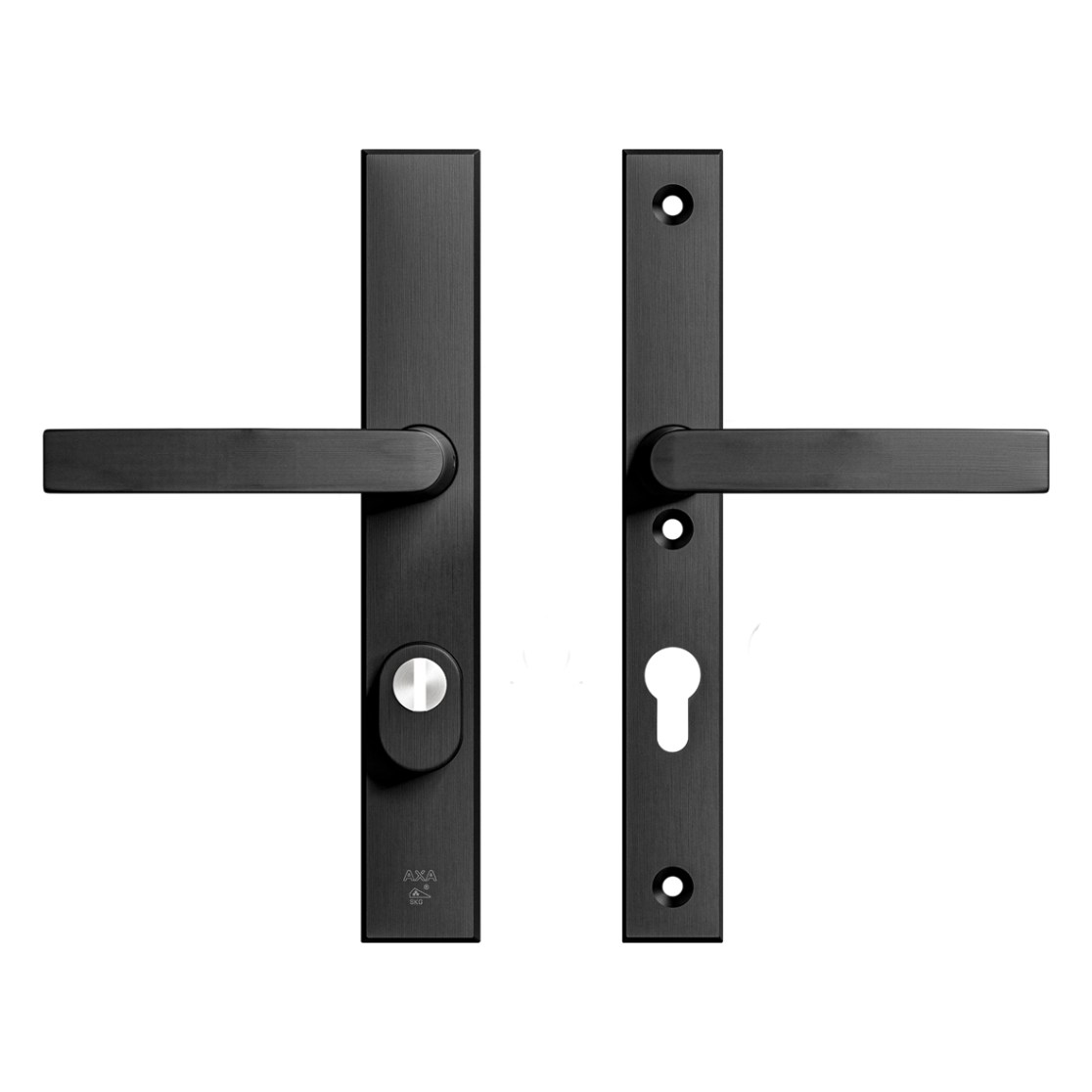

Security fitting Edge Plus narrow handle Block PC72 core protection
