Security fitting Curve Plus narrow Comfort handle Wing PC72 core protection

6755-39-11/72K
arrow_selector
close

SKG 3

bronze

Police Hallmark

Reliable and stylish Curve Plus Comfort burglar-resistant security fittings.

  • sturdy and reliable
  • with Self-aligning Cylinder Core Protection (SCP)
  • for both left and right-opening doors (the knob-handle is reversible and usable)
  • finely polished and less sensitive to scratches
  • round shapes for optimal run-off stops moisture from affecting paintwork.
  • seal prevents damage to the paintwork when dismounting and keeps water and draught out effectively
  • possible to use on all doors with a thickness from 35-43 mm
  • extended handle spindles and bolts are available for thicker doors
  • complies with the Police Hallmark for Safe Living and SKG3
  • complete with attachment materials
Specifications Downloads Technical drawings Associated products Alternative products

Specifications

Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 1 piece
- 8 x 110 mm spindle: 1 piece
Commercial information
expand_more
Type Curve Plus narrow Comfort handle Wing PC72 core protection
Use for front doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable False
Cradle to Cradle certification bronze
Technical information
expand_more
Product Length 242 mm
Product Width 38 mm
Product Width 2 32 mm
Thickness outside 15 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape curved
Suitable for door thickness 35 - 43 mm
Outside handle-Pusher-Knob type handle Wing
Handle assembly grub screw fix
Spring supported handle False
Spindle dimension 8 x 110 mm
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Polished anodised F1, natural
Assembly information
expand_more
Including Mounting Material True
Assembly time 20 min
Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- M6 x 6 mm grub screw: 1 piece
- 8 x 110 mm spindle: 1 piece
Logistic information
expand_more
Pieces per small package 1 piece
EAN small package 8713249284927
Dimensions small package 257 x 122 x 72 mm
Pieces per bulk package 10 piece
EAN bulk package 8713249284934
Dimensions bulk package 530 x 320 x 171 mm

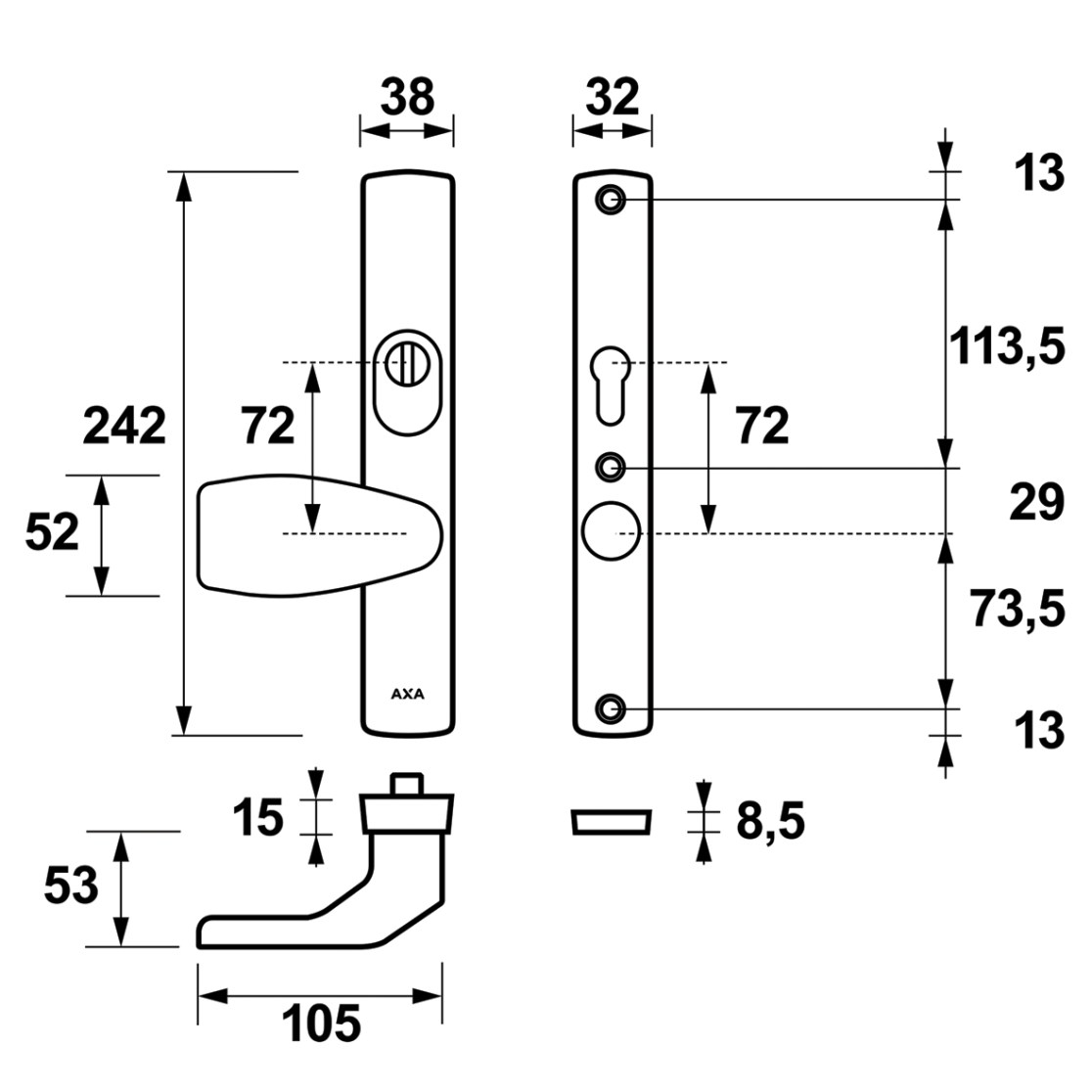

Technical drawings
