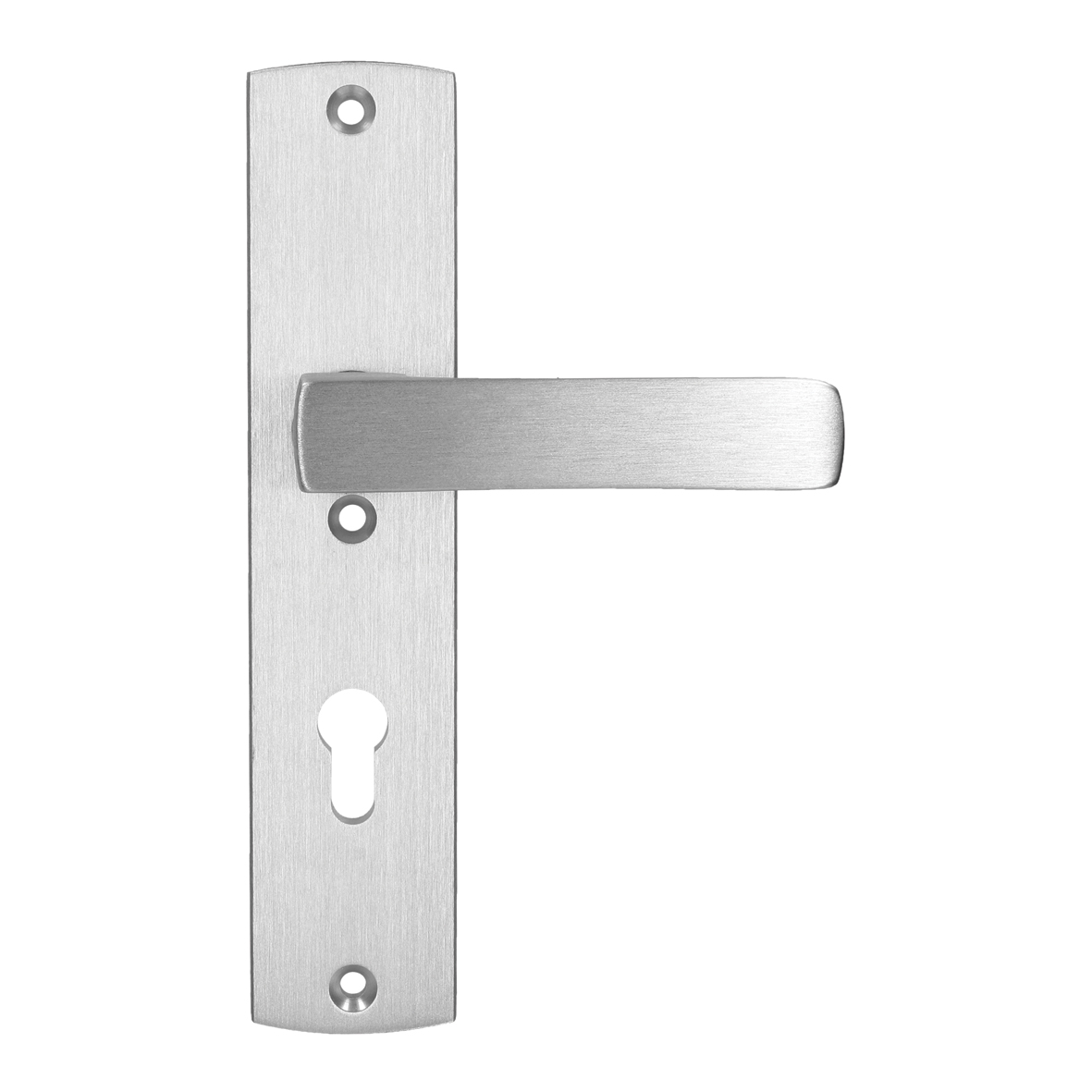

Security backplate Premium inside handle Cube PC72

6662-12-11/72
arrow_selector
close

SKG 3

Police Hallmark

Reliable and stylish AXA Premium security backplate for intensive use.

  • sturdy and reliable, handle directly on backplate specially made for intensive use
  • finely polished and less sensitive to scratches
  • spring-supported handle, prevents dropping handles due to limp lock spring
  • round shapes for optimal run-off stops moisture from affecting paintwork.
  • seal prevents damage to the paintwork when dismounting and keeps water and draught out effectively
  • complies with the Police Hallmark for Safe Living, SKG3 and EN 1906
Specifications Downloads Technical drawings Similar products

Specifications

Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
Commercial information
expand_more
Type Premium inside handle Cube PC72
Use for exterior doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable False
Security class (EN 1906) 3
Technical information
expand_more
Product Length 242 mm
Product Width 52 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape curved
Inside handle type handle Cube
Handle length 127 mm
Handle depth 41 mm
Handle assembly handle integrated in backplate/rosettes
Spring supported handle True
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Polished anodised F1, natural
Assembly information
expand_more
Including Mounting Material False
Assembly time 20 min
Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
Logistic information
expand_more
Product Weight 639 gr
Pieces per small package 1 piece
EAN small package 8713249334011
Weight small package 0.771 kg
Dimensions small package 275 x 160 x 97 mm
Pieces per bulk package 4 piece
EAN bulk package 8713249334028
Weight bulk package 3.39 kg
Dimensions bulk package 330 x 280 x 205 mm

Technical drawings
