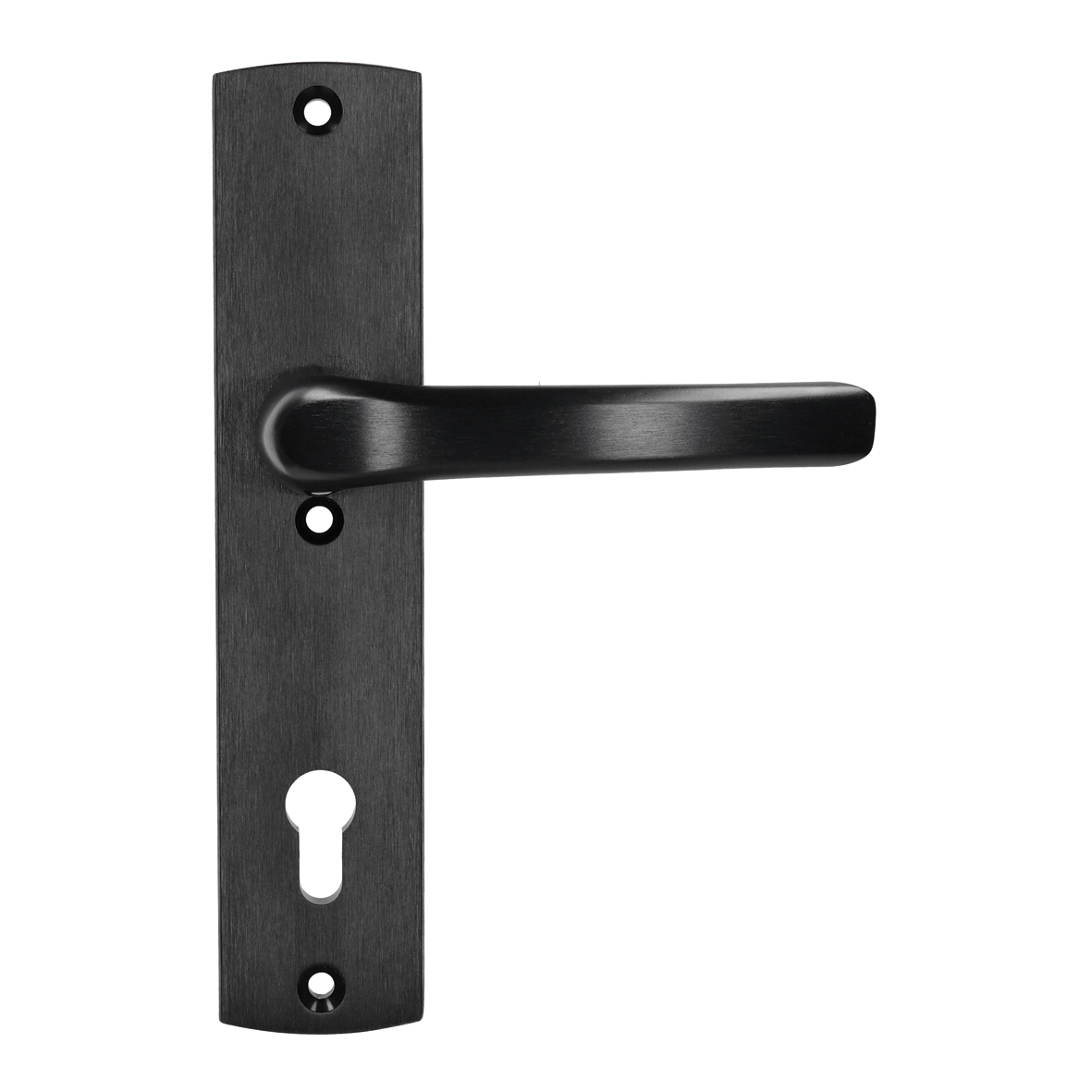

Security backplate Premium inside handle Bow PC92

6662-16-18/92
arrow_selector
close

Reliable and stylish AXA Premium security backplate for intensive use.

  • sturdy and reliable, handle directly on escutcheon plate specially made for intensive use
  • finely polished and less sensitive to scratches
  • spring-supported handle, prevents dropping handles due to limp lock spring
  • round shapes for optimal run-off stops moisture from affecting paintwork.
  • seal prevents damage to the paintwork when dismounting and keeps water and draught out effectively
  • complies with the Police Hallmark for Safe Living, SKG3 and EN 1906
Specifications Downloads Technical drawings Alternative products

Specifications

Commercial information
expand_more
Type Premium inside handle Bow PC92
Use for exterior doors
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 242 mm
Product Width 52 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Inside handle type handle Bow
Handle length 141 mm
Handle depth 63 mm
Handle assembly handle integrated in backplate/rosettes
Spring supported handle True
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Polished anodised F8, black
Logistic information
expand_more
Product Weight 639 gr
Pieces per small package 1 piece
EAN small package 8713249296586
Weight small package 0.836 kg
Dimensions small package 275 x 160 x 97 mm
Pieces per bulk package 4 piece
EAN bulk package 8713249296593
Weight bulk package 2.57 kg
Dimensions bulk package 330 x 280 x 205 mm

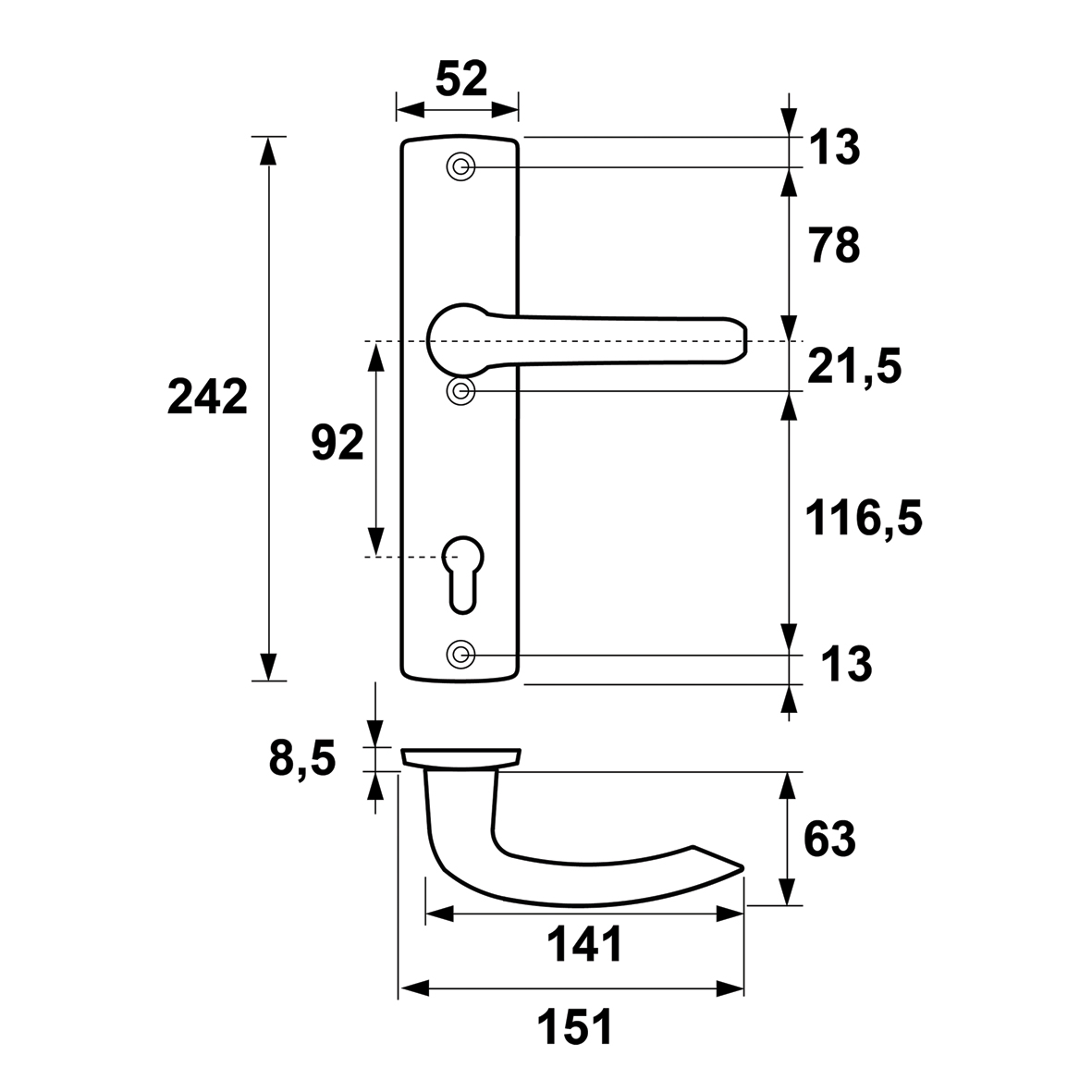

Technical drawings
