Security backplate Oval Pro narrow outside handle West PC92 core protection

6768-90-11/92WIBU
arrow_selector
close

SKG 3

Police Hallmark

Reliable and stylish Oval Pro burglar-resistant backplate.

  • sturdy and reliable, handle directly on escutcheon plate specially made for intensive use
  • finely polished and less sensitive to scratches
  • spring-supported handle, prevents dropping handles due to limp lock spring
  • round shapes for optimal run-off stops moisture from affecting paintwork
  • complies with the Police Hallmark for Safe Living, SKG3
Specifications Downloads Technical drawings

Specifications

Commercial information
expand_more
Type Oval Pro narrow outside handle West PC92 core protection
Use for front doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable False
Security class (EN 1906) 3
Technical information
expand_more
Product Length 252 mm
Product Width 38 mm
Thickness outside 15 mm
Direction of rotation outward and inward-opening
Shape oval
Outside handle-Pusher-Knob type handle West
Handle length 121 mm
Handle depth 54 mm
Handle assembly handle integrated in backplate/rosettes
Spring supported handle True
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Polished anodised F1, natural
Assembly information
expand_more
Including Mounting Material False
Assembly time 20 min
Logistic information
expand_more
Product Weight 456 gr
Pieces per bulk package 2 piece
EAN bulk package 8713249358451
Weight bulk package 3.86 kg
Dimensions bulk package 290 x 200 x 120 mm

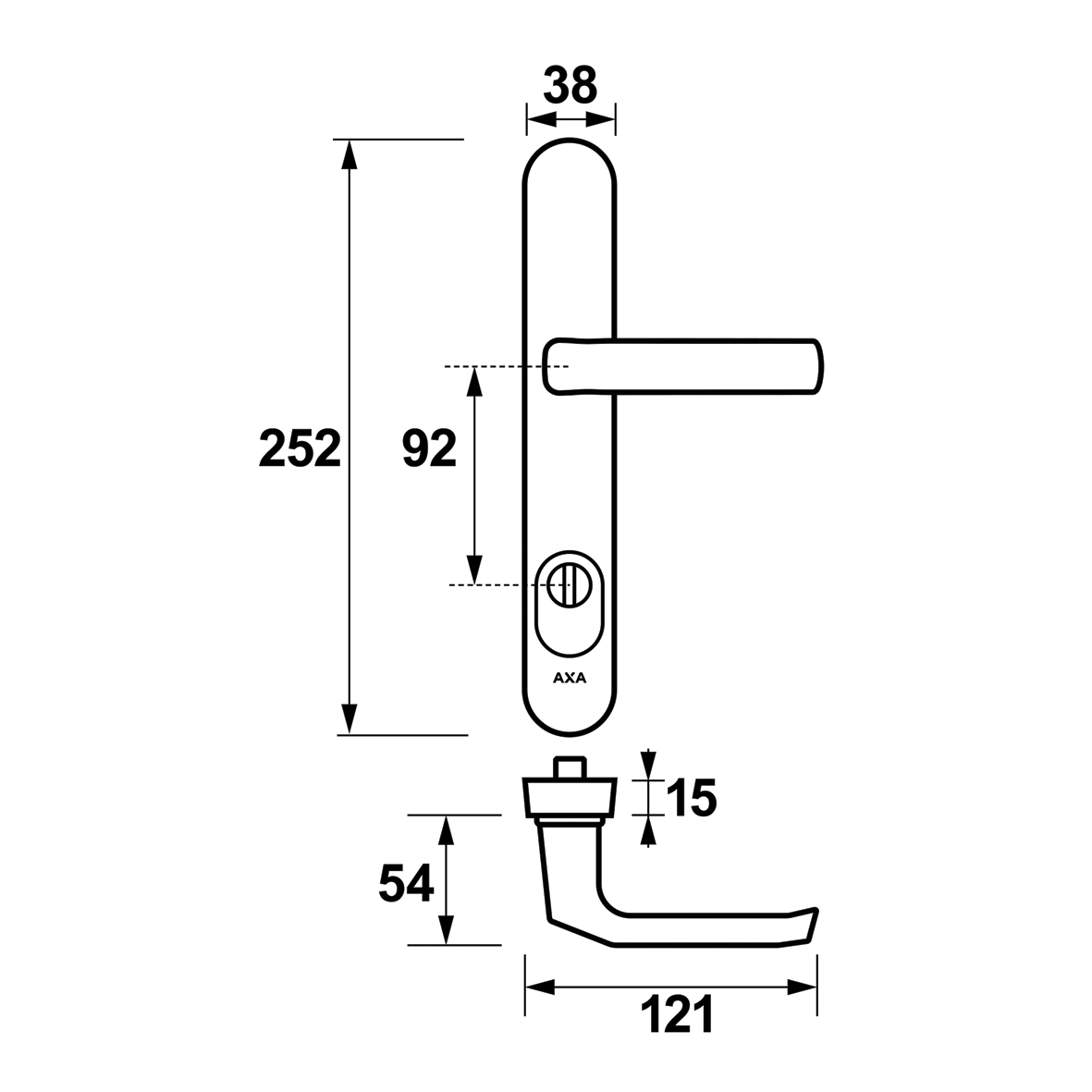

Technical drawings
