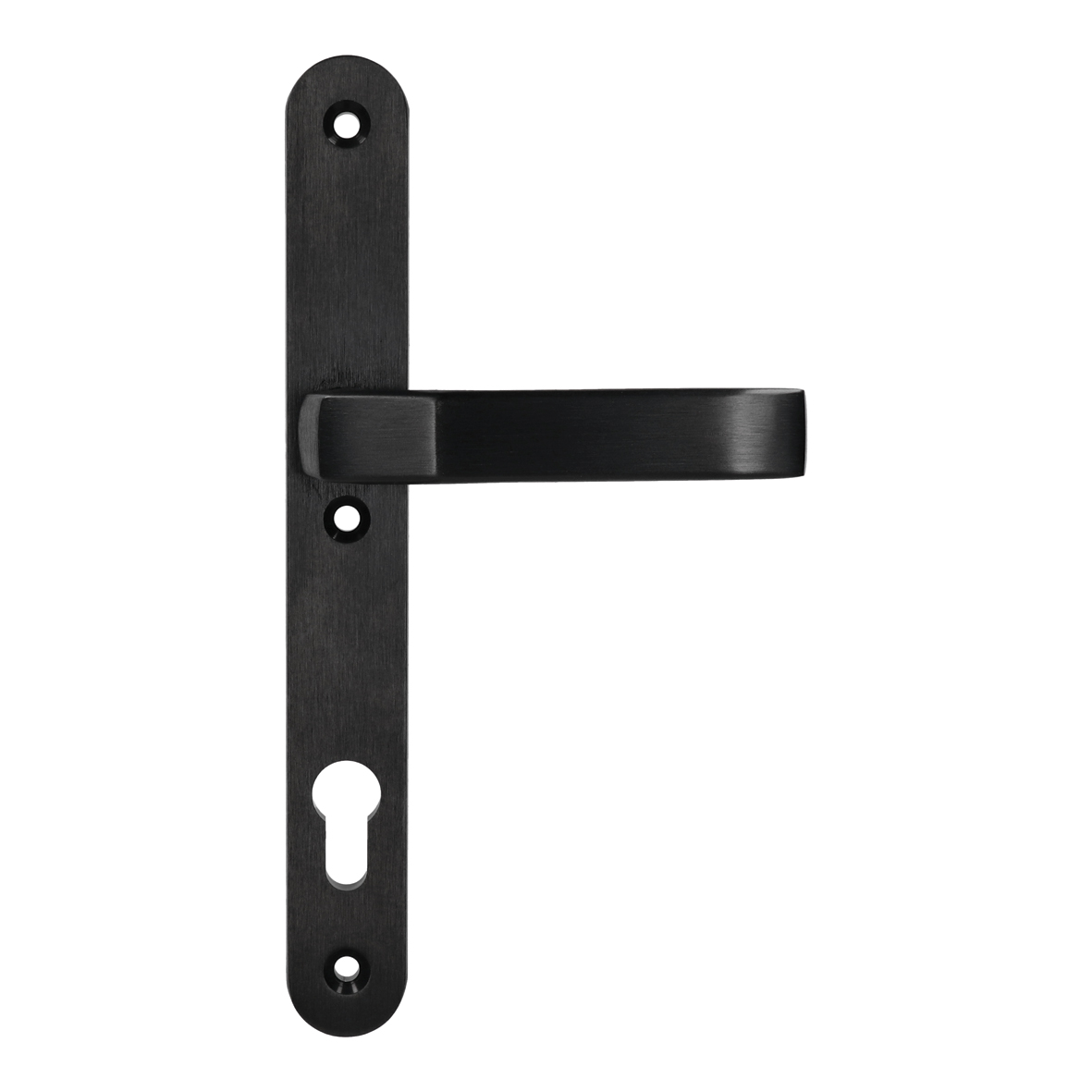

Security backplate Oval Pro narrow inside handle West PC92

6764-80-18/92WIBU
arrow_selector
close

SKG 3

Police Hallmark

Reliable and stylish Oval Pro burglar-resistant security interior backplate.

  • sturdy and reliable, handle directly on backplate specially made for intensive use
  • spring-supported handle, prevents dropping handles due to limp lock spring
  • larger shield size usually completely covers the imprint of the old shield
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Commercial information
expand_more
Type Oval Pro narrow inside handle West PC92
Use for exterior doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable False
Security class (EN 1906) 3
Technical information
expand_more
Product Length 252 mm
Product Width 32 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape oval
Inside handle type handle West
Handle length 121 mm
Handle depth 54 mm
Handle assembly handle integrated in backplate/rosettes
Spring supported handle True
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Polished anodised F8, black
Assembly information
expand_more
Including Mounting Material False
Assembly time 20 min
Logistic information
expand_more
Product Weight 269 gr
Pieces per bulk package 10 piece
EAN bulk package 8713249329314
Weight bulk package 2.91 kg
Dimensions bulk package 290 x 200 x 120 mm

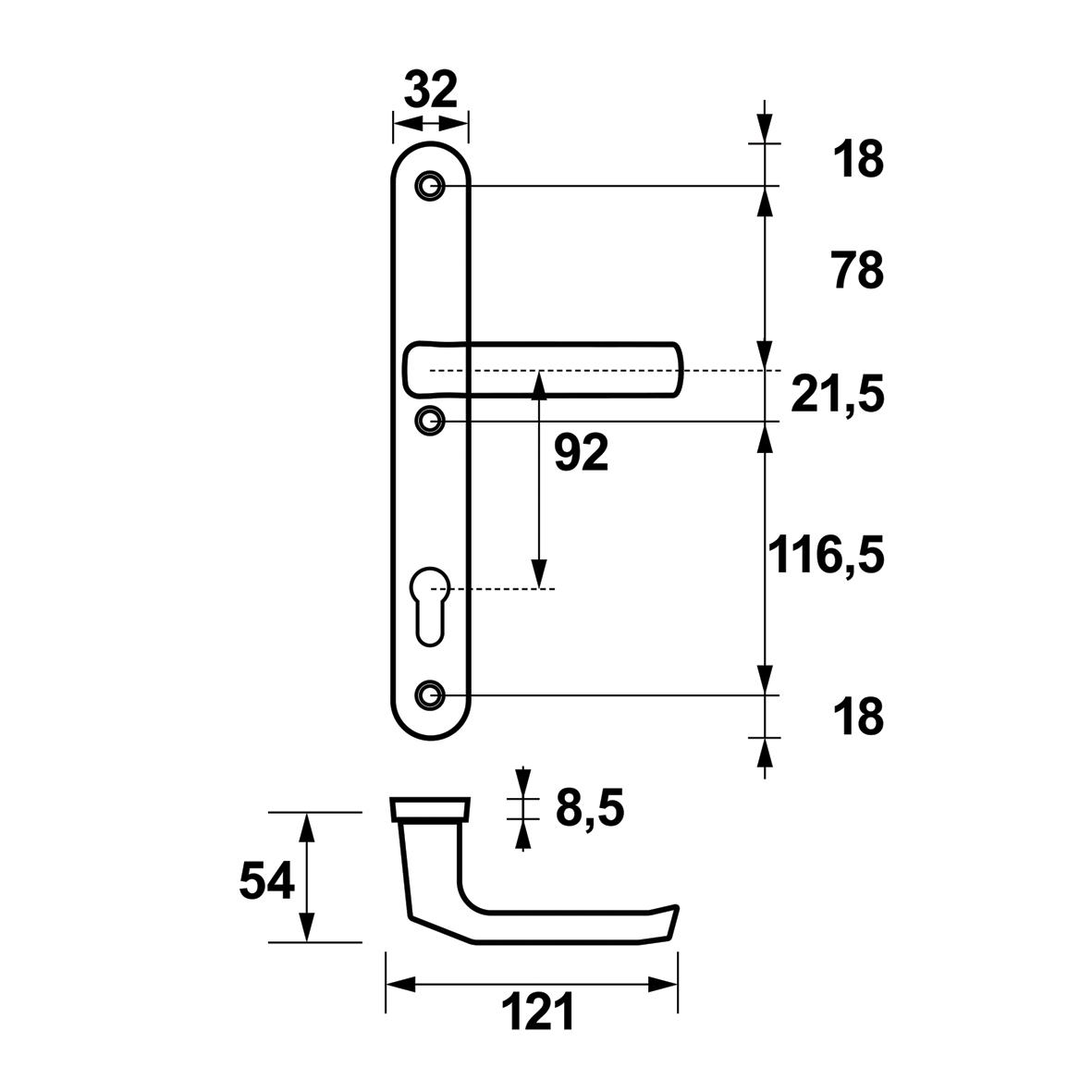

Technical drawings

Alternative products

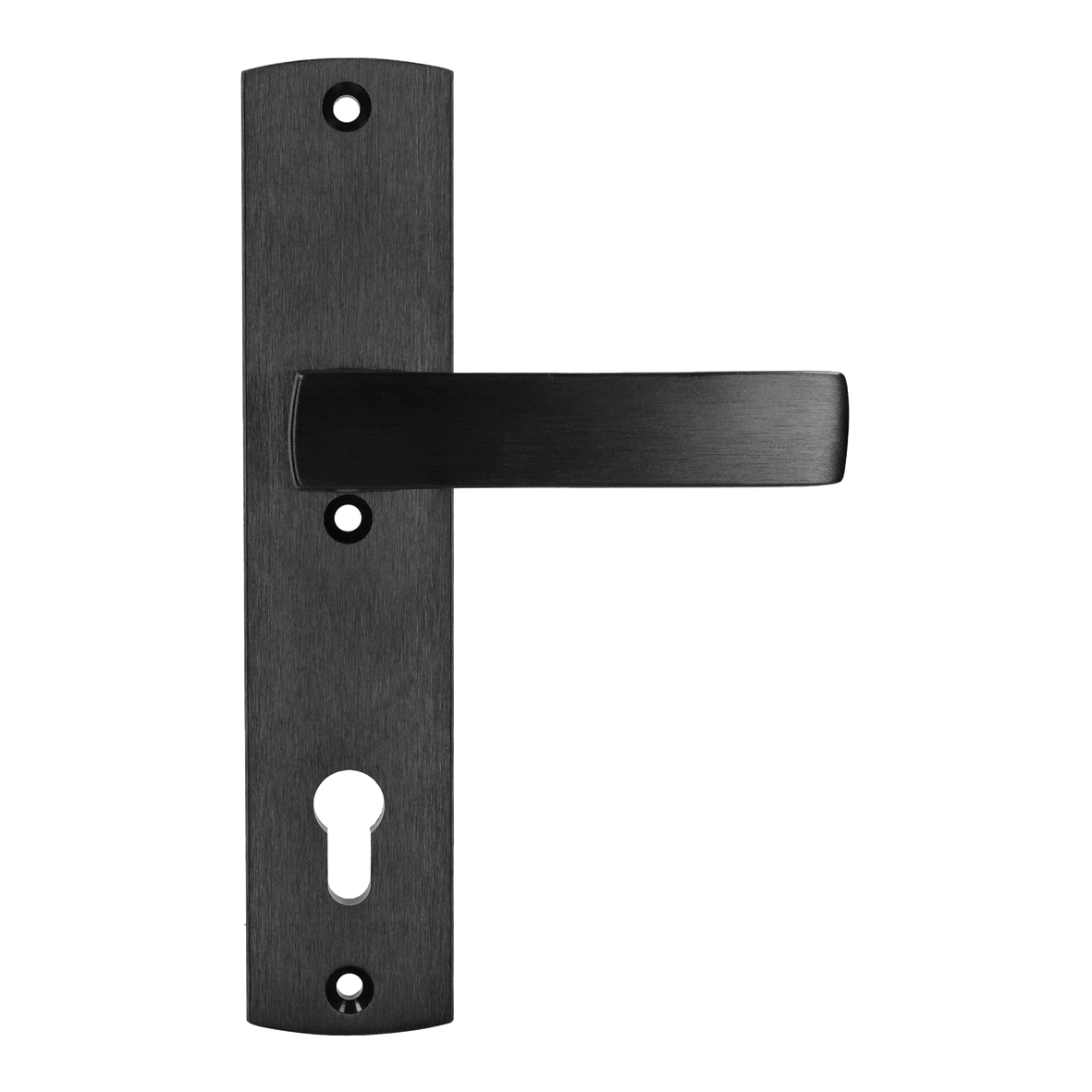

Security backplate Premium inside handle Cube PC92

6662-12-18/92

Similar products

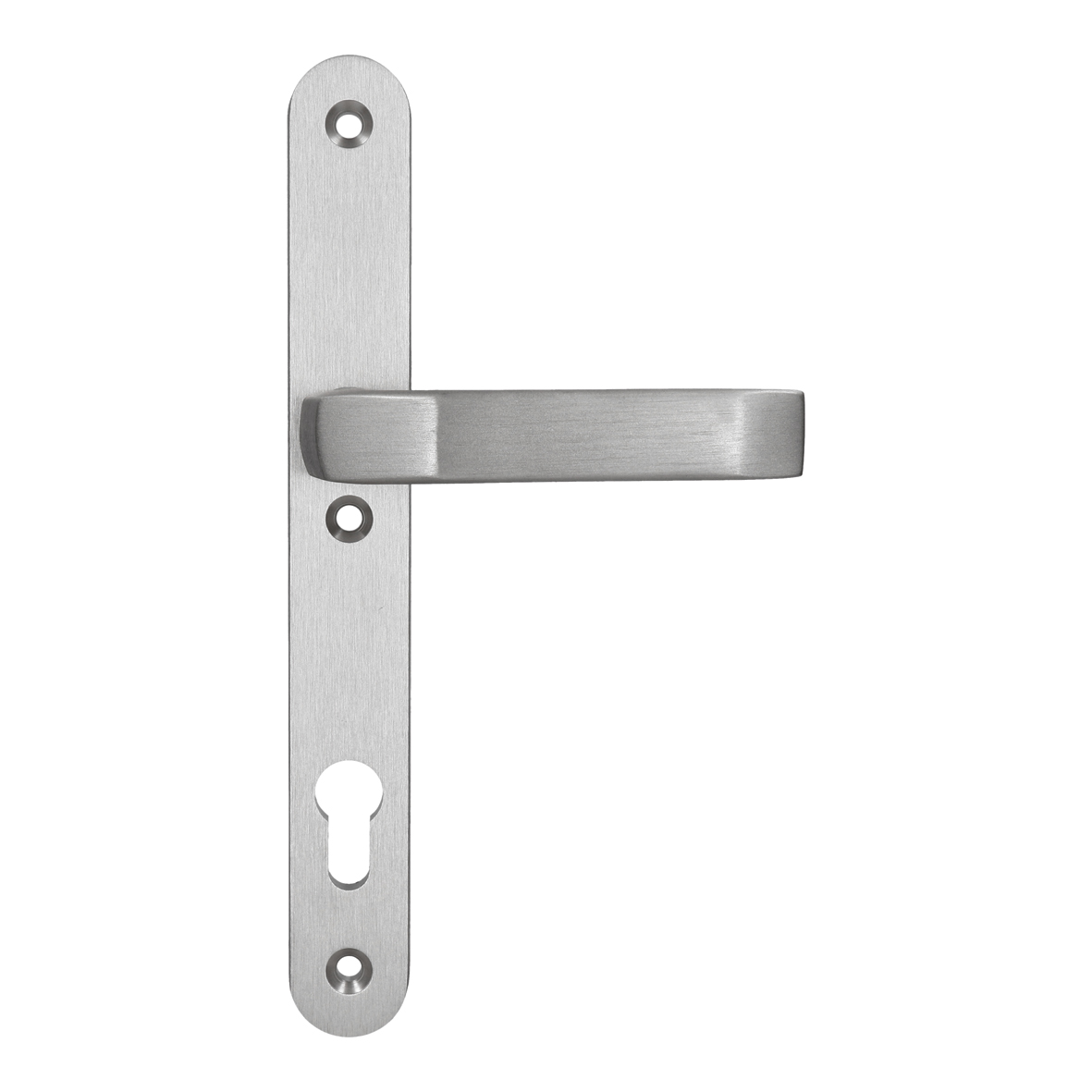

Security backplate Oval Pro narrow inside handle West PC92

6764-80-29/92WIBU
