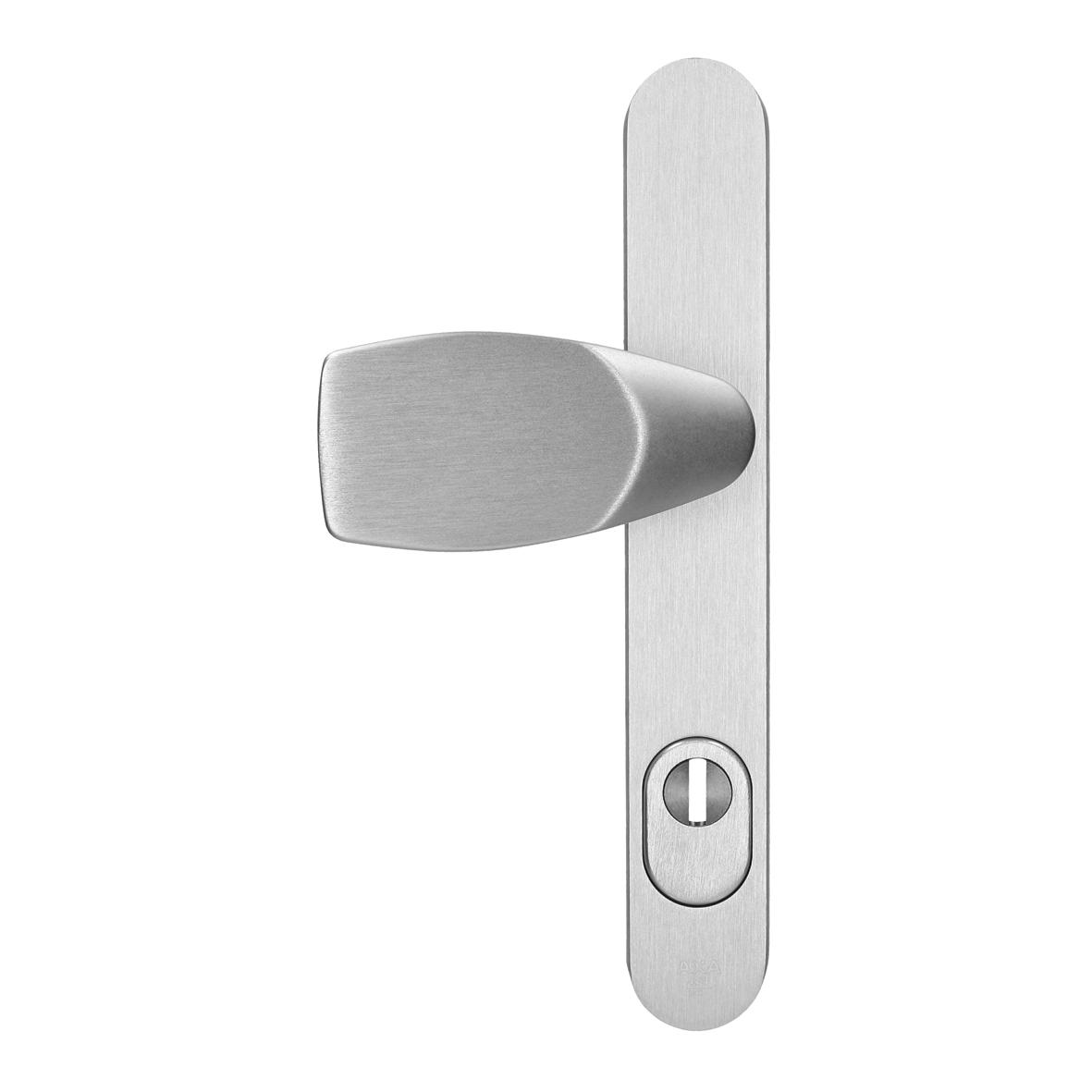

Security backplate Oval Plus narrow outside Wing-knob PC92 core protection

6768-48-11/92BU
arrow_selector
close

SKG 3

Police Hallmark

Reliable and stylish Oval Plus burglar-resistant backplate.

  • sturdy and reliable
  • finely polished and less sensitive to scratches
  • round shapes for optimal run-off stops moisture from affecting paintwork
  • complies with the Police Hallmark for Safe Living, SKG3
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Commercial information
expand_more
Type Oval Plus narrow outside Wing-knob PC92 core protection
Use for front doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable False
Security class (EN 1906) 3
Technical information
expand_more
Product Length 252 mm
Product Width 38 mm
Thickness outside 15 mm
Direction of rotation inward-opening
Shape oval
Outside handle-Pusher-Knob type handle Wing
Handle length 105 mm
Handle depth 53 mm
Handle assembly handle integrated in backplate/rosettes
Spring supported handle True
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Polished anodised F1, natural
Assembly information
expand_more
Including Mounting Material False
Assembly time 20 min
Logistic information
expand_more
Product Weight 560 gr
Pieces per bulk package 8 piece
EAN bulk package 8713249329222
Weight bulk package 4.67 kg
Dimensions bulk package 290 x 200 x 120 mm

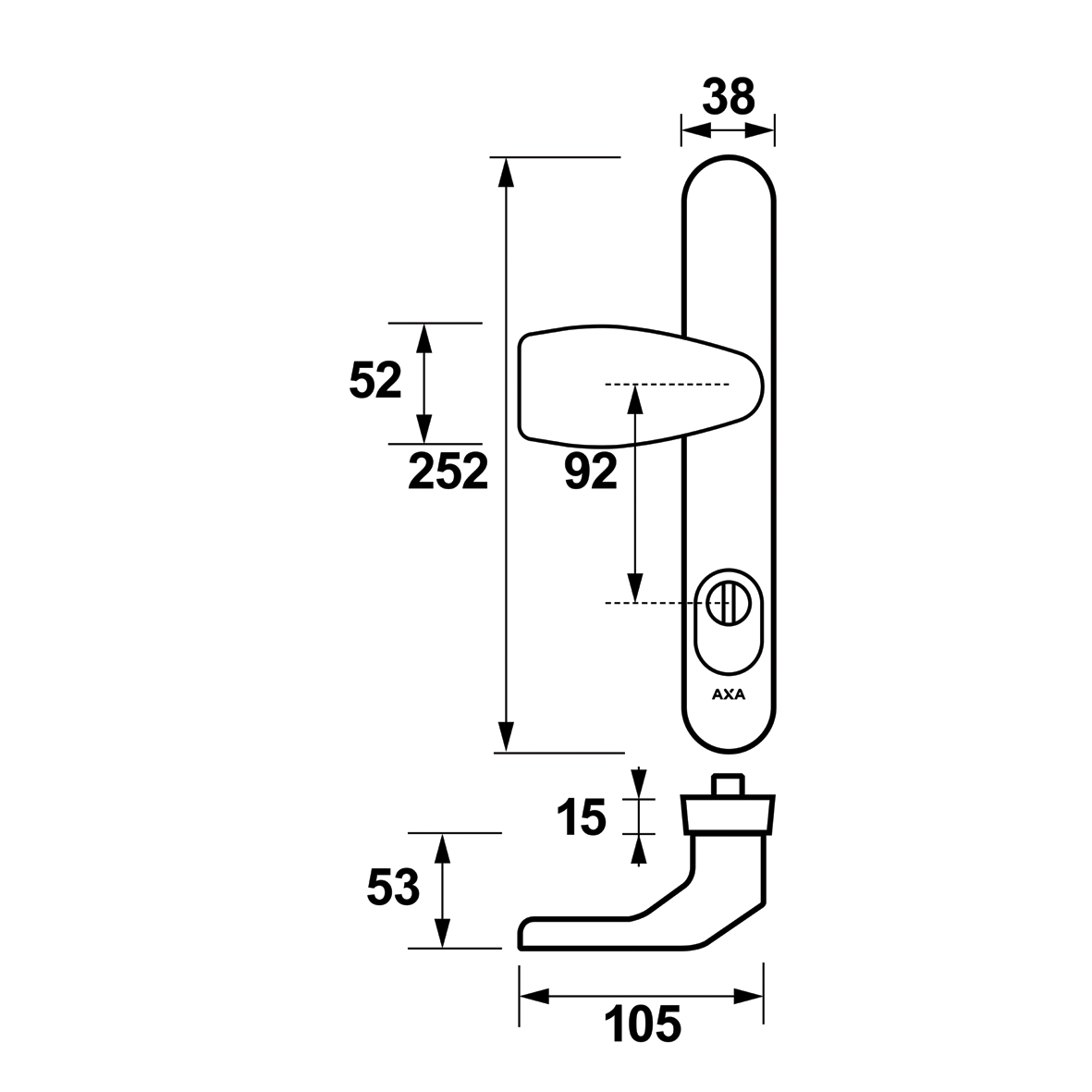

Technical drawings

Alternative products

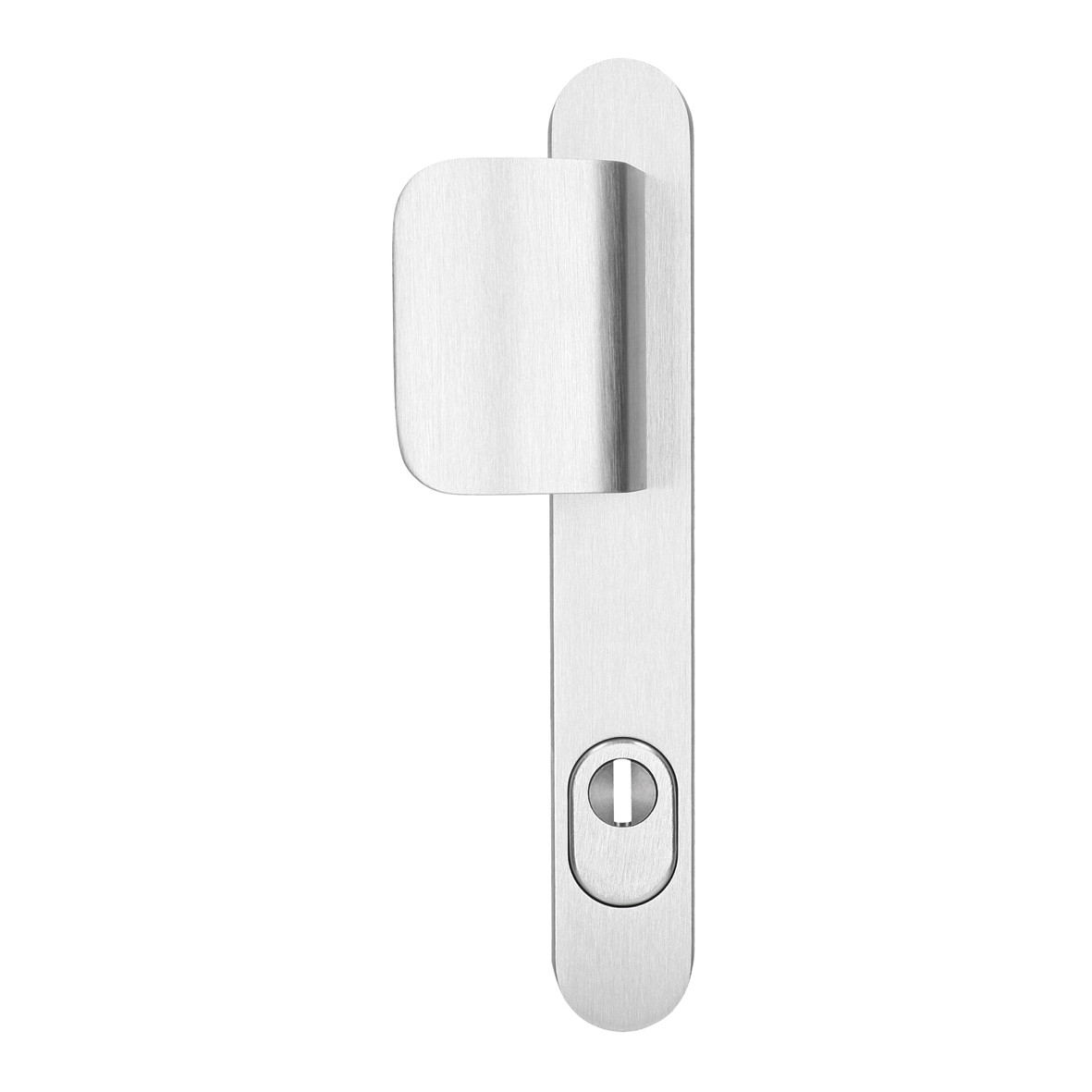

Security backplate Oval Plus narrow outside D-pusher PC92 core protection

6768-34-11/92BU

Similar products

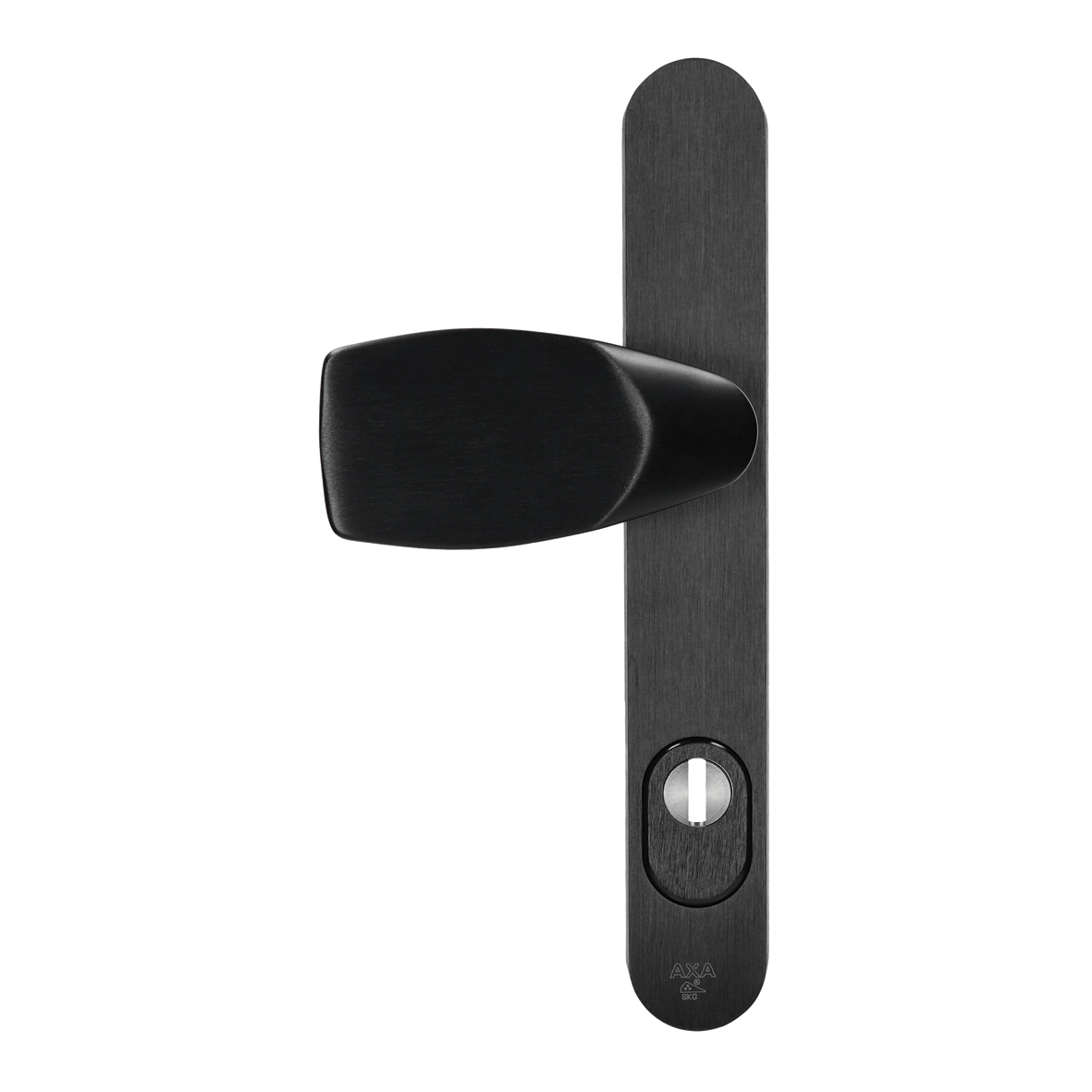

Security backplate Oval Plus narrow outside Wing-knob PC92 core protection

6768-48-18/92BU

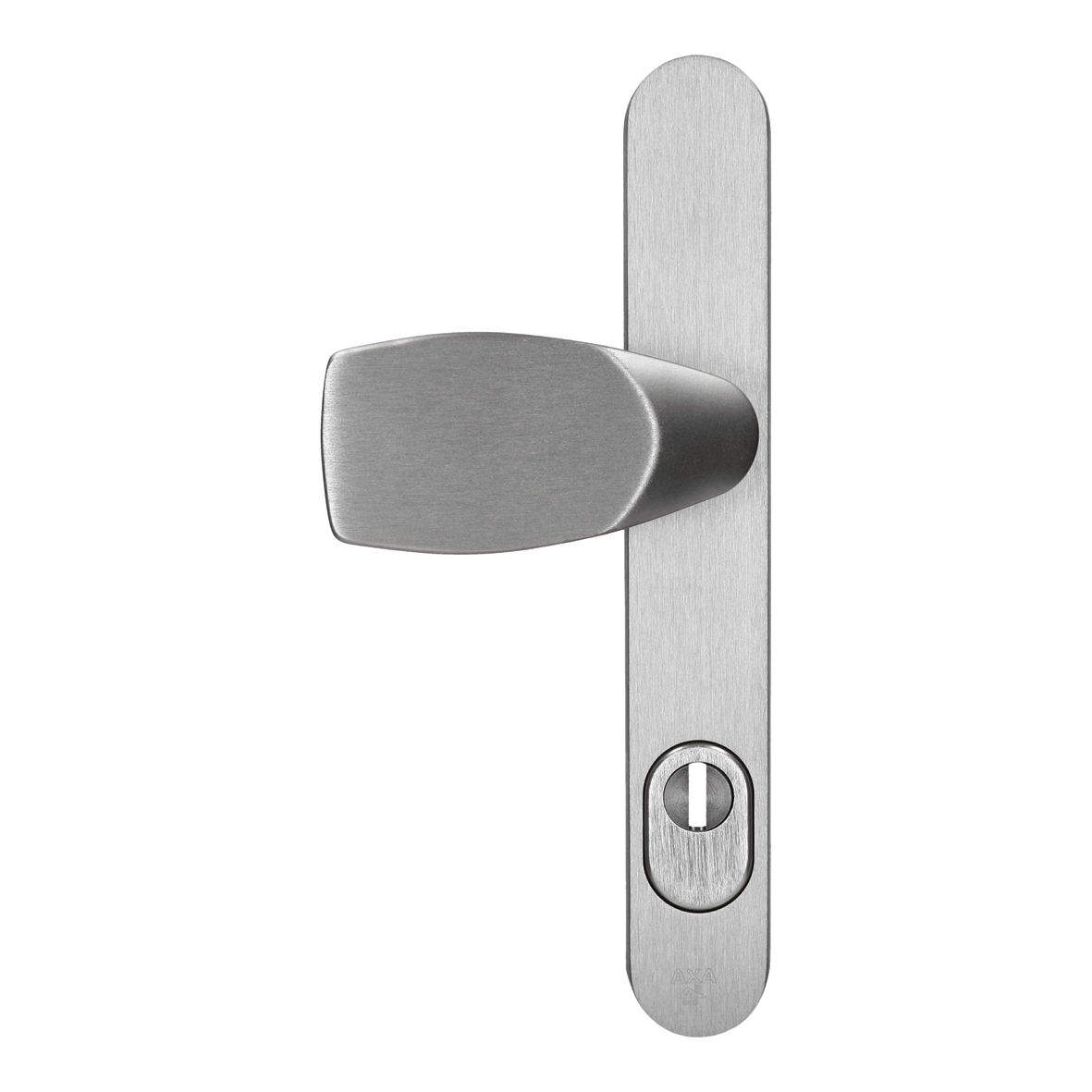

Security backplate Oval Plus narrow outside Wing-knob PC92 core protection

6768-48-29/92BU
