Security backplate Oval Plus handle U inside PC69 slide door

6744-85-11/69US
arrow_selector

SKG 3

Police Hallmark

Reliable and stylish Oval Plus security backplate.

  • sturdy and reliable
  • finely polished and less sensitive to scratches
  • seal prevents damage to the paintwork

Specifications

Commercial information
expand_more
Type Oval Plus handle U inside PC69 slide door
Use for lift-slide doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable False
Technical information
expand_more
Product Length 180 mm
Product Length 2 307 mm
Product Width 38 mm
Thickness inside 15 mm
Shape oval
Inside handle type handle U
Handle length 270 mm
Handle depth 75 mm
Handle assembly handle integrated in backplate/rosettes
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Polished anodised F1, natural
Assembly information
expand_more
Including Mounting Material False
Assembly time 5 min
Logistic information
expand_more
Pieces per small package 1 piece
EAN small package 8713249352787
Weight small package 0.67 kg
Dimensions small package 318 x 105 x 50 mm
Pieces per bulk package 5 piece
EAN bulk package 8713249352794
Dimensions bulk package 320 x 280 x 160 mm

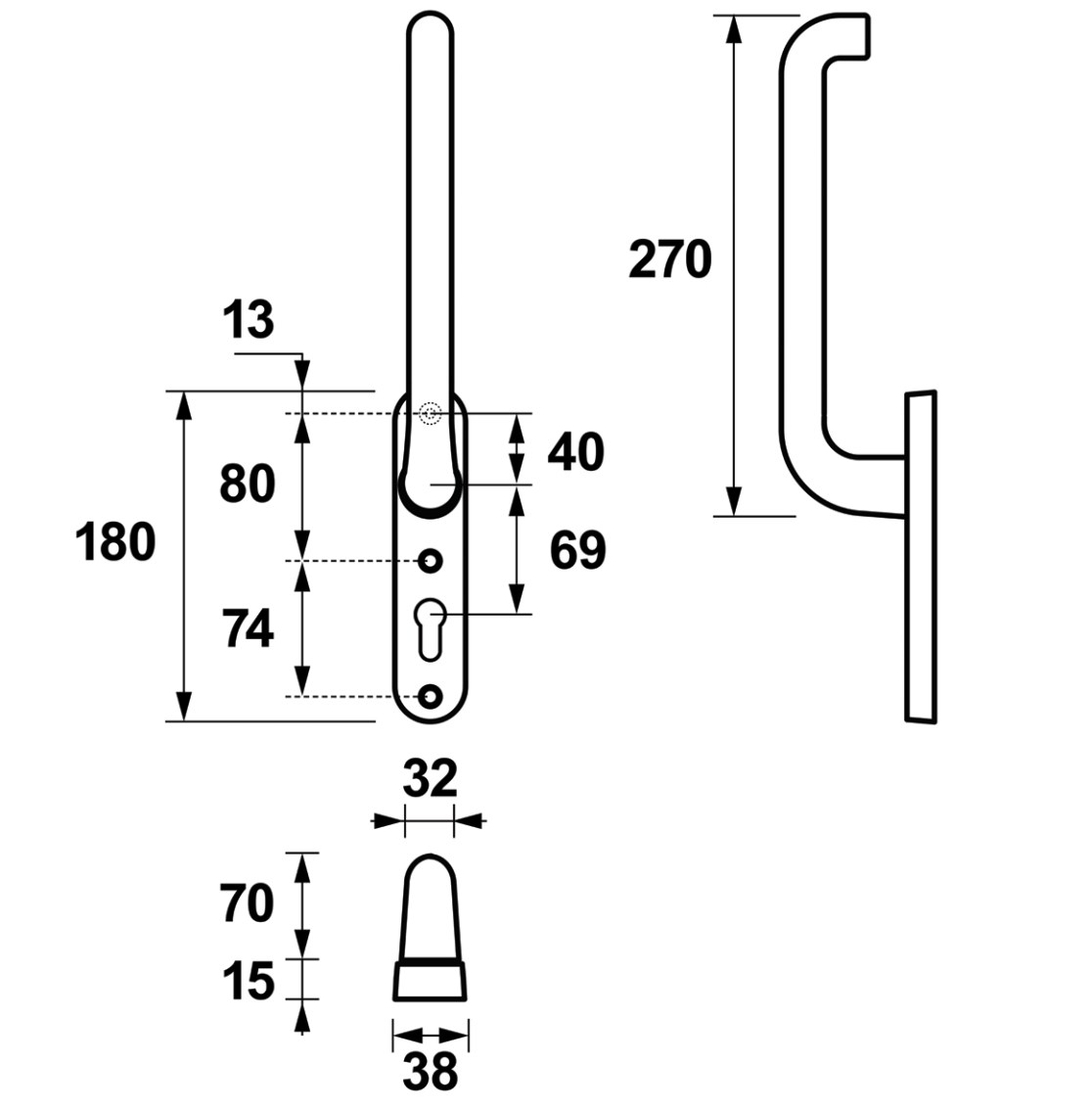

Technical drawings

Associated products

Spindle + set of bolts 10×130+M6x70 (3x)

6741-37-57/E

Spindle + set of bolts 10×160+M6x100 (3x)

6741-67-57/E

Spindle + set of bolts 10×130+M6x70 (3x)

6741-37-23/E

Spindle + set of bolts 10×160+M6x100 (3x)

6741-67-23/E

Spindle + set of bolts 10×150+M6x90 (3x)

6741-57-23/E

Spindle + set of bolts 10×150+M6x90 (3x)

6741-57-57/E

Half spindle + set of bolts 10×75+M6x70 (3x)

6740-77-57/E

Half spindle + set of bolts 10×100+M6x100 (3x)

6740-07-57/E

Half spindle + set of bolts 10×75+M6x70 (3x)

6740-77-23/E

Half spindle + set of bolts 10×100+M6x100 (3x)

6740-07-23/E

Half spindle + set of bolts 10×85+M6x90 (3x)

6740-97-23/E

Half spindle + set of bolts 10×85+M6x90 (3x)

6740-97-57/E

Alternative products

Security backplate Oval Plus handle U inside blind slide door

6744-85-11/US

Security backplate Edge Plus handle Blok inside PC69 slide door

6743-85-11/69KS

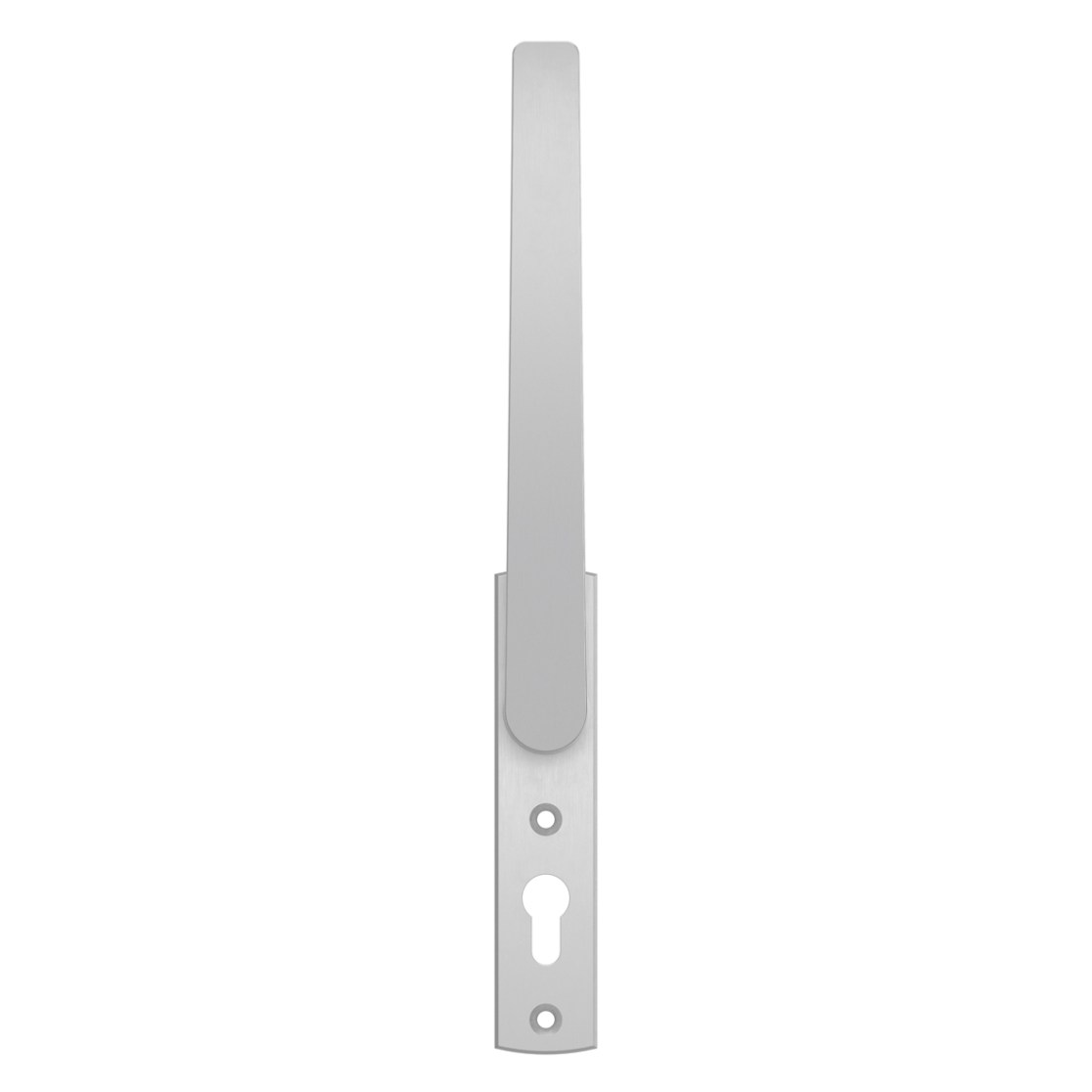

Security backplate Curve Plus handle Blok inside PC69 slide door
