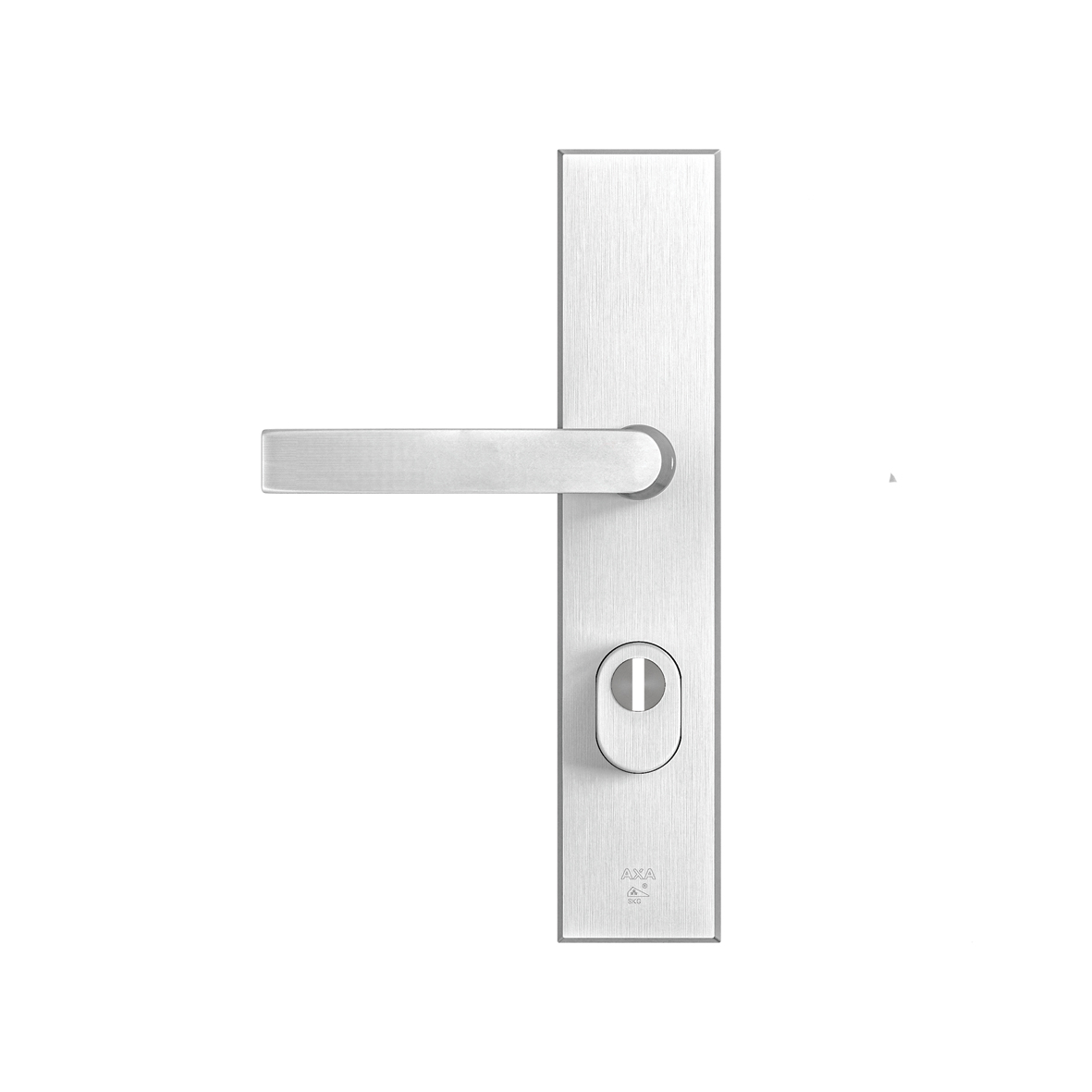

Security backplate Edge Pro outside handle Blok PC72 core protection

6667-90-11/72KIBU
arrow_selector
close

SKG 3

bronze

Police Hallmark

Reliable and stylish Edge Pro burglar-resistant security outside backplate.

  • sturdy and reliable, handle directly on backplate specially made for intensive use
  • spring-supported handle, prevents dropping handles due to limp lock spring
  • larger shield size usually completely covers the imprint of the old shield
Specifications Downloads Technical drawings

Specifications

Commercial information
expand_more
Type Edge Pro outside handle Blok PC72 core protection
Use for exterior doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable False
Cradle to Cradle certification bronze
Technical information
expand_more
Product Length 252 mm
Product Width 52 mm
Thickness outside 12 mm
Direction of rotation outward and inward-opening
Shape right
Outside handle-Pusher-Knob type handle Block
Handle length 125 mm
Handle depth 60 mm
Handle assembly handle integrated in backplate/rosettes
Spring supported handle True
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Polished anodised F1, natural
Assembly information
expand_more
Including Mounting Material False
Assembly time 20 min
Logistic information
expand_more
Pieces per bulk package 8 piece
EAN bulk package 8713249362762
Dimensions bulk package 290 x 200 x 120 mm

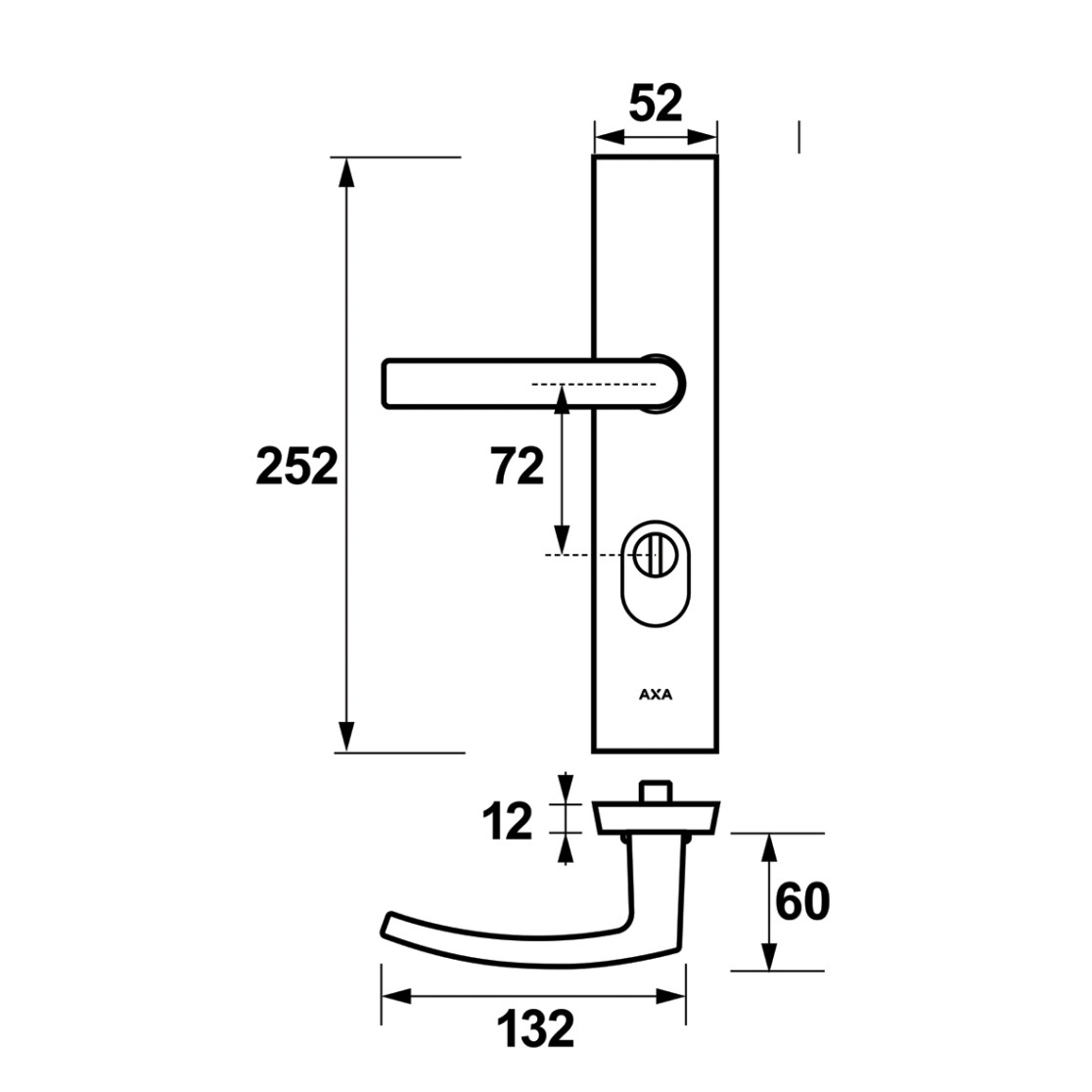

Technical drawings
