Security backplate Edge Plus outside Wing-knob PC55 core protection

6667-48-11/55BU
arrow_selector
close

SKG 3

bronze

Police Hallmark

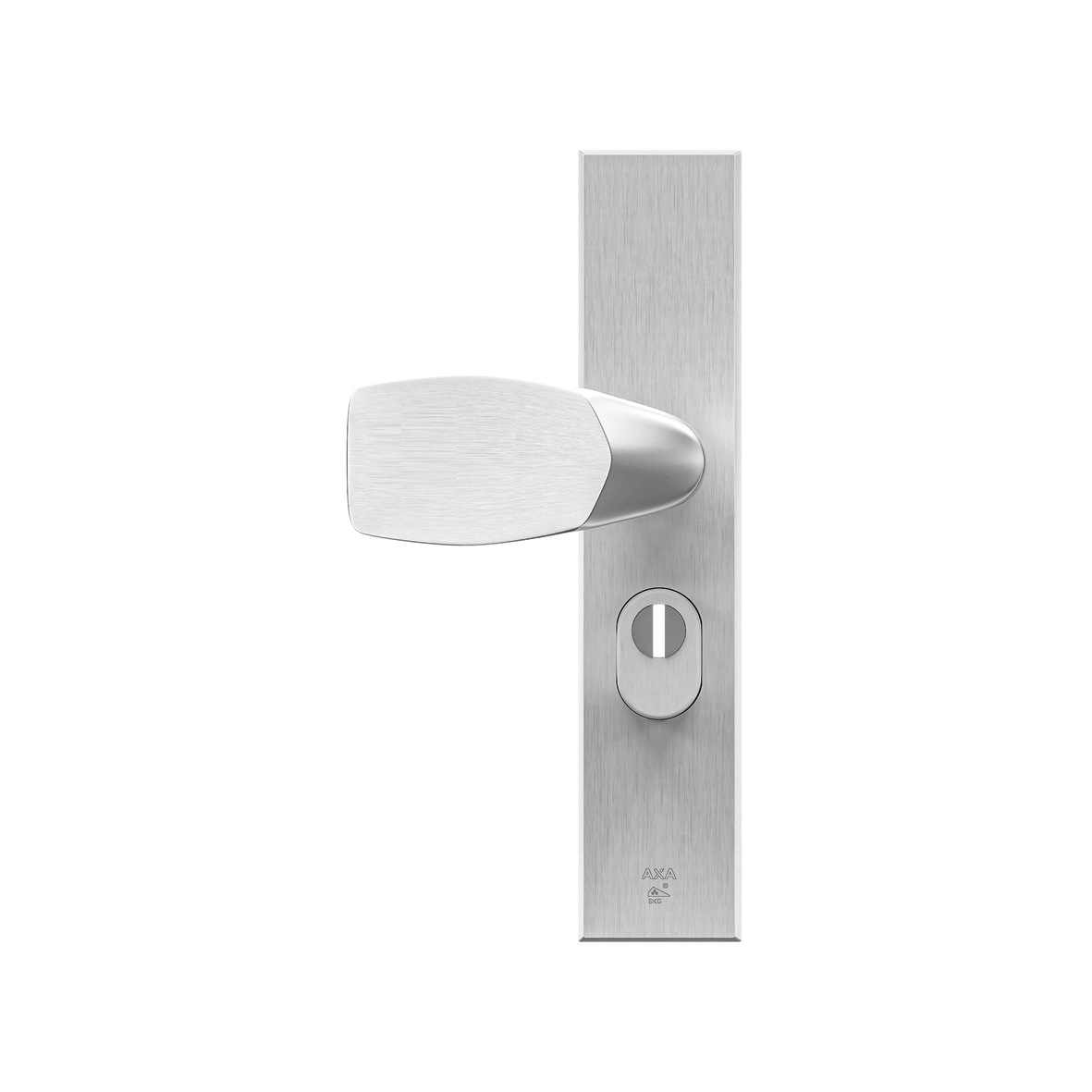

Reliable and stylish Edge Plus burglar-resistant backplate.

  • sturdy and reliable
  • for both left and right-opening doors (the knob is reversible)
  • with Self-aligning Cylinder Core Protection (SCP)
  • finely polished and less sensitive to scratches
  • seal prevents damage to the paintwork when dismounting and keeps water and draught out effectively
  • complies with the Police Hallmark for Safe Living and SKG3
Specifications Downloads Technical drawings
Commercial information
expand_more
Type Edge Plus outside Wing-knob PC55 core protection
Use for front doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE certificate of conformity False
Cradle to Cradle sustainability label bronze
Technical information
expand_more
Product Length 252 mm
Product Width 52 mm
Thickness Security backplate/rosette outside 12 mm
Direction of rotation inward-opening
Shape right
Outside security backplate handle-pusher-knob type Wing-Knob
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Polished anodised F1, natural
Assembly information
expand_more
Including Mounting Material False
Assembly time 20 min
Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- 8 x 75 mm exchangeable shank: 1 piece
Logistic information
expand_more
EAN small package 8713249346632
Pieces per bulk package 8 piece
EAN bulk package 8713249368221
Dimensions bulk package 290 x 200 x 120 mm

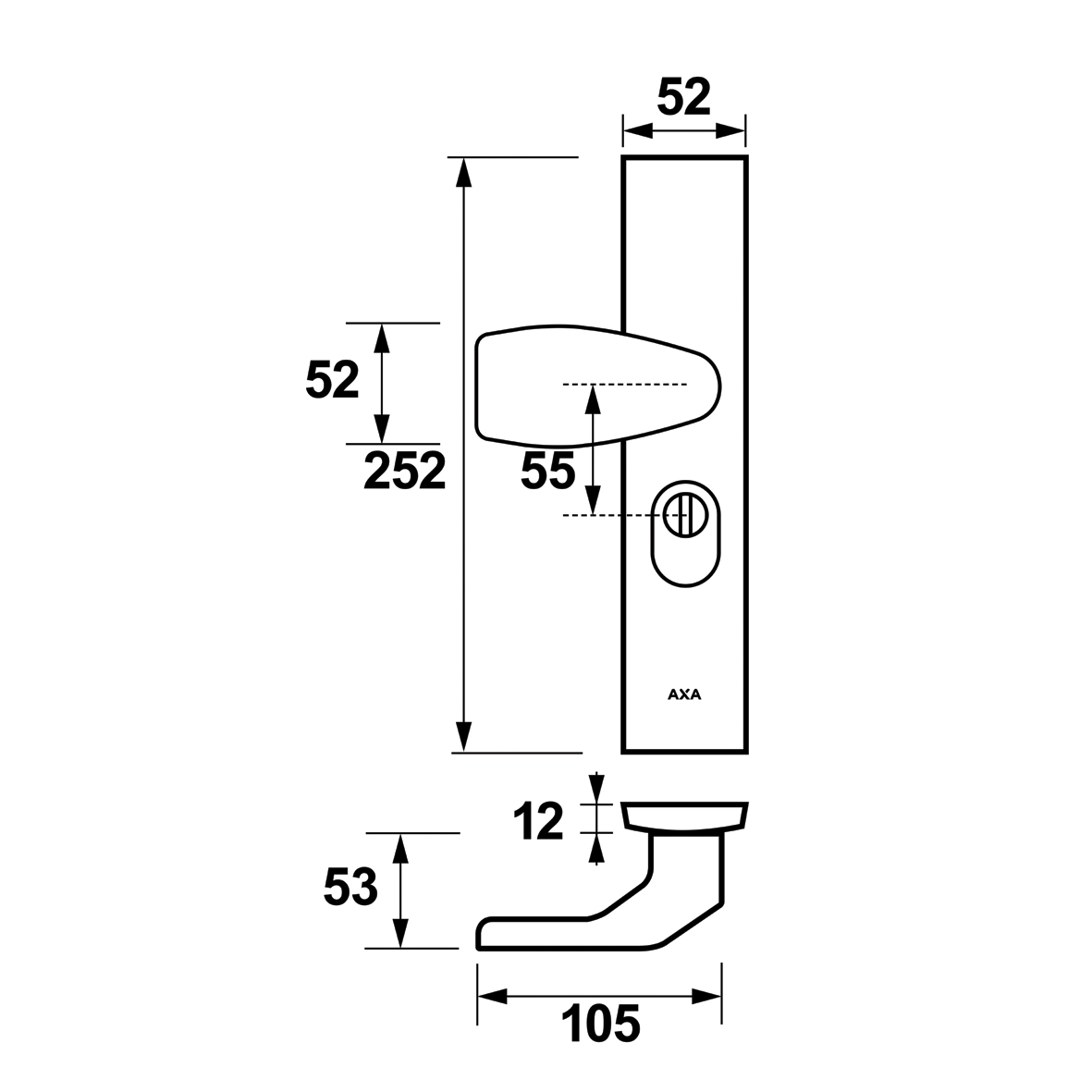

Technical drawings
Security backplate Edge Plus outside Wing-knob PC55 core protection
6667481155BU
